(10 PCS) SN74F10D TI NAND Gate IC 3 Channel 14-SOIC
Tax included.

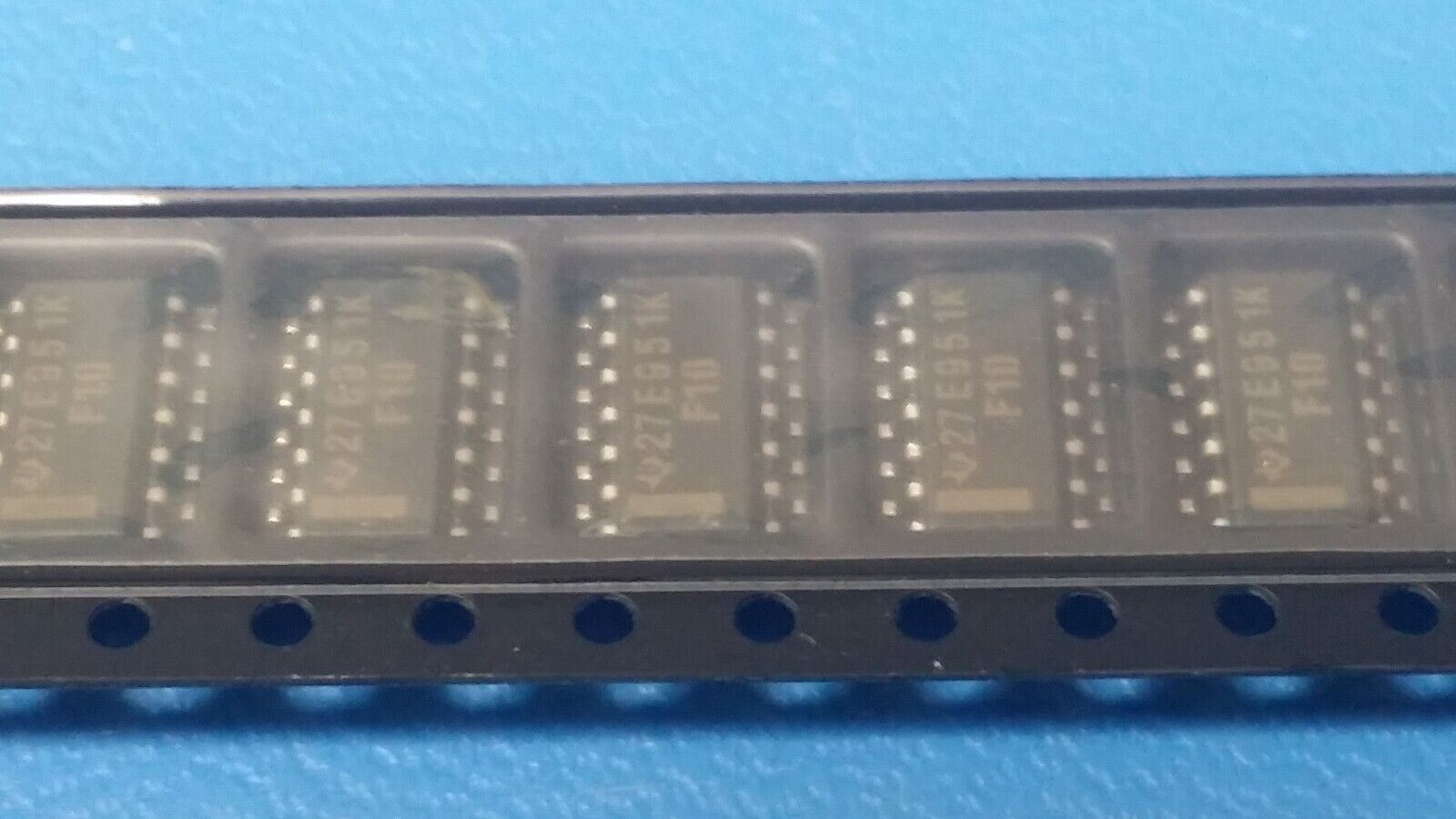

THIS IS FOR (10 PCS) OF SN74F10D BY TI
NAND Gate IC 3 Channel 14-SOIC
Manufacturer: Texas Instruments
Product Category: Logic Gates
RoHS: N
Product: Single-Function Gate
Logic Function: NAND
Logic Family: F
Number of Gates: 3 Gate
Number of Input Lines: 3 Input
Number of Output Lines: 1 Output
High Level Output Current: - 20 mA
Low Level Output Current: 1 mA
Propagation Delay Time: 6 ns
Supply Voltage - Max: 5.5 V
Supply Voltage - Min: 4.5 V
Minimum Operating Temperature: 0 C
Maximum Operating Temperature: + 70 C
Mounting Style: SMD/SMT
Package / Case: SOIC-14
Packaging: Reel
Packaging: Cut Tape
Brand: Texas Instruments
Function: NAND
Height: 1.58 mm
Input Type: TTL
Length: 8.65 mm
Logic Type: 3-Input NAND
Number of Bits: 3 bit
Operating Supply Current: 7.7 uA
Operating Supply Voltage: 5 V
Operating Temperature Range: 0 C to + 70 C
Output Type: TTL
Product Type: Logic Gates
Series: SN74F10
2500
Subcategory: Logic ICs
Width: 3.91 mm
Unit Weight: 0.004564 oz
