(10 PCS) SN74ALS21N TI/MOT AND Gate 2-Element 4-IN Bipolar 14-Pin PDIP Tube
Tax included.

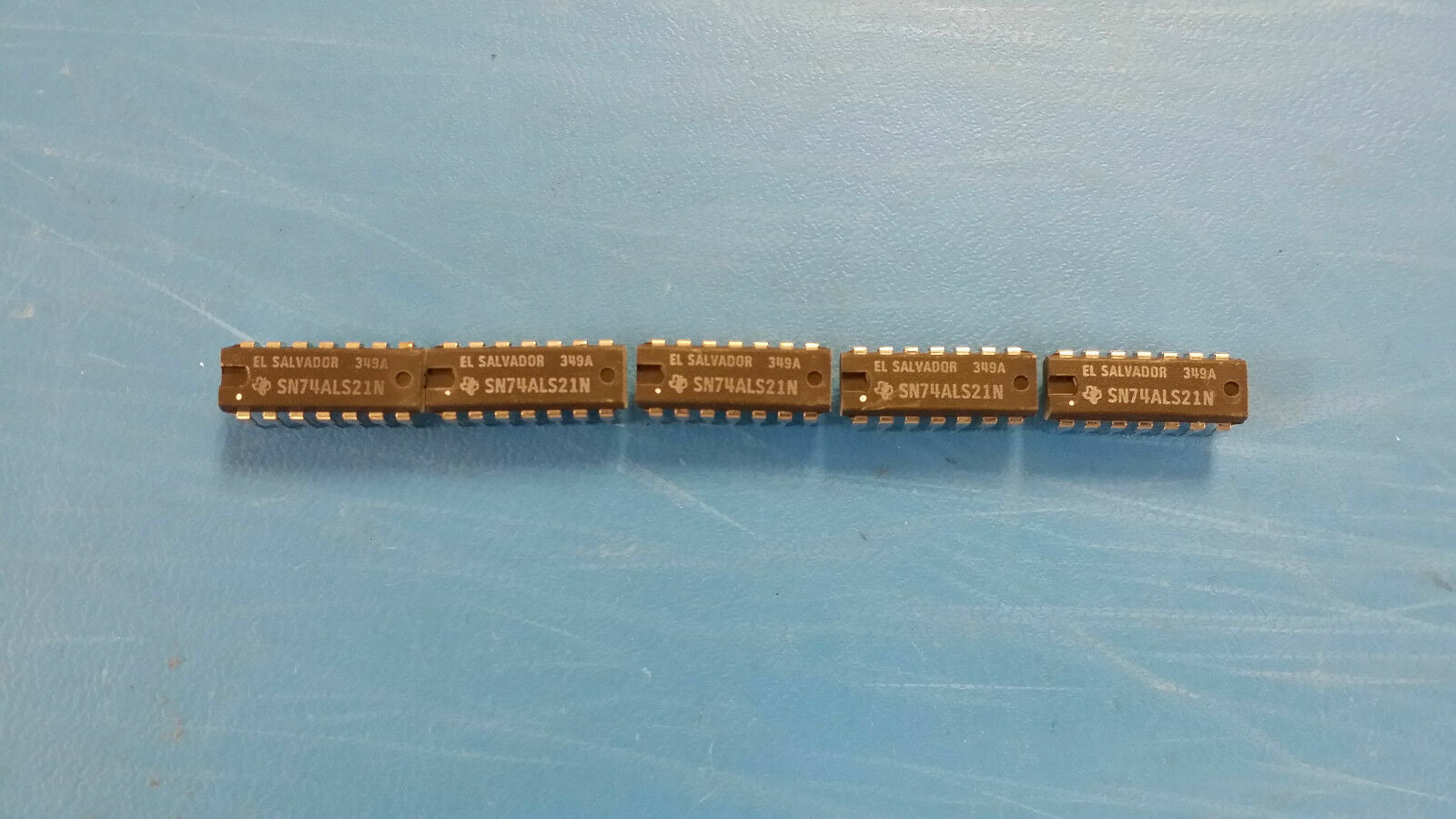

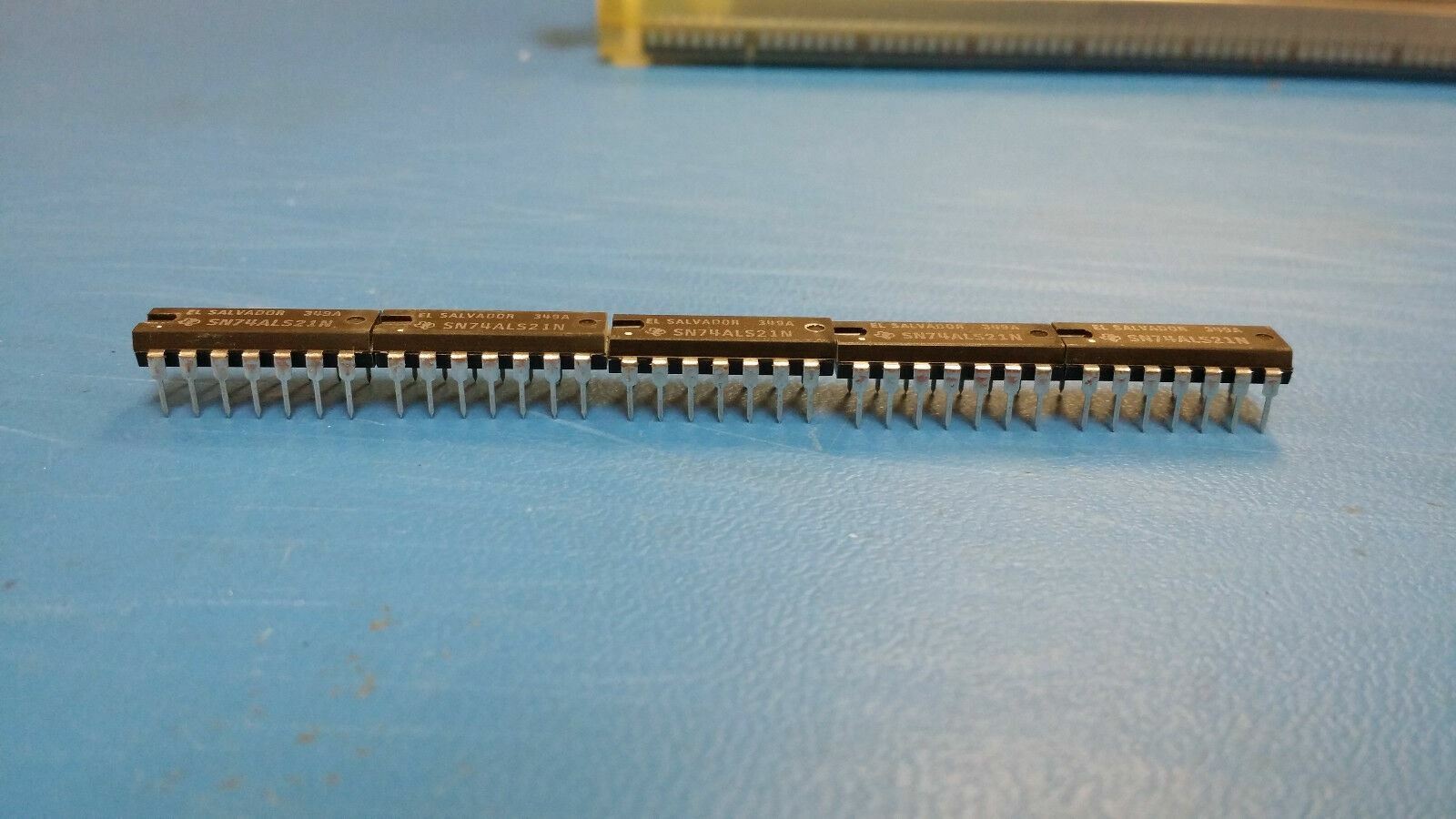

THIS LISTING IS FOR (10 PCS) OF SN74ALS21N BY TEXAS INSTRUMENTS AND/OR MOTOROLA
AND Gate 2-Element 4-IN Bipolar 14-Pin PDIP
AND Gate 2-Element 4-IN Bipolar 14-Pin PDIP
SN74ALS21N Part Details & Parametric
| Logic Family | ALS |
| Logic Function | AND |
| Number of Element Inputs | 4-IN |
| Number of Element Outputs | 1 |
| Number of Elements per Chip | 2 |
| Fabrication Technology | Bipolar |
| Minimum Operating Supply Voltage (V) | 4.5 |
| Maximum Operating Supply Voltage (V) | 5.5 |
| Typical Operating Supply Voltage (V) | 5 |
| Maximum High Level Output Current (mA) | -0.4 |
| Maximum Low Level Output Current (mA) | 8 |
| Minimum Operating Temperature (°C) | 0 |
| Maximum Operating Temperature (°C) | 70 |
| Packaging | Tube |
| Mounting | Through Hole |
| Package Height (mm) | 5.08(Max) - 0.51(Min) |
| Package Length (mm) | 19.69(Max) |
| Package Width (mm) | 6.6(Max) |
| PCB | 14 |
| Standard Package Name | DIP |
| Supplier Package | PDIP |
| Pin Count | 14 |
| Lead Shape | Through Hole |
