(10 PCS) SN74ABT573APWLE TI Bus Driver 1-Func 8-Bit CMOS TSSOP20
Tax included.

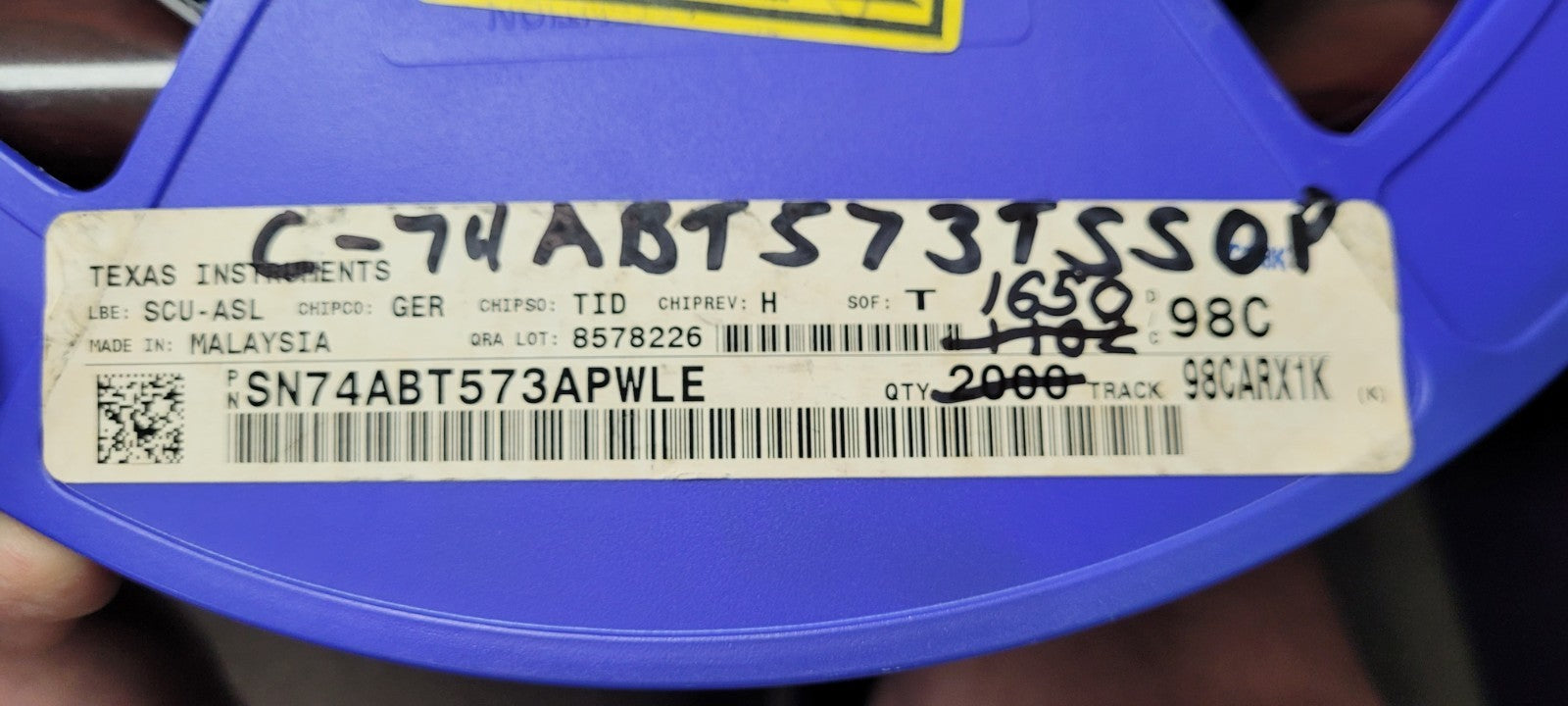

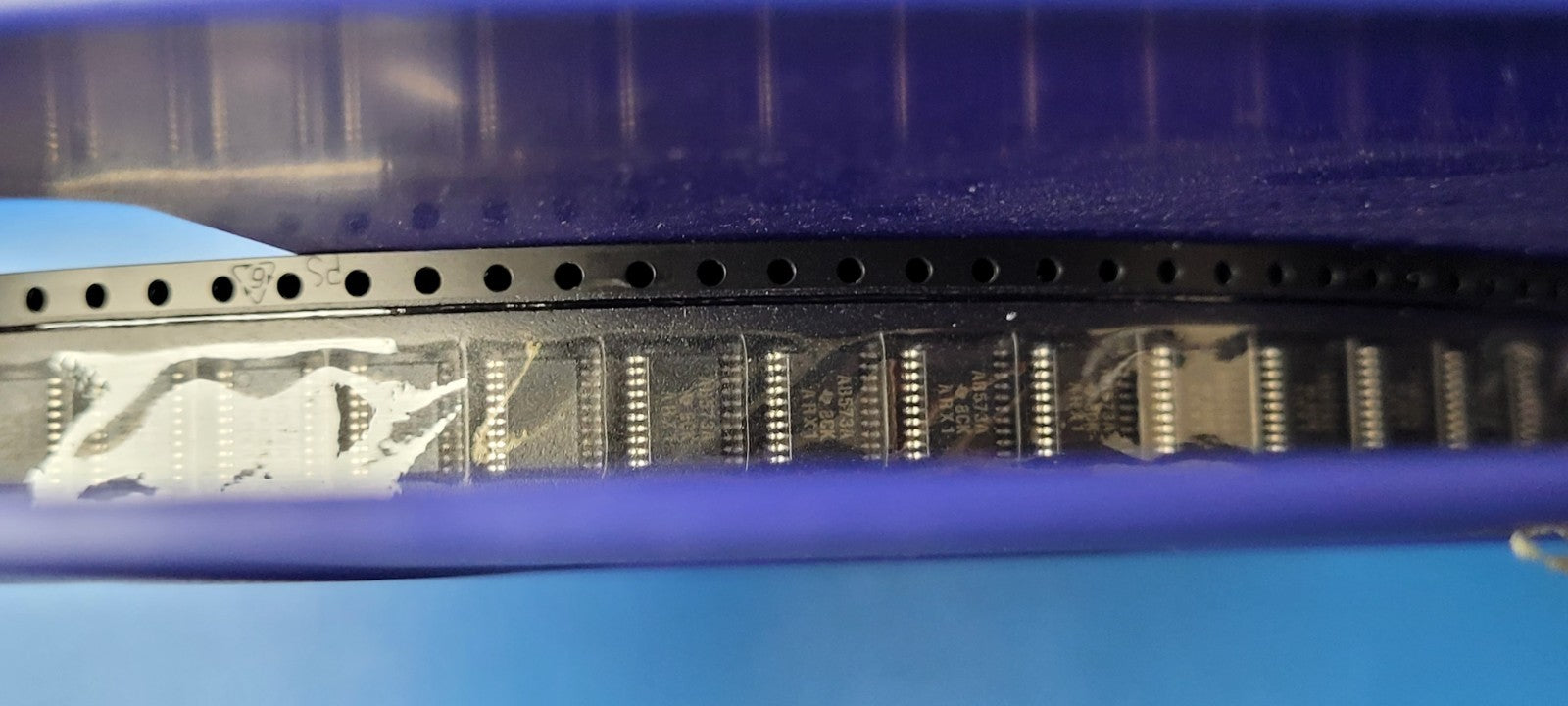

THIS IS FOR (10 PCS) OF SN74ABT573APWLE BY TI
Bus Driver 1-Func 8-Bit CMOS TSSOP20
Part #: SN74ABT573APWLE
Obsolete
Part Category: Bus Driver/Transceivers
Manufacturer: TEXAS INSTRUMENTS INC
Description: Bus Driver, ABT Series, 1-Func, 8-Bit, True Output, BICMOS, PDSO20
Status Discontinued
Additional Feature BROADSIDE VERSION OF 373
Control Type ENABLE LOW
Direction UNIDIRECTIONAL
Family ABT
JESD-30 Code R-PDSO-G20
Length (mm) 6.5000
Load Capacitance (pF) 50.0000
Logic IC Type BUS DRIVER
Output Low Current-Max (mA) 64.000000000000000
Number of Bits 8
Number of Functions 1
Number of Ports 2
Number of Terminals 20
Operating Temperature-Max (Cel) 85
Operating Temperature-Min (Cel) -40
Output Characteristics 3-STATE
Output Polarity TRUE
Package Body Material PLASTIC/EPOXY
Package Code TSSOP
Package Equivalence Code TSSOP20,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Packing Method TR
Peak Reflow Temperature (Cel) NOT SPECIFIED
Supply Current-Max (mA) 30.00000000
Propagation Delay-Max@Nom-Sup (ns) 6.200000000000000000
Propagation Delay (ns) 7.2000
DLA Qualification Not Qualified
Seated Height-Max (mm) 1.2000
Supply Voltage-Max (V) 5.5000
Supply Voltage-Min (V) 4.5000
Supply Voltage-Nom (V) 5
Surface Mount YES
Technology BICMOS
Temperature Grade INDUSTRIAL
Terminal Form GULL WING
Terminal Pitch (mm) 0.650
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Trigger Type HIGH LEVEL
Width (mm) 4.4000
