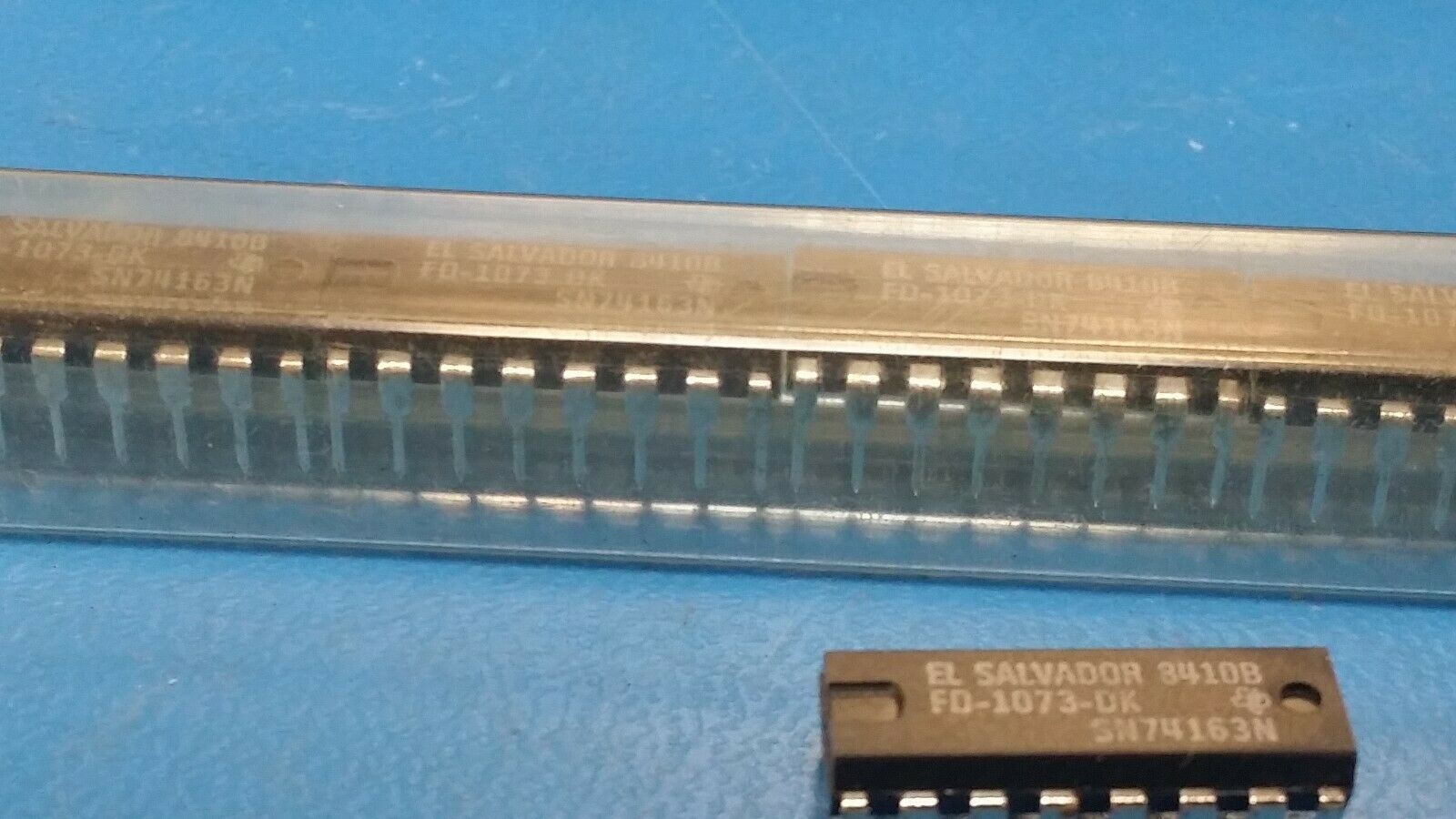

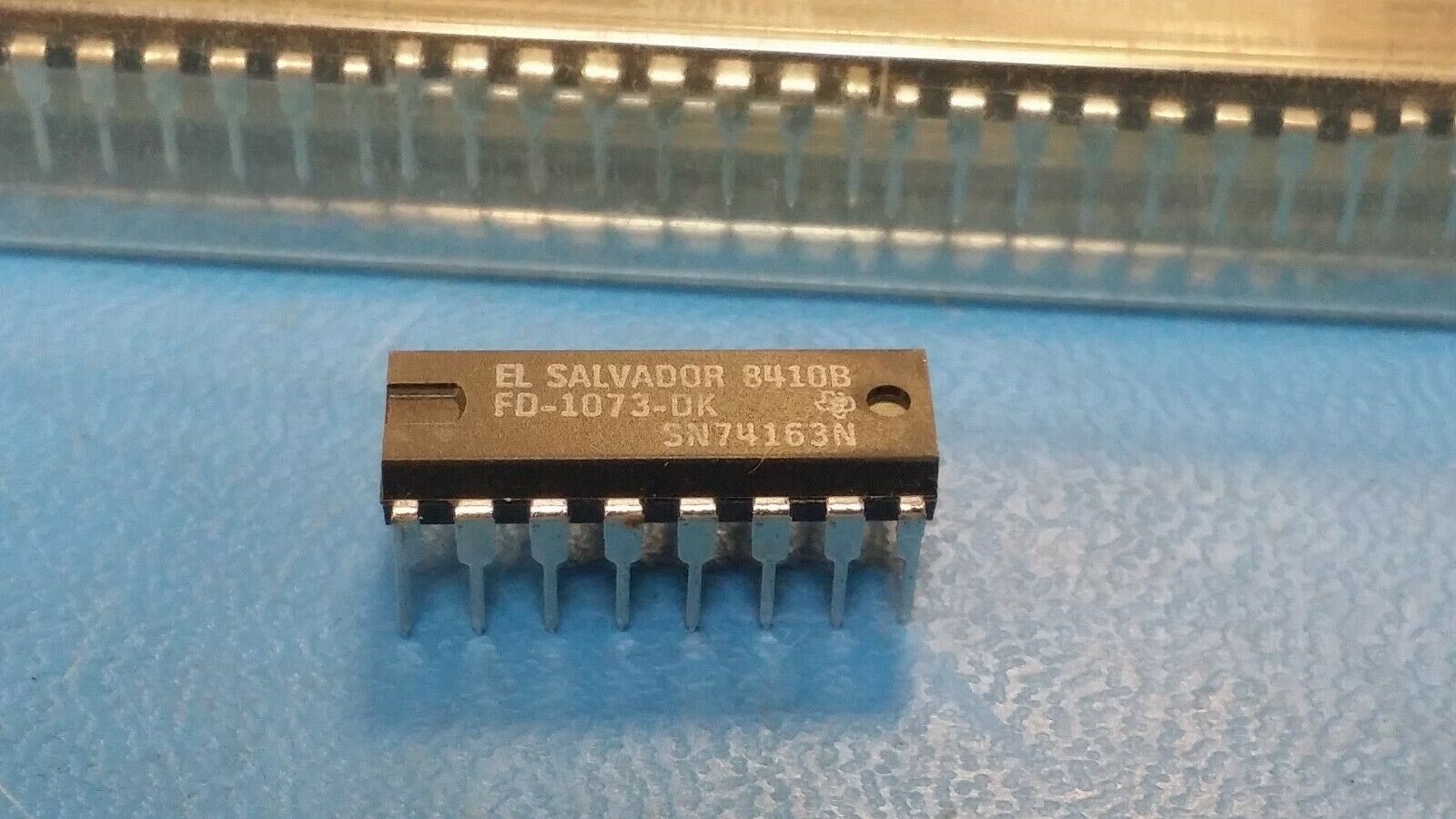

(10 PCS) SN74163N TI Binary Counter, Synchronous, Up Direction, TTL, PDIP16
Tax included.
THIS LISTING IS FOR (10 PCS) OF SN74163N BY TI
Binary Counter, Synchronous, Up Direction, TTL, PDIP16
Part #: SN74163N
Part Category: Logic ICs
Manufacturer: Texas Instruments High-Performance Analog
Description: Binary Counter, TTL/H/L Series, Synchronous, Positive Edge Triggered, 4-Bit, Up Direction, TTL, PDIP16
Mfr Package Description PLASTIC, DIP-16
Status Discontinued
Logic IC Type BINARY COUNTER
Sub Category Counters
Count Direction UP
Family TTL/H/L
fmax-Min 25.0 MHz
JESD-30 Code R-PDIP-T16
Load Capacitance (CL) 15.0 pF
Load/Preset Input YES
Max Frequency@Nom-Sup 2.5E7 Hz
Max I(ol) 0.016 Amp
Mode of Operation SYNCHRONOUS
Number of Bits 4
Number of Functions 1
Number of Terminals 16
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP16,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Power Supply Current-Max (ICC) 101.0 mA
Propagation Delay (tpd) 29.0 ns
Qualification Status Not Qualified
Seated Height-Max 5.08 mm
Supply Voltage-Nom (Vsup) 5
Supply Voltage-Min (Vsup) 4.75 V
Supply Voltage-Max (Vsup) 5.25 V
Surface Mount NO
Technology TTL
Temperature Grade COMMERCIAL
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Trigger Type POSITIVE EDGE
Length 19.305 mm
Width 7.62 mm
Additional Feature TCO OUTPUT
