(10 PCS) SN7414N TI HEX INVERTER SCHMITT TRIGGER 14PIN DIP
Tax included.

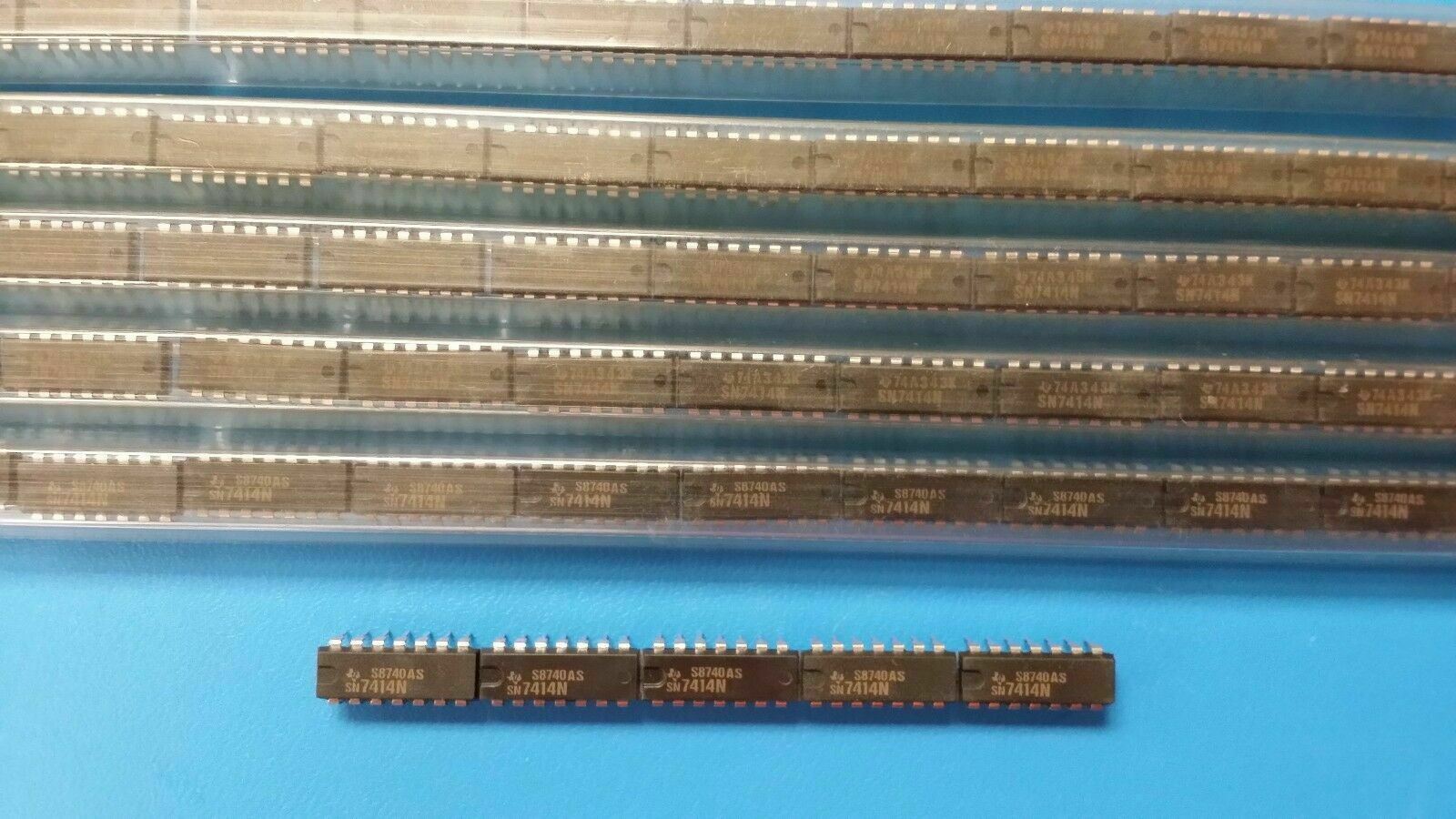

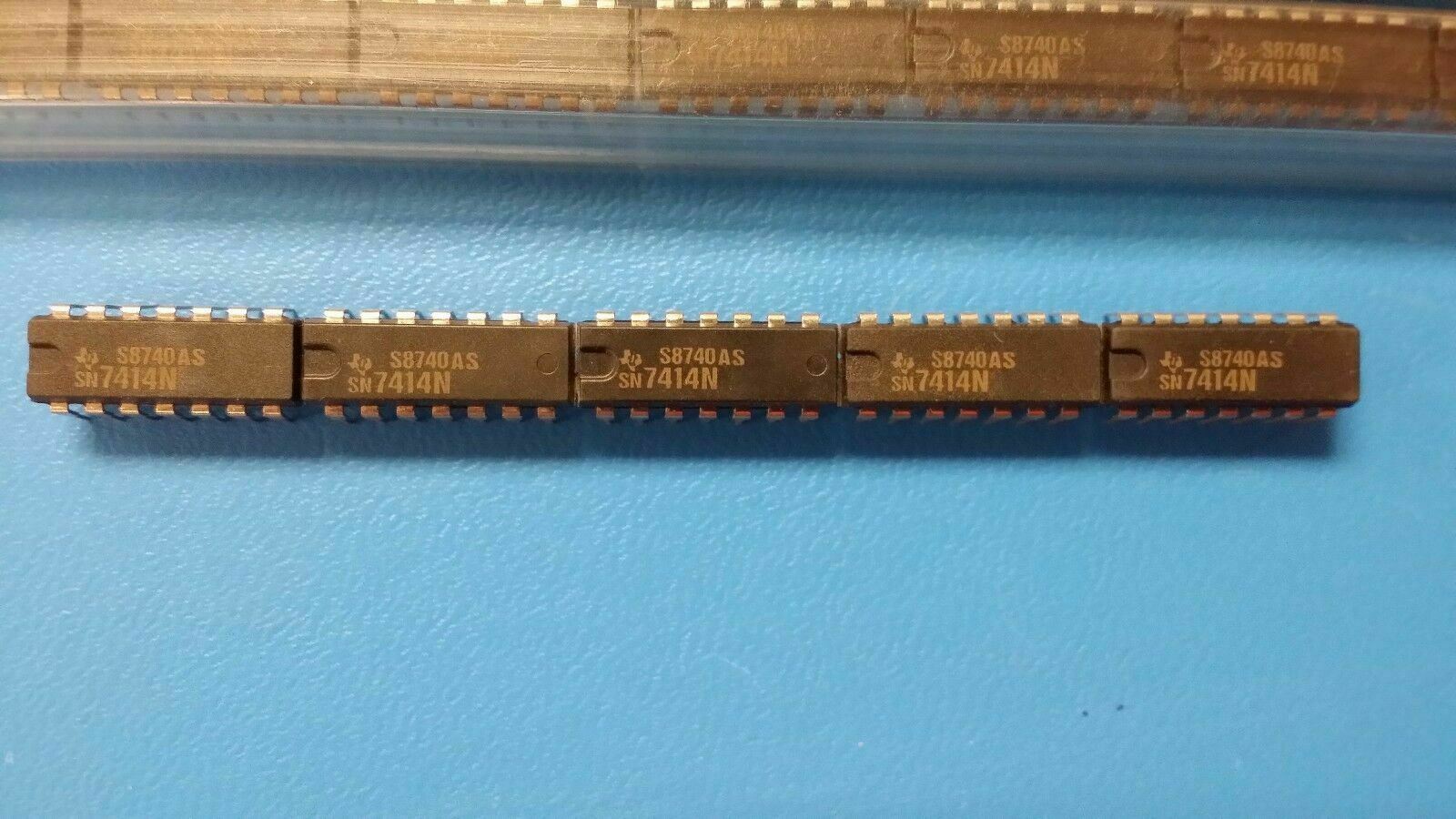

THIS LISTING IS FOR (10 PCS) OF SN7414N BY TI
HEX INVERTER SCHMITT TRIGGER 14PIN DIP
| Product Category: | Inverters | |
| Manufacturer: | Texas Instruments | |
| RoHS: | NO | |
| Number of Circuits: | 6 Circuit | |
| Logic Family: | TTL | |
| Logic Type: | Bipolar | |
| Supply Voltage - Max: | 5.25 V | |
| Supply Voltage - Min: | 4.75 V | |
| Maximum Operating Temperature: | + 70 C | |
| Mounting Style: | Through Hole | |
| Package / Case: | PDIP-14 | |
| Packaging: | Tube | |
| Brand: | Texas Instruments | |
| Function: | Inverter Schmitt Trigger | |
| High Level Output Current: | - 0.8 mA | |
| Input Type: | TTL | |
| Low Level Output Current: | 16 mA | |
| Minimum Operating Temperature: | 0 C | |
| Number of Output Lines: | 6 Output | |
| Operating Supply Voltage: | 5 V | |
| Operating Temperature Range: | 0 C to + 70 C | |
| Output Type: | CMOS | |
| Propagation Delay Time: | 22 ns |
