(10 PCS) SMCG10CA/1T Diode TVS Single Bi-Dir 10V 1.5KW 2-Pin SMCG
Tax included.

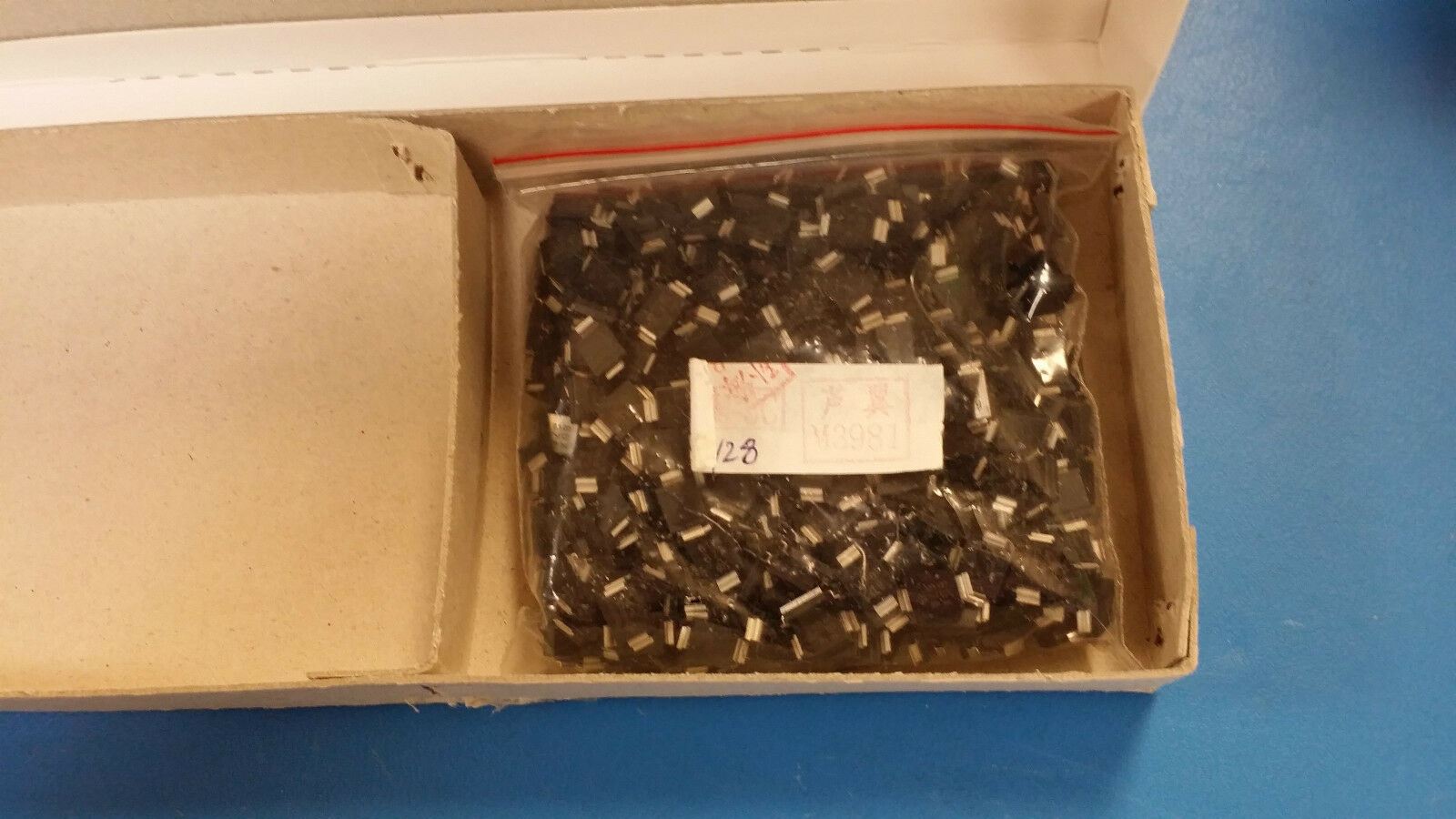

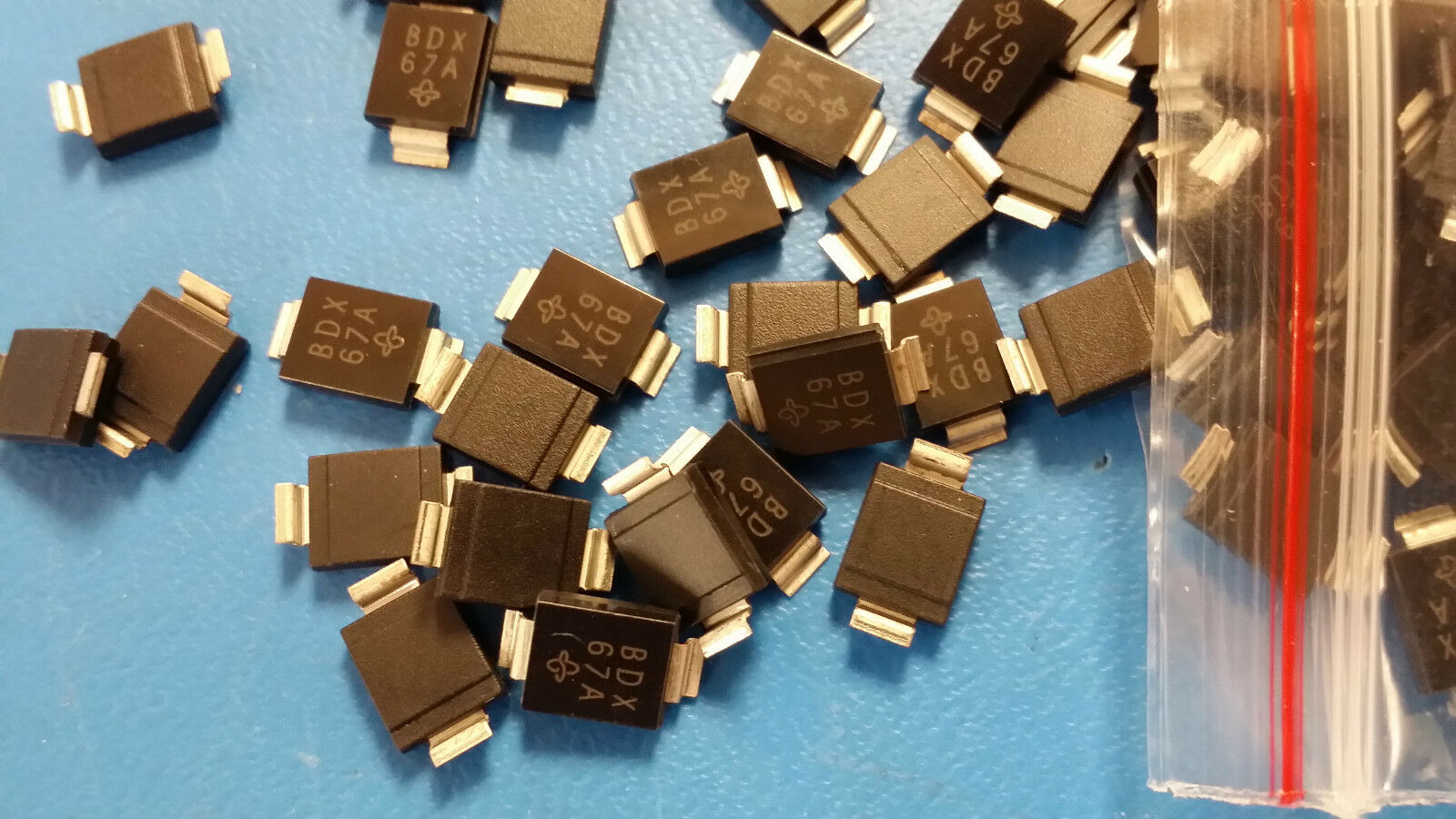

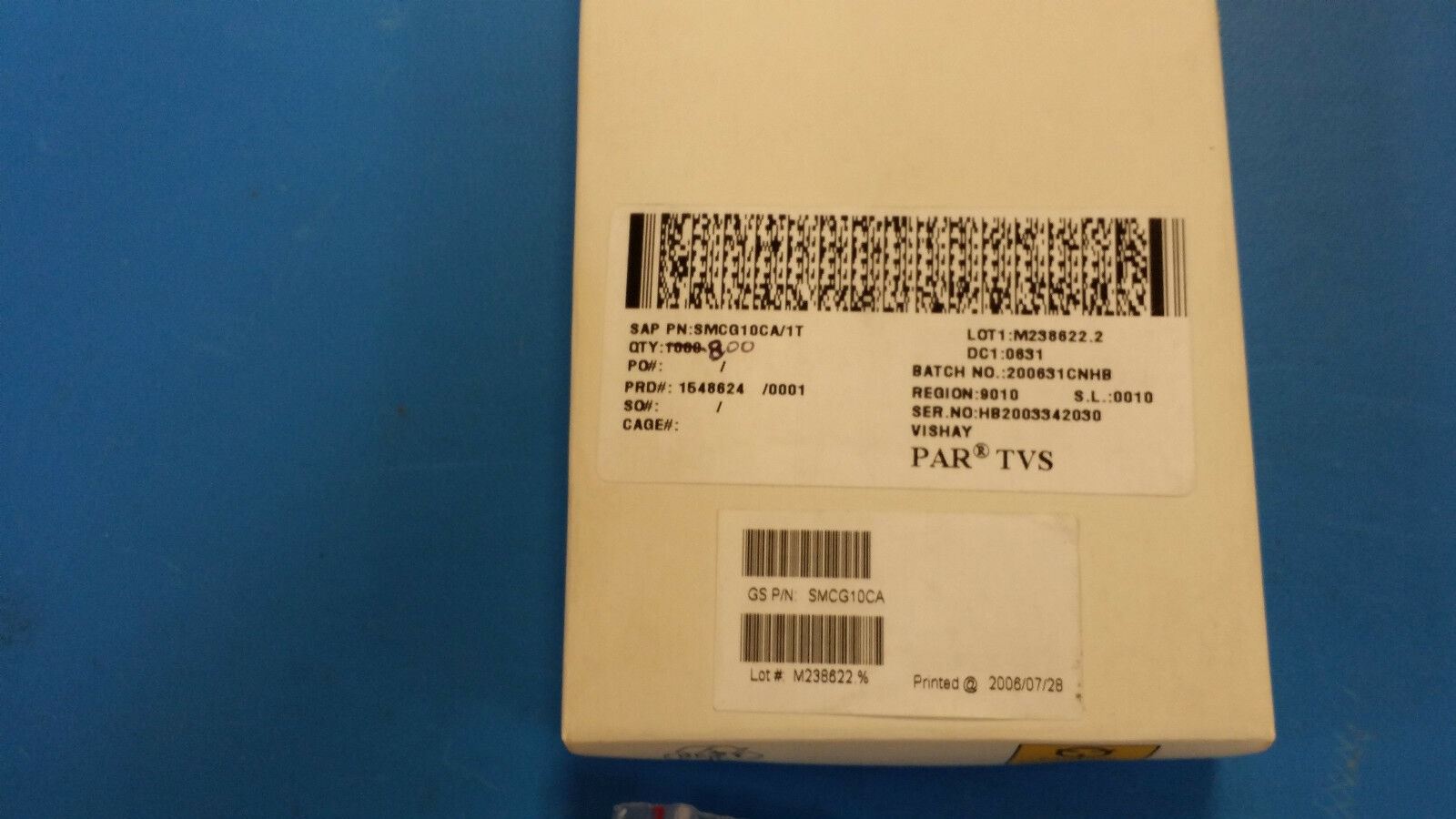

THIS LISTING IS FOR (10 PCS) OF SMCG10CA/1T BY VISHAY
Diode TVS Single Bi-Dir 10V 1.5KW 2-Pin SMCG
(7800 PCS IN STOCK. WE WILL MAKE DEALS ON LARGER QTY. SEND OFFERS)
SMCG10CA/1T Part Details & Parametric
| Direction Type | Bi-Directional |
| Maximum Reverse Stand-Off Voltage (V) | 10 |
| Minimum Breakdown Voltage (V) | 11.1 |
| Maximum Clamping Voltage (V) | 17 |
| Maximum Reverse Leakage Current (uA) | 10 |
| Packaging | Bulk |
| Number of Elements per Chip | 1 |
| Maximum Peak Pulse Current (A) | 88.2 |
| Test Current (mA) | 1 |
| Operating Junction Temperature (°C) | -55 to 150 |
| Peak Pulse Power Dissipation (W) | 1500 |
| Minimum Operating Temperature (°C) | -55 |
| Maximum Operating Temperature (°C) | 150 |
| Mounting | Surface Mount |
| Package Height (mm) | 2.41(Max) |
| Package Length (mm) | 7.11(Max) |
| Package Width (mm) | 6.22(Max) |
| PCB | 2 |
| Standard Package Name | DO-215-AB |
| Supplier Package | SMCG |
| Pin Count | 2 |
| Lead Shape | Gull-wing |
