(10 PCS) S6012R LITTELFUSE SCR 600V 12A TO-220 NON-ISOLATED ROHS
Tax included.

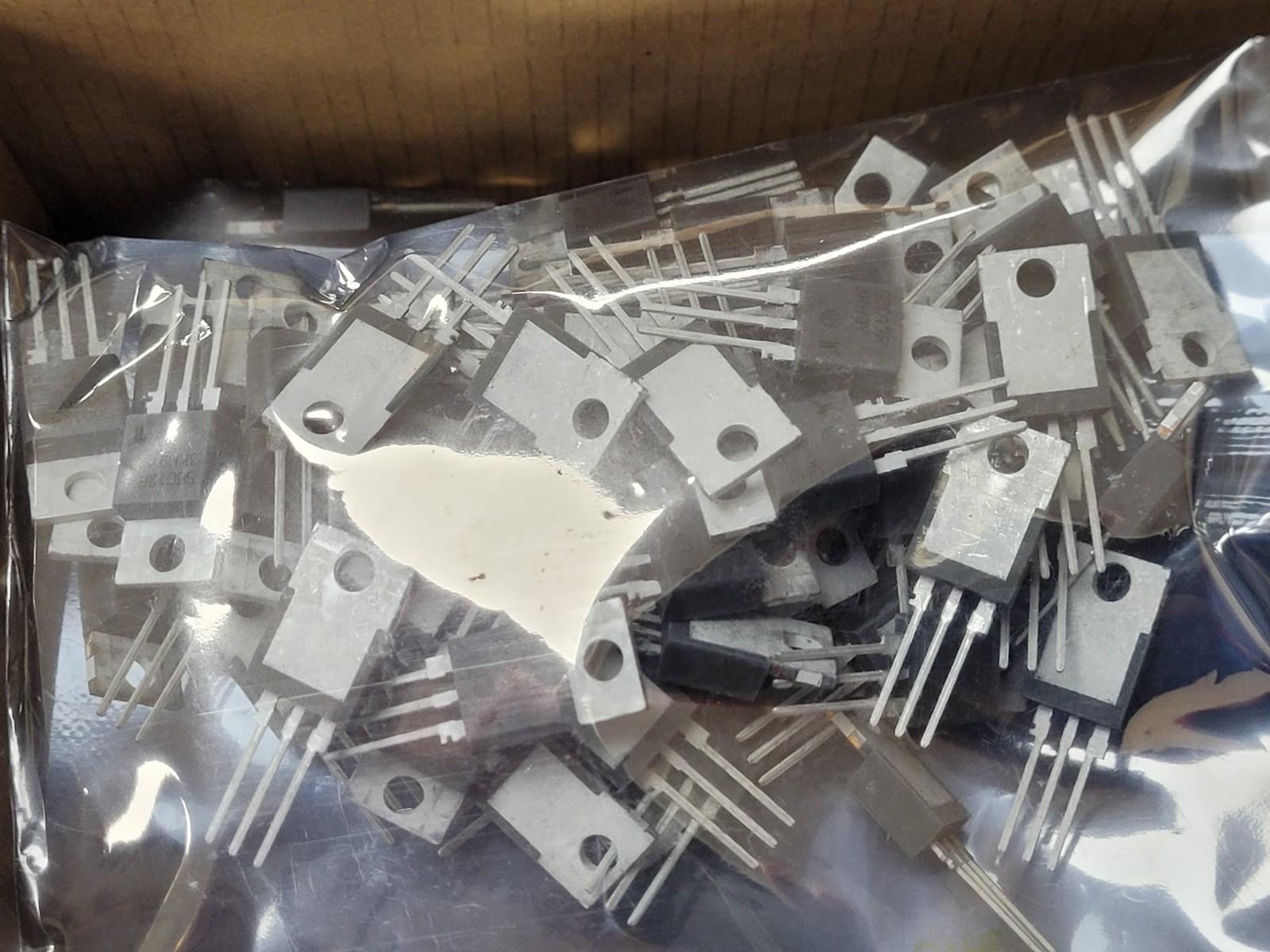

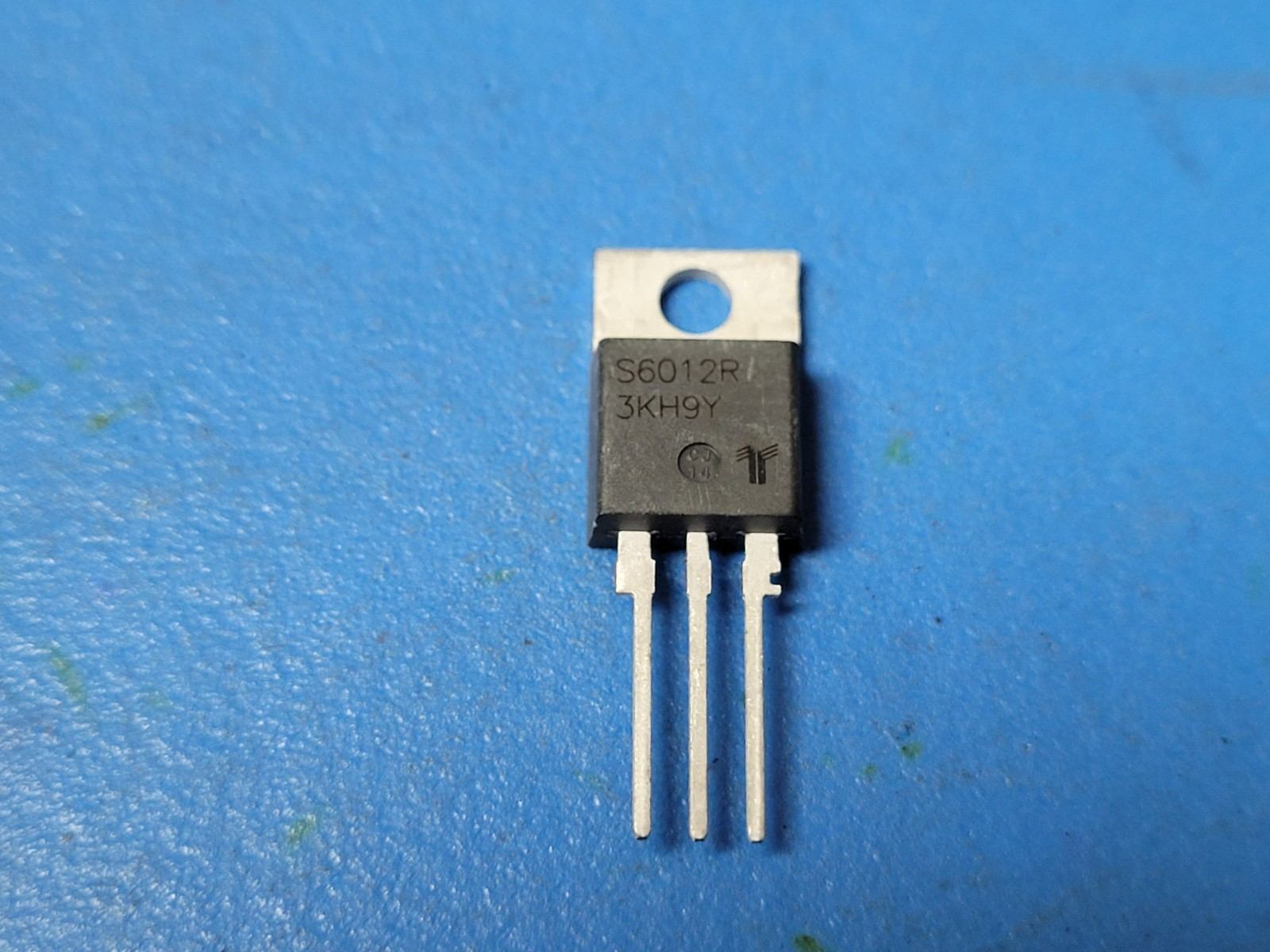

THIS IS FOR (10 PCS) OF S6012R BY LITTELFUSE
SCR 600V 12A TO-220 NON-ISOLATED ROHS
Manufacturer: Littelfuse
Product Category: SCRs
RoHS: YES
Series: Sxx12x
Breakover Current IBO Max: 120 A
Rated Repetitive Off-State Voltage VDRM: 600 V
Off-State Leakage Current @ VDRM IDRM: 10 uA
On-State RMS Current - It RMS: 12 A
Vf - Forward Voltage: 1.6 V
Gate Trigger Voltage - Vgt: 1.5 V
Gate Trigger Current - Igt: 20 mA
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 125 C
Mounting Style: Through Hole
Package / Case: TO-220-2
Brand: Littelfuse
Country of Assembly: Not Available
Country of Diffusion: Not Available
Country of Origin: CN
Holding Current Ih Max: 40 mA
Non Repetitive On-State Current: 120 A
Product Type: SCRs
