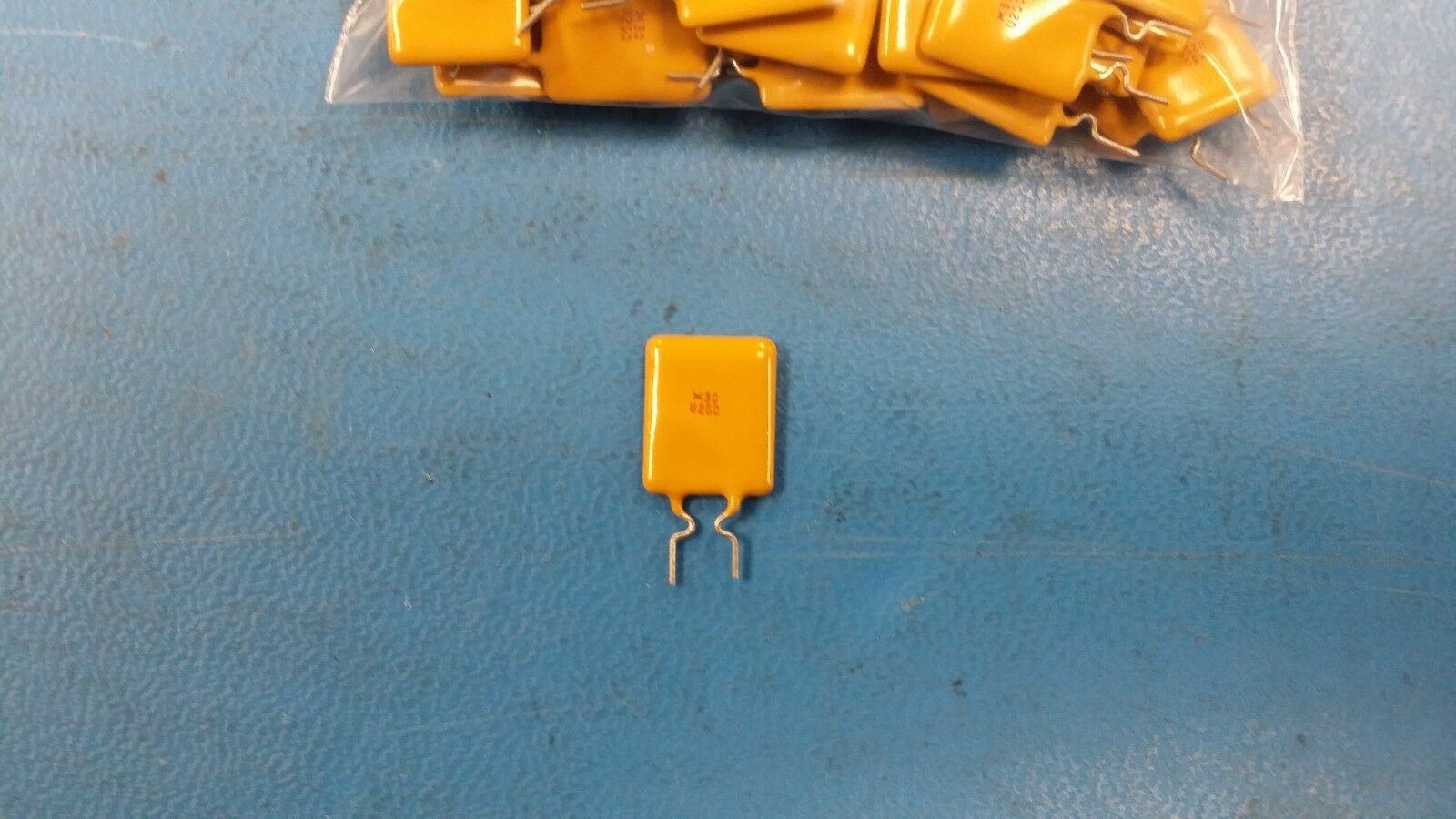

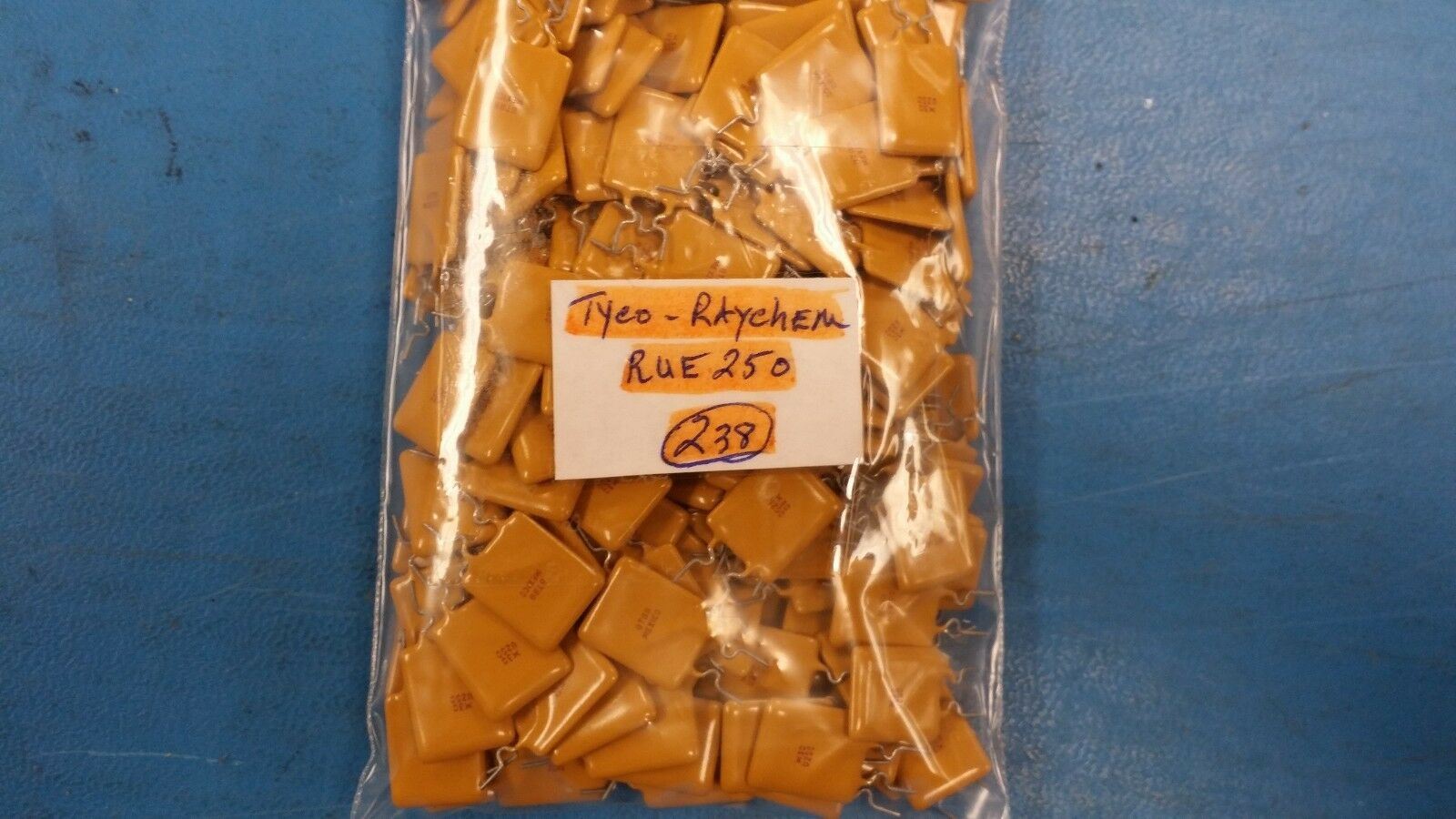

(10 PCS) RUE250 TYCO RAYCHEM PTC RESET FUSE 30V 2.5A RADIAL
Tax included.
THIS LISTING IS FOR (10 PCS) OF RUE250 BY TYCO RAYCHEM
PTC RESET FUSE 30V 2.5A RADIAL
Manufacturer Raychem/Littelfuse Inc.
Series PolySwitch®
Packaging Bulk
Part Status Obsolete
Type Polymeric
Voltage - Max 30V
Current - Max 40A
Current - Hold (Ih) (Max) 2.5A
Current - Trip (It) 5A
Time to Trip 10.3s
Resistance - Initial (Ri) (Min) 20 mOhms
Resistance - Post Trip (R1) (Max) 70 mOhms
Operating Temperature -40°C ~ 85°C
Ratings -
Mounting Type Through Hole
Package / Case Radial, Disc
Size / Dimension 0.449" L x 0.118" W (11.40mm x 3.00mm)
Height - Seated (Max) 0.720" (18.30mm)
Thickness (Max) -
Lead Spacing 0.201" (5.10mm)
Approval Agency CSA, TUV, UR
