(10 PCS) RN5RL30AA-TR Fixed Positive LDO Regulator 3V 0.06V Dropout CMOS SOT-23
(10 PCS) RN5RL30AA-TR Fixed Positive LDO Regulator 3V 0.06V Dropout CMOS SOT-23

(10 PCS) RN5RL30AA-TR Fixed Positive LDO Regulator 3V 0.06V Dropout CMOS SOT-23

Tax included.
Only 251 left!

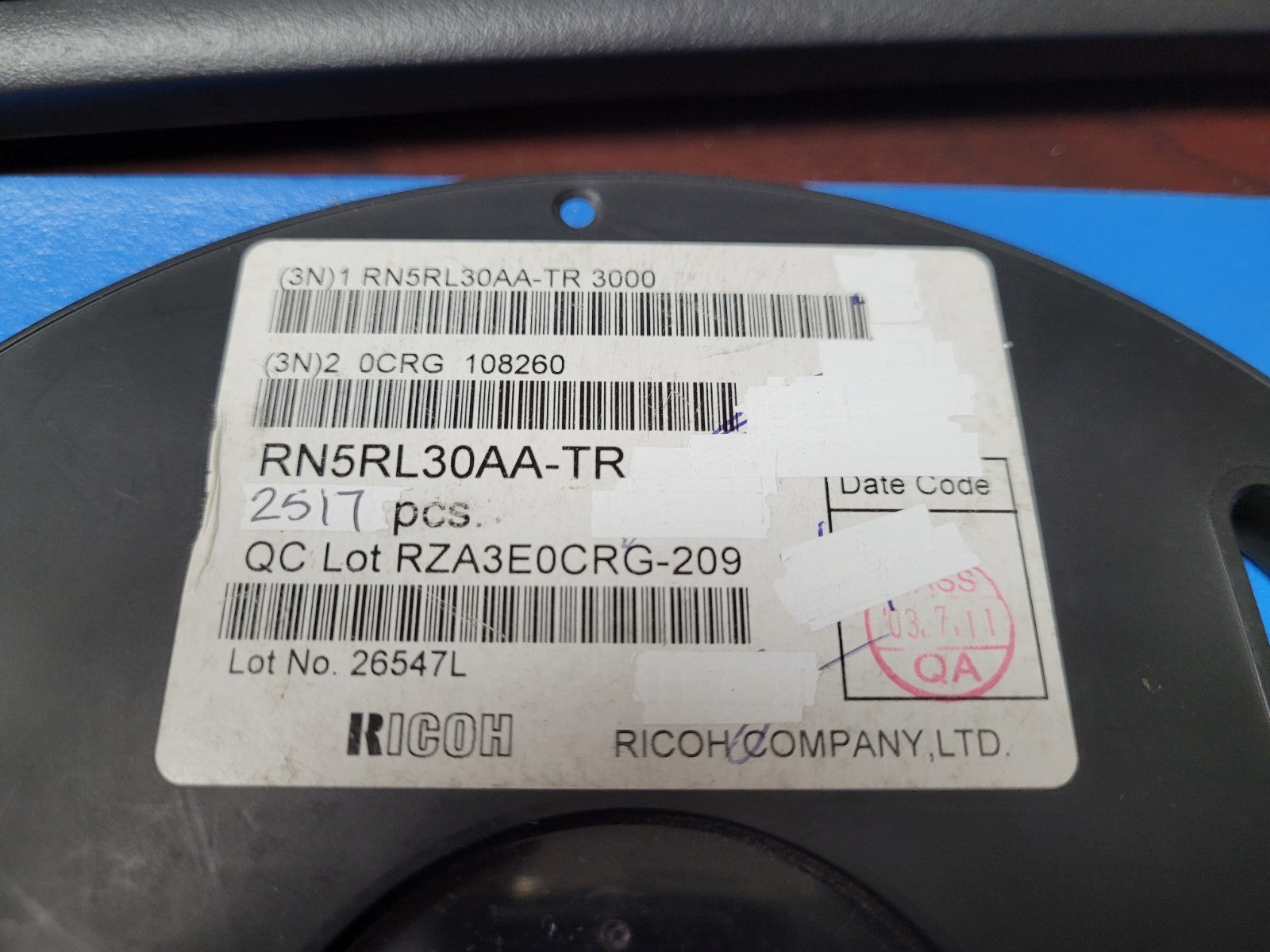

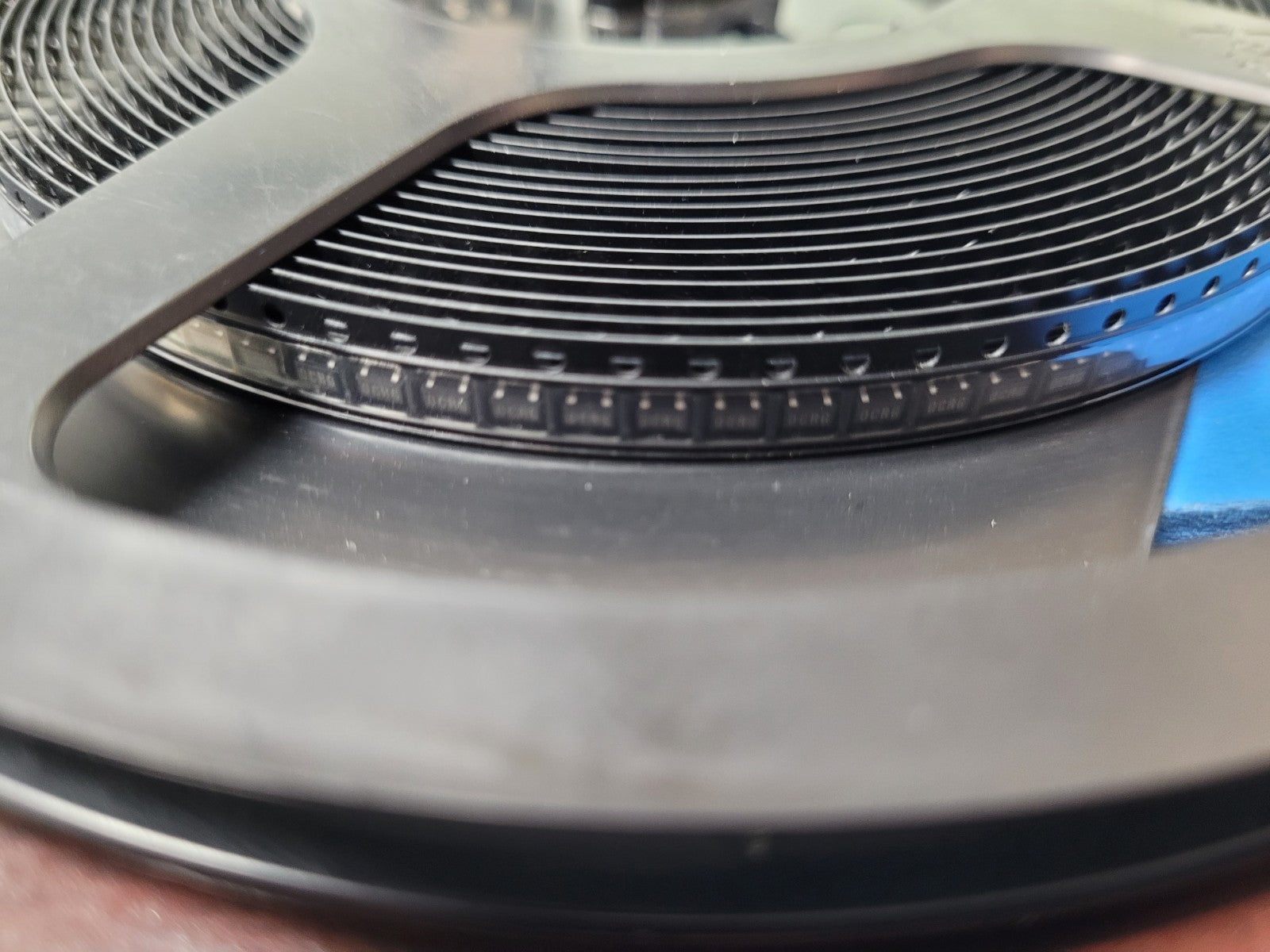

THIS IS FOR (10 PCS) OF RN5RL30AA-TR BY RICOH
Fixed Positive LDO Regulator 3V 0.06V Dropout CMOS SOT-23

Part #: RN5RL30AA-TR

Part Category: Regulators
Manufacturer: Ricoh Corporation
Description: Fixed Positive LDO Regulator, 3V, 0.06V Dropout, CMOS, PDSO5
Mfr Package Description PLASTIC, SOT-23, 5 PIN
Status Discontinued
Regulator Type FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Adjustability FIXED
Dropout Voltage1-Nom 0.04  V
Dropout Voltage1-Max 0.06  V
Input Voltage Absolute-Max 12.0  V
Input Voltage-Min 3.5  V
Input Voltage-Max 10.0  V
JESD-30 Code R-PDSO-G5
JESD-609 Code e0
Line Regulation-Max 0.039  V
Load Regulation-Max 0.06  V
Moisture Sensitivity Level 1
Number of Functions 1
Number of Outputs 1.0
Number of Terminals 5
Operating Temperature, TJ-Max 125.0  Cel
Operating Temperature-Min -40.0  Cel
Operating Temperature-Max 85.0  Cel
Output Current1-Max 0.15  A
Output Voltage1-Nom 3.0  V
Output Voltage1-Min 2.925  V
Output Voltage1-Max 3.075  V
Package Body Material PLASTIC/EPOXY
Package Code LSSOP
Package Equivalence Code TSOP5/6,.11,37
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
Packing Method TR
Qualification Status Not Qualified
Seated Height-Max 1.3  mm
Sub Category Other Regulators
Surface Mount YES
Technology CMOS
Terminal Finish TIN LEAD
Terminal Form GULL WING
Terminal Pitch 0.95  mm
Terminal Position DUAL
Voltage Tolerance-Max 2.5  %
Length 2.9  mm
Width 1.6  mm
