(10 PCS) RN1201(TPE4) TOSHIBA 100mA, 50V, NPN, Si, SMALL SIGNAL TRANSISTOR

  • $4.95
    Unit price per
Tax included.

Only 195 left!

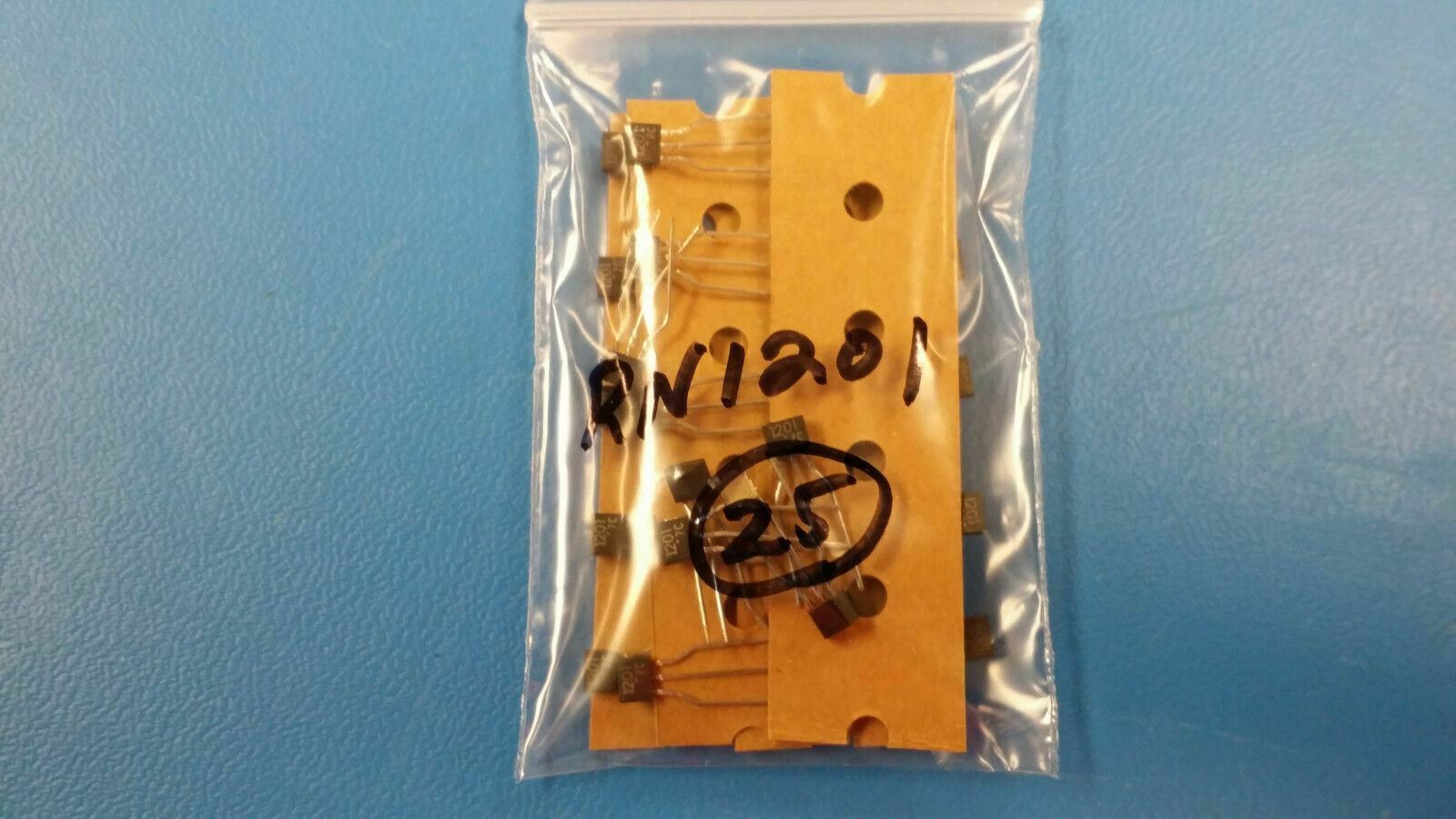

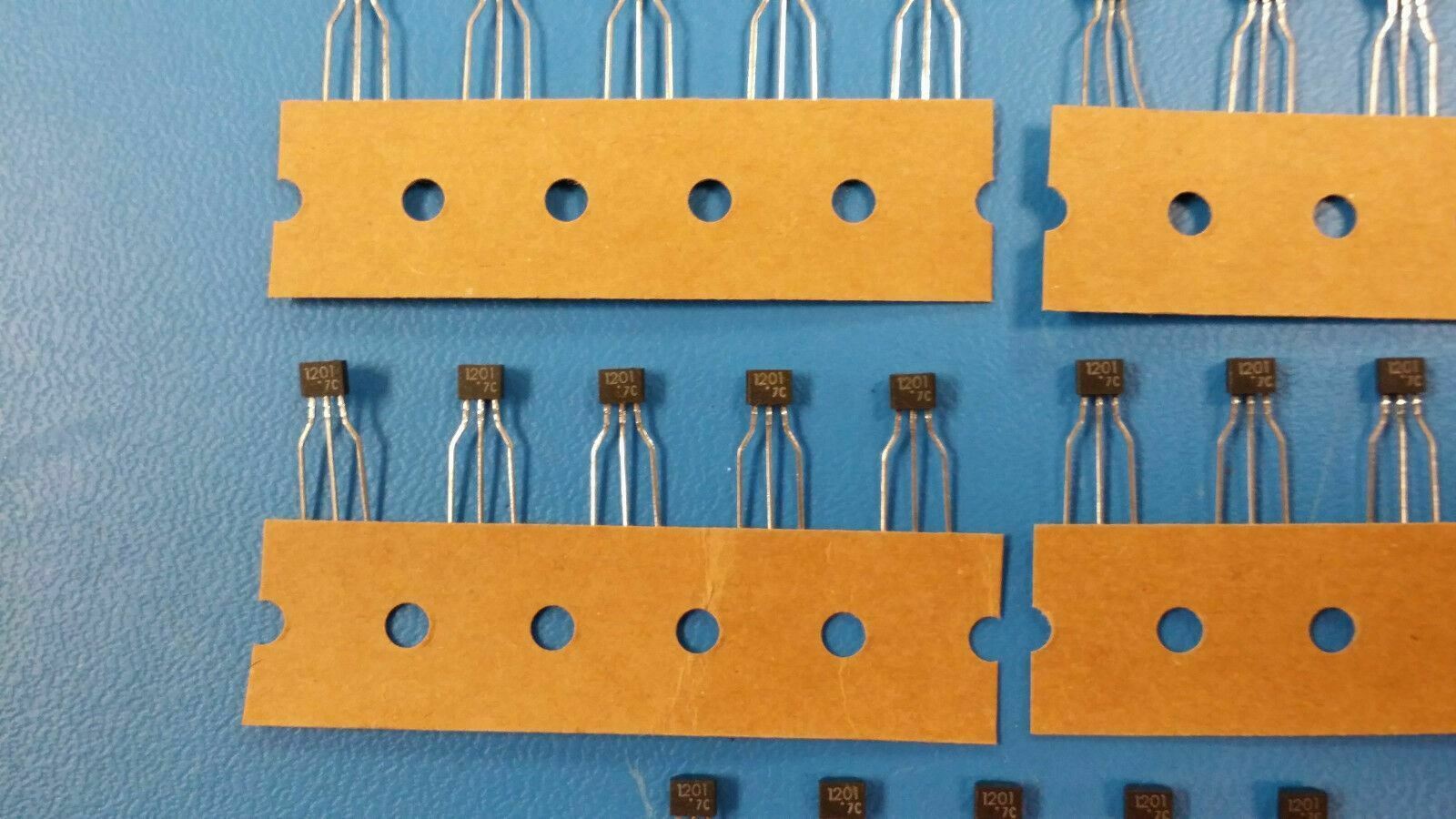

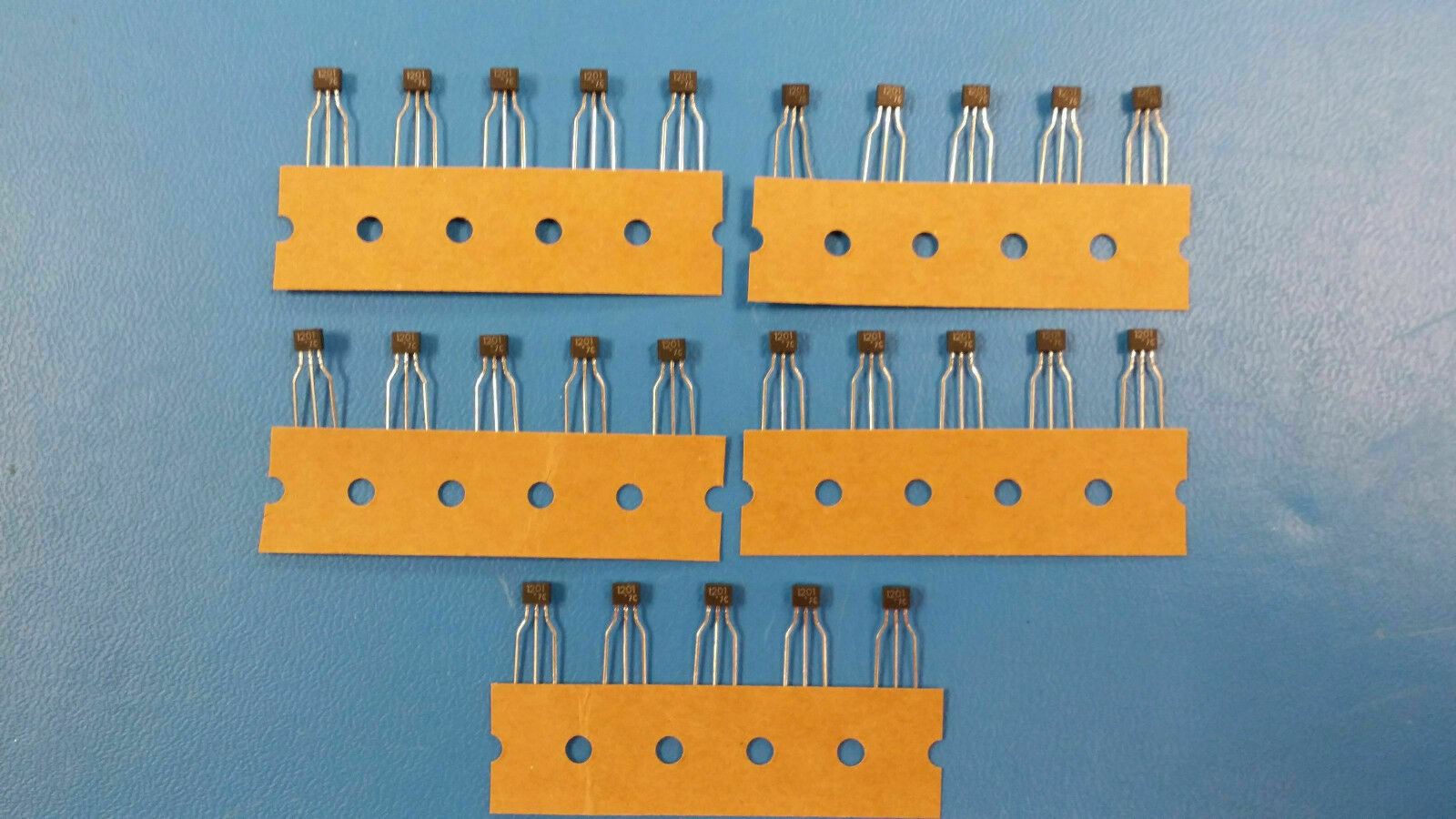

THIS LISTING IS FOR (10 PCS) OF RN1201(TPE4)BY  TOSHIBA
100mA, 50V, NPN, Si, SMALL SIGNAL TRANSISTOR

Part #: RN1201(TPE4)

Part Category: Transistors
Manufacturer: Toshiba America, Inc.
Description: 100mA, 50V, NPN, Si, SMALL SIGNAL TRANSISTOR
Mfr Package Description

2-4E1A, 3 PIN
Status Discontinued
Collector-base Capacitance-Max 6.0 pF
Collector Current-Max (IC) 0.1 A
Collector-emitter Voltage-Max 50.0 V
Configuration SINGLE WITH BUILT-IN RESISTOR
DC Current Gain-Min (hFE) 30.0
JESD-30 Code R-PSIP-T3
Number of Elements 1.0
Number of Terminals 3
Operating Temperature-Max 150.0 Cel
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style IN-LINE
Polarity/Channel Type NPN
Qualification Status Not Qualified
Surface Mount NO
Terminal Form THROUGH-HOLE
Terminal Position SINGLE
Transistor Application SWITCHING
Transistor Element Material SILICON
Transition Frequency-Nom (fT) 250.0 MHz
VCEsat-Max 0.3 V
Additional Feature BUILT IN BIAS RESISTOR RATIO IS 1
