(10 PCS) RA-351M-V6-2 OKAYA Surge Absorber 2-Pin
Tax included.

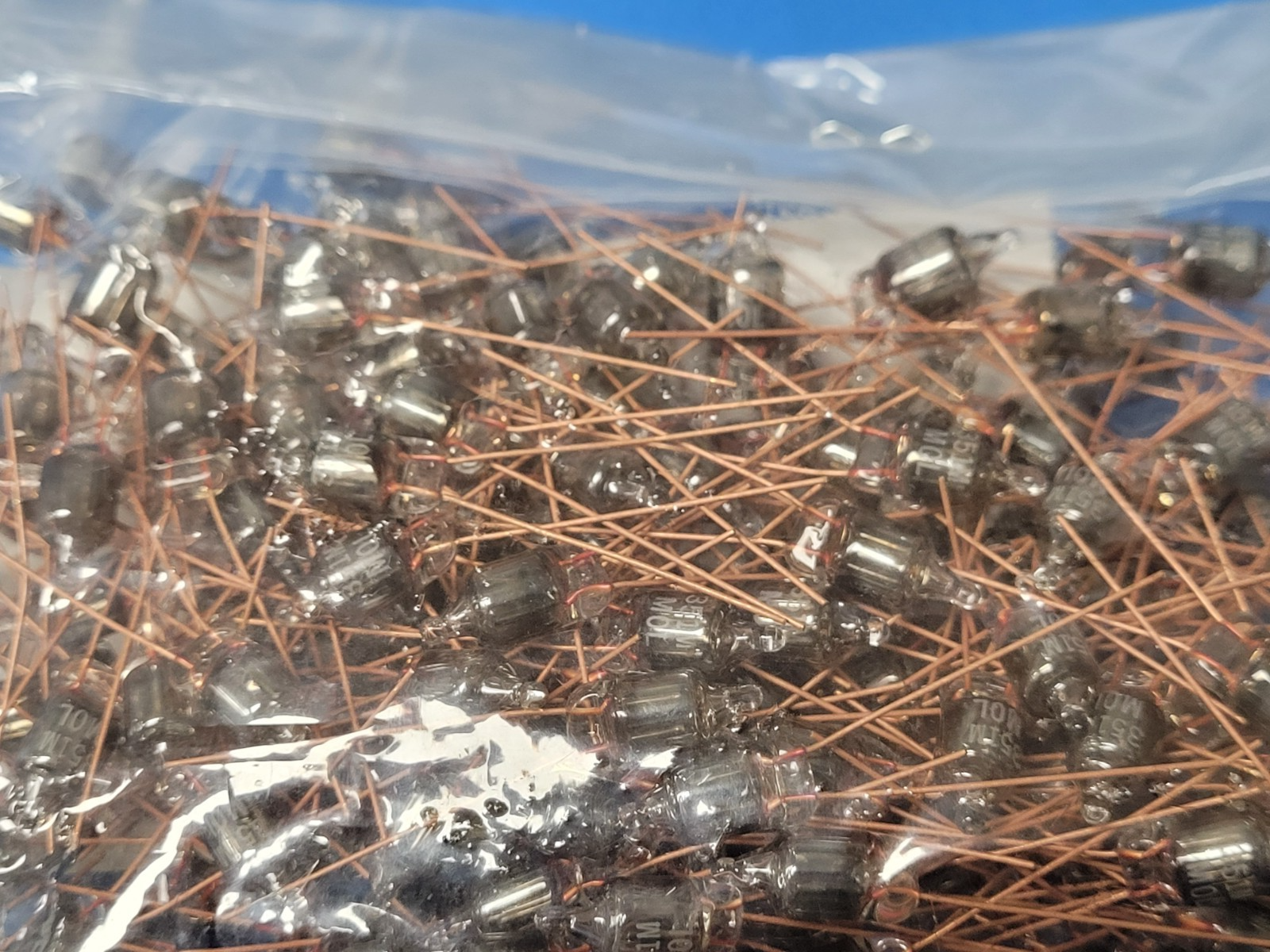

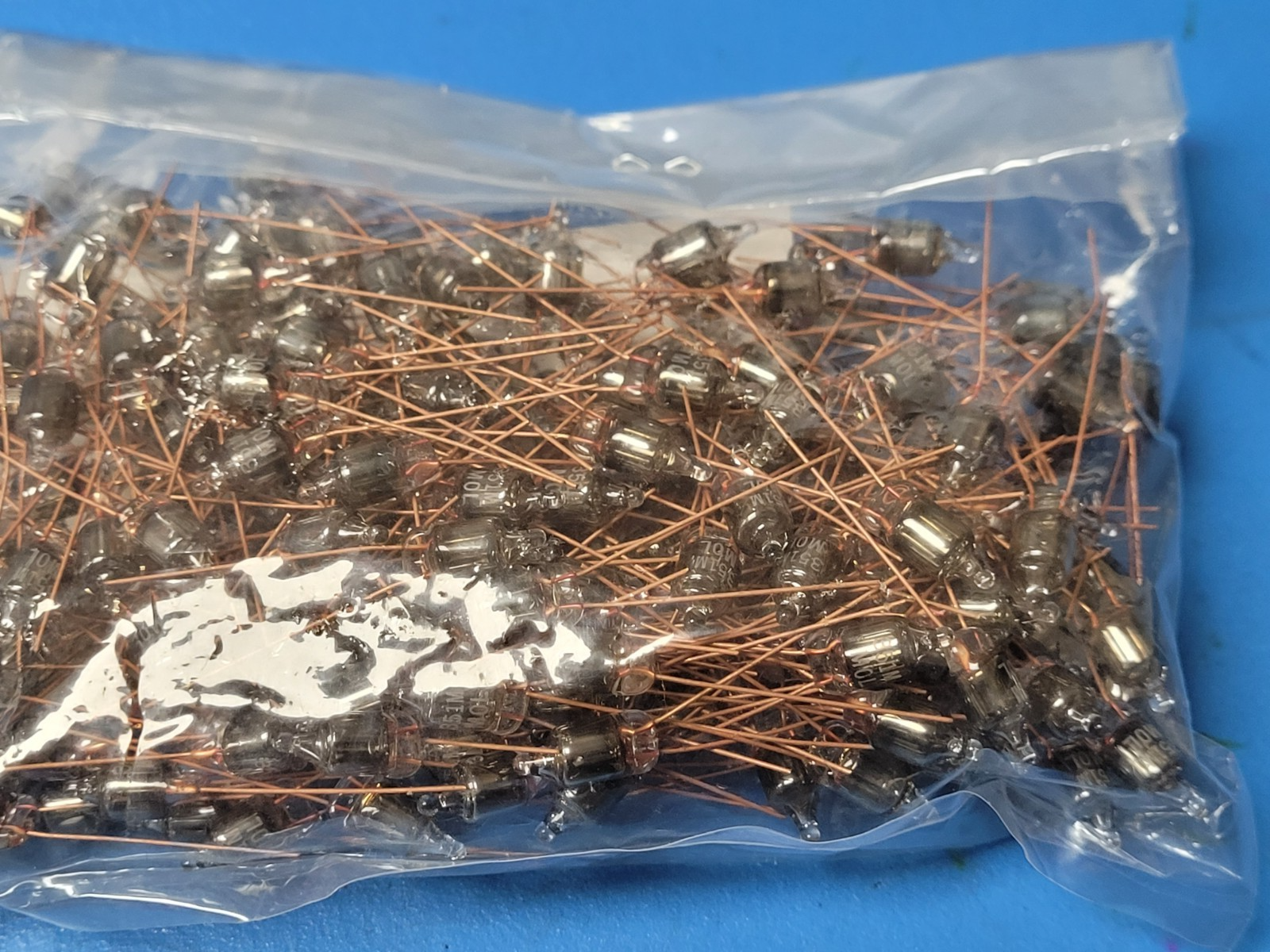

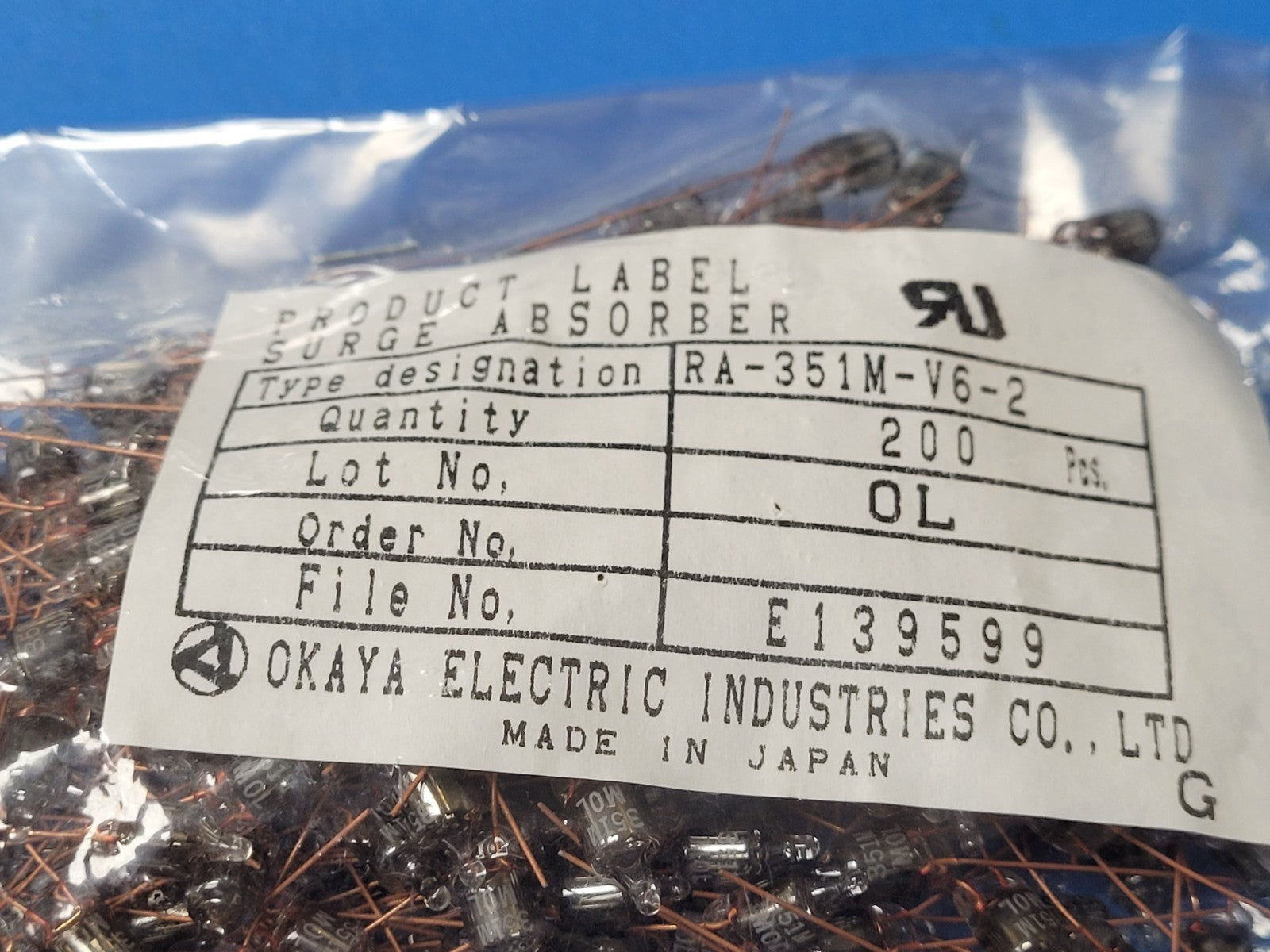

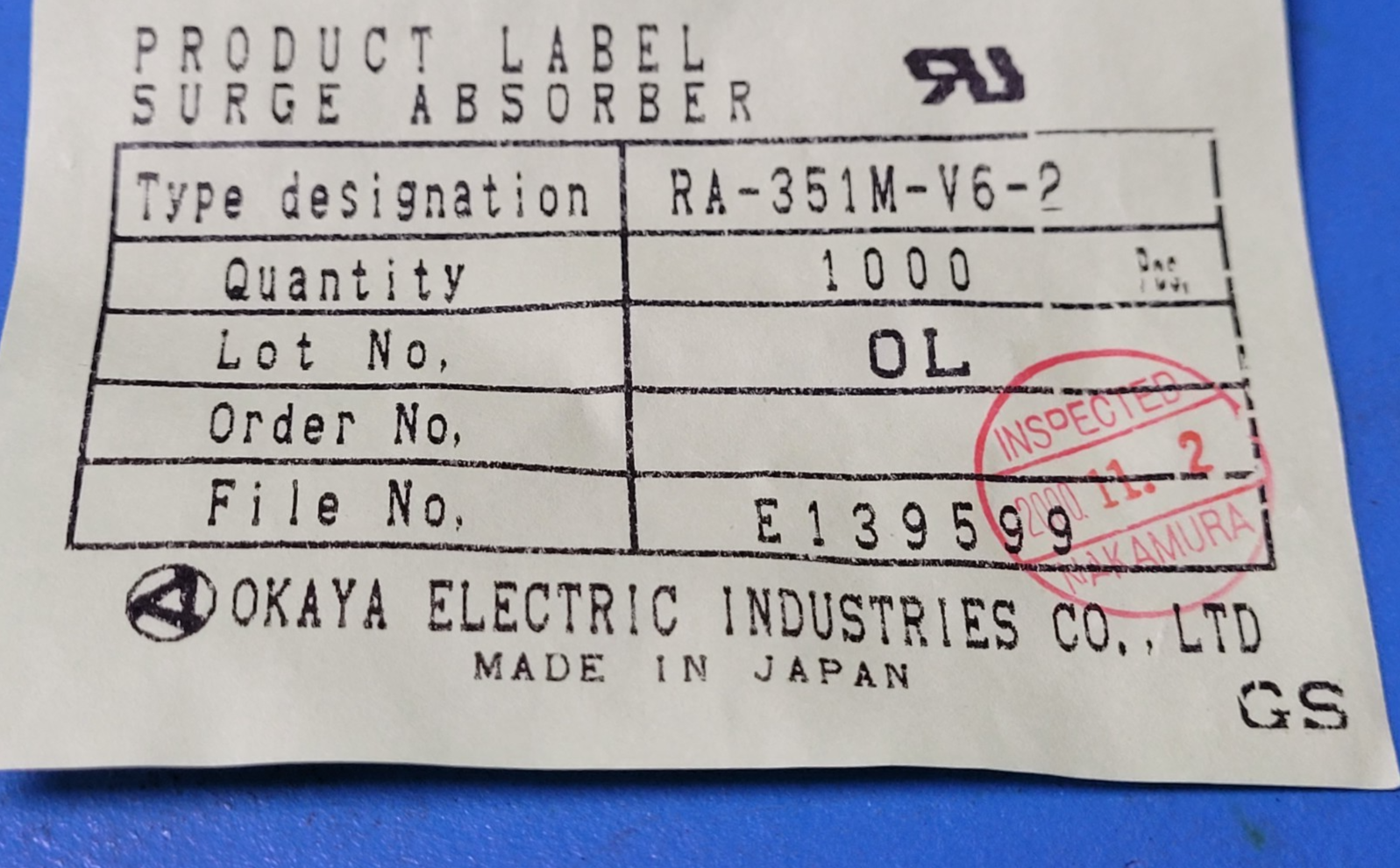

THIS IS FOR (10 PCS) OF RA-351M-V6-2 BY OKAYA
Surge Absorber 2-Pin
The RA-V6-2 series utilizes creeping corona
discharge, thus demonstrating extremely fast
response characteristics in dark ambient
conditions without the use of radioactive isotopes.
For example, a 1.2/50µs, 10kV surge voltage can
be suppressed to about 1kV.
Applied as indirect lightning surge protection in
telephone equipment, this model is used for parallel
connection between T and R in telephone receivers.
Also, by connecting this absorber within electronic
circuits, network computers can be protected from
destructive impulse current.
O Features:
1. Fast response time.
2. This Surge Absorber is bipolar. The device will
fail open if the surge withstand capability is
exceeded.
3. Inter-terminal capacity is extremely small,
resulting in little influence on electronic circuits.
4. High insulation resistance (1X109 ohms or more).
5. Repeatable - may be used up to 300 times at
500A (8/20µs).
6. Small size allows soldering together with
resistors or other electronics components.
7. Product available taped for auto insertion. Add
“Y” to model number (RA-201P-V6Y-2).
Model No.
D.C. Breakdown
Voltage
(when lighted)
(V)
Peak Surge
Current
8/20µs (A)
Capacitance
(PF)
Dimensions (mm) Operating Temp
Range (C)
A B C
RA-201P-V6-2 200±15%
1500 2 Max. 6.5 Max. 14.0 Max. 0.45
±0.05 -20° to + 70°
RA-231P-V6-2 230±15%
RA-261P-V6-2 260±15%
RA-301P-V6-2 300±15%
RA-311P-V6-2 310±15%
RA-351P-V6-2 350±15%
RA-391P-V6-2 390±15%
RA-501P-V6-2 500±15%
RA-201M-V6-2 200±15%
1500 2 Max. 6.5 Max. 14.0 Max. 0.45
±0.05 -20° to + 70°
RA-231M-V6-2 230±15%
RA-261M-V6-2 260±15%
RA-301M-V6-2 300±15%
RA-311M-V6-2 310±15%
RA-351M-V6-2 350±15%
RA-391M-V6-2 390±15%
