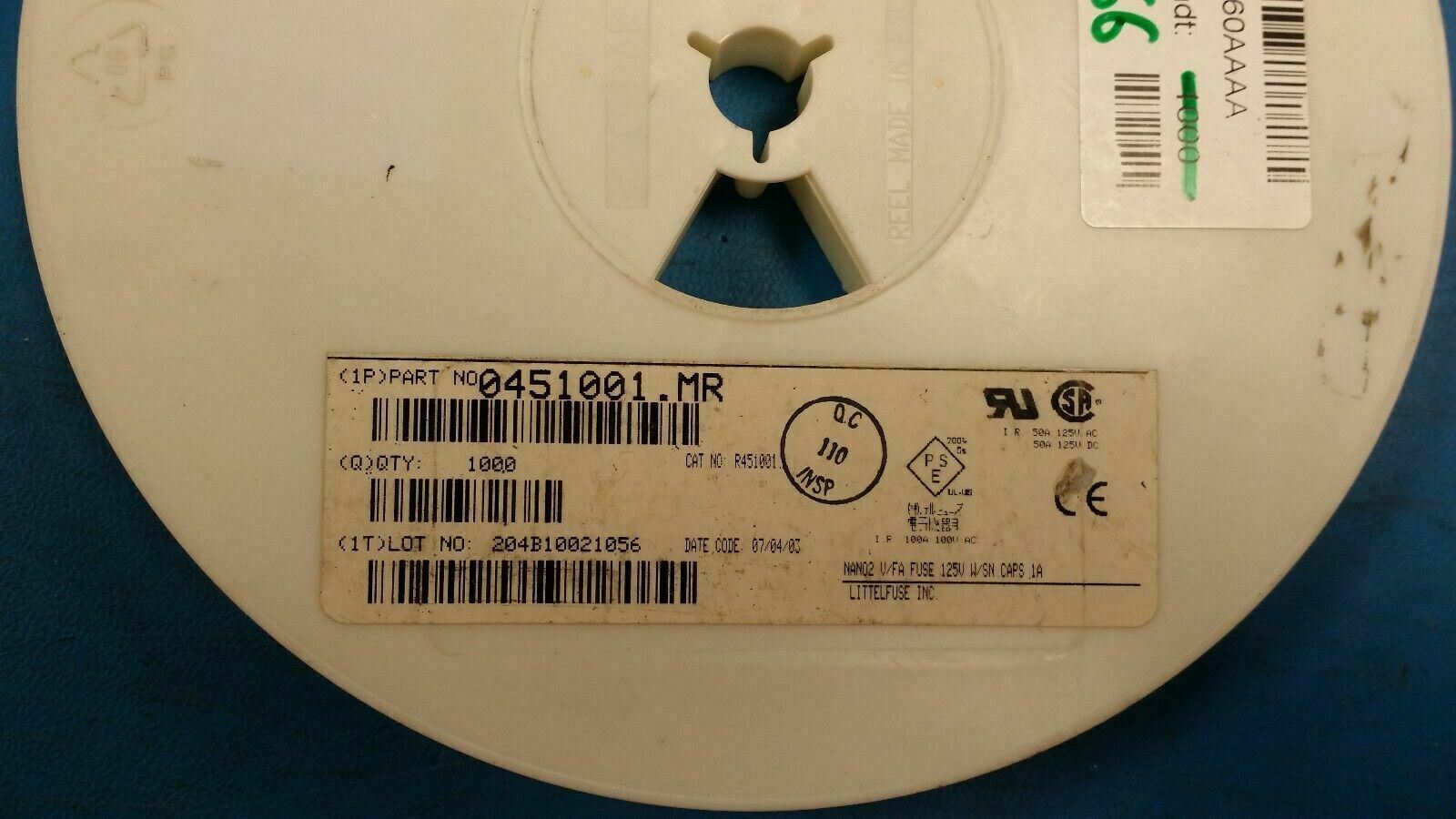

(10 PCS) R451001, 0451001.MR Surface Mount Fuses 1 AMP 125V VERY FAST ACTING
Tax included.

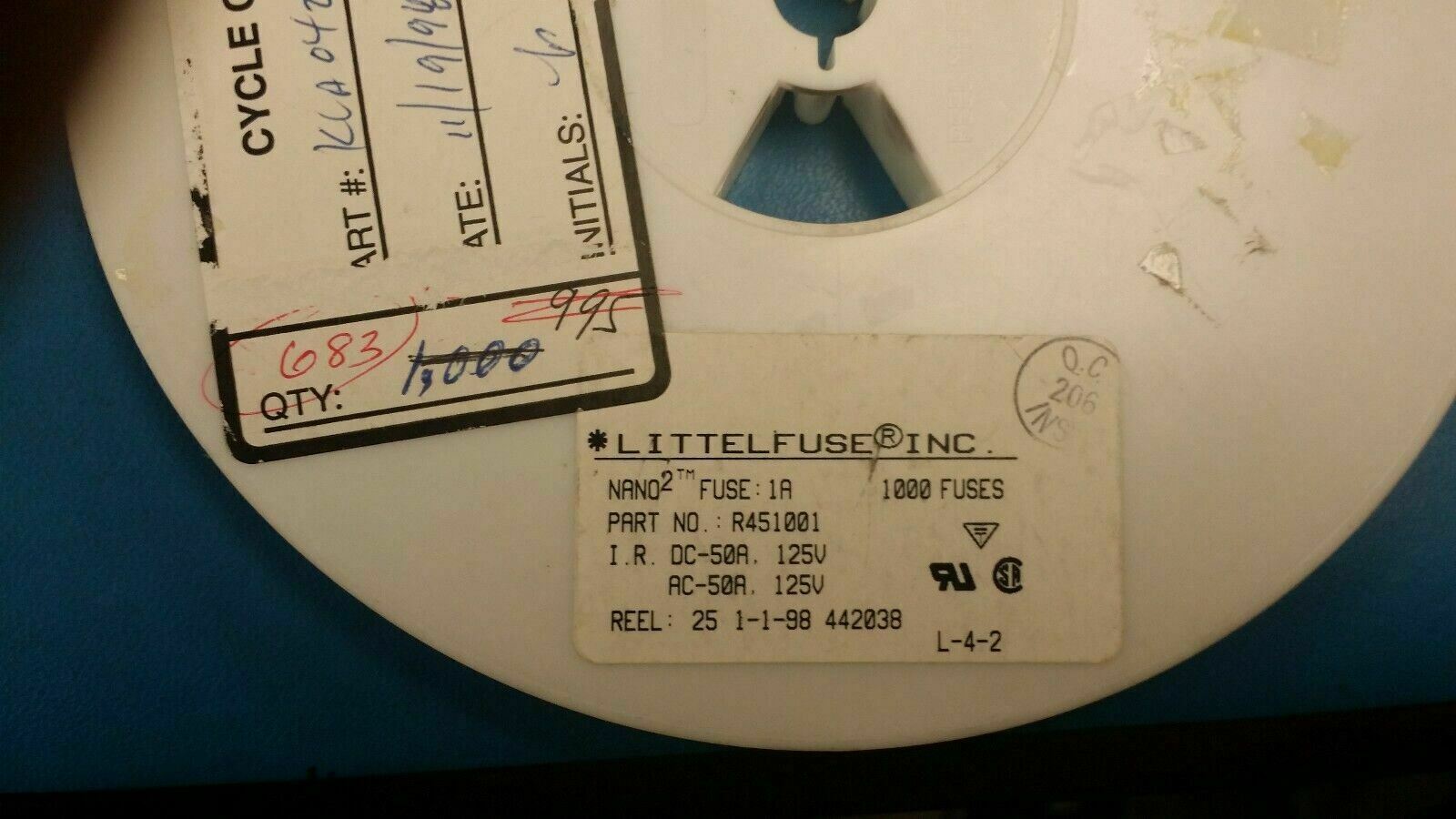

THIS LISTING IS FOR (10 PCS) OF R451001 BY LITTELFUSE
Surface Mount Fuses 1 AMP 125V VERY FAST ACTING
| Manufacturer | Littelfuse Inc. | |
|---|---|---|
| Series | ||
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Fuse Type | Board Mount (Cartridge Style Excluded) | |
| Current Rating (Amps) | 1A | |
| Voltage Rating - AC | 125V | |
| Voltage Rating - DC | 125V | |
| Response Time | Fast Blow | |
| Package / Case | 2-SMD, Square End Block | |
| Mounting Type | Surface Mount | |
| Breaking Capacity @ Rated Voltage | 50A | |
| Melting I²t | 0.459 | |
| Approvals | CSA, PSE, UL | |
| Operating Temperature | -55°C ~ 125°C | |
| Color | - | |
| Size / Dimension | 0.240" L x 0.106" W x 0.106" H (6.10mm x 2.69mm x 2.69mm) | |
| DC Cold Resistance | 0.153 Ohms |
