(10 PCS) PS2505-1 NEC Optoisolator Transistor Output 5000Vrms 1 Channel 4-DIP
Tax included.

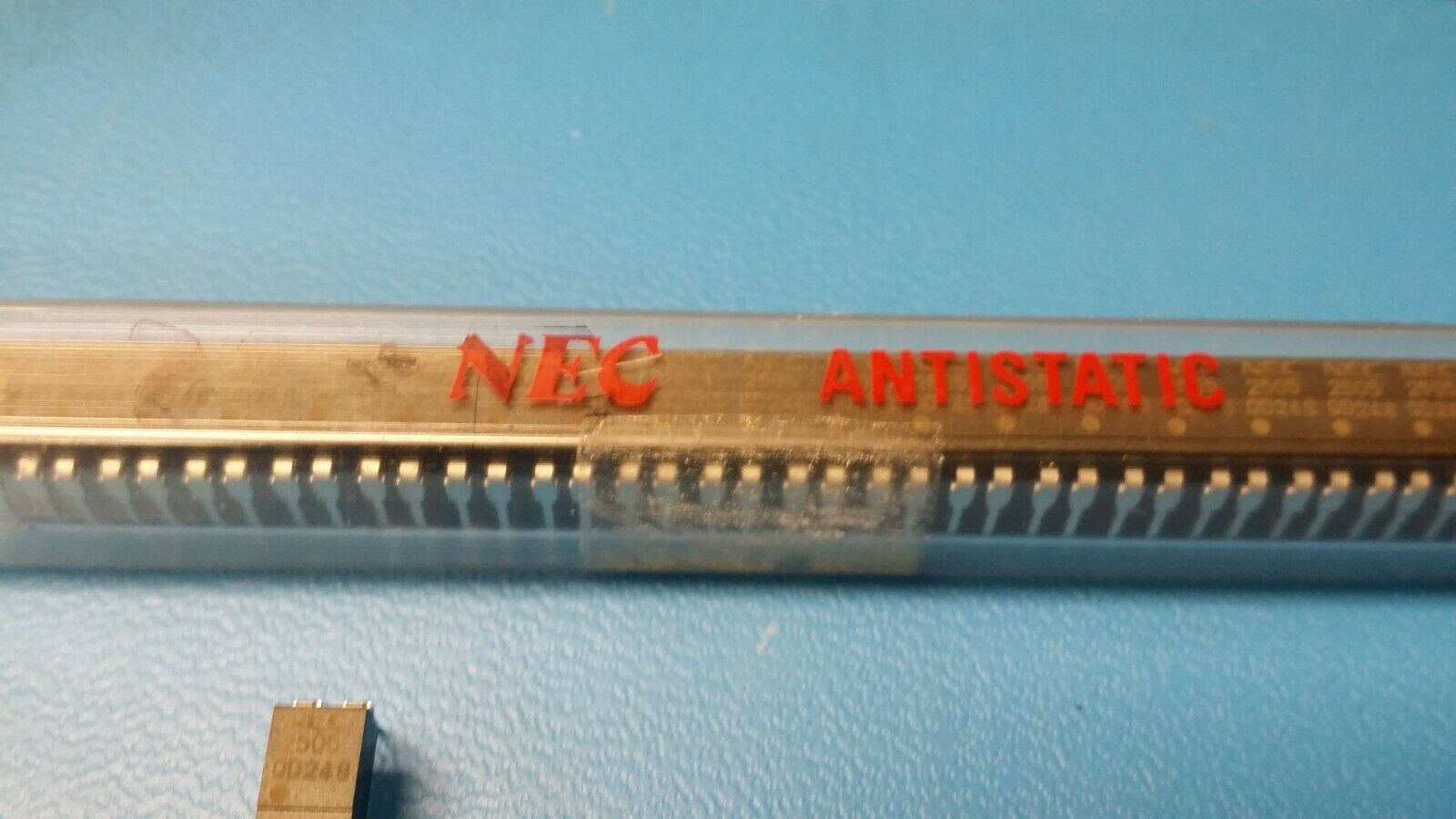

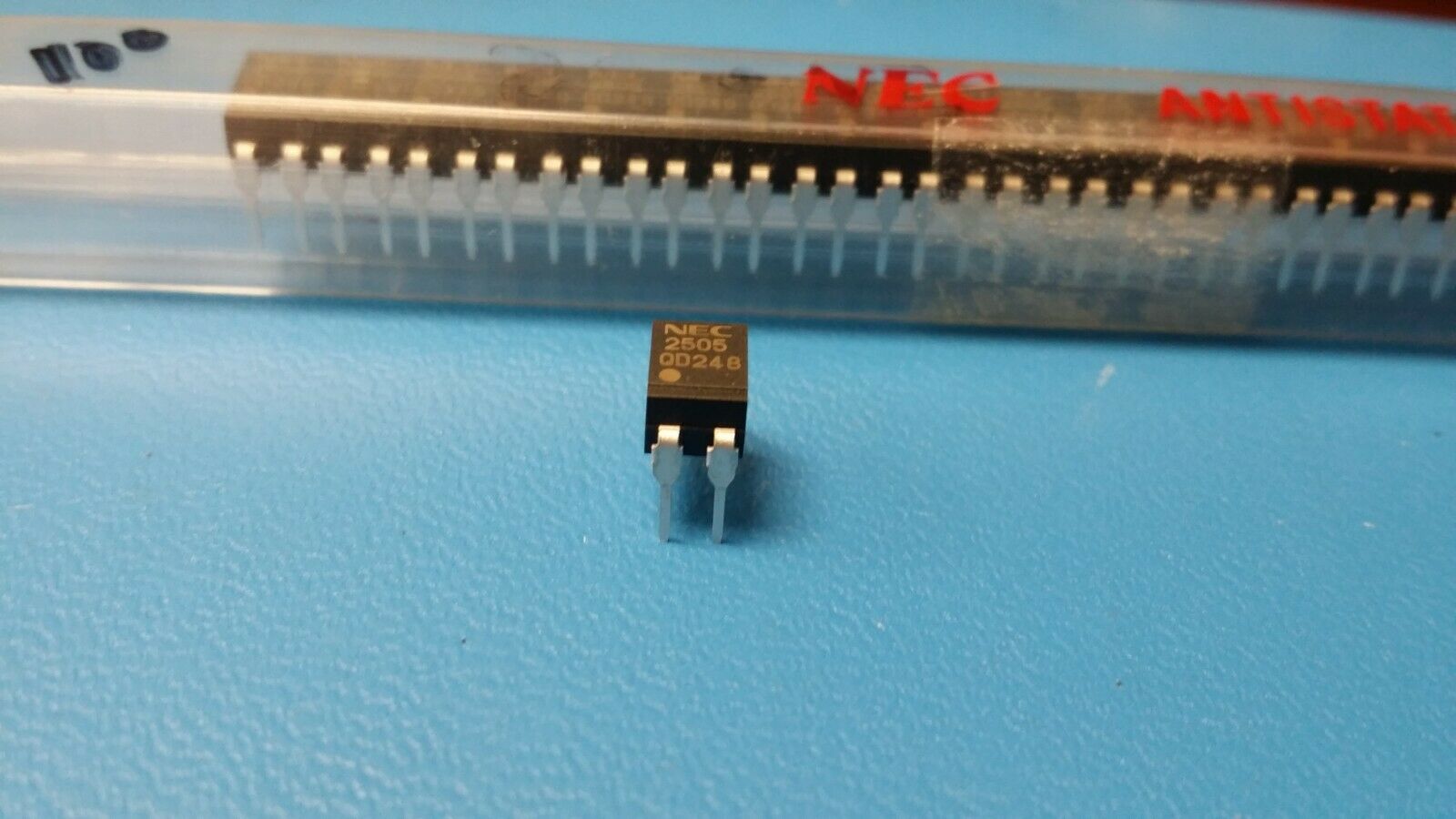

THIS LISTING IS FOR (10 PCS) OF PS2505-1 BY NEC
Optoisolator Transistor Output 5000Vrms 1 Channel 4-DIP
Manufacturer NEC
Packaging Tube
Part Status Obsolete
Number of Channels 1
Voltage - Isolation 5000Vrms
Current Transfer Ratio (Min) 80% @ 5mA
Current Transfer Ratio (Max) 600% @ 5mA
Turn On / Turn Off Time (Typ) -
Rise / Fall Time (Typ) 3µs, 5µs
Input Type AC, DC
Output Type Transistor
Voltage - Output (Max) 80V
Current - Output / Channel 50mA
Voltage - Forward (Vf) (Typ) 1.17V
Current - DC Forward (If) (Max) 80mA
Vce Saturation (Max) 300mV
Operating Temperature -55°C ~ 100°C
Mounting Type Through Hole
Package / Case 4-DIP (0.300", 7.62mm)
Supplier Device Package 4-DIP
