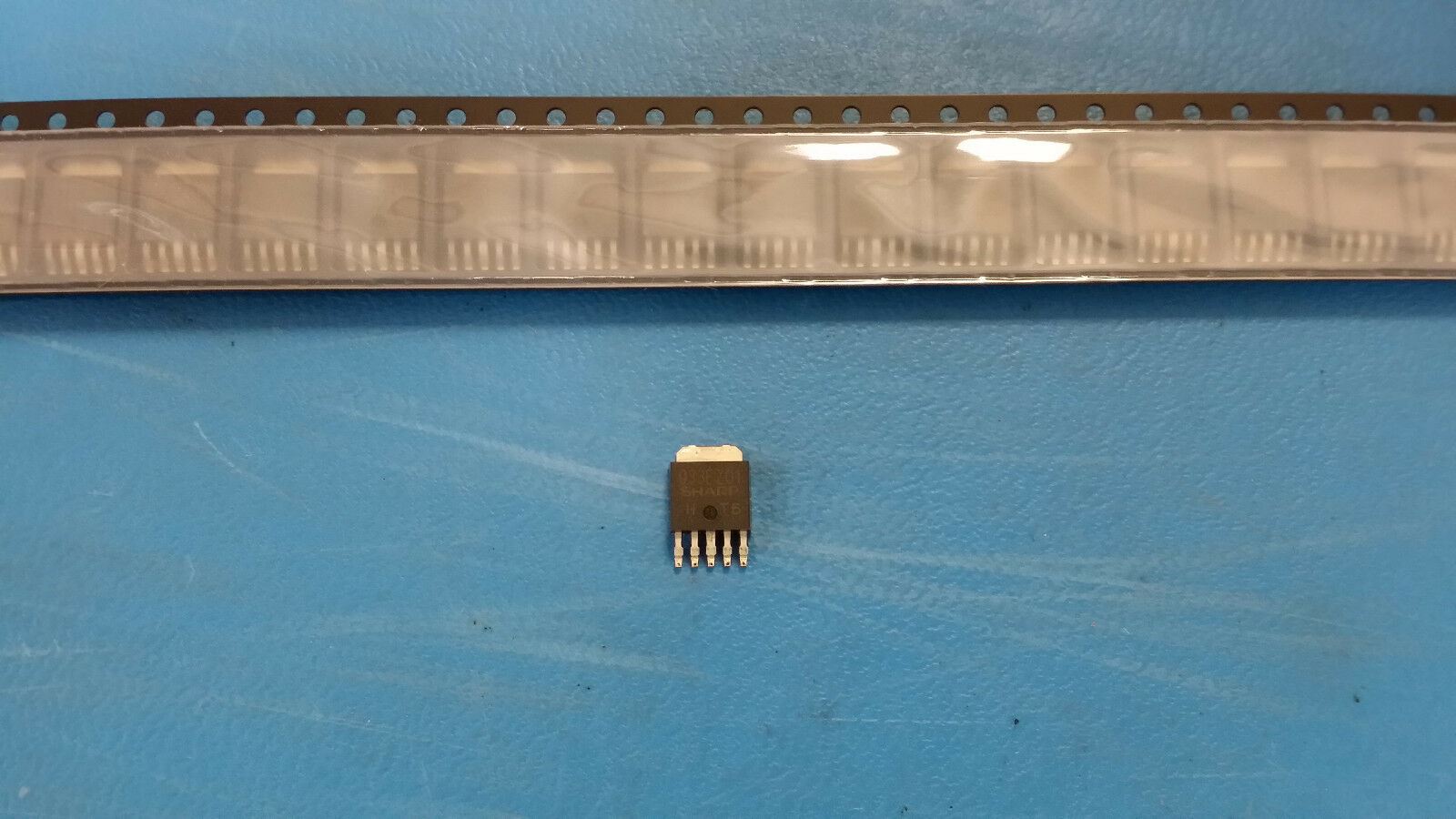

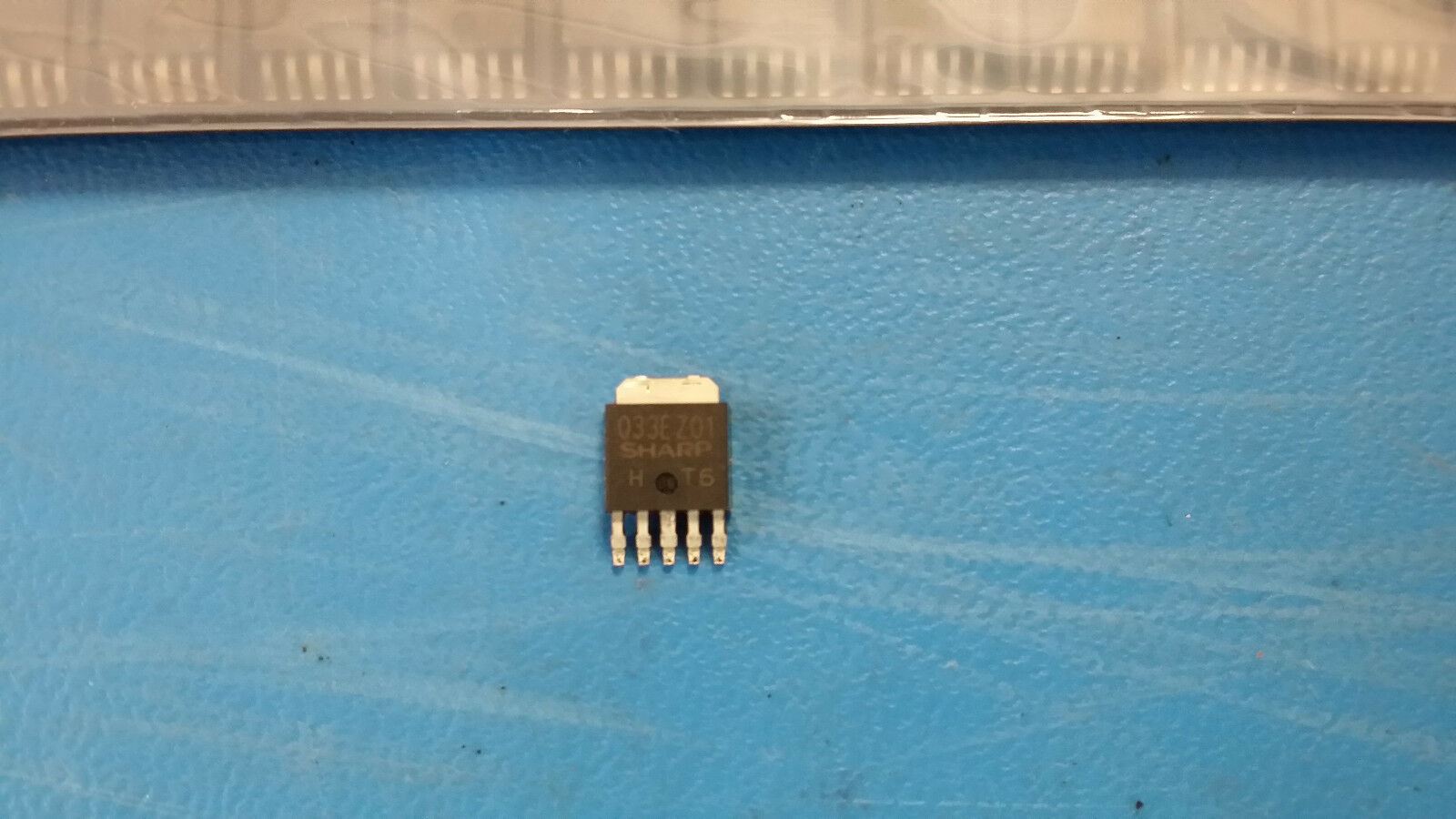

(10 PCS) PQ033EZ01ZPH SHARP LDO Regulator Pos 3.3V 1A 6-Pin(5+Tab) SC-63

  • $7.95
    Unit price per
Tax included.

Only 99 left!

THIS LISTING IS FOR (10 PCS) OF PQ033EZ01ZPH BY SHARP
LDO Regulator Pos 3.3V 1A 6-Pin(5+Tab) SC-63
Manufacturer:

Sharp Microelectronics
Product Category: LDO Voltage Regulators
RoHS: YES
Mounting Style: SMD/SMT
Package / Case: SC-63-5
Output Voltage: 3.3 V
Output Current: 1 A
Quiescent Current: 2 mA
Number of Outputs: 1 Output
Input Voltage MAX: 10 V
Output Type: Fixed
Maximum Operating Temperature: + 85 C
Load Regulation: 2 %
Dropout Voltage: 0.2 V at 500 mA
Brand: Sharp Microelectronics
Dropout Voltage - Max: 500 mV at 500 mA
Height: 2.3 mm
Ib - Input Bias Current: 1 mA
Input Voltage MIN: + 3.8 V
Length: 6.6 mm (Max)
Line Regulation: 1 %
Minimum Operating Temperature: - 40 C
Pd - Power Dissipation: 8 W
Polarity: Positive
