(10 PCS) PM105S-680M JW MILLER FIXED IND 68UH 970MA 220MOHM SMD
Tax included.

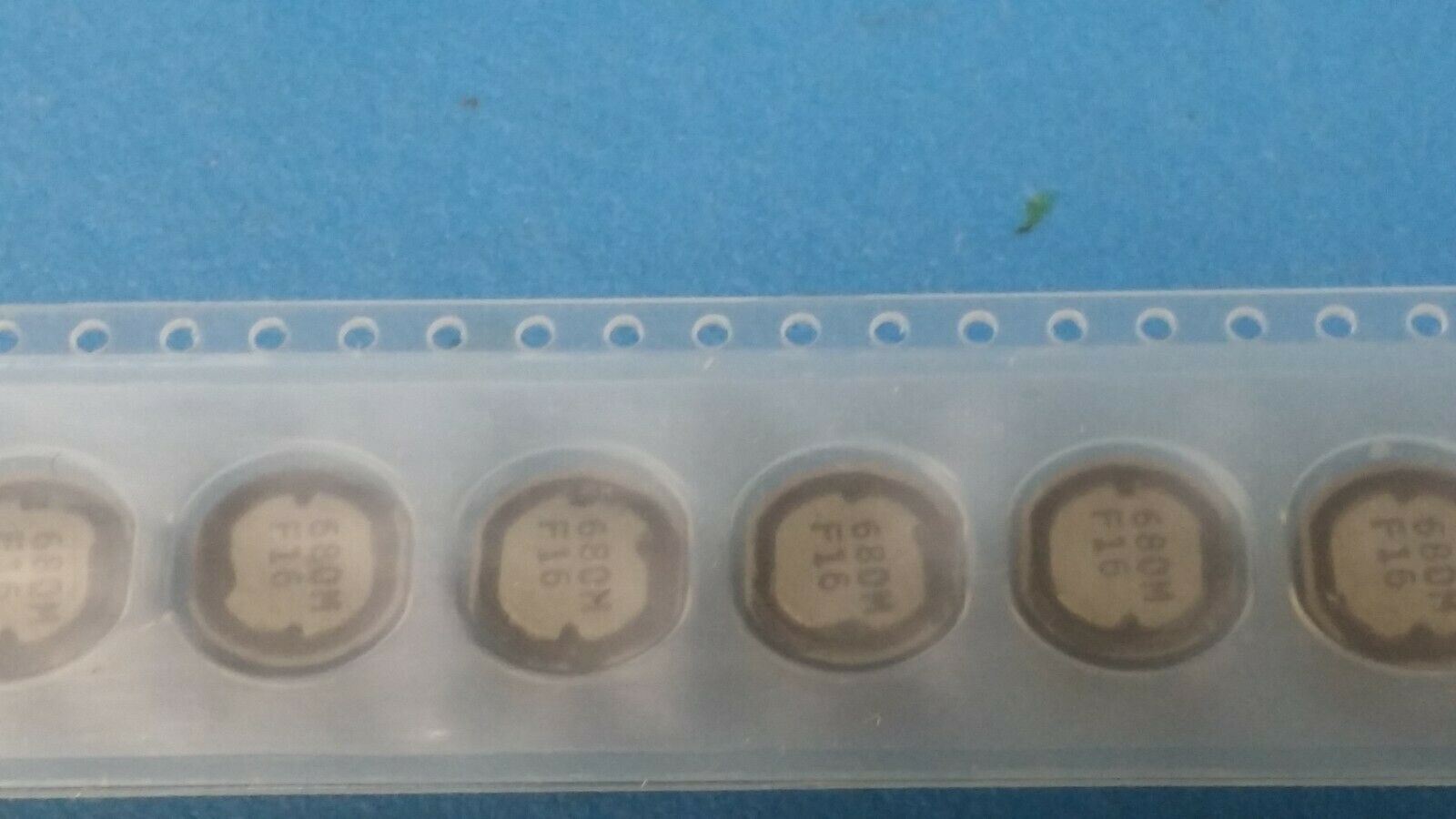

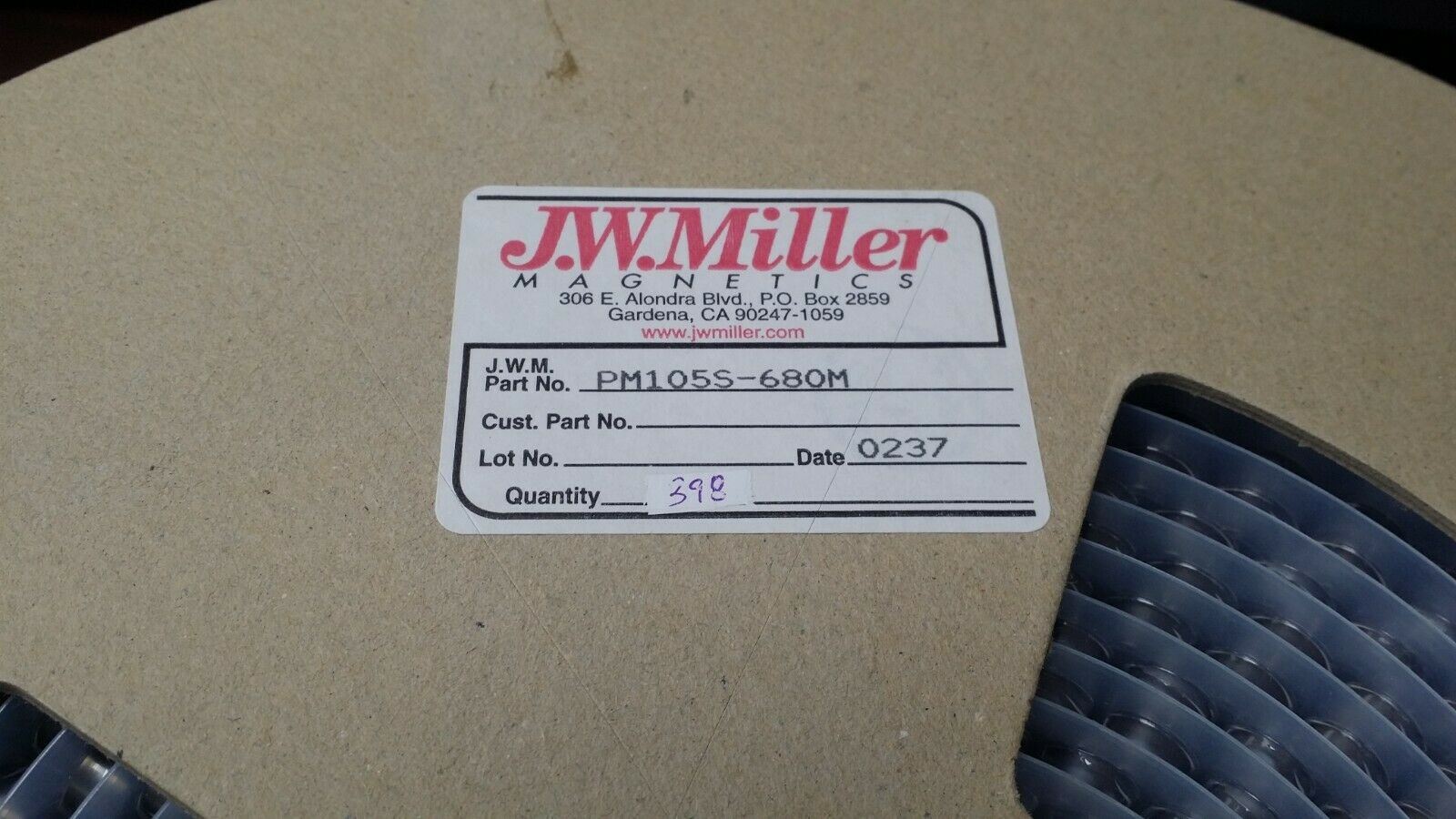

THIS LISTING IS FOR (10 PCS) OF PM105S-680M BY JW MILLER
FIXED IND 68UH 970MA 220MOHM SMD
68 µH Shielded Wirewound Inductor 970 mA 220mOhm Max
CategoryInductors, Coils, Chokes, Fixed Inductors
Mfr Bourns Inc.
Series PM105S
Package Tape & Reel (TR)
Part Status Obsolete
Type Wirewound
Material - Core Ferrite
Inductance 68 µH
Tolerance ±20%
Current Rating (Amps) 970 mA
Current - Saturation (Isat) -
Shielding Shielded
DC Resistance (DCR) 220mOhm Max
Q @ Freq -
Frequency - Self Resonant 11MHz
Ratings -
Operating Temperature -30°C ~ 100°C
Inductance Frequency - Test 2.52 MHz
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package -
Size / Dimension 0.394" L x 0.362" W (10.00mm x 9.20mm)
Height - Seated (Max) 0.217" (5.50mm)
Base Product Number PM105S
