(10 PCS) PI74LCX245QX PERICOM Bus Transceiver 1-Func 8-Bit CMOS SSOP20
Tax included.

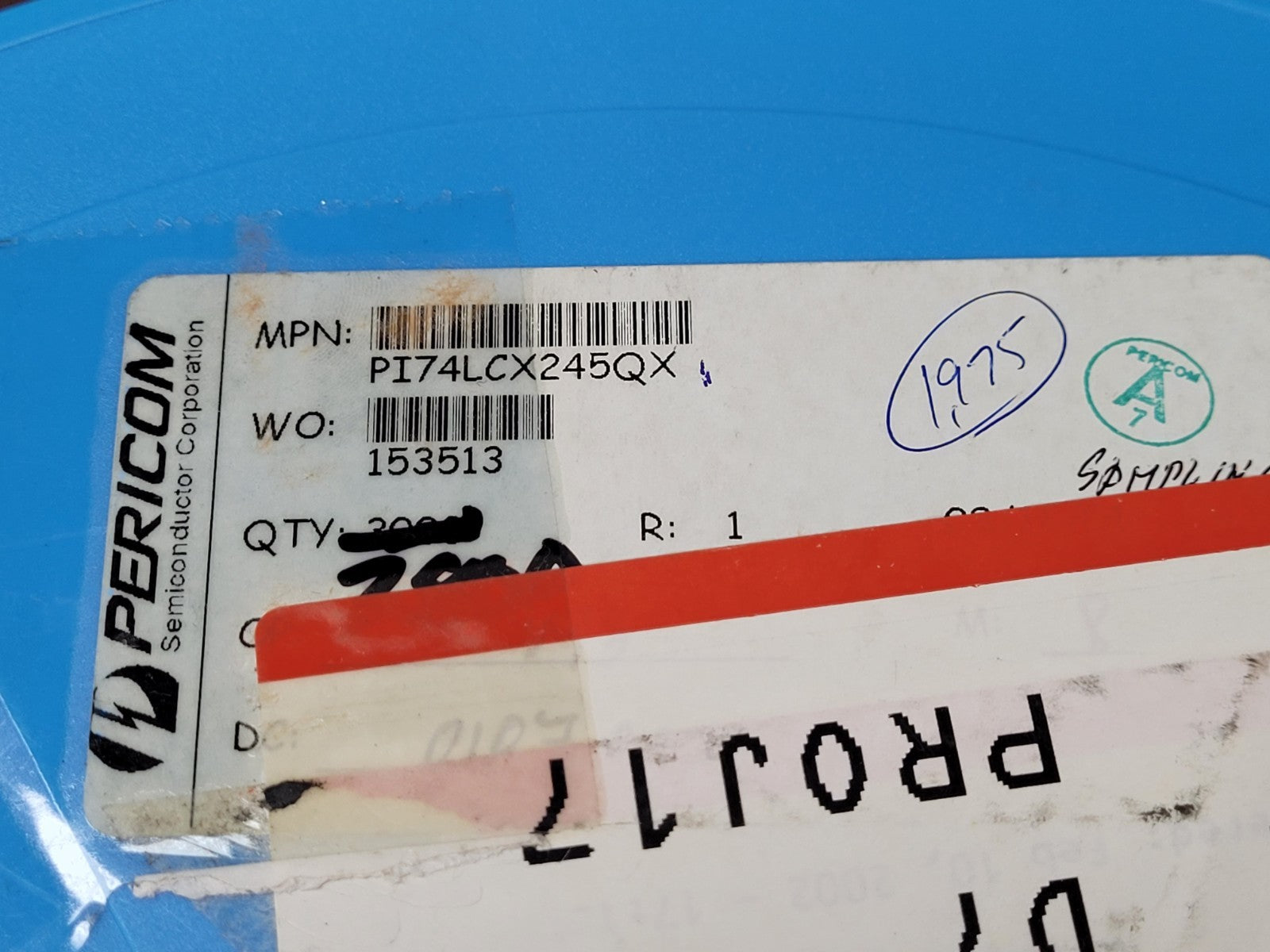

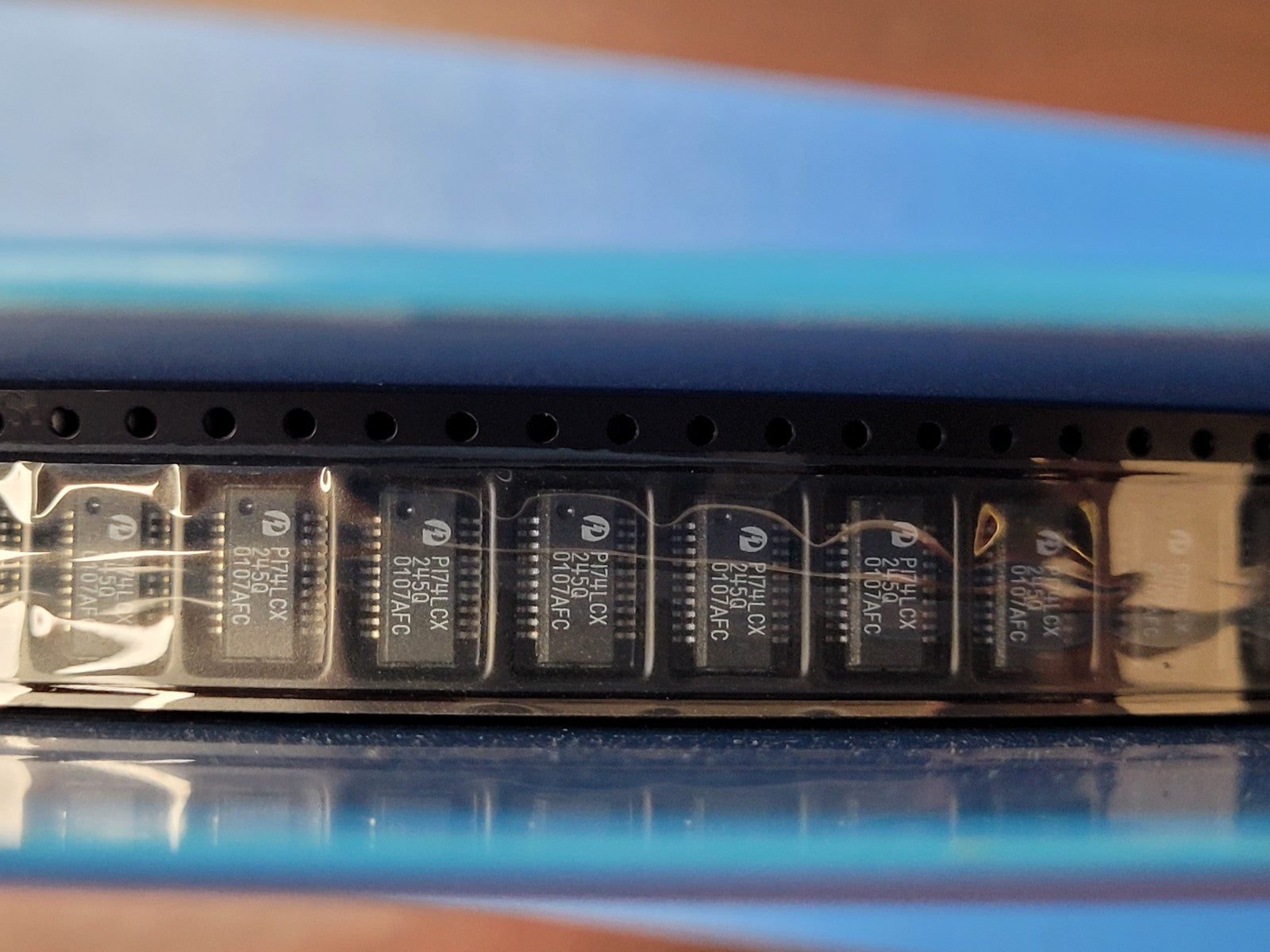

THIS IS FOR (10 PCS) OF PI74LCX245QX BY PERICOM
Bus Transceiver 1-Func 8-Bit CMOS SSOP20
Part #: PI74LCX245QX
Obsolete
Part Category: Bus Driver/Transceivers
Manufacturer: PERICOM SEMICONDUCTOR CORP
Description:
Bus Transceiver, LVC/LCX/Z Series, 1-Func, 8-Bit, True Output, CMOS, PDSO20
Status Discontinued
Additional Feature WITH DIRECTION CONTROL
Family LVC/LCX/Z
JESD-30 Code R-PDSO-G20
J-STD-609 Code e0
Length (mm) 8.6500
Load Capacitance (pF) 50.0000
Logic IC Type BUS TRANSCEIVER
Number of Bits 8
Number of Functions 1
Number of Ports 2
Number of Terminals 20
Operating Temperature-Max (Cel) 85
Operating Temperature-Min (Cel) -40
Output Characteristics 3-STATE
Output Polarity TRUE
Package Body Material PLASTIC/EPOXY
Package Code SSOP
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, SHRINK PITCH
Propagation Delay (ns) 8.0000
DLA Qualification Not Qualified
Seated Height-Max (mm) 1.7500
Supply Voltage-Max (V) 3.6000
Supply Voltage-Min (V) 2.0000
Supply Voltage-Nom (V) 3.3
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish TIN LEAD
Terminal Form GULL WING
Terminal Pitch (mm) 0.635
Terminal Position DUAL
Width (mm) 3.9000
