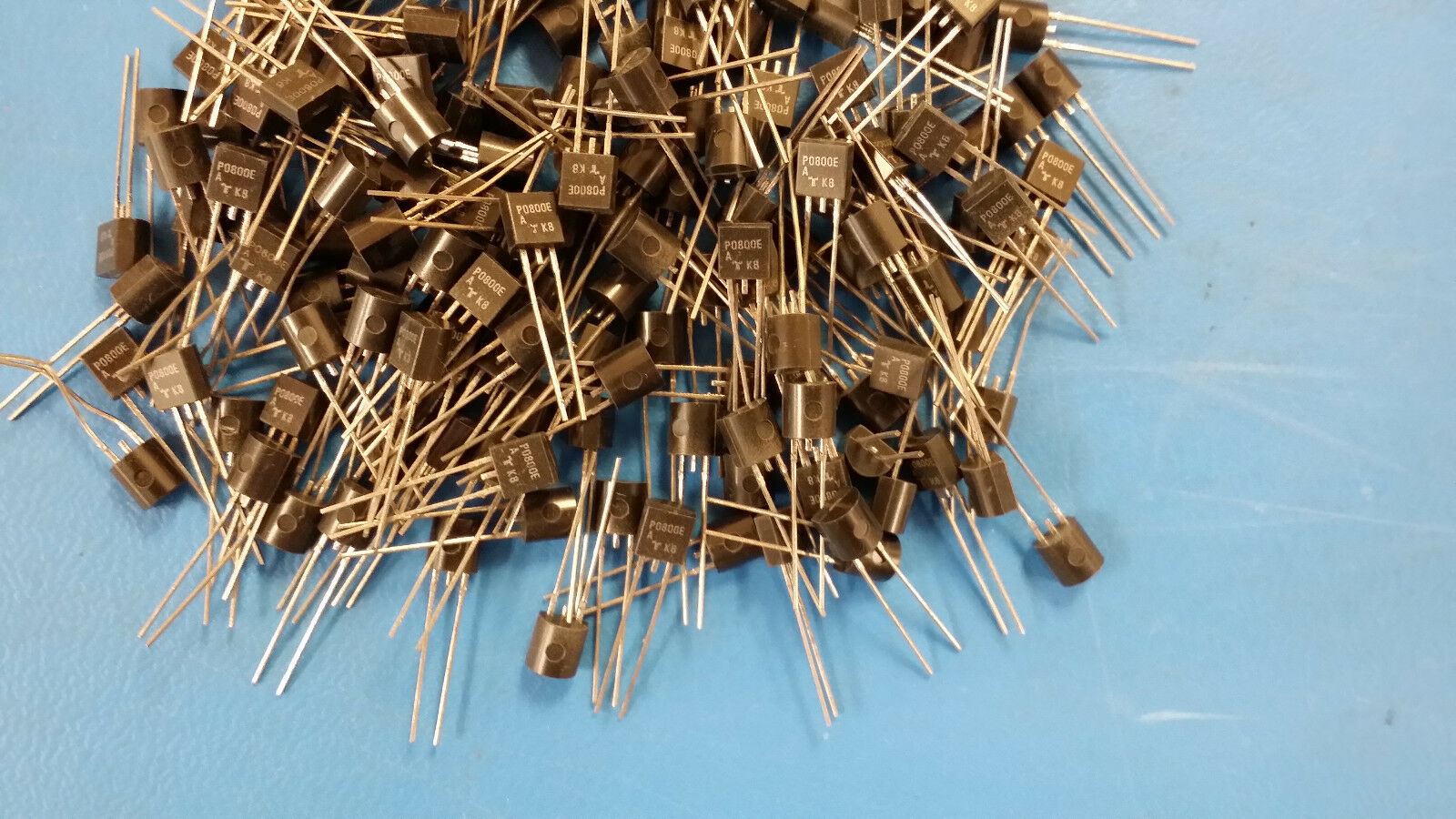

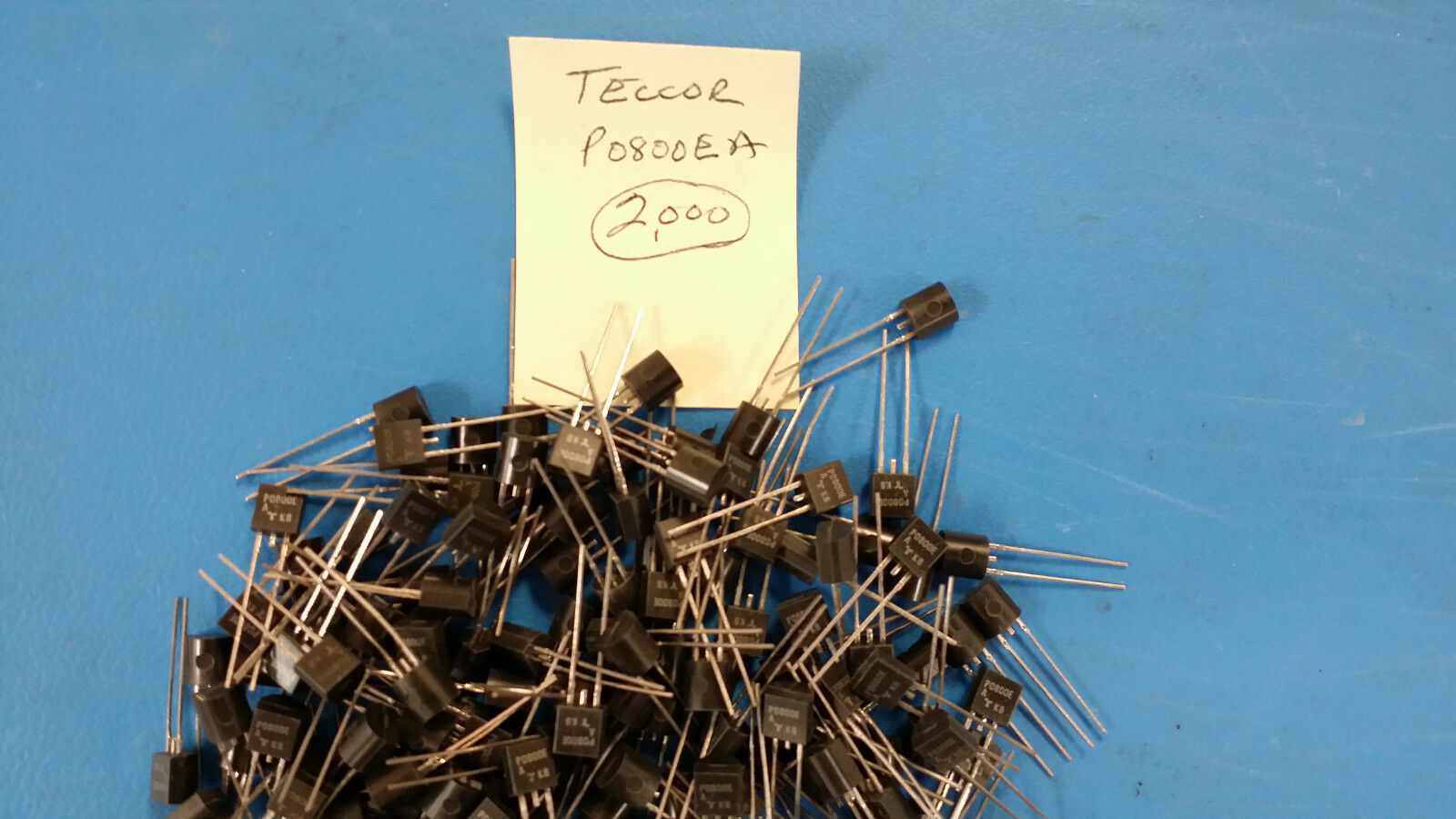

(10 PCS) P0800EA TECCOR 20A, SILICON SURGE PROTECTOR, TO-92

  • $6.95
    Unit price per
Tax included.

Only 50 left!

THIS LISTING IS FOR (10 PCS) OF P0800EA BY TECCOR
20A, SILICON SURGE PROTECTOR, TO-92

Part #: P0800EA

Part Category: Trigger Devices
Manufacturer: Littelfuse, Inc.
Description: 20A, SILICON SURGE PROTECTOR, TO-92
Mfr Package Description TO-92, 2 PIN
Status Transferred
Trigger Device Type SILICON SURGE PROTECTOR
Breakover Voltage-Min 60 V
Breakover Voltage-Max 100 V
Configuration SINGLE
DC Off-state Voltage-Max 75 V
Holding Current-Max 750 mA
JEDEC-95 Code TO-92
JESD-30 Code O-PBCY-T2
JESD-609 Code e0
Non-Repetitive Pk On-state Cur 20 A
Number of Elements 1
Number of Terminals 2
Operating Temperature-Min -40 Cel
Operating Temperature-Max 125 Cel
Package Body Material PLASTIC/EPOXY
Package Shape ROUND
Package Style CYLINDRICAL
Qualification Status Not Qualified
Repetitive Peak Reverse Voltage 50 V
Sub Category Silicon Surge Protectors
Surface Mount NO
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form THROUGH-HOLE
Terminal Position BOTTOM
