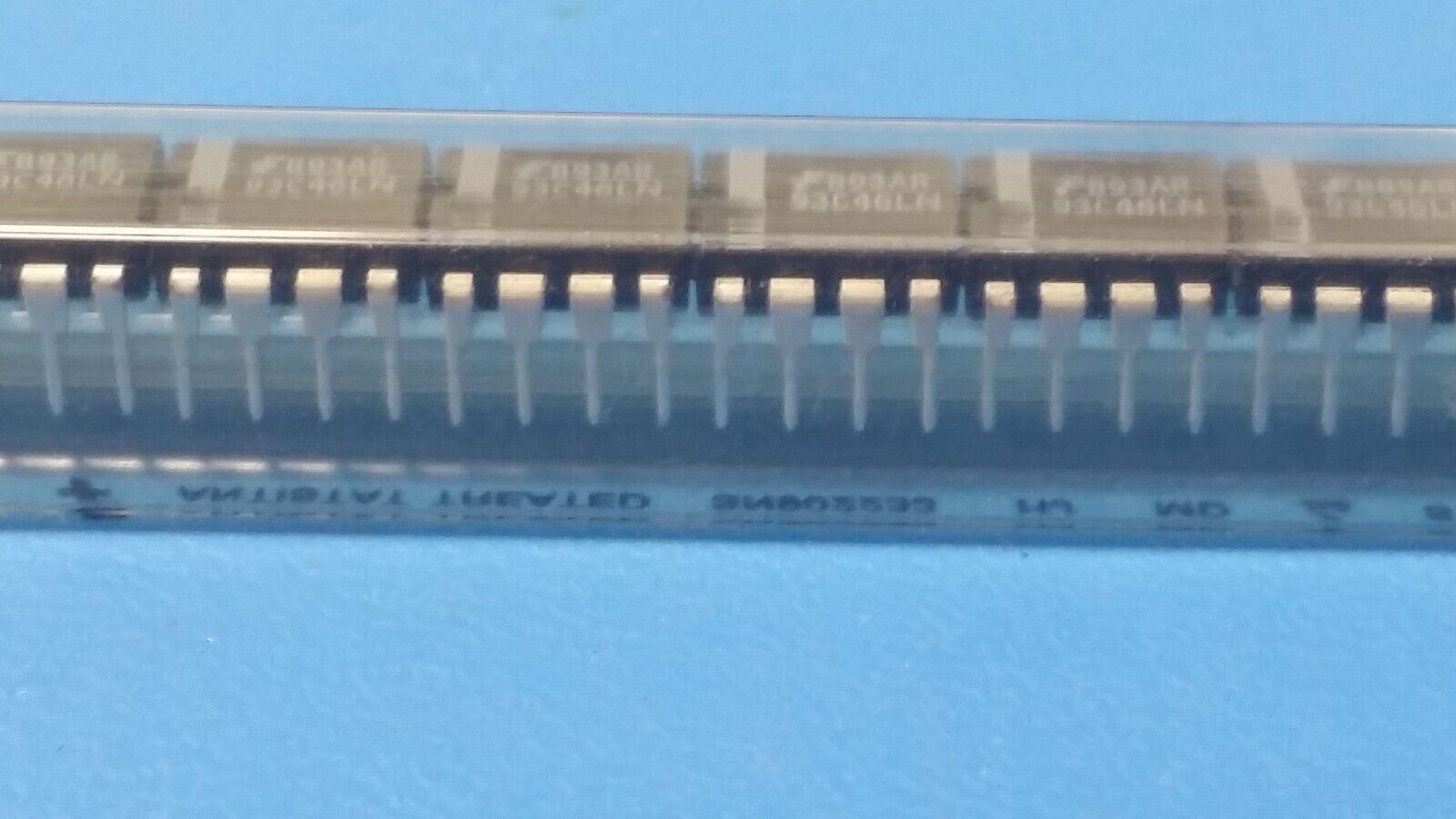

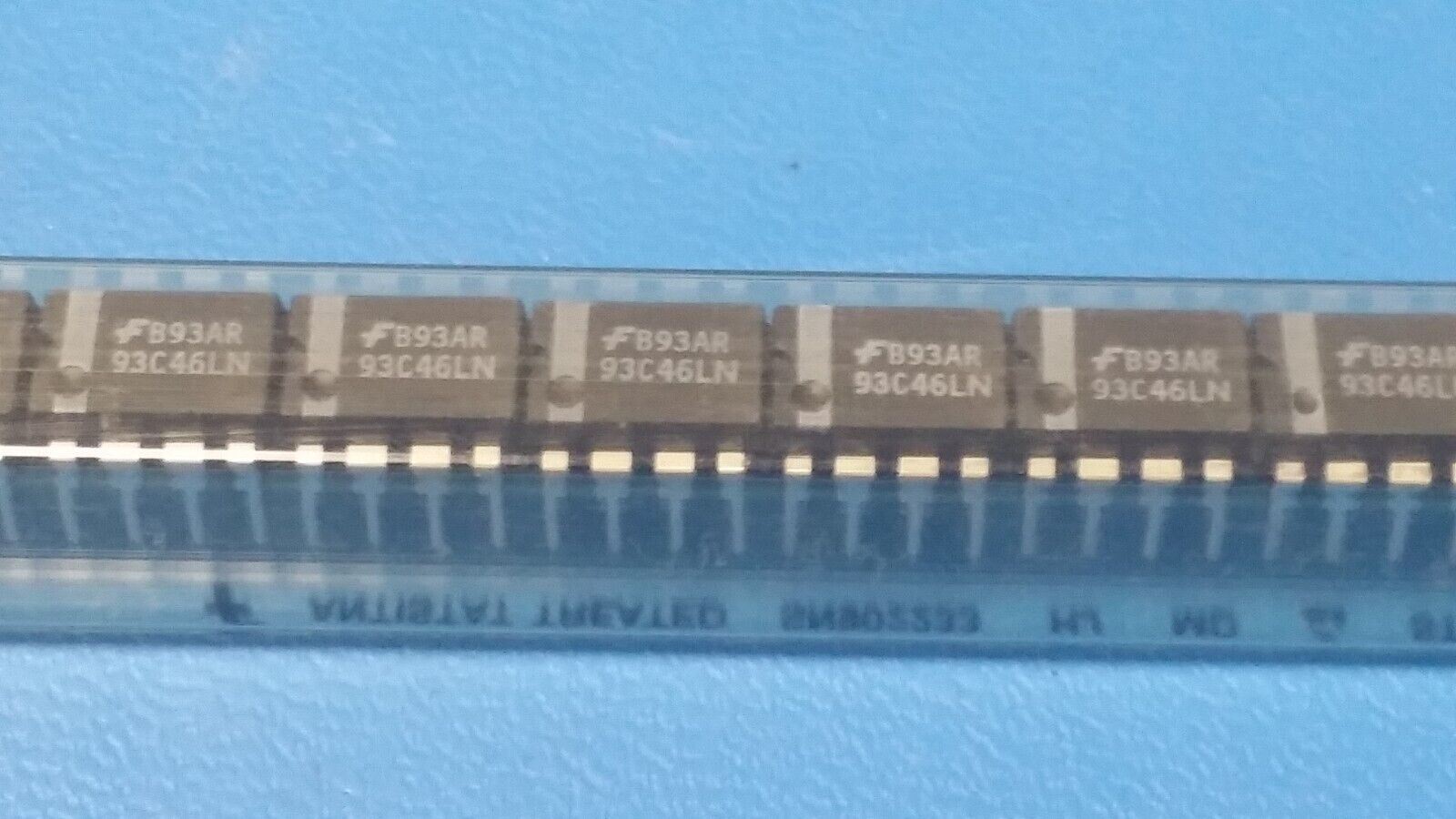

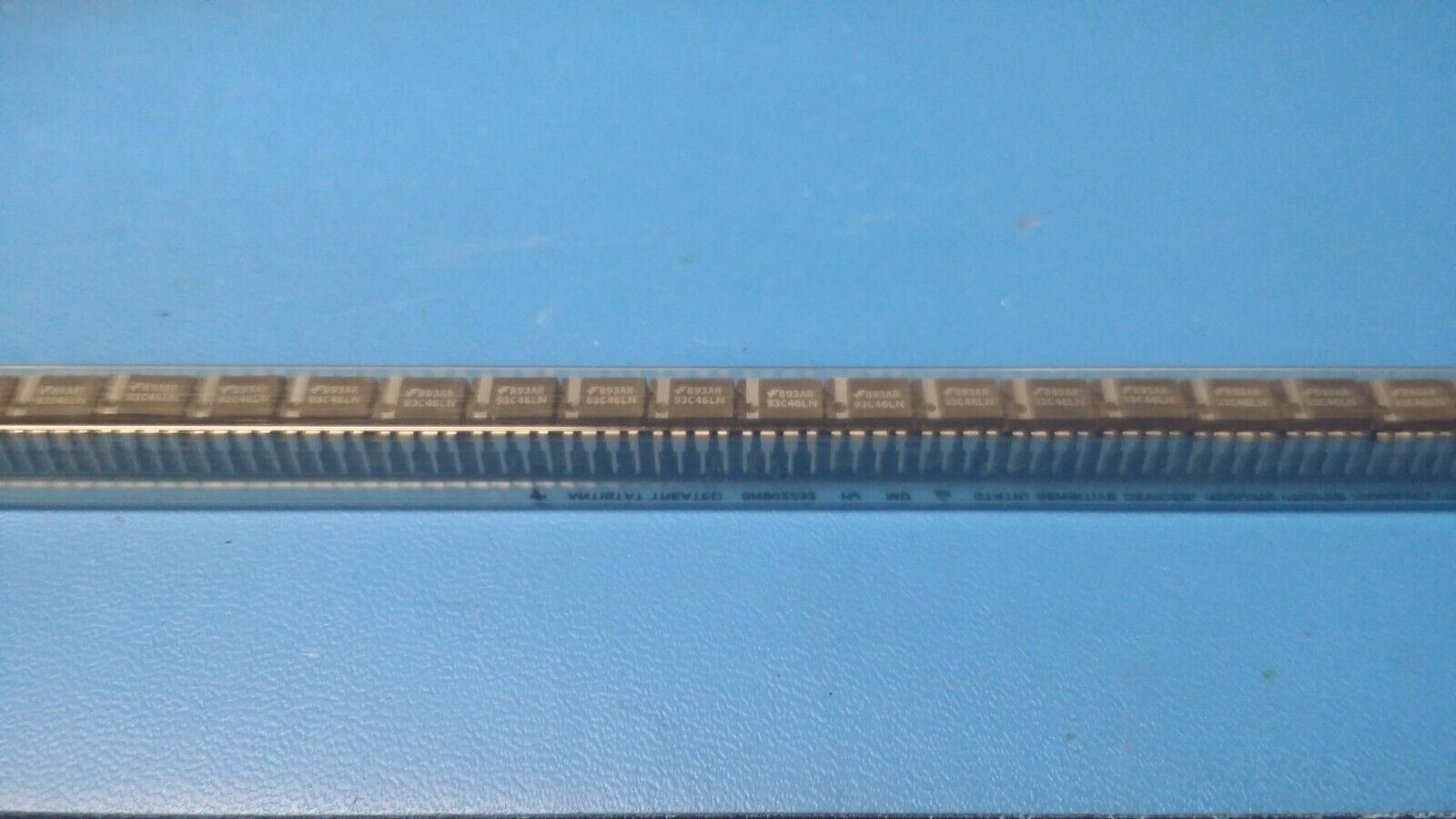

(10 PCS) NM93C46LN FSC EEPROM, 64X16, Serial, CMOS, PDIP8
Tax included.
THIS IS FOR (10 PCS) OF NM93C46LN BY FSC
EEPROM, 64X16, Serial, CMOS, PDIP8
Part #: NM93C46LN
Part Category: Memory ICs
Manufacturer: Fairchild Semiconductor
Description: EEPROM, 64X16, Serial, CMOS, PDIP8
Mfr Package Description PLASTIC, DIP-8
Status Discontinued
Sub Category EEPROMs
Clock Frequency-Max (fCLK) 0.25 MHz
Data Retention Time-Min 40
Endurance 1000000.0 Write/Erase Cycles
JESD-30 Code R-PDIP-T8
Memory Density 1024.0 bit
Memory IC Type EEPROM
Memory Width 16
Number of Functions 1
Number of Terminals 8
Number of Words 64.0 words
Number of Words Code 64
Operating Mode SYNCHRONOUS
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Organization 64X16
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP8,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Parallel/Serial SERIAL
Qualification Status Not Qualified
Seated Height-Max 5.08 mm
Serial Bus Type MICROWIRE
Standby Current-Max 1.0E-5 Amp
Supply Current-Max 0.001 Amp
Supply Voltage-Nom (Vsup) 3.3 V
Supply Voltage-Min (Vsup) 2.7 V
Supply Voltage-Max (Vsup) 5.5 V
Surface Mount NO
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Write Cycle Time-Max (tWC) 15.0 ms
Write Protection SOFTWARE
Length 9.817 mm
Width 7.62 mm
Additional Feature 40 YEARS OF DATA RETENTION
