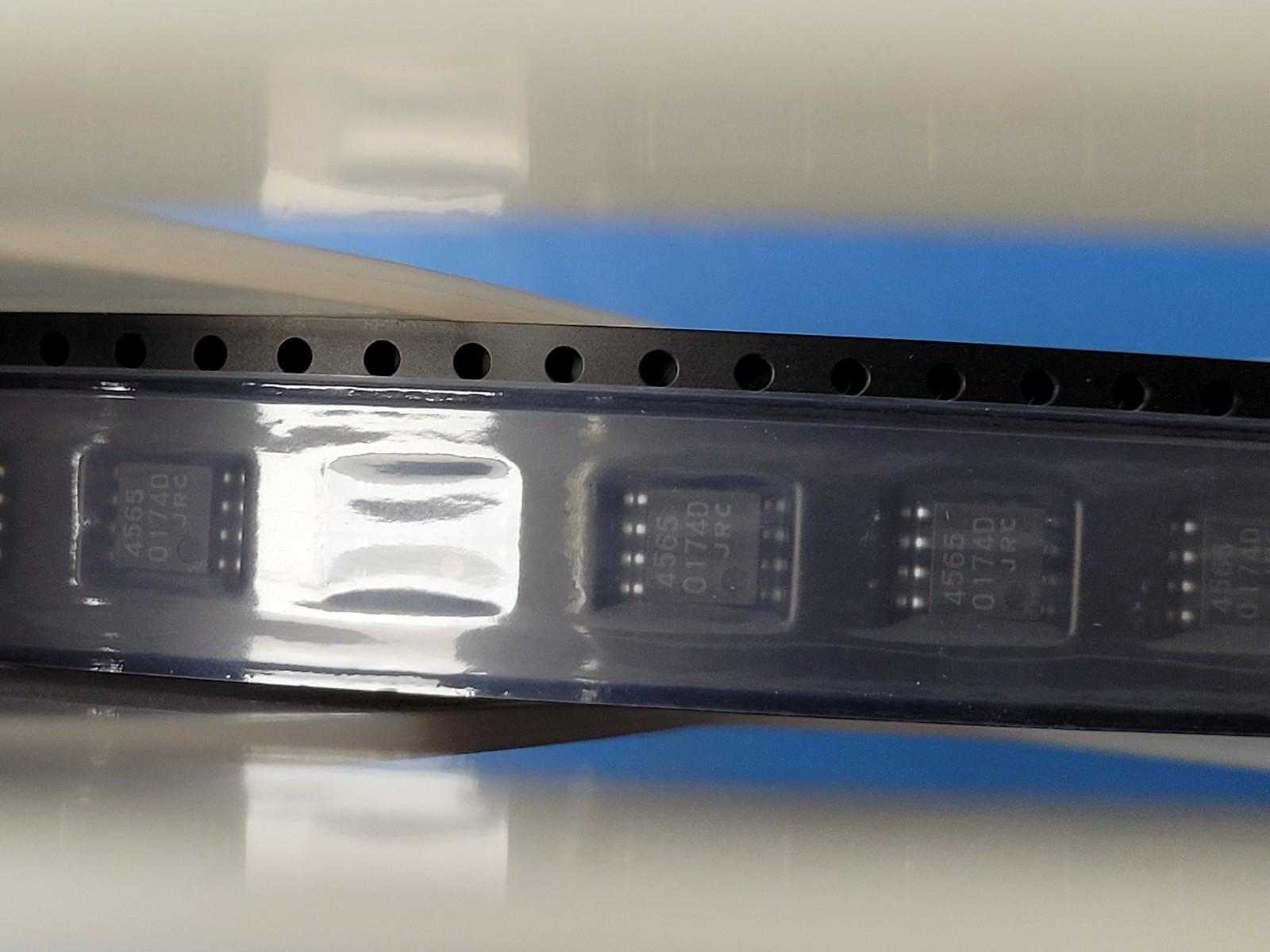

(10 PCS) NJM4565M-TE1 JRC OP Amp Dual GP ±18V 8-Pin DMP T/R ROHS

$15.95
Unit price per

Tax included.

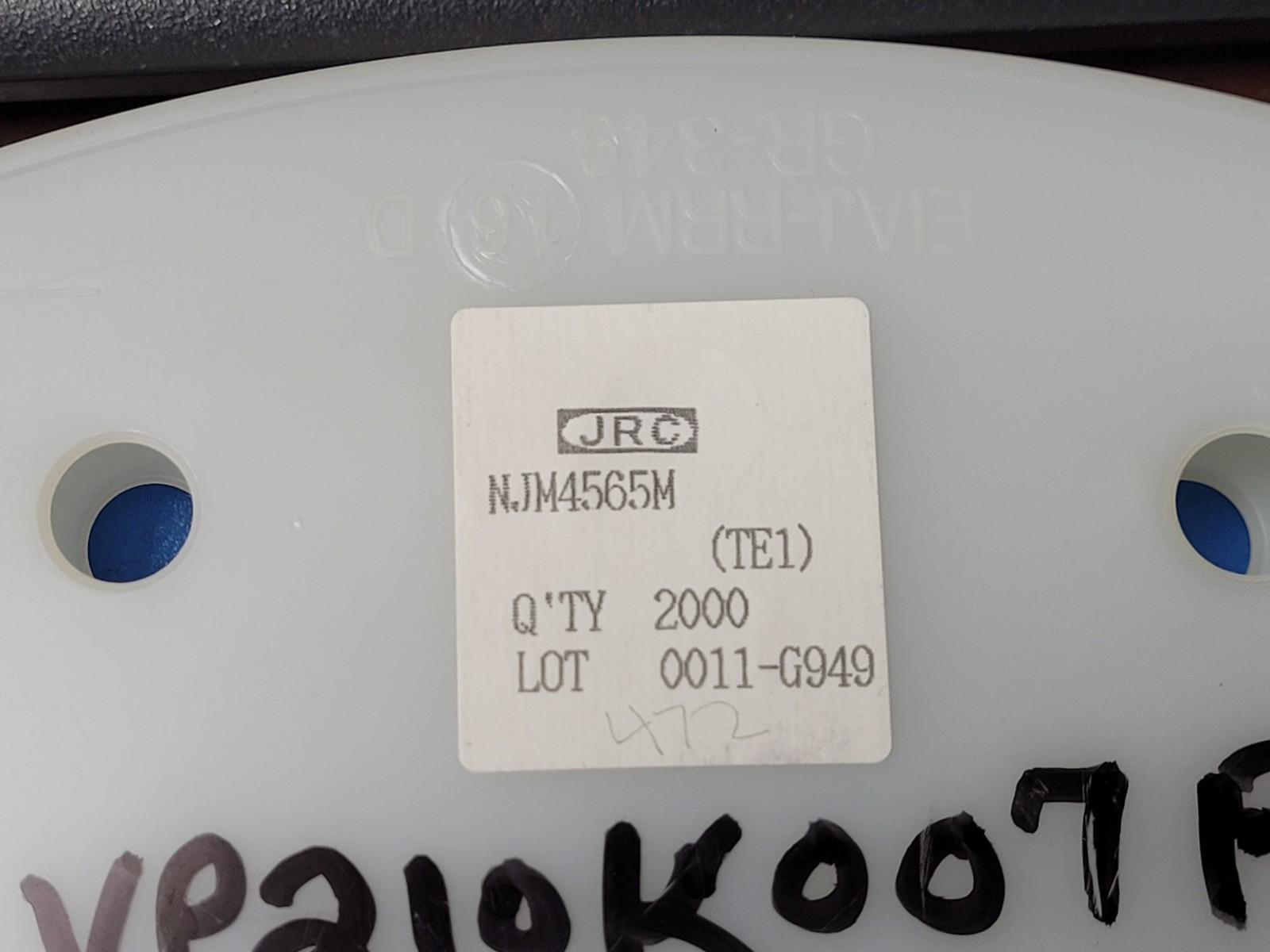

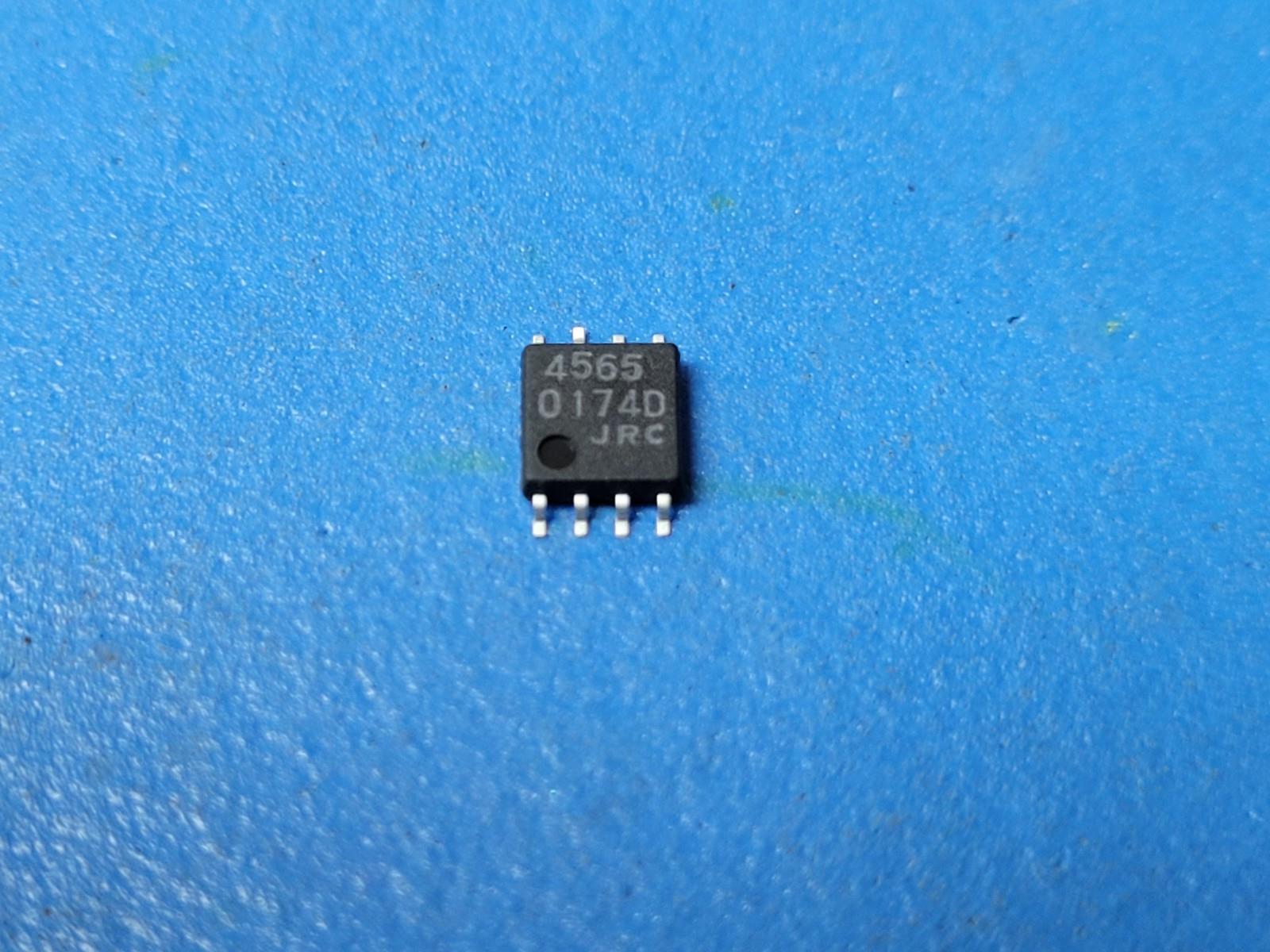

THIS IS FOR (10 PCS) OF NJM4565M-TE1 BY JRC

OP Amp Dual GP ±18V 8-Pin DMP T/R ROHS

Part #: NJM4565M

Other

Part Category: Operational Amplifiers

Manufacturer: NEW JAPAN RADIO CO LTD

Description: Operational Amplifier, 2 Func, 3000uV Offset-Max, BIPolar, PDSO8

Status Transferred

Amplifier Type OPERATIONAL AMPLIFIER

Amp Architecture VOLTAGE-FEEDBACK

Average Bias Current-Max (IIB) (uA) 0.2000000000000000

Bias Current-Max (IIB) @25C (uA) 0.2000000000000000

Common-mode Reject Ratio-Min (dB) 70

Common-mode Reject Ratio-Nom (dB) 90

Frequency Compensation YES

Input Offset Voltage-Max (uV) 3000.00000000

JESD-30 Code S-PDSO-G8

J-STD-609 Code e6

Length (mm) 5.0000

Low-Bias NO

Low-Offset NO

Micropower NO

Neg Supply Voltage Limit-Max (V) -18.0000

Negative Supply Voltage-Nom (V) -15.0000

Number of Functions 2

Number of Terminals 8

Operating Temperature-Max (Cel) 75

Operating Temperature-Min (Cel) -20.0000

Package Body Material PLASTIC/EPOXY

Package Code SOP

Package Equivalence Code SOP8,.3

Package Shape SQUARE

Package Style SMALL OUTLINE

Power NO

Programmable Power NO

DLA Qualification Not Qualified

Seated Height-Max (mm) 2.0000

Slew Rate-Nom (V/us) 4.00000000

Supply Current-Max (mA) 7.00000000

Supply Voltage Limit-Max (V) 18.0000

Supply Voltage-Nom (V) 15

Surface Mount YES

Technology BIPOLAR

Temperature Grade COMMERCIAL EXTENDED

Terminal Finish TIN BISMUTH

Terminal Form GULL WING

Terminal Pitch (mm) 1.270

Terminal Position DUAL

Unity Gain BW-Nom (kHz) 10000.0000000000000000

Voltage Gain-Min 19952.6000000000000000

Wideband NO

Width (mm) 5.0000
