(10 PCS) NJM353M NJR Op Amp 2 Func, 10000uV Offset-Max, BIPolar, SOP8
Tax included.

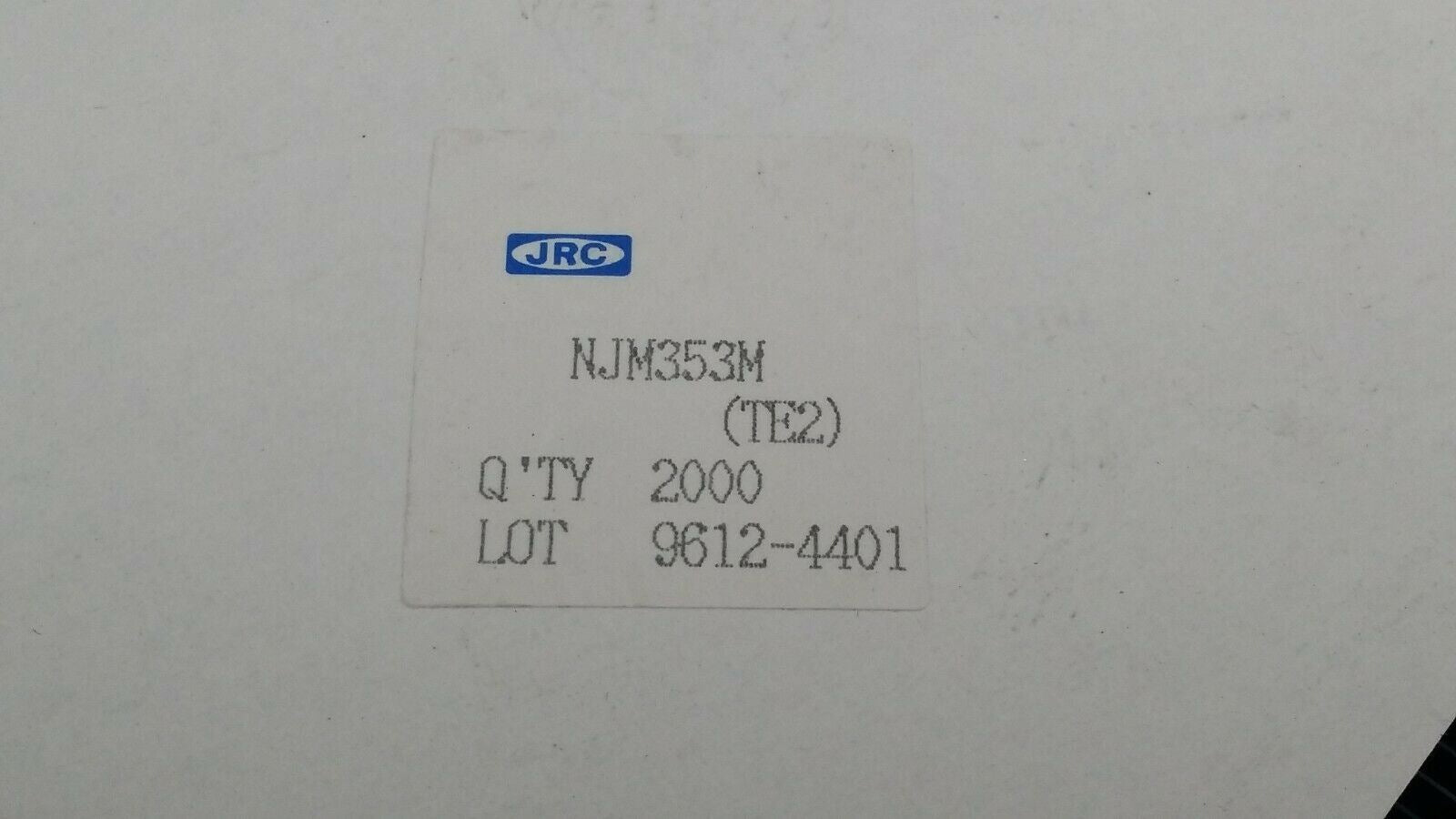

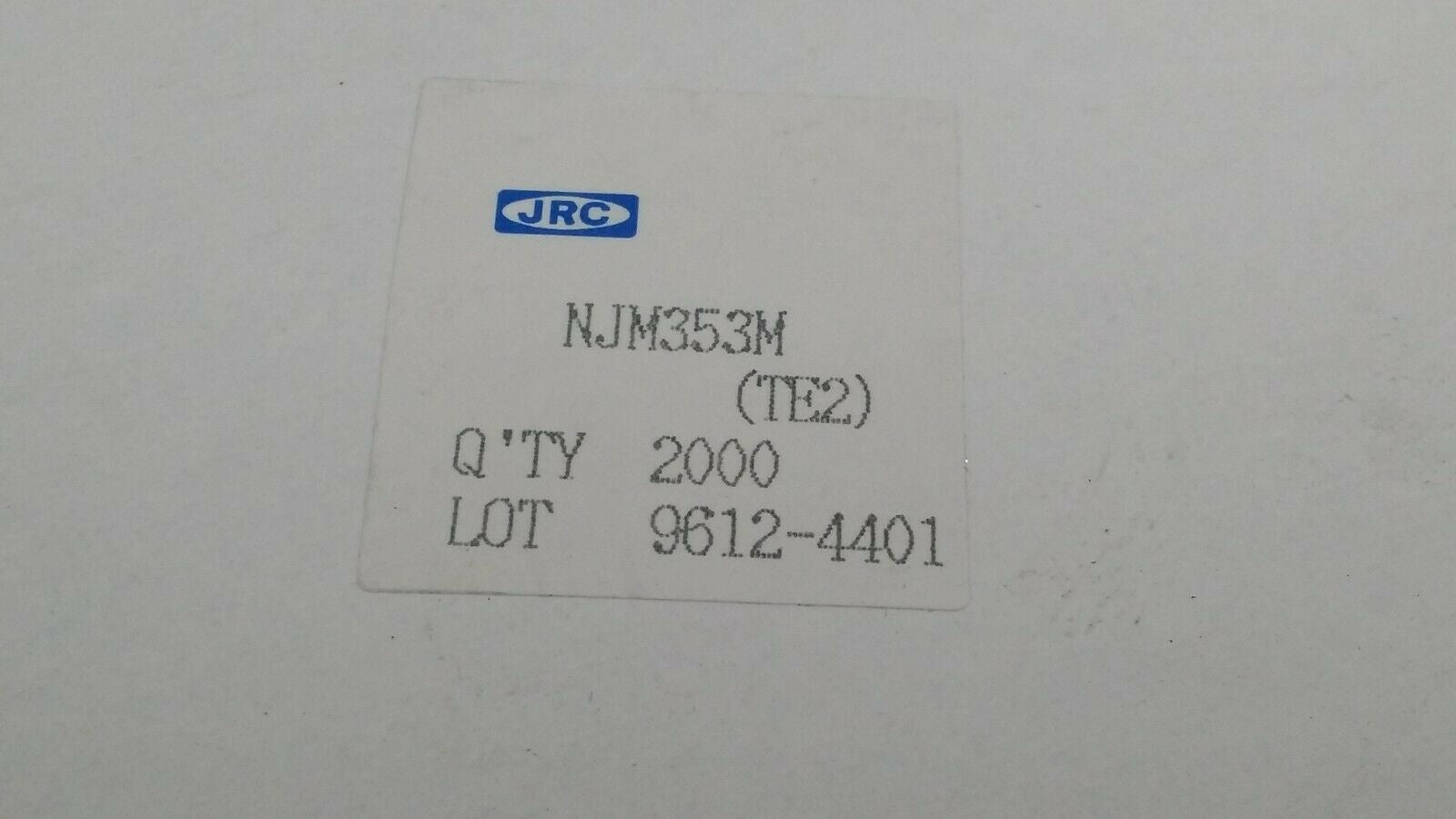

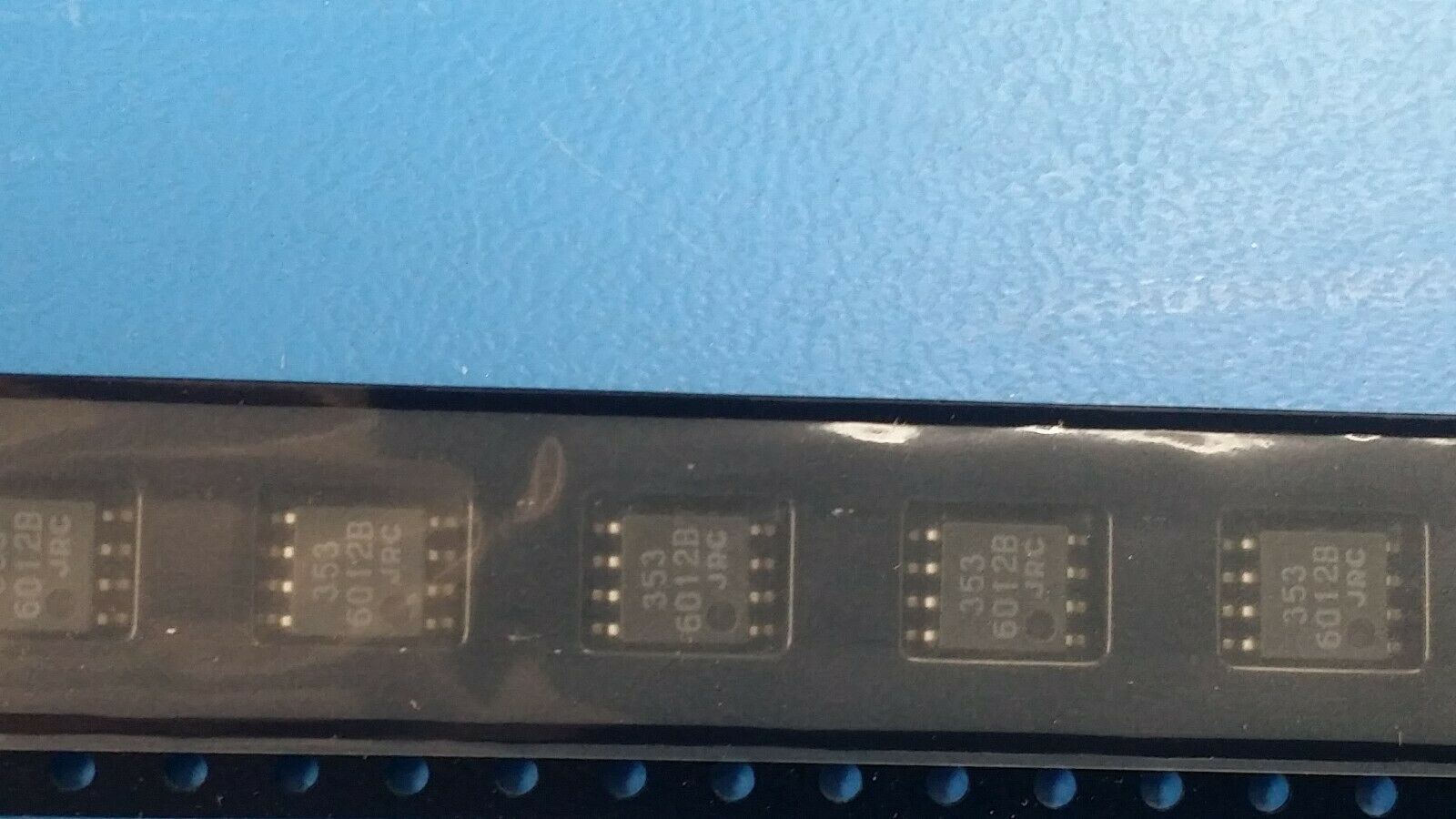

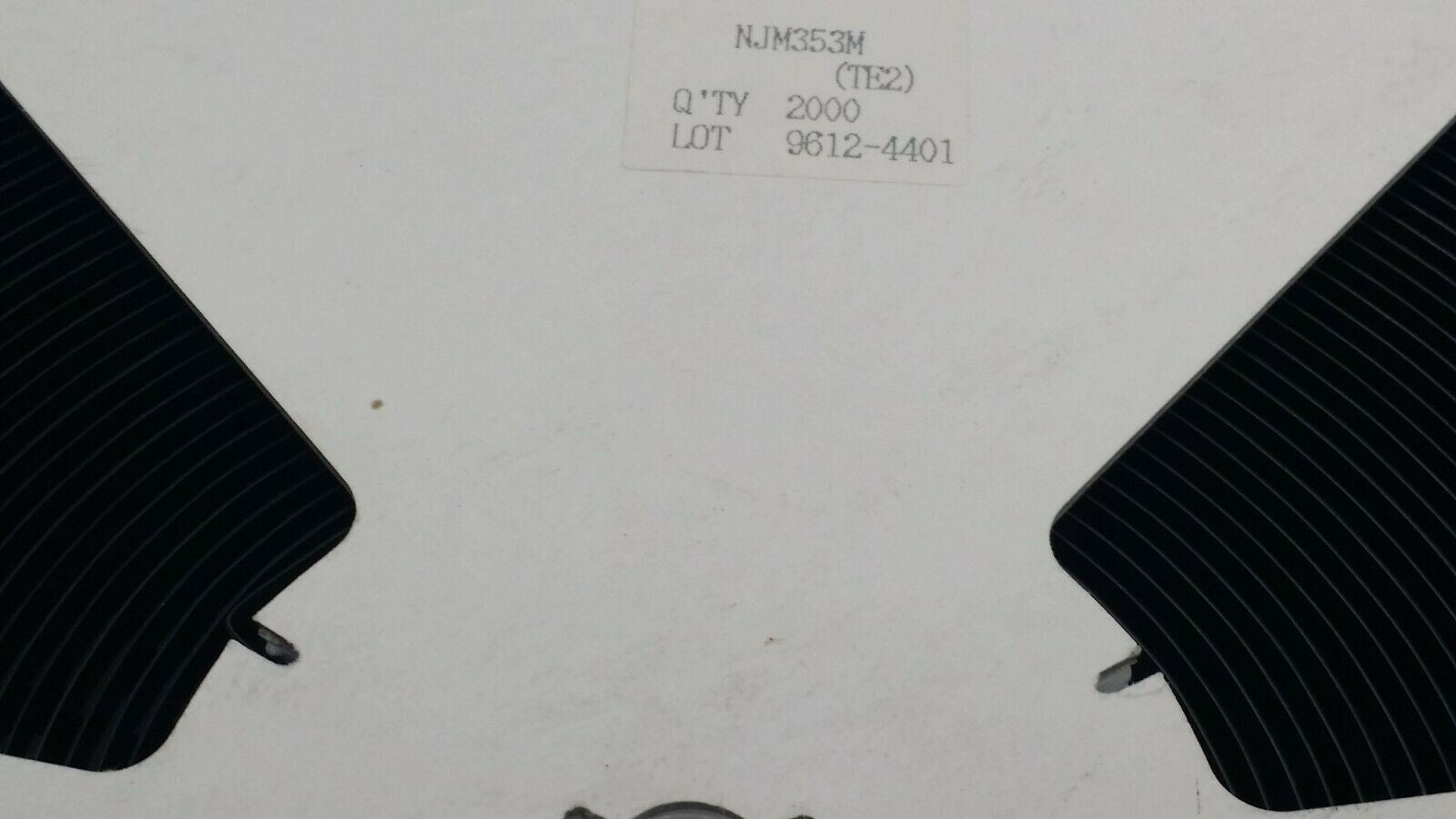

THIS IS FOR (10 PCS) OF NJM353M BY NJR
Op Amp 2 Func, 10000uV Offset-Max, BIPolar, SOP8
Part #: NJM353M
Part Category: Amplifiers
Manufacturer: New Japan Radio Co., Ltd.
Description: Operational Amplifier, 2 Func, 10000uV Offset-Max, BIPolar, PDSO8
Mfr Package Description DMP-8
REACH Compliant Yes
Status Discontinued
Amplifier Type OPERATIONAL AMPLIFIER
Architecture VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB) 2.0E-4 µA
Bias Current-Max (IIB) @25C 2.0E-4 µA
Common-mode Reject Ratio-Nom 100.0 dB
Common-mode Reject Ratio-Min 70.0 dB
Frequency Compensation YES
Input Offset Current-Max (IIO) 1.0E-4 µA
Input Offset Voltage-Max 10000.0 µV
JESD-30 Code S-PDSO-G8
JESD-609 Code e6
Low-Bias YES
Low-Offset NO
Neg Supply Voltage Limit-Max -18.0 V
Neg Supply Voltage-Nom (Vsup) -15.0 V
Number of Functions 2
Number of Terminals 8
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max 85.0 Cel
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP8,.3
Package Shape SQUARE
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Seated Height-Max 2.0 mm
Slew Rate-Nom 13.0 V/us
Sub Category Operational Amplifier
Supply Current-Max 6.5 mA
Supply Voltage Limit-Max 18.0 V
Supply Voltage-Nom (Vsup) 15.0 V
Surface Mount YES
Technology BIPOLAR
Temperature Grade INDUSTRIAL
Terminal Finish Tin/Bismuth (Sn/Bi)
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Unity Gain BW-Nom 4000.0 kHz
Voltage Gain-Min 25118.9
Length 5.0 mm
Width 5.0 mm
