(10 PCS) N74F641D PHILIPS Bus Driver/Transceiver 1-Func 8-Bit TTL SOIC-20
Tax included.

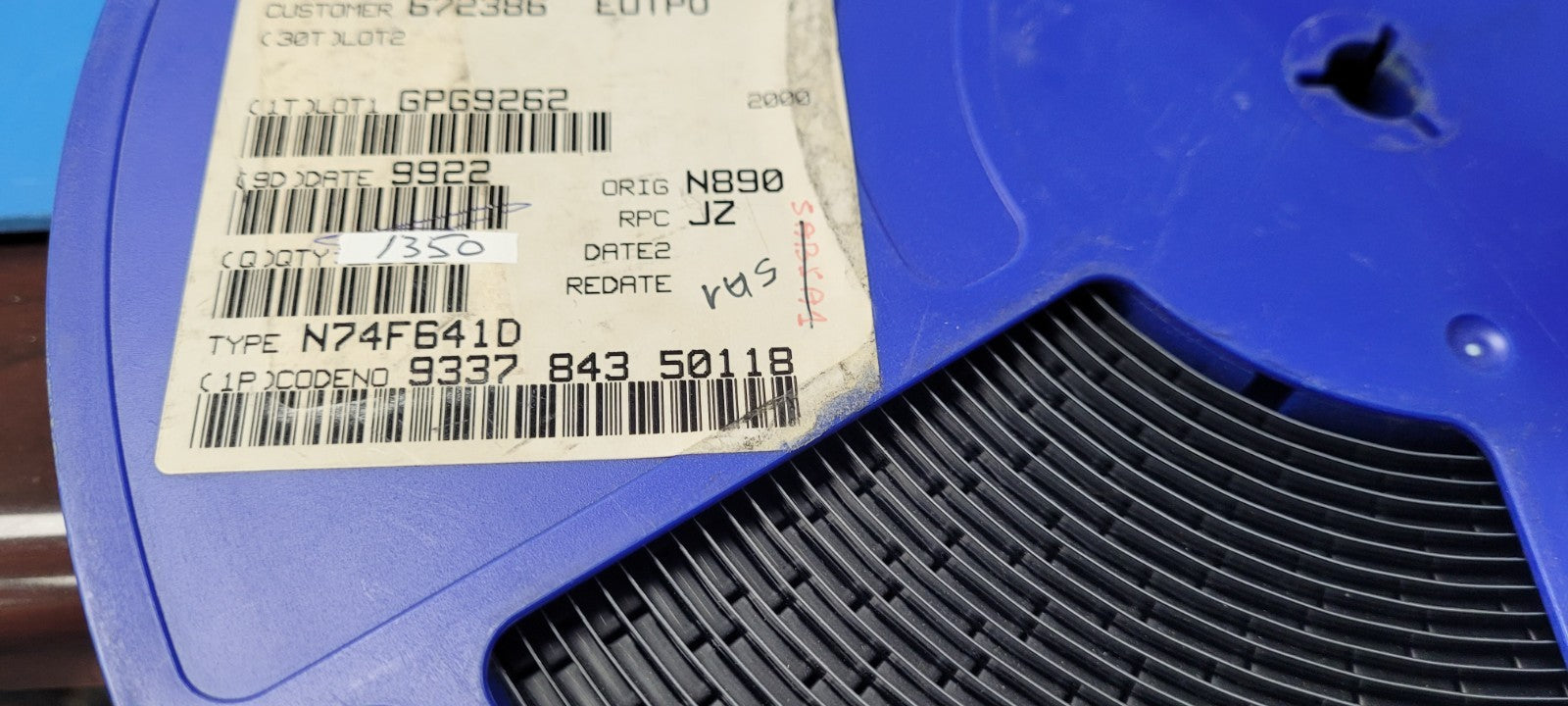

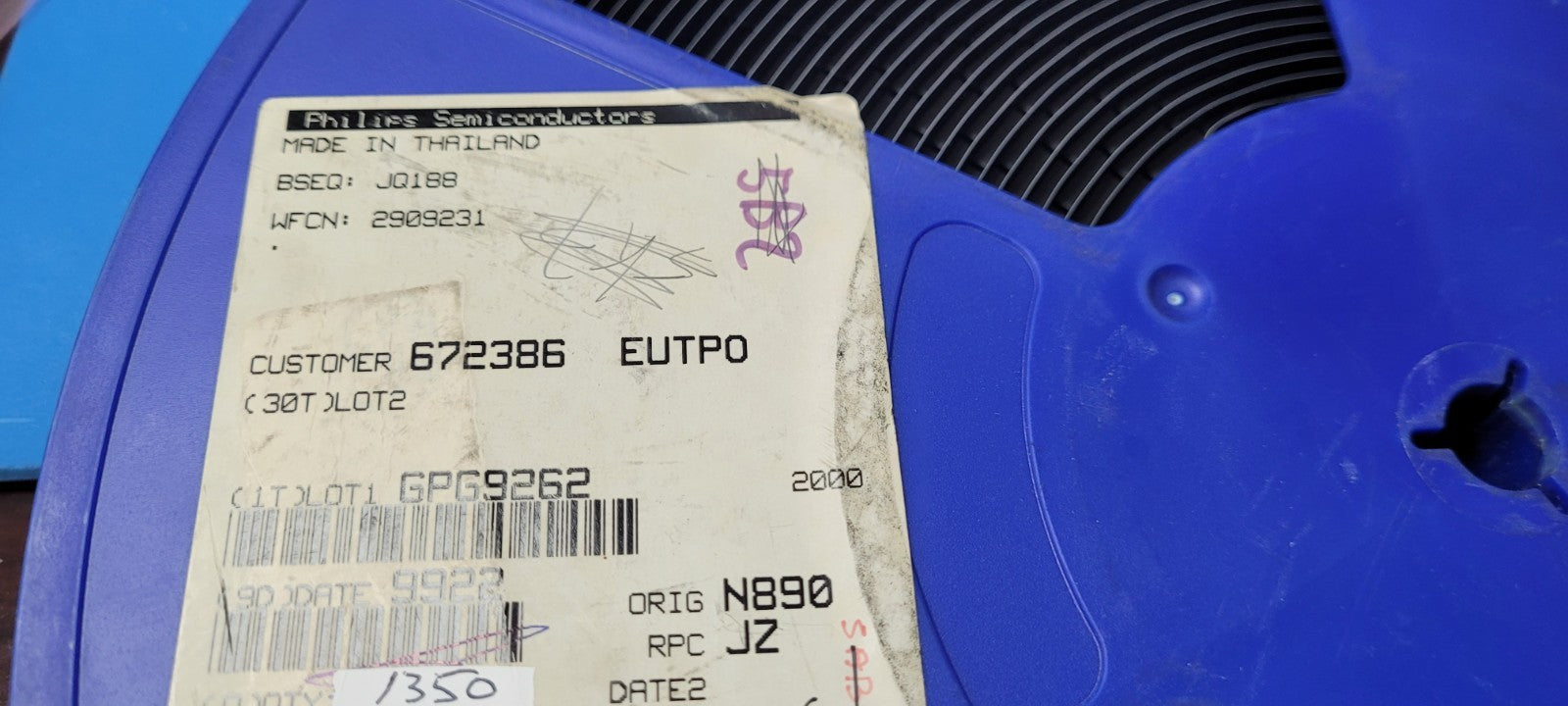

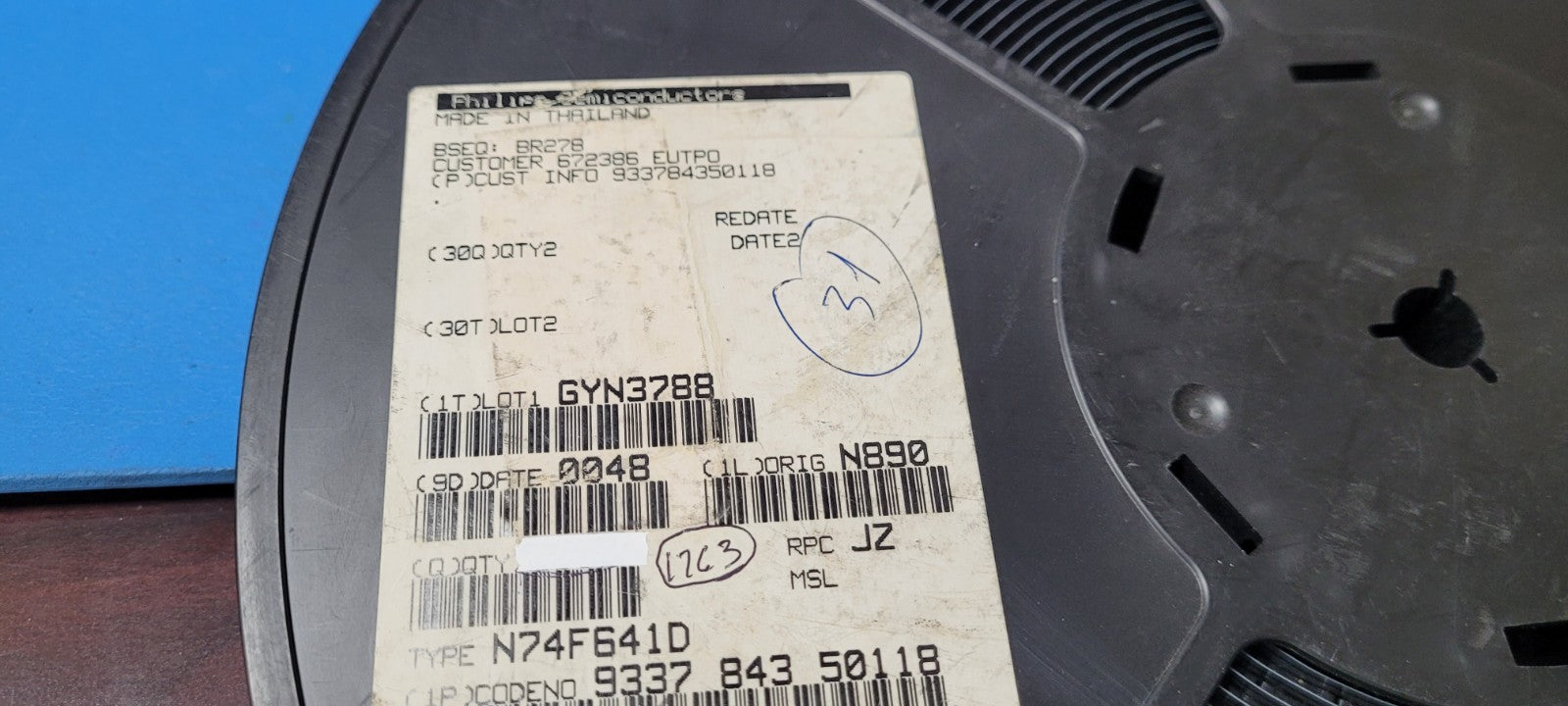

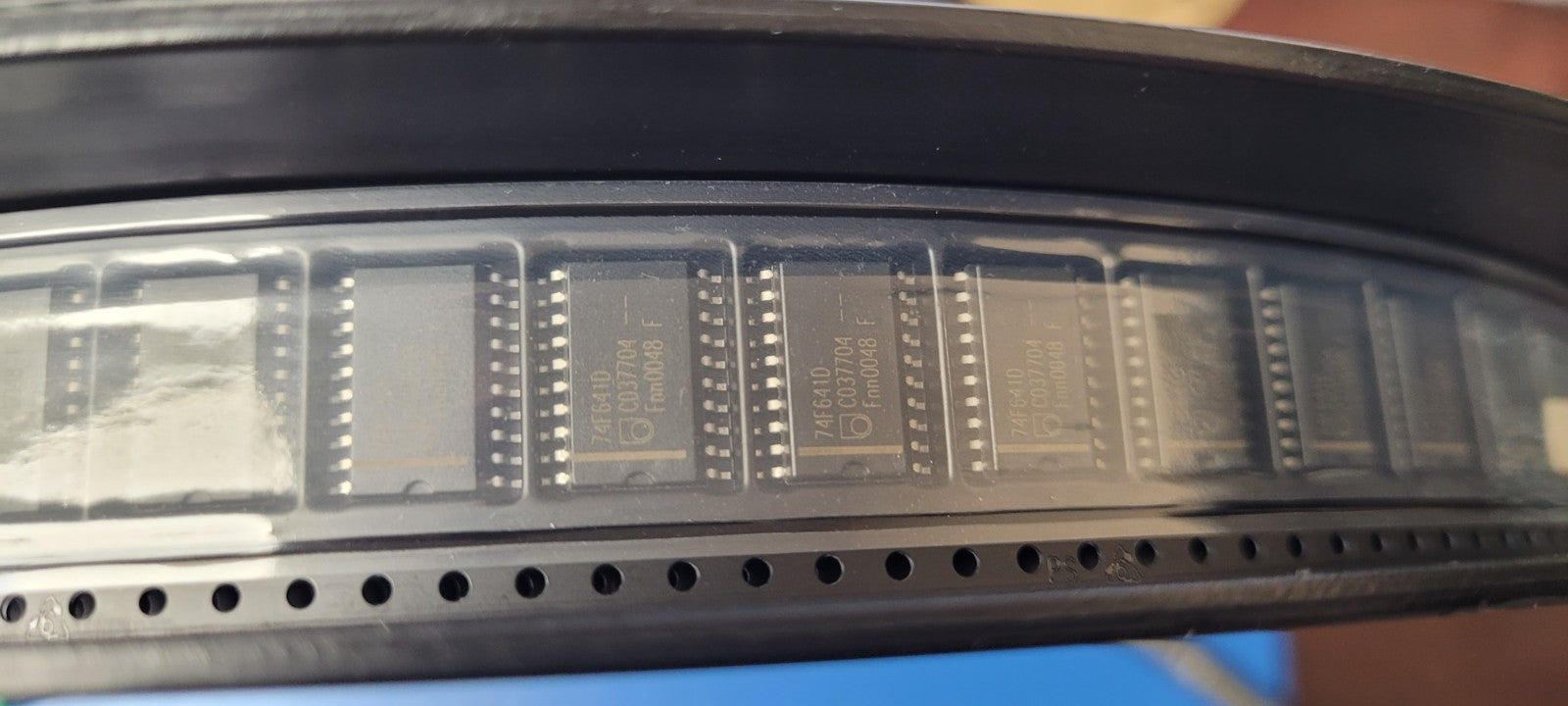

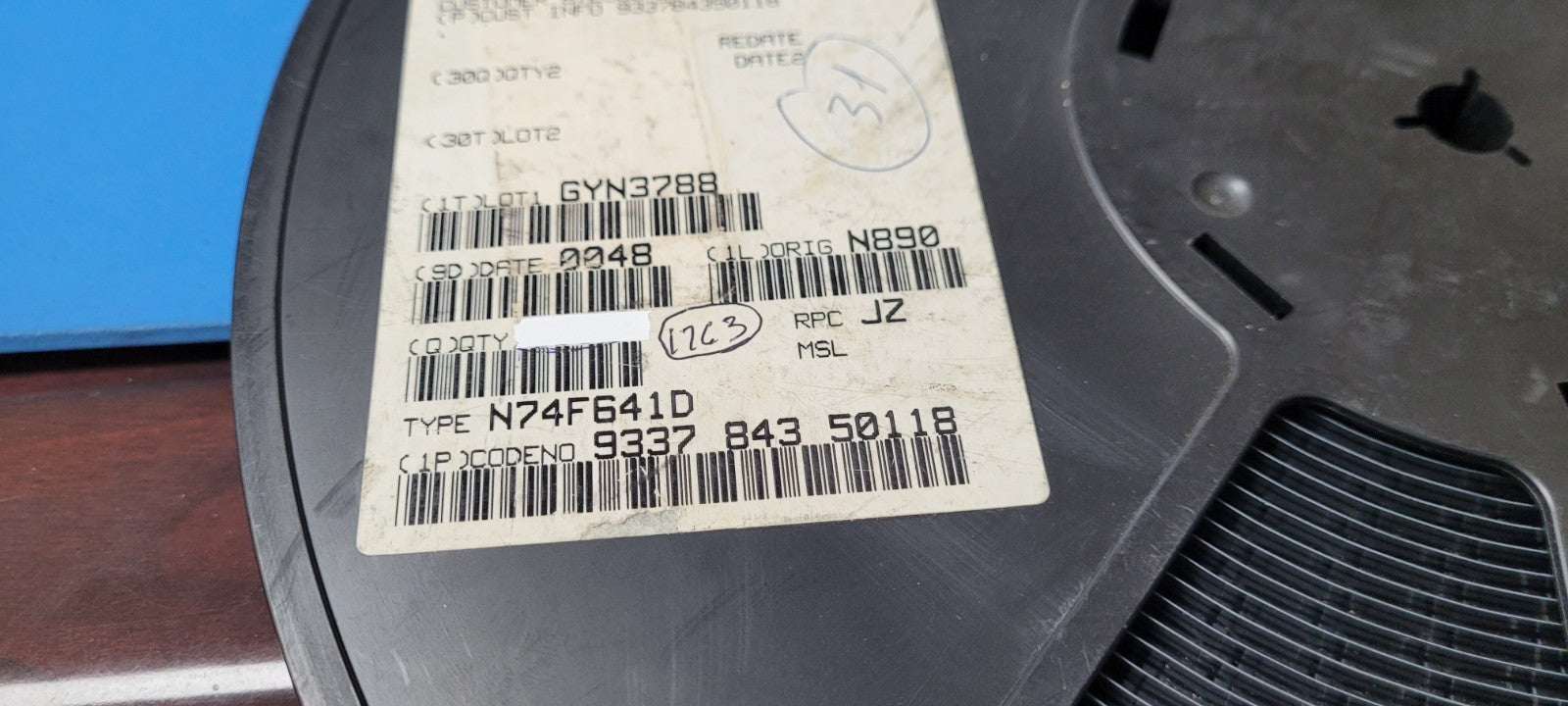

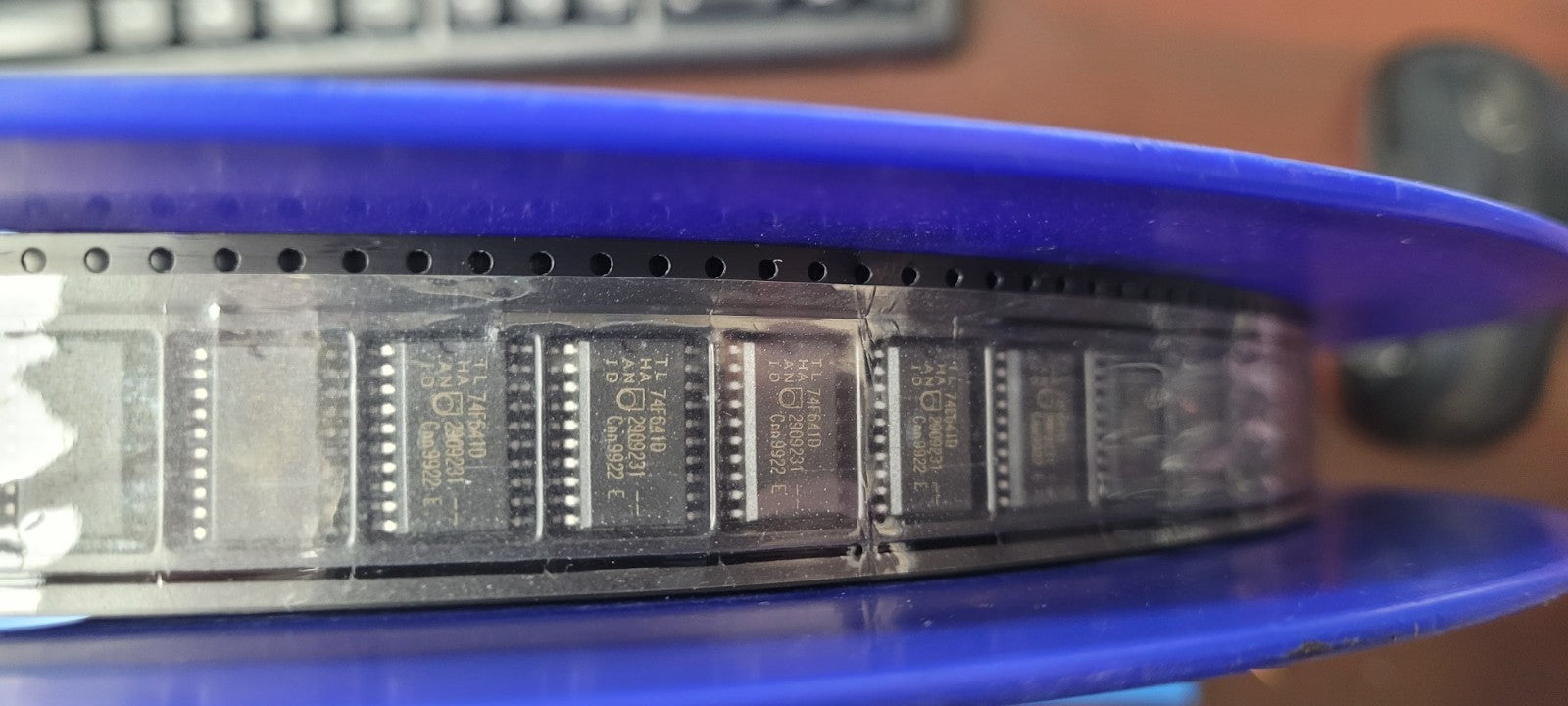

THIS IS FOR (10 PCS) OF N74F641D BY PHILIPS
Bus Driver/Transceiver 1-Func 8-Bit TTL SOIC-20
Part #: N74F641D
Part Category: Bus Driver/Transceivers
Manufacturer: PHILIPS SEMICONDUCTORS
Description: Bus Driver/Transceiver, 1-Func, 8-Bit, True Output, TTL, PDSO20
Status Transferred
Control Type COMMON CONTROL
Direction BIDIRECTIONAL
JESD-30 Code R-PDSO-G20
J-STD-609 Code e0
Output Low Current-Max (mA) 64.000000000000000
Number of Bits 8
Number of Functions 1
Number of Terminals 20
Operating Temperature-Max (Cel) 70
Operating Temperature-Min (Cel) 0
Output Characteristics OPEN-COLLECTOR
Output Polarity TRUE
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP20,.4
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Supply Current-Max (mA) 120.00000000
Propagation Delay-Max@Nom-Sup (ns) 12.500000000000000000
DLA Qualification Not Qualified
Supply Voltage-Nom (V) 5
Surface Mount YES
Technology TTL
Temperature Grade COMMERCIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form GULL WING
Terminal Pitch (mm) 1.270
Terminal Position DUAL
