(10 PCS) MK2742-03S ICS Video Clock Generator, 40.5MHz, CMOS, SOIC-16
Tax included.

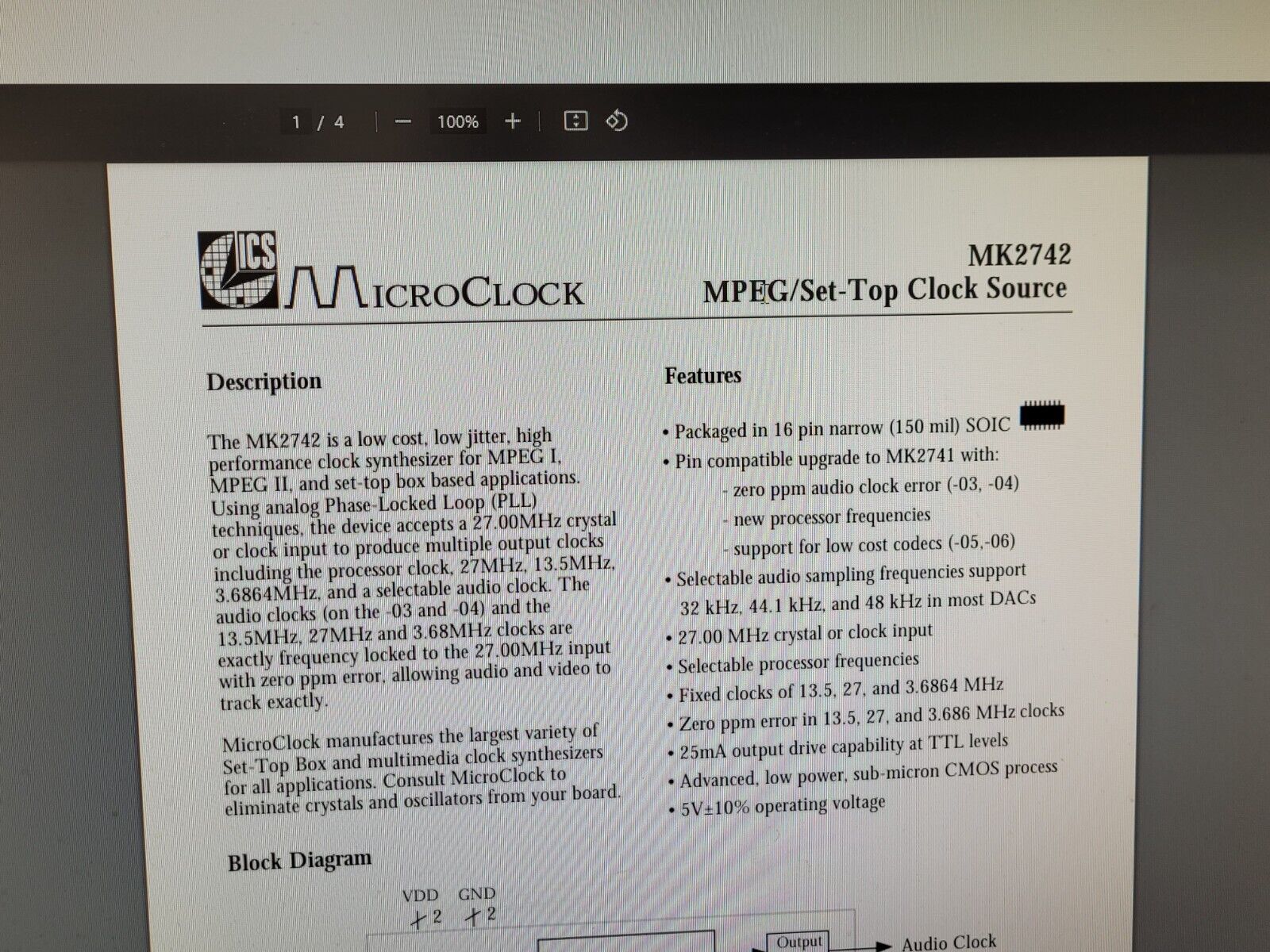

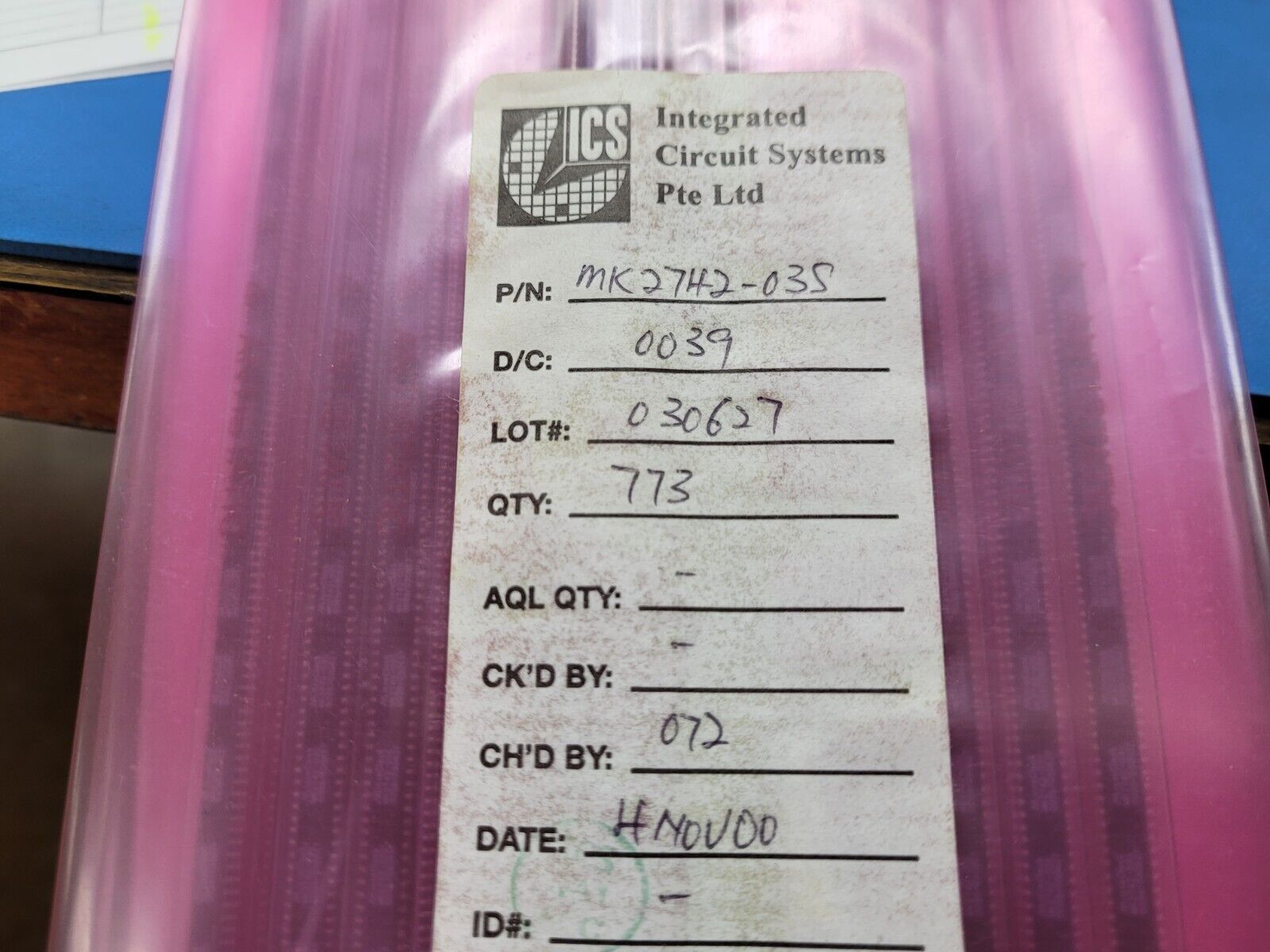

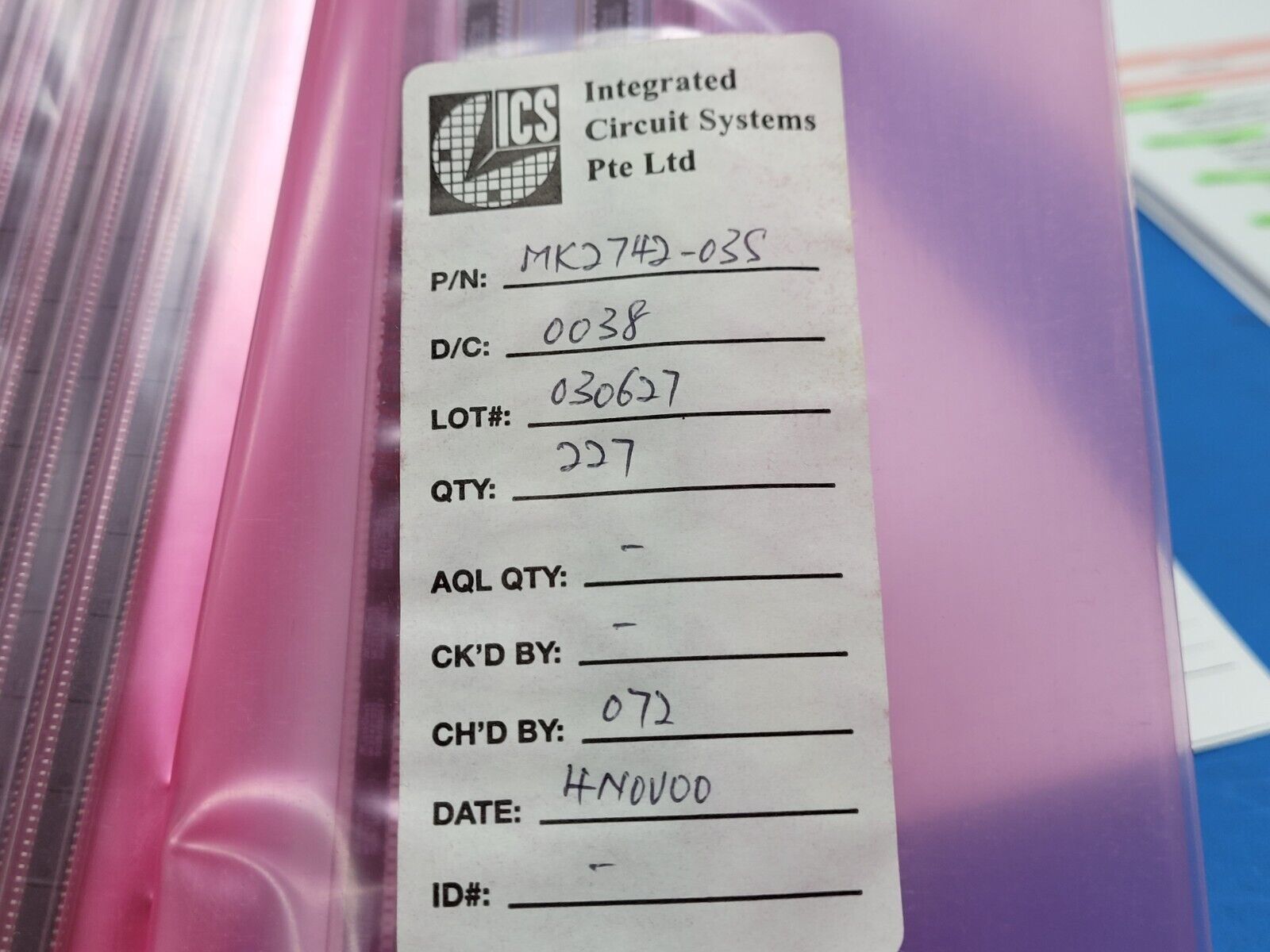

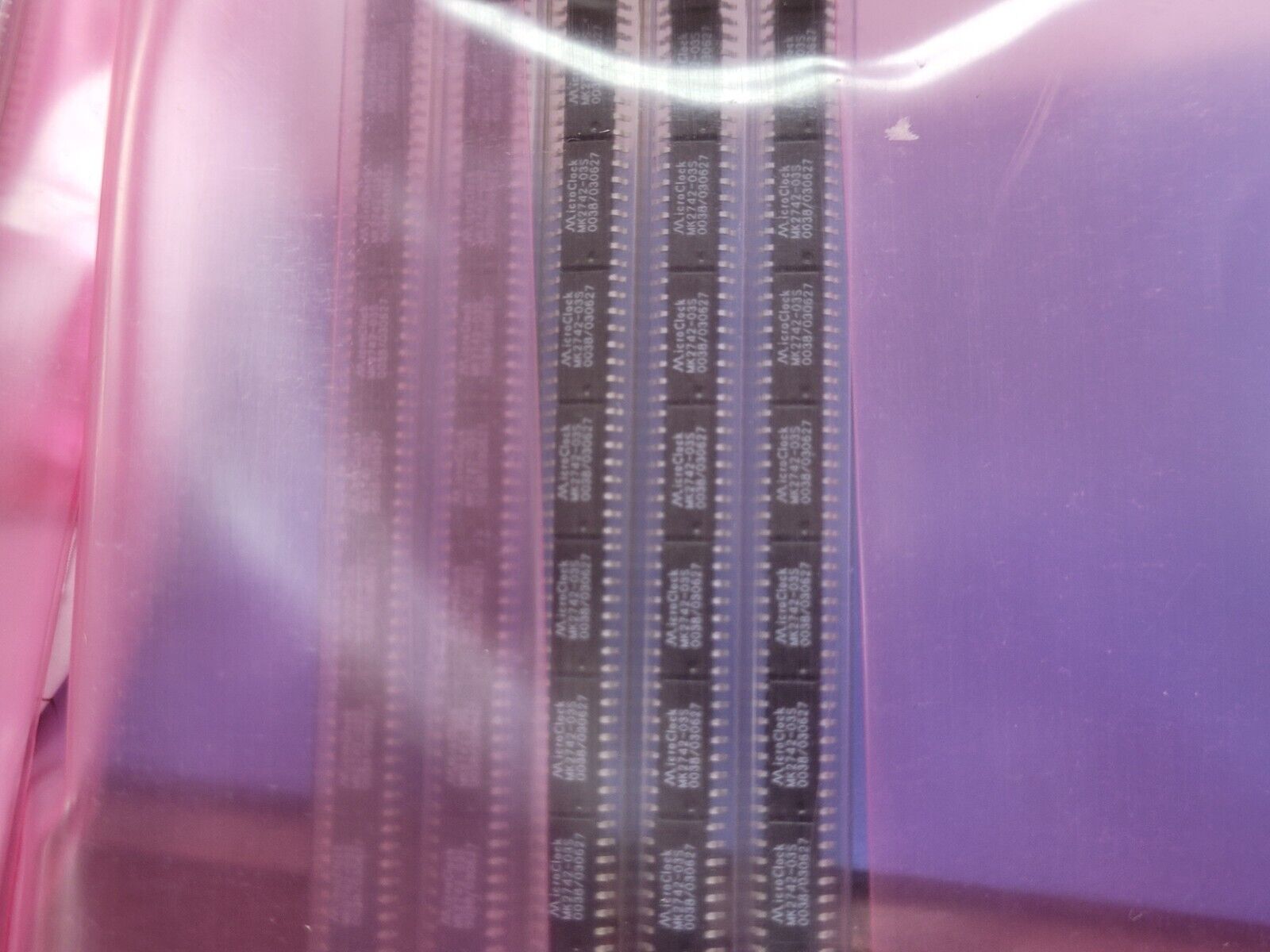

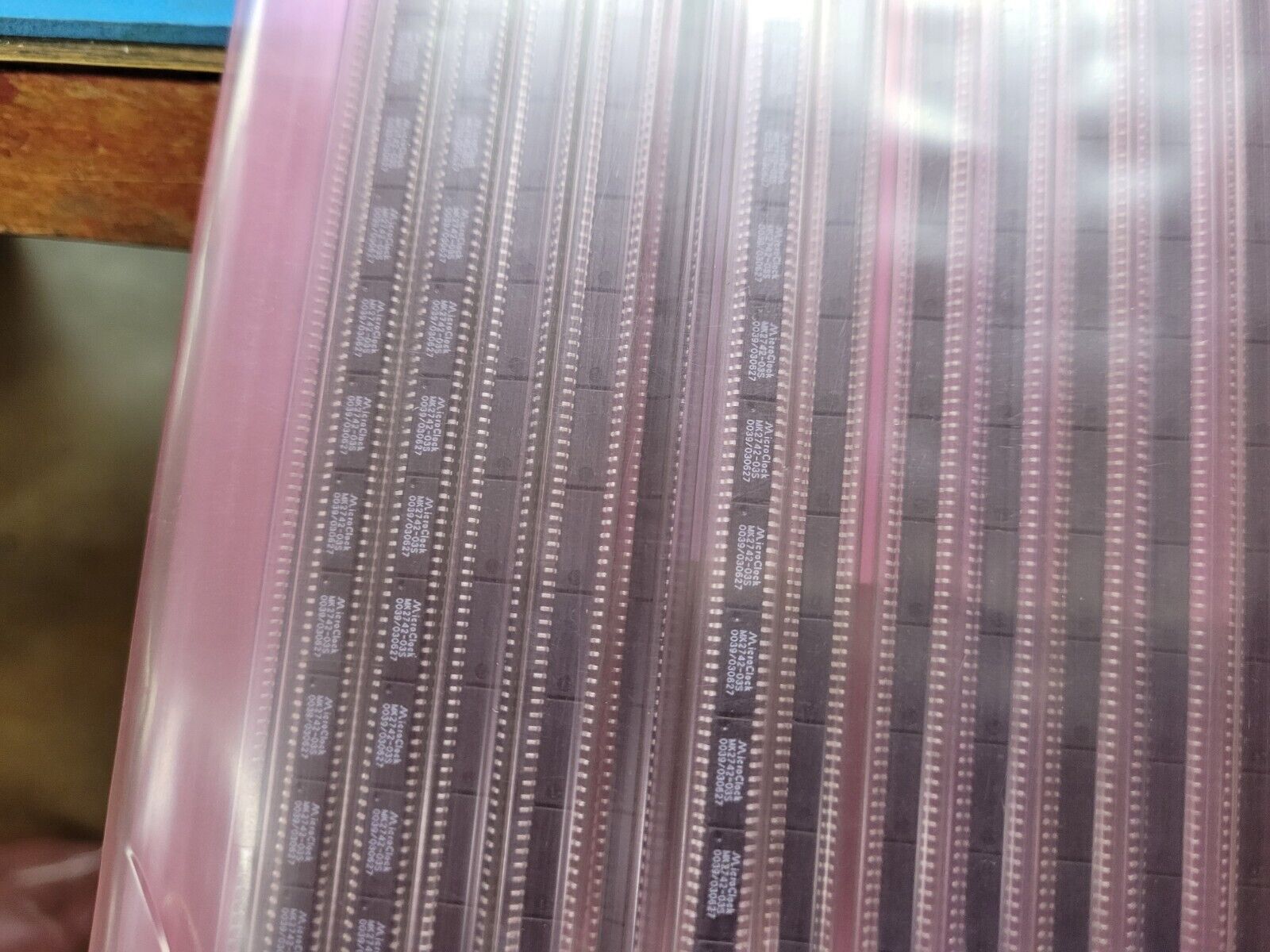

THIS IS FOR (10 PCS) OF MK2742-03S BY ICS/IDT
Video Clock Generator, 40.5MHz, CMOS, SOIC-16
Part #: MK2742-03S
Part Category: Microprocessors/Microcontrollers/Peripheral ICs
Manufacturer: Integrated Device Technology
Description: Video Clock Generator, 40.5MHz, CMOS, PDSO16
Mfr Package Description 0.150 INCH, SOIC-16
Status Transferred
JESD-30 Code R-PDSO-G16
JESD-609 Code e0
Number of Terminals 16
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Output Clock Frequency-Max 40.5 MHz
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP16,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Power Supplies 5
Primary Clock/Crystal Frequency-Nom 27.0 MHz
Qualification Status Not Qualified
Seated Height-Max 1.778 mm
Sub Category Clock Generators
Supply Voltage-Nom 5.0 V
Supply Voltage-Min 4.5 V
Supply Voltage-Max 5.5 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Length 9.9695 mm
Width 3.937 mm
