(10 PCS) MJD49 MJD49T4 ST MICRO Power Bipolar Transistor NPN 1A 350V TO-252AA
(10 PCS) MJD49 MJD49T4 ST MICRO Power Bipolar Transistor NPN 1A 350V TO-252AA
(10 PCS) MJD49 MJD49T4 ST MICRO Power Bipolar Transistor NPN 1A 350V TO-252AA
(10 PCS) MJD49 MJD49T4 ST MICRO Power Bipolar Transistor NPN 1A 350V TO-252AA

(10 PCS) MJD49 MJD49T4 ST MICRO Power Bipolar Transistor NPN 1A 350V TO-252AA

Tax included.
Only 94 left!

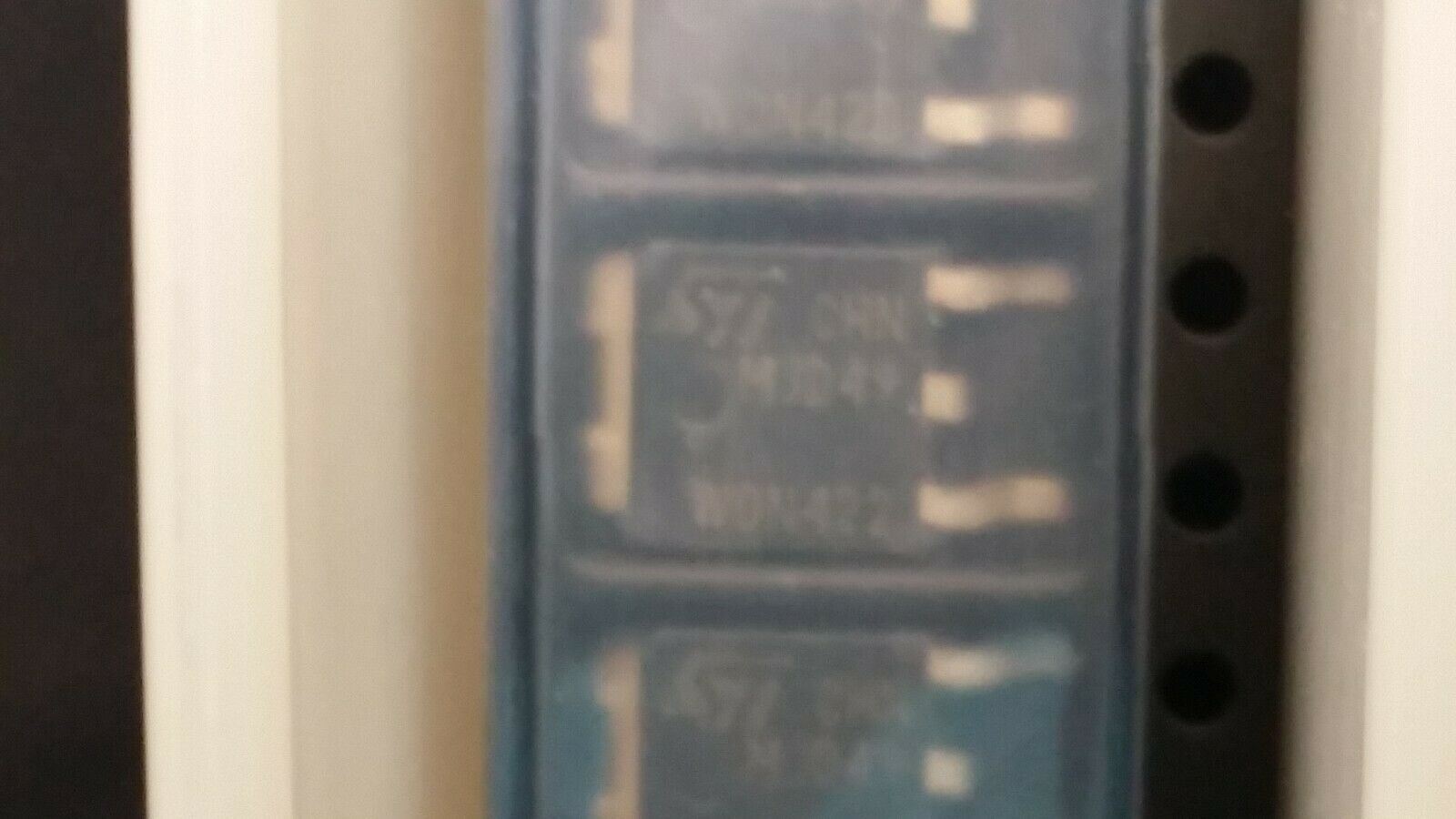

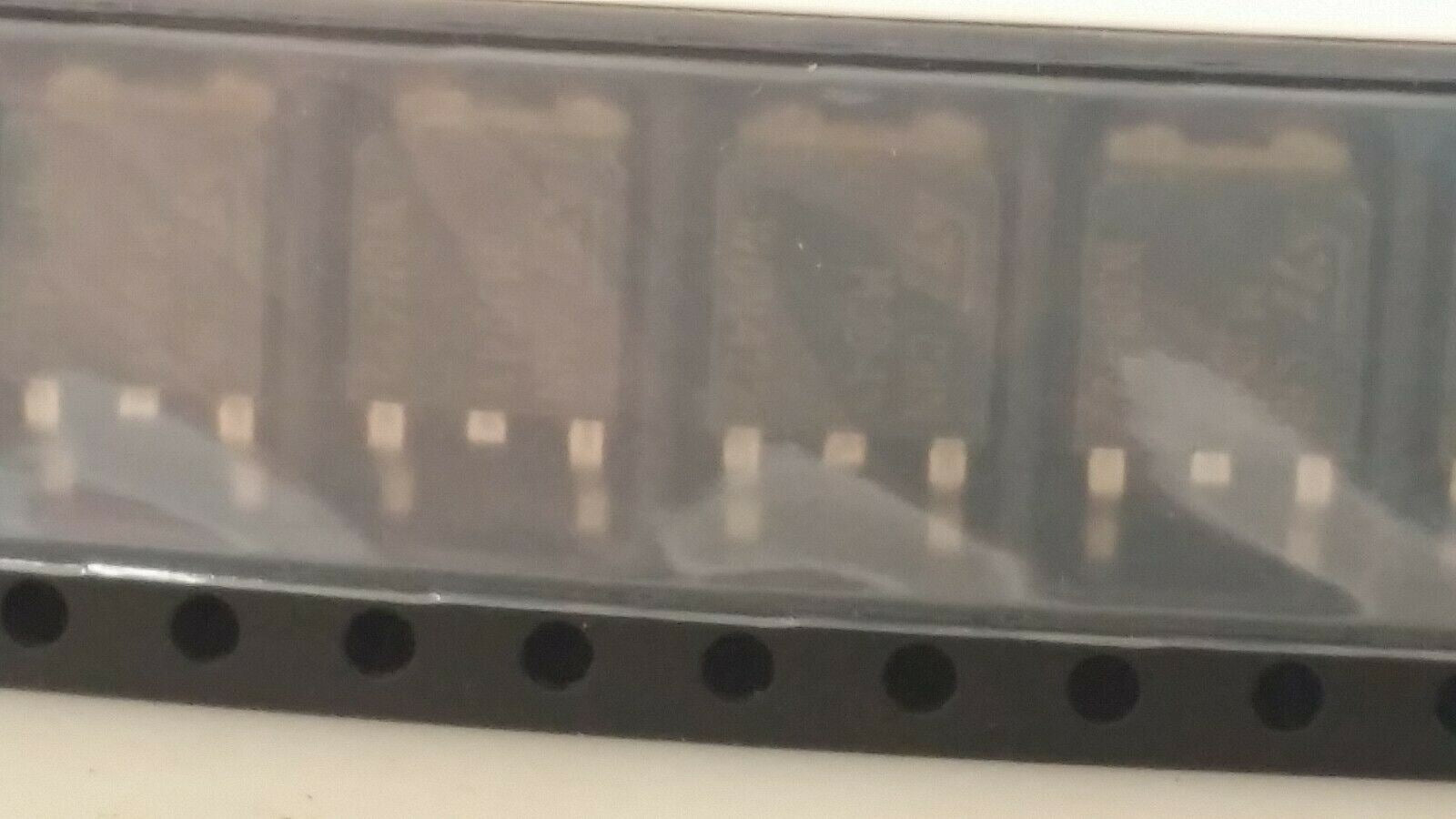

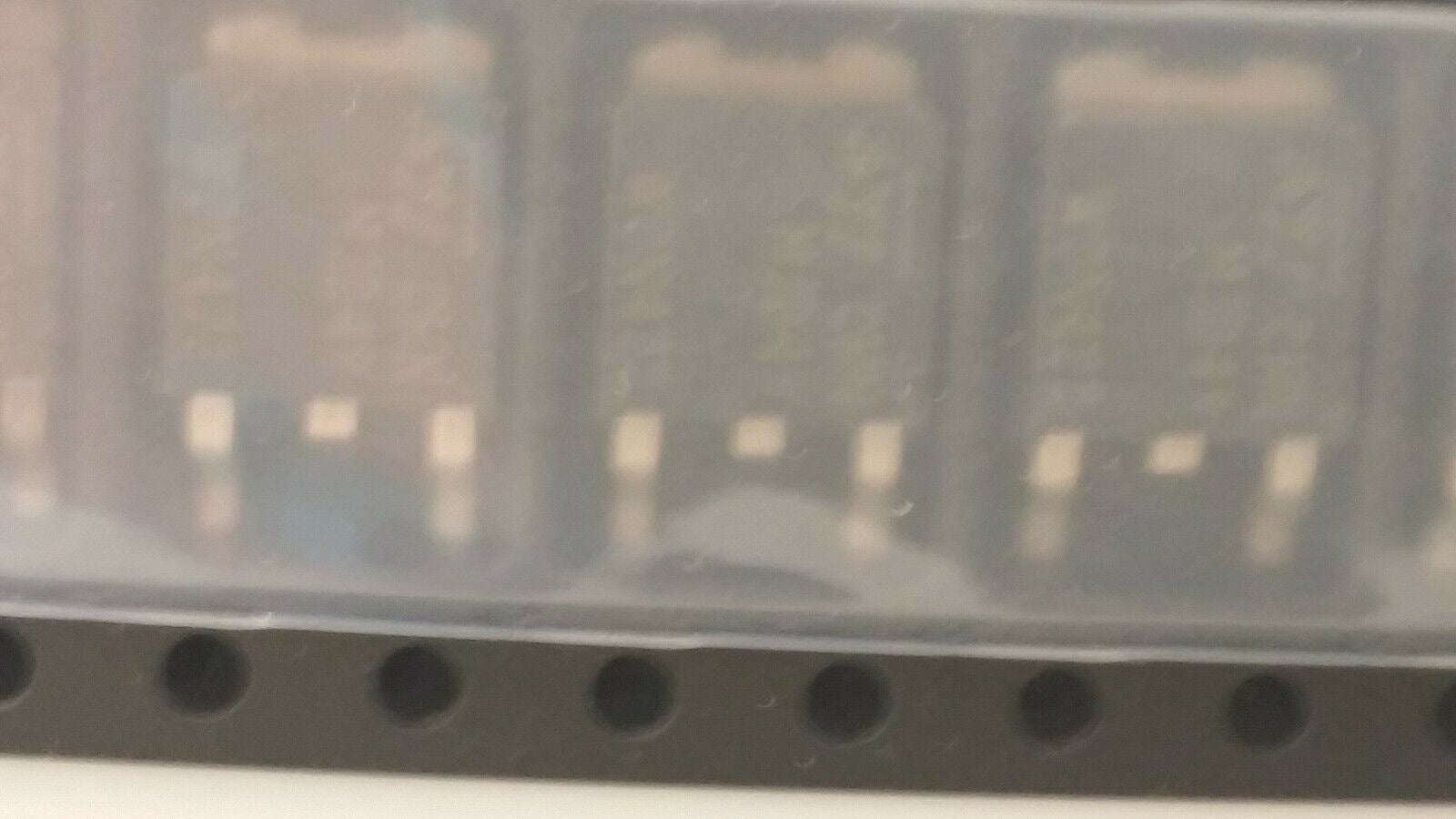

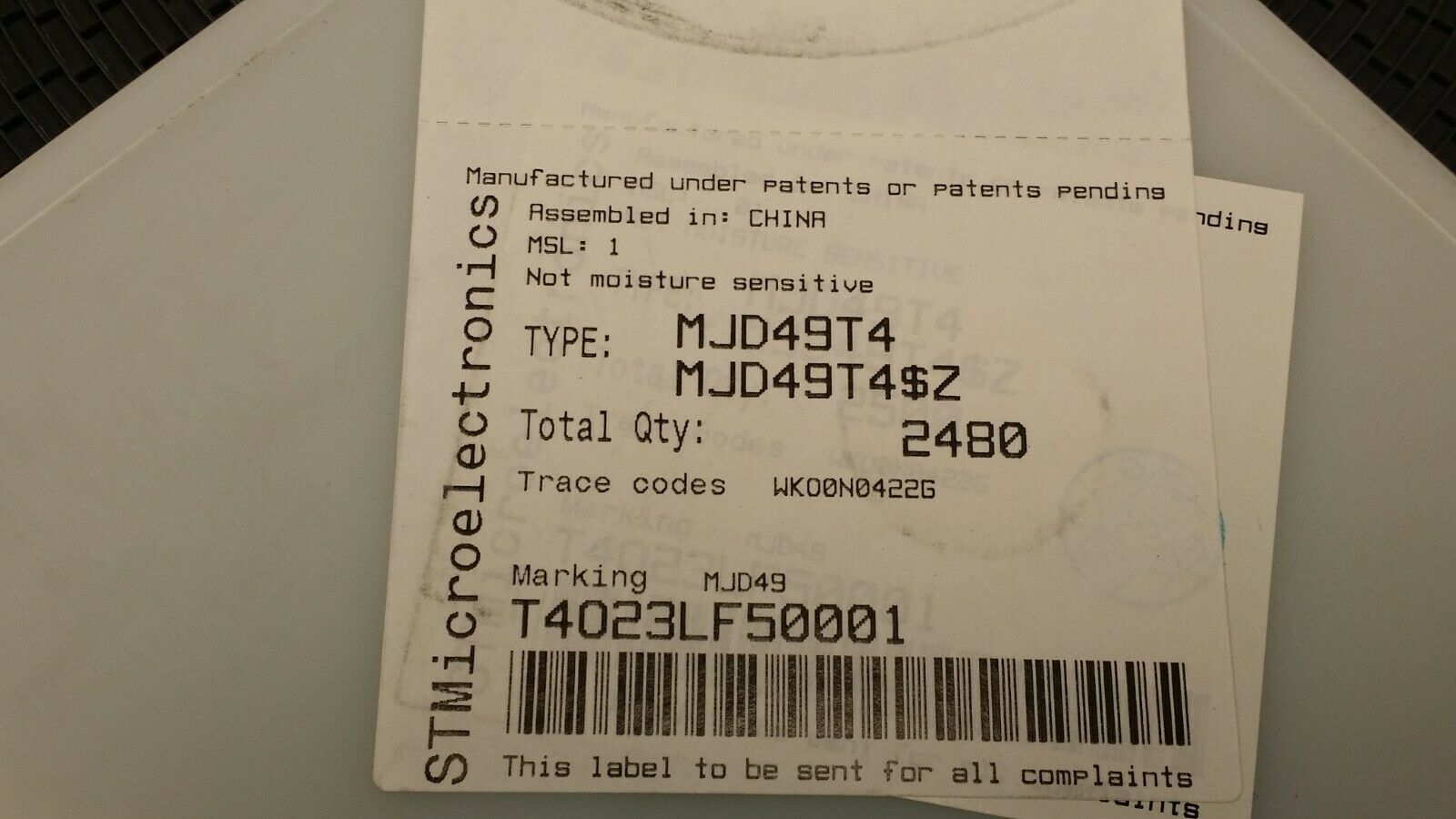

THIS LISTING IS FOR (10 PCS) OF MJD49 MJD49T4 BY ST MICRO
Power Bipolar Transistor NPN 1A 350V TO-252AA

Part #: MJD49T4
Part Category: Transistors
Manufacturer: STMicroelectronics, Inc.
Description: Power Bipolar Transistor, 1A I(C), 350V V(BR)CEO, 1-Element, NPN, Silicon, TO-252AA, Plastic/Epoxy, 2 Pin

Mfr Package Description TO-252, DPAK-3
EU RoHS Compliant Yes
Status Discontinued
Case Connection COLLECTOR
Collector Current-Max (IC) 1.0  A
Collector-emitter Voltage-Max 350.0  V
Configuration SINGLE
DC Current Gain-Min (hFE) 10.0
JEDEC-95 Code TO-252AA
JESD-30 Code R-PSSO-G2
JESD-609 Code e3
Moisture Sensitivity Level 1
Number of Elements 1.0
Number of Terminals 2
Operating Temperature-Max 150.0  Cel
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
Polarity/Channel Type NPN
Power Dissipation-Max (Abs) 15.0  W
Qualification Status Not Qualified
Sub Category Other Transistors
Surface Mount YES
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Position SINGLE
Time@Peak Reflow Temperature-Max (s) 30
Transistor Application SWITCHING
Transistor Element Material SILICON
Transition Frequency-Nom (fT) 10.0  MHz
