(10 PCS) MC14007UBCP MOT Complementary Pair Plus Inverter IC 14-PDIP
Tax included.

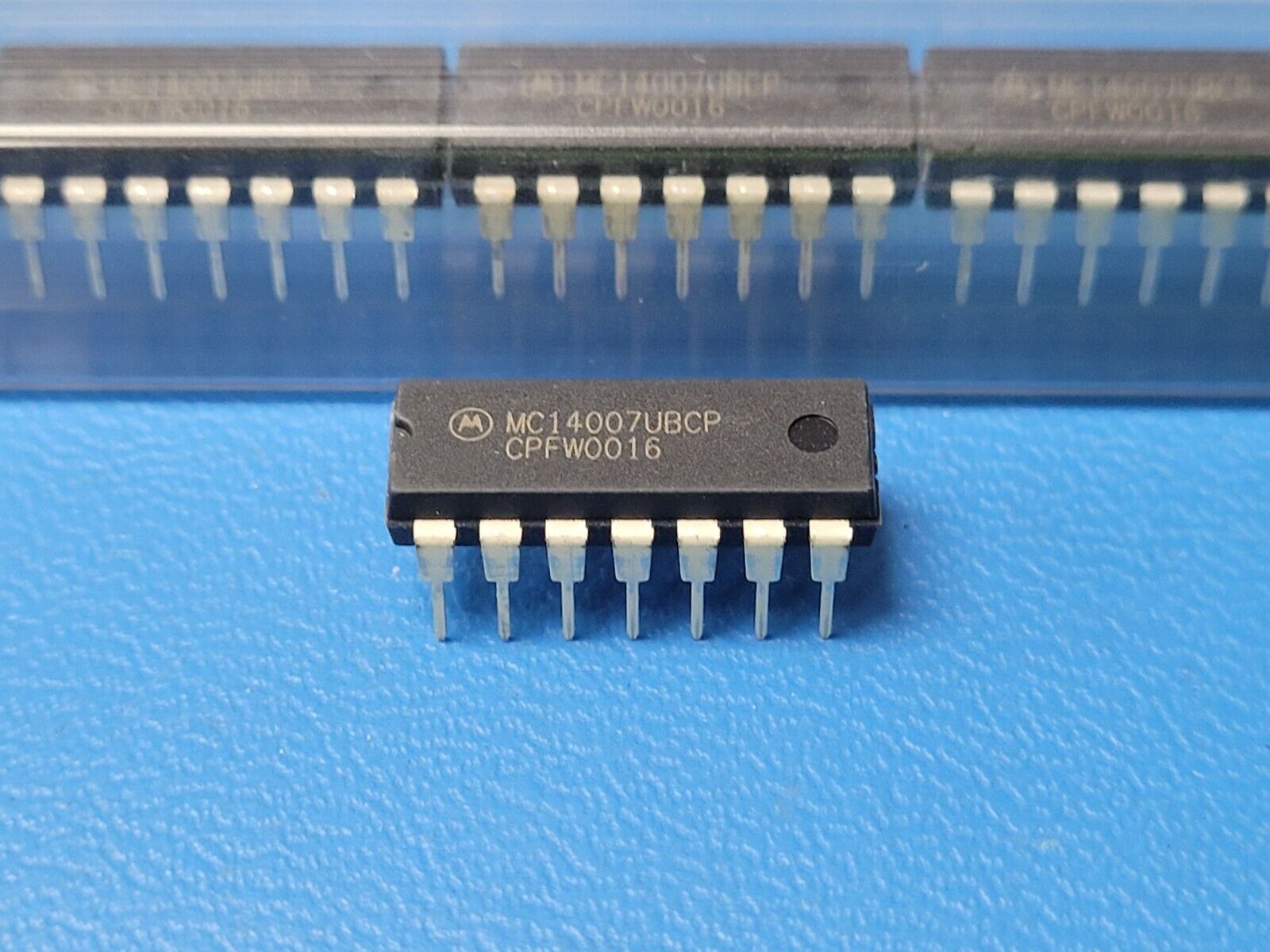

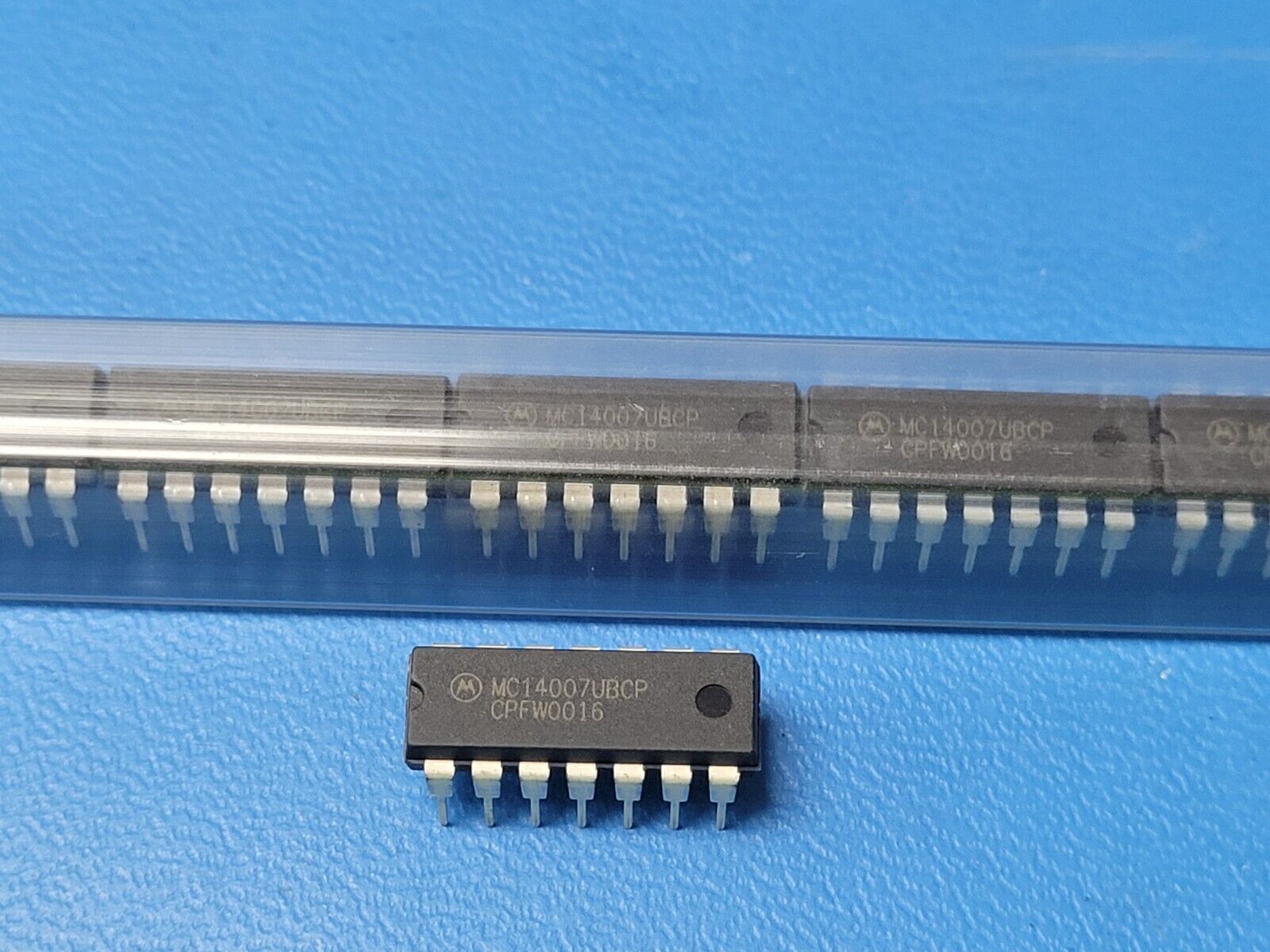

THIS IS FOR (10 PCS) OF MC14007UBCP BY MOT
Complementary Pair Plus Inverter IC 14-PDIP
Product Category: Buffers & Line Drivers
RoHS: N
Number of Input Lines: 3 Input
Number of Output Lines: 3 Output
Polarity: Inverting
High Level Output Current: - 4.2 mA
Low Level Output Current: 4.2 mA
Quiescent Current: 2 nA
Supply Voltage - Max: 18 V
Supply Voltage - Min: 3 V
Minimum Operating Temperature: - 55 C
Maximum Operating Temperature: + 125 C
Mounting Style: Through Hole
Package / Case: PDIP-14
Packaging: Tube
Function: Dual Complementary Pair Plus Inverter
Height: 3.68 mm (Max)
Input Signal Type: Single-Ended
Length: 19.56 mm (Max)
Logic Family: 4000
Logic Type: CMOS
Number of Channels: 3
Operating Supply Voltage: 3 V to 18 V
Product Type: Buffers & Line Drivers
Propagation Delay Time: 125 ns at 5 V, 75 ns at 10 V, 55 ns at 15 V
Subcategory: Logic ICs
Supply Current - Max: 1 uA
Technology: CMOS
Width: 6.6 mm (Max)
Unit Weight: 0.057144 oz
