(10 PCS) MC10H109FNR2 MOTOROLA OR/NOR Gate 2-Element 4-5-IN ECL 20-Pin PLLC
Tax included.

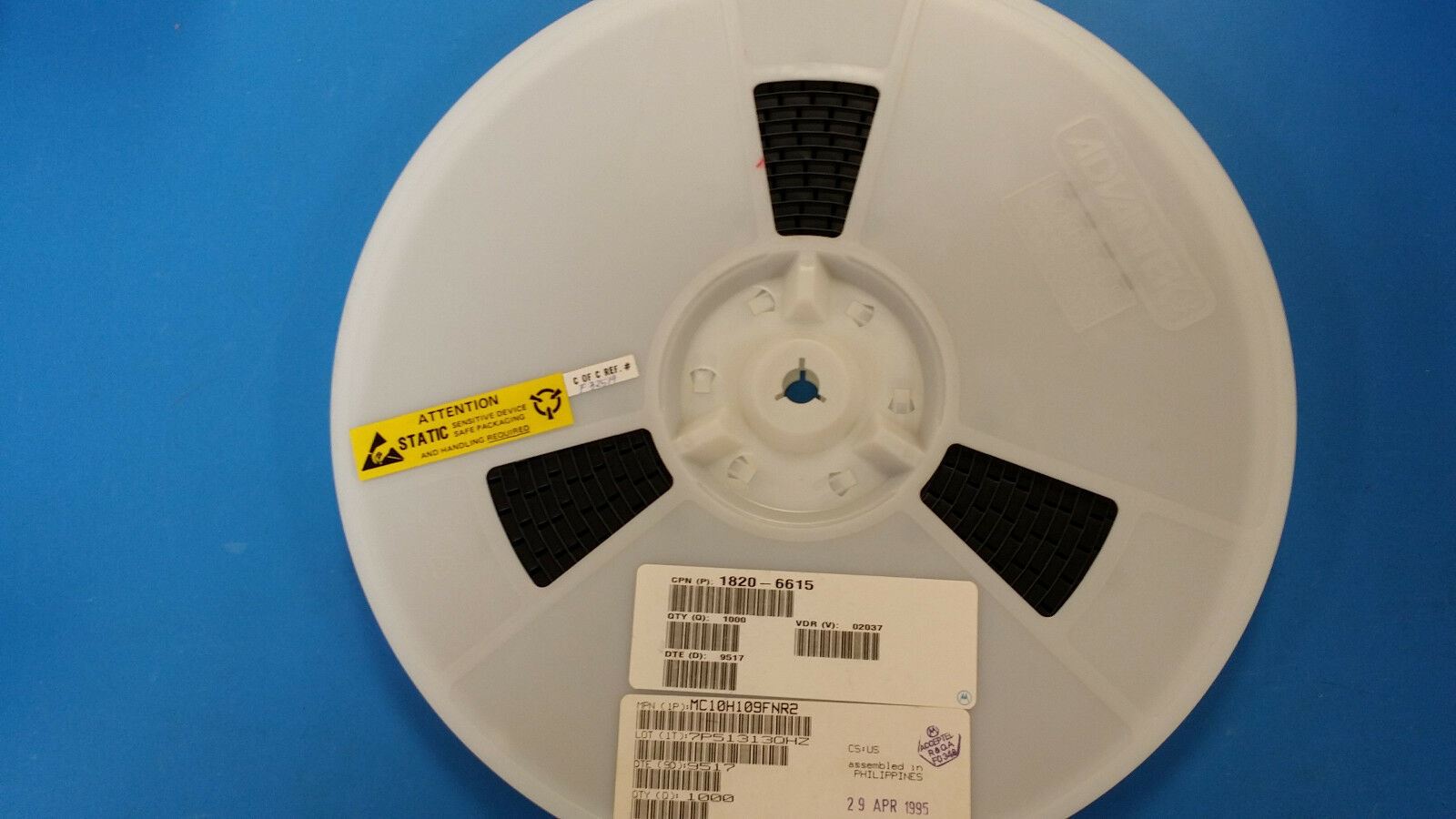

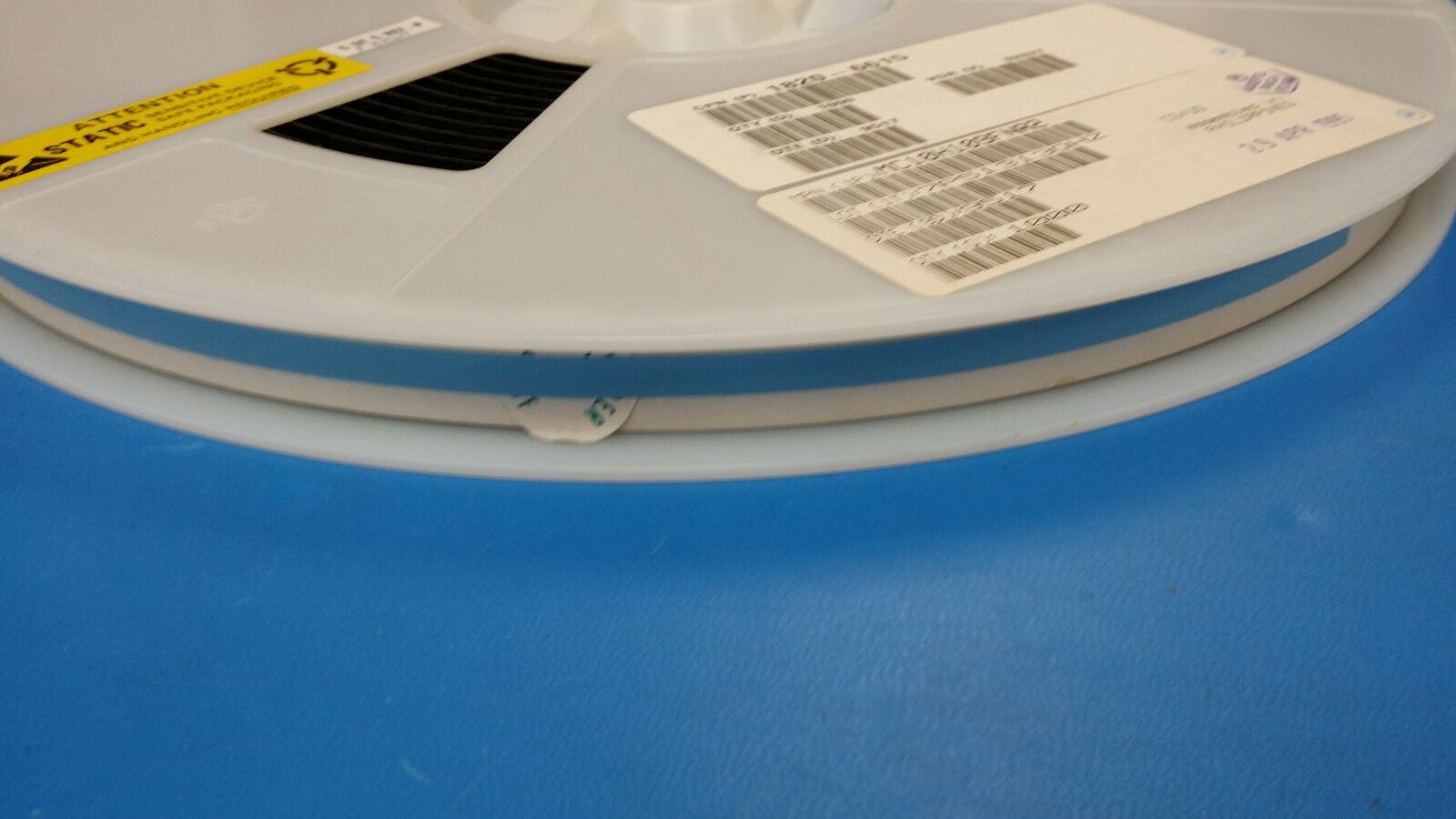

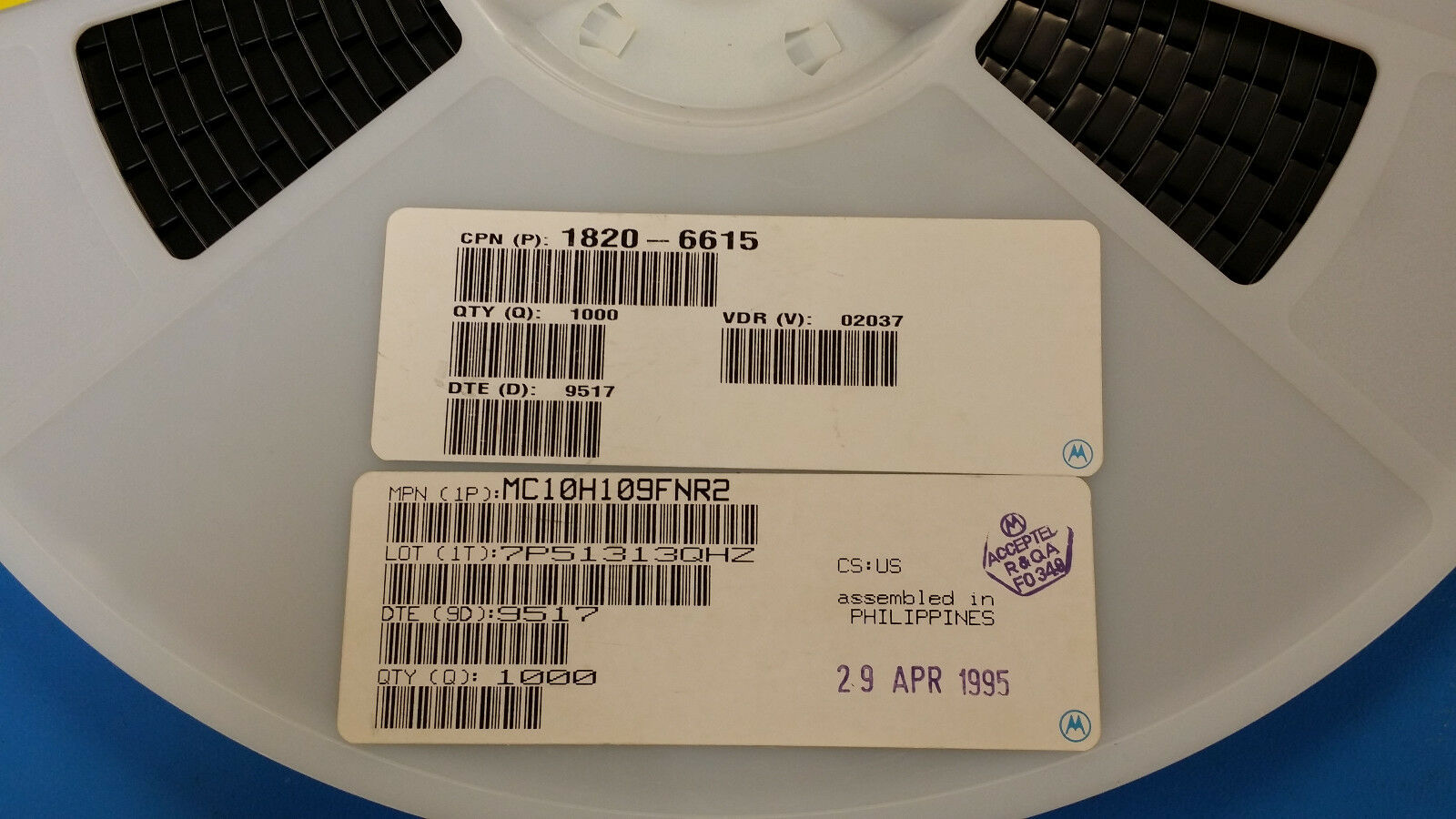

THIS LISTING IS FOR (10 PCS) OF MC10H109FNR2 BY MOTOROLA
OR/NOR Gate 2-Element 4-5-IN ECL 20-Pin PLLC
(1,OOO STOCK. WE WILL MAKE DEALS ON LARGER QUANTITIES. SEND OFFERS)
OR/NOR Gate 2-Element 4-5-IN ECL 20-Pin PLLC
(1,OOO STOCK. WE WILL MAKE DEALS ON LARGER QUANTITIES. SEND OFFERS)
MC10H109FNR2 Part Details & Parametric
| Logic Family | ECL |
| Logic Function | OR/NOR |
| Number of Element Inputs | 4-5-IN |
| Number of Element Outputs | 2 |
| Number of Elements per Chip | 2 |
| Fabrication Technology | ECL |
| Minimum Operating Supply Voltage (V) | -4.94 |
| Maximum Operating Supply Voltage (V) | -5.46 |
| Typical Operating Supply Voltage (V) | -5.2 |
| Maximum High Level Output Current (mA) | -50 |
| Maximum Low Level Output Current (mA) | 50 |
| Minimum Operating Temperature (°C) | 0 |
| Maximum Operating Temperature (°C) | 75 |
| Packaging | Tape and Reel |
| Mounting | Surface Mount |
| Package Height (mm) | 3.69(Min) |
| Package Length (mm) | 9.04(Max) |
| Package Width (mm) | 9.04(Max) |
| PCB | 20 |
| Standard Package Name | PLCC |
| Supplier Package | PLLC |
| Pin Count | 20 |
