(10 PCS) MC10H107FN Logic Gates Triple 2-Input PLCC-20
Tax included.

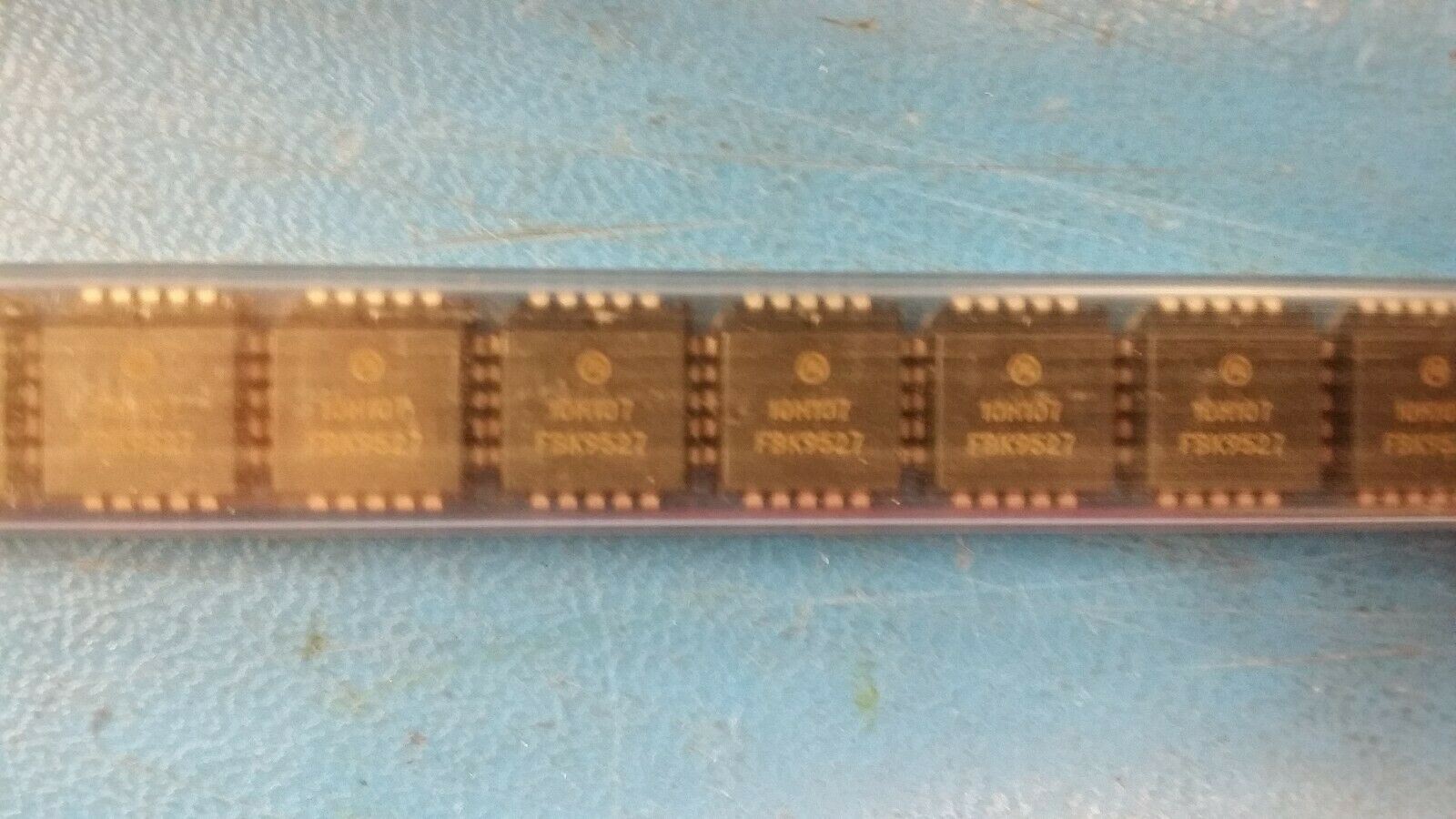

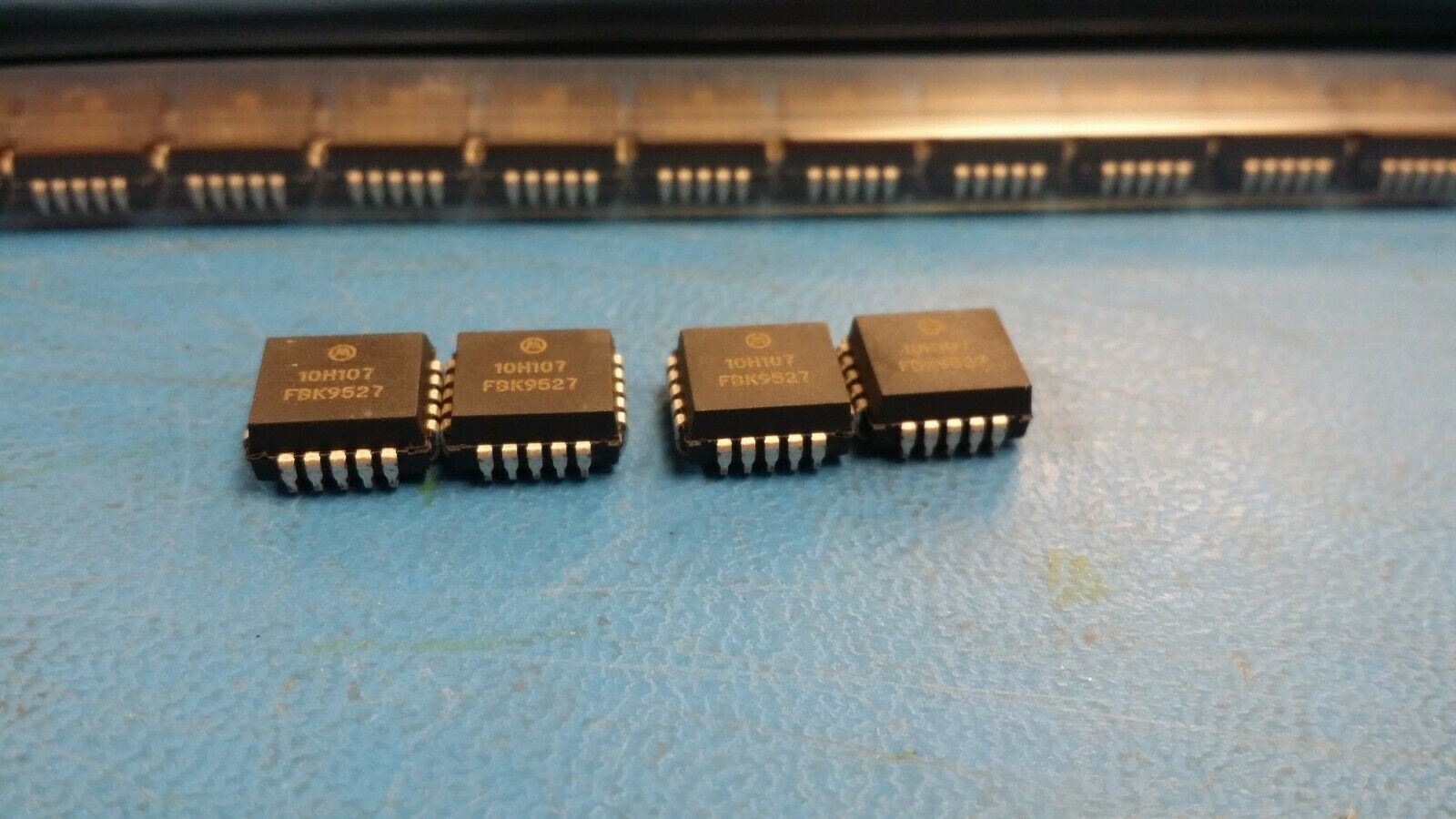

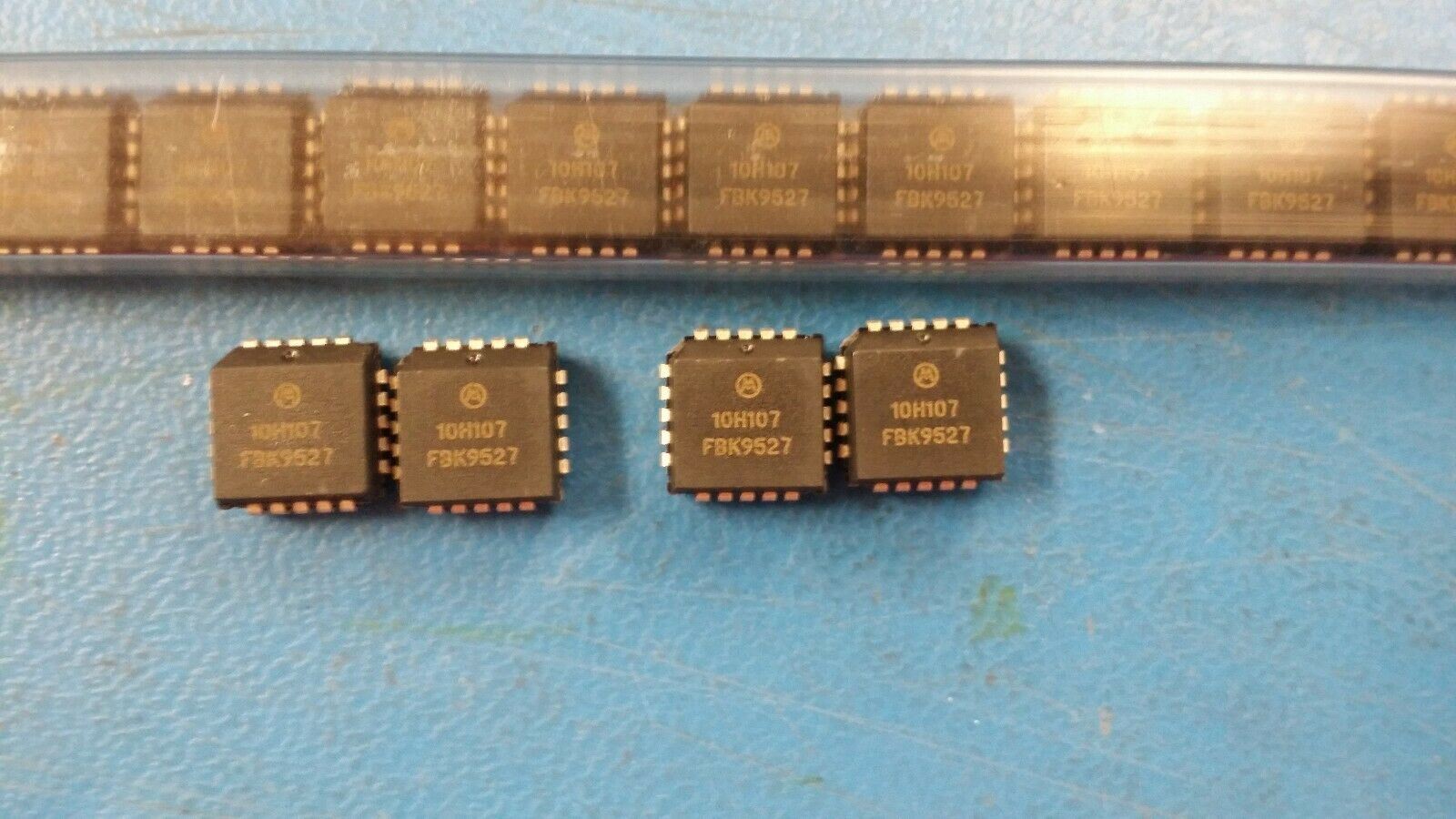

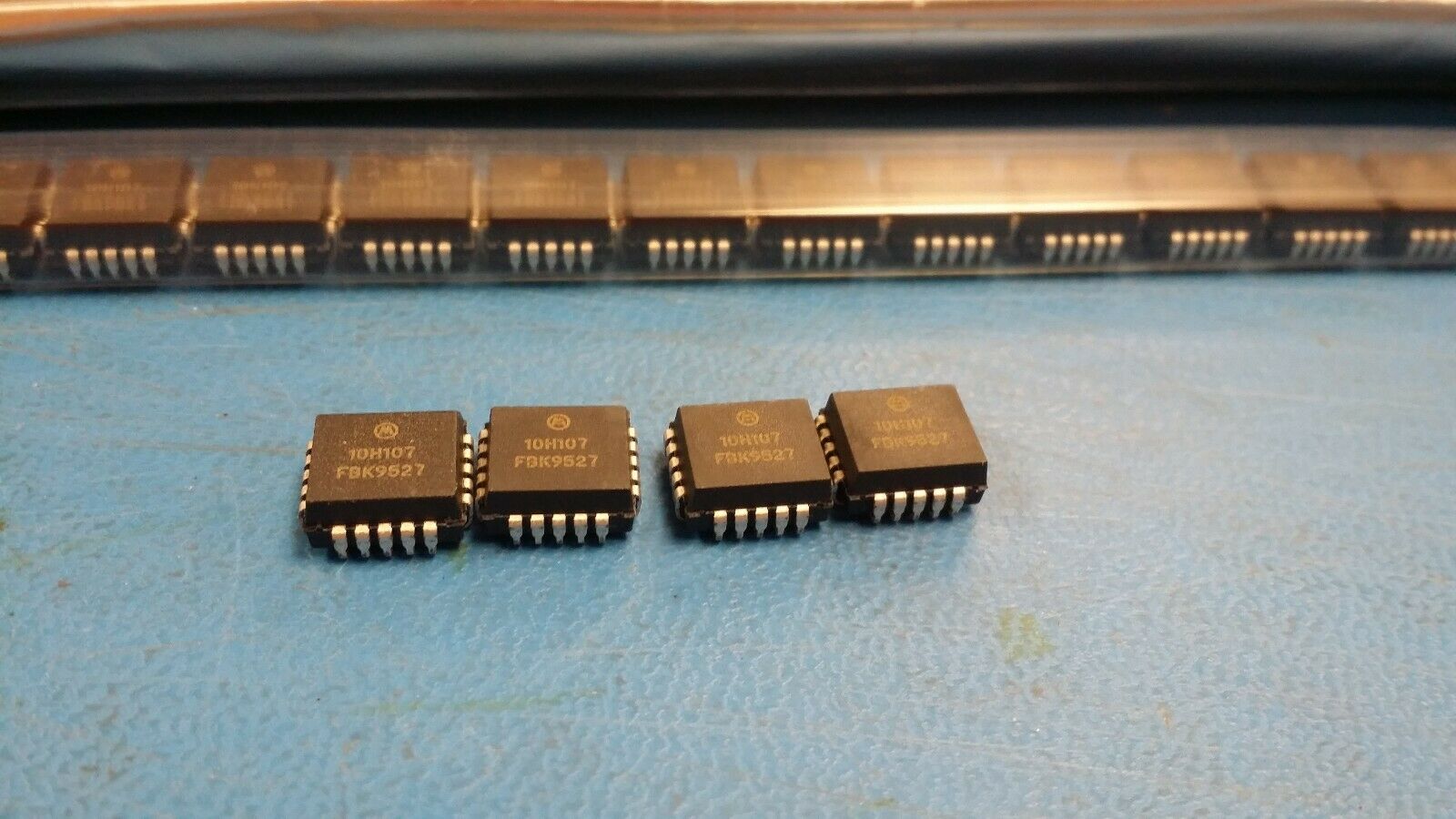

THIS LISTING IS FOR (10 PCS) OF MC10H107FN BY MOTOROLA
Logic Gates Triple 2-Input PLCC-20
Part Category: Logic ICs
Manufacturer: Motorola Solutions, Inc.
Description: XOR/XNOR Gate, 10H Series, 3-Func, 2-Input, ECL, PLCC20
Manufacturer: Motorola Solutions, Inc.
Description: XOR/XNOR Gate, 10H Series, 3-Func, 2-Input, ECL, PLCC20
| Mfr Package Description | PLASTIC, LCC-20 |
| Status | Transferred |
| Logic IC Type | XOR/XNOR GATE |
| Sub Category | Gates |
| Family | 10H |
| JESD-30 Code | S-PQCC-J20 |
| JESD-609 Code | e0 |
| Number of Functions | 3 |
| Number of Inputs | 2.0 |
| Number of Terminals | 20 |
| Operating Temperature-Min | 0.0 Cel |
| Operating Temperature-Max | 75.0 Cel |
| Output Characteristics | OPEN-EMITTER |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | QCCJ |
| Package Equivalence Code | LDCC20,.4SQ |
| Package Shape | SQUARE |
| Package Style | CHIP CARRIER |
| Power Supply Current-Max (ICC) | 31.0 mA |
| Prop. Delay@Nom-Sup | 1.7 ns |
| Propagation Delay (tpd) | 1.7 ns |
| Qualification Status | Not Qualified |
| Schmitt Trigger | NO |
| Seated Height-Max | 4.57 mm |
| Surface Mount | YES |
| Technology | ECL |
| Temperature Grade | COMMERCIAL EXTENDED |
| Terminal Finish | Tin/Lead (Sn/Pb) |
| Terminal Form | J BEND |
| Terminal Pitch | 1.27 mm |
| Terminal Position | QUAD |
| Length | 8.965 mm |
| Width | 8.965 mm |
