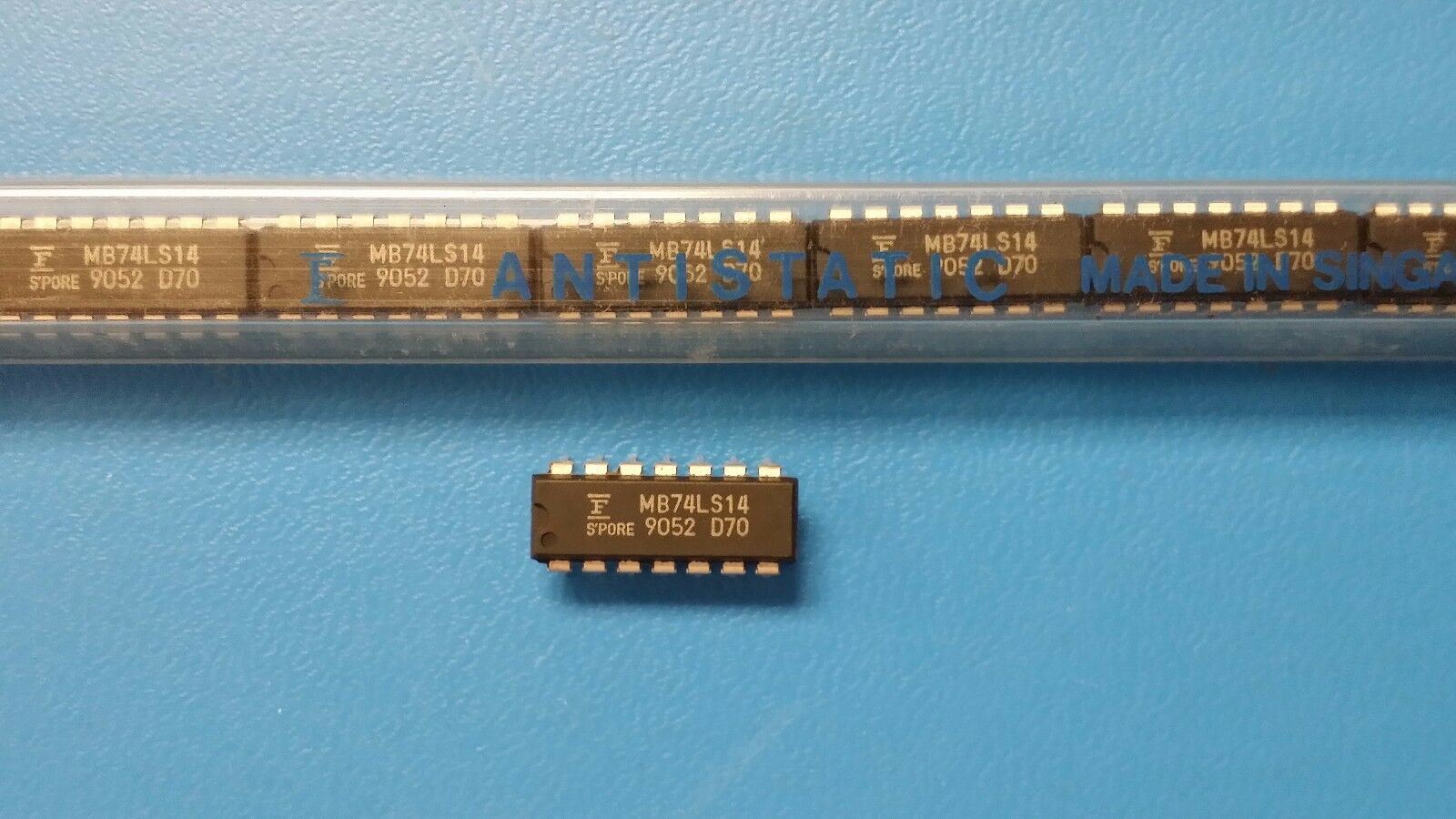

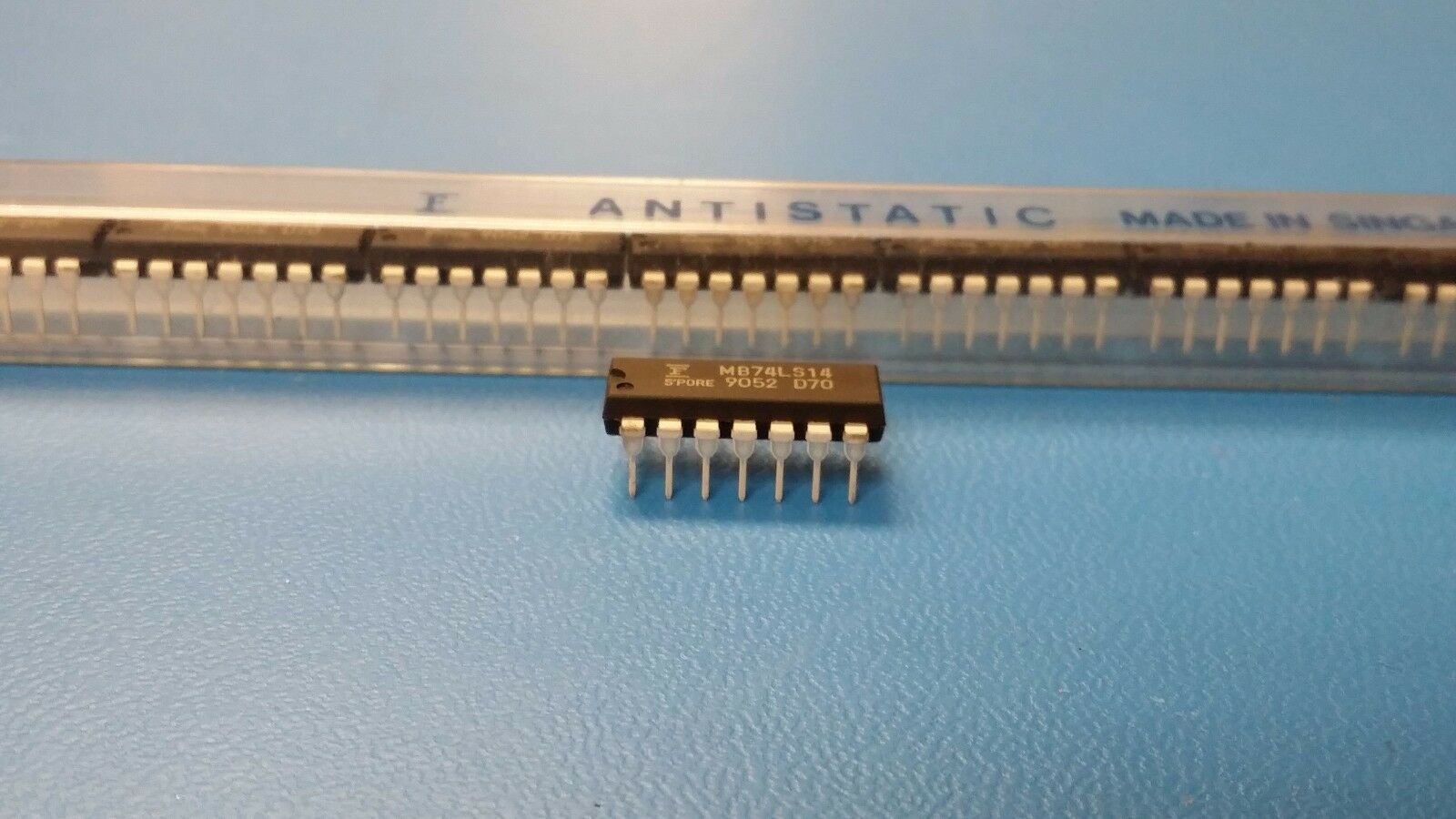

(5 PCS) MB74LS14P, HD74LS14P, IC LOGIC GATE HEX INVERTER LS-TTL PDIP-14
Tax included.
(5 PCS) OF MB74LS14P BY FUJITSU, HITACHI
IC,LOGIC GATE,HEX INVERTER,LS-TTL,DIP,14PIN,PLASTIC
Mfr Package Description DP-14
Status Transferred
Logic IC Type INVERTER
Sub Category Gates
Family LS
JESD-30 Code R-PDIP-T14
Load Capacitance (CL) 15.0 pF
Max I(ol) 0.008 Amp
Number of Functions 6
Number of Inputs 1.0
Number of Terminals 14
Operating Temperature-Min -20.0 Cel
Operating Temperature-Max 75.0 Cel
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP14,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Power Supply Current-Max (ICC) 21.0 mA
Prop. Delay@Nom-Sup 22.0 ns
Propagation Delay (tpd) 22.0 ns
Qualification Status Not Qualified
Schmitt Trigger YES
Seated Height-Max 5.06 mm
Supply Voltage-Nom (Vsup) 5
Surface Mount NO
Technology TTL
Temperature Grade COMMERCIAL EXTENDED
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Length 19.2 mm
Width 7.62 mm
