(10 PCS) M74HC240-1FP Bus Driver, 2-Func, 4-Bit, Inverted Output, CMOS, SOIC20
(10 PCS) M74HC240-1FP Bus Driver, 2-Func, 4-Bit, Inverted Output, CMOS, SOIC20

(10 PCS) M74HC240-1FP Bus Driver, 2-Func, 4-Bit, Inverted Output, CMOS, SOIC20

Tax included.
Only 100 left!

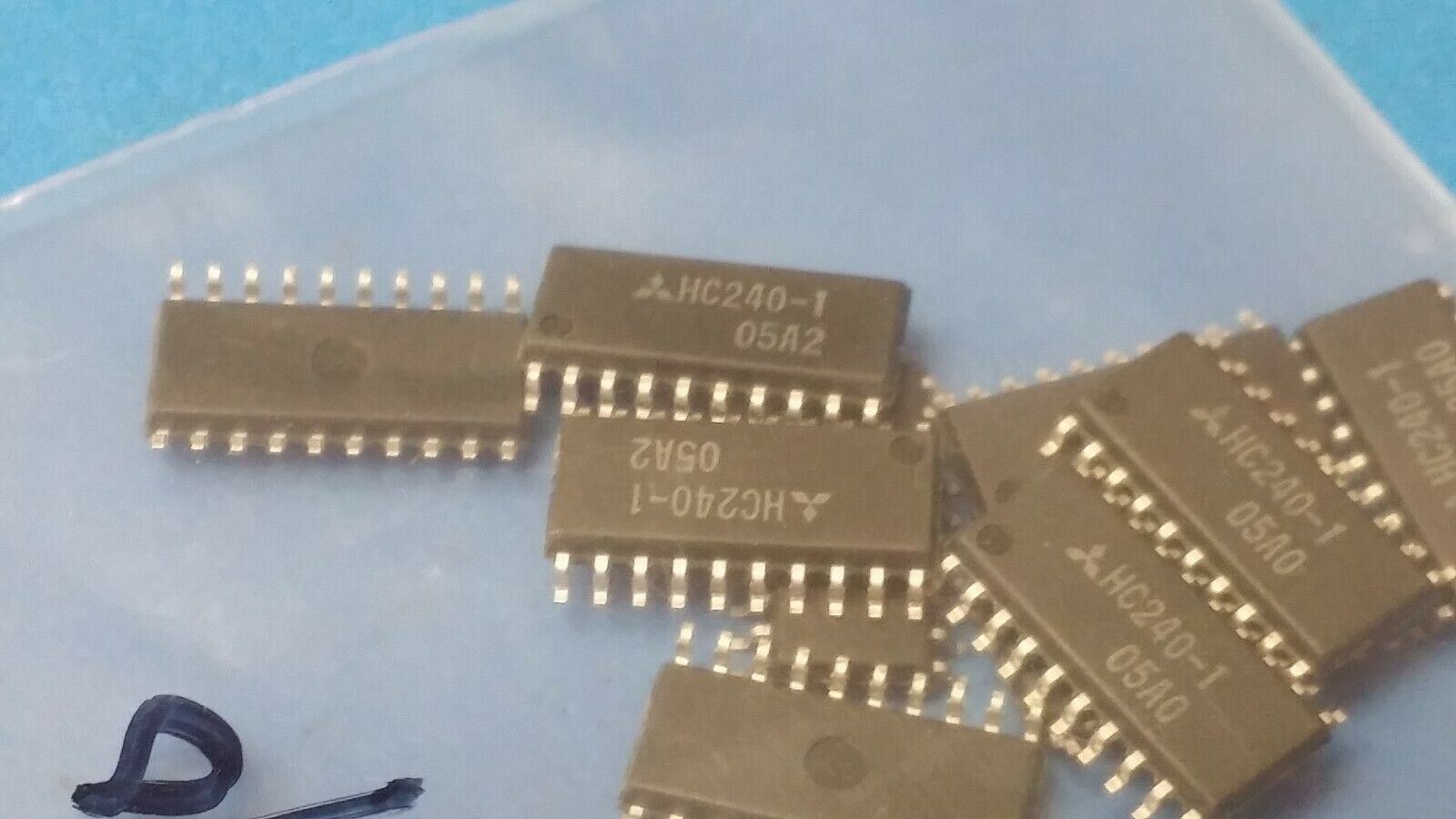

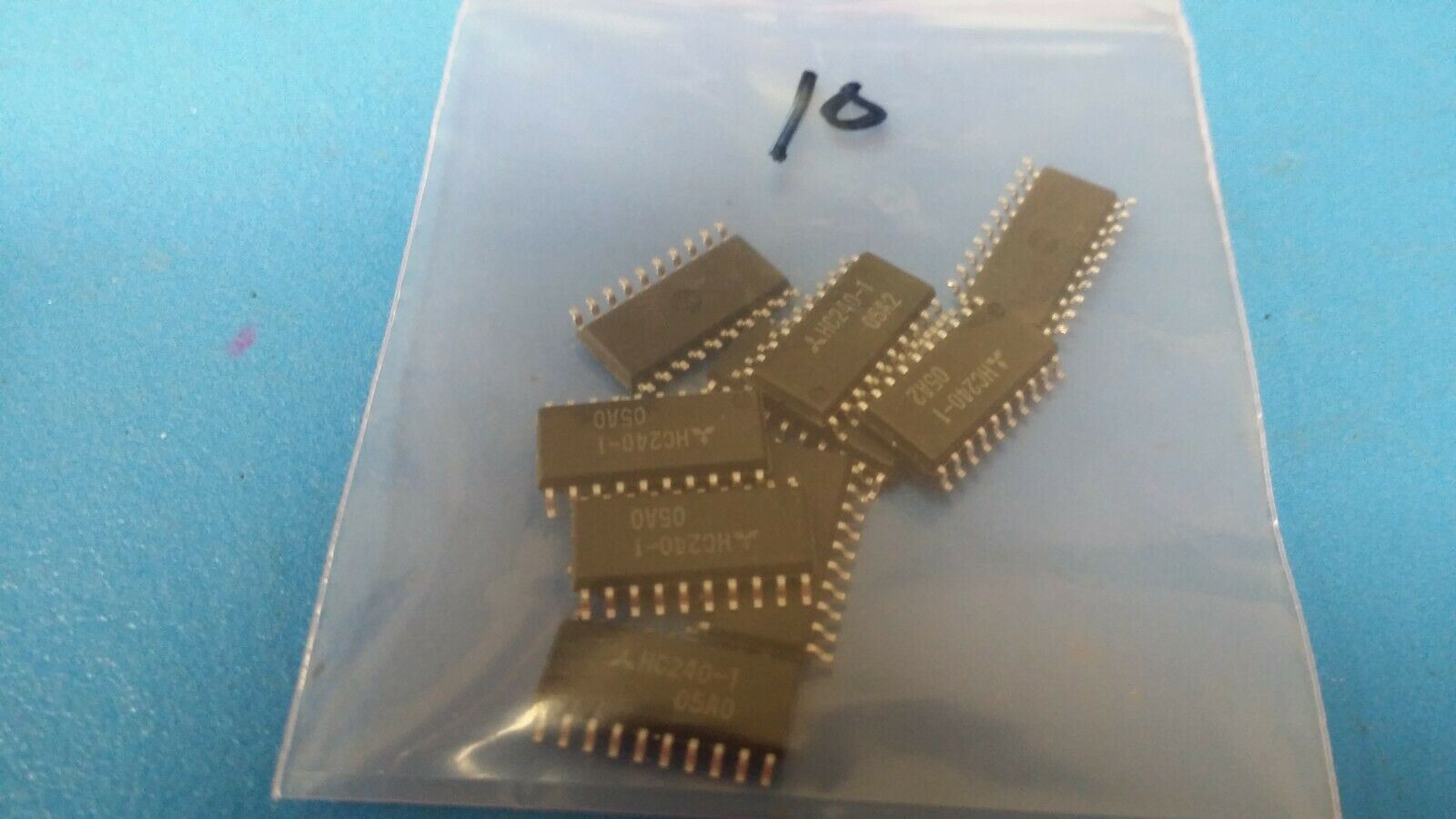

THIS IS FOR (10 PCS) OF M74HC240-1FP BY MITSUBISHI
Bus Driver, 2-Func, 4-Bit, Inverted Output, CMOS, SOIC20

Part #: M74HC240-1FP
Part Category: Logic ICs
Manufacturer: Mitsubishi Electric & Electronics USA, Inc.
Description: Bus Driver, HC/UH Series, 2-Func, 4-Bit, Inverted Output, CMOS, PDSO20

Mfr Package Description PLASTIC, SOP-20
Status Discontinued
Logic IC Type BUS DRIVER
Sub Category Bus Driver/Transceivers
Control Type ENABLE LOW
Family HC/UH
JESD-30 Code R-PDSO-G20
JESD-609 Code e0
Load Capacitance (CL) 50.0  pF
Max I(ol) 0.024  Amp
Number of Bits 4
Number of Functions 2
Number of Ports 2
Number of Terminals 20
Operating Temperature-Min -40.0  Cel
Operating Temperature-Max 85.0  Cel
Output Characteristics 3-STATE
Output Polarity INVERTED
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP20,.3
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Prop. Delay@Nom-Sup 19.0  ns
Propagation Delay (tpd) 19.0  ns
Qualification Status Not Qualified
Seated Height-Max 2.1  mm
Supply Voltage-Nom (Vsup) 5
Supply Voltage-Min (Vsup) 2.0  V
Supply Voltage-Max (Vsup) 6.0  V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form GULL WING
Terminal Pitch 1.27  mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Length 12.6  mm
Width 5.3  mm
