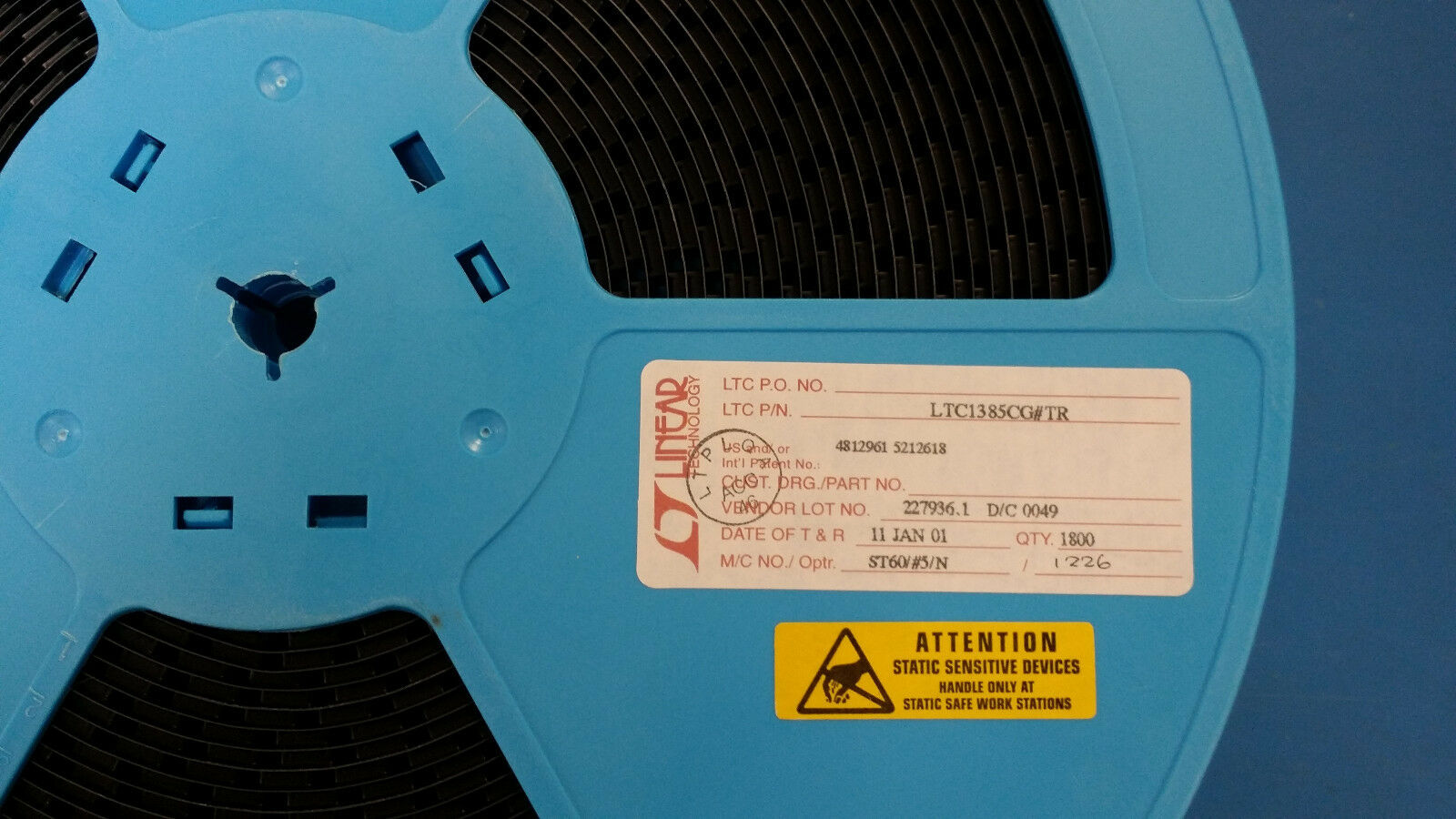

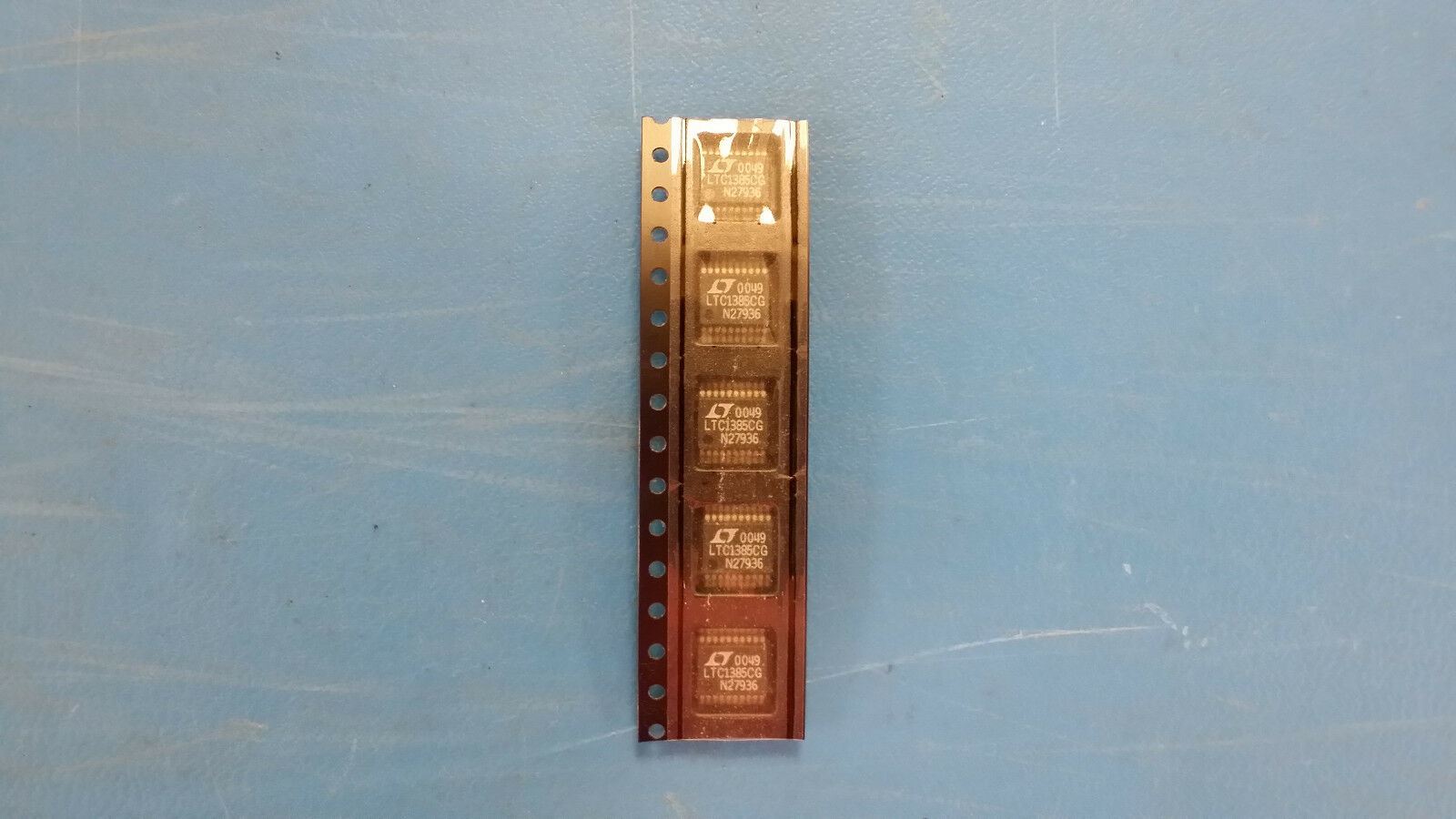

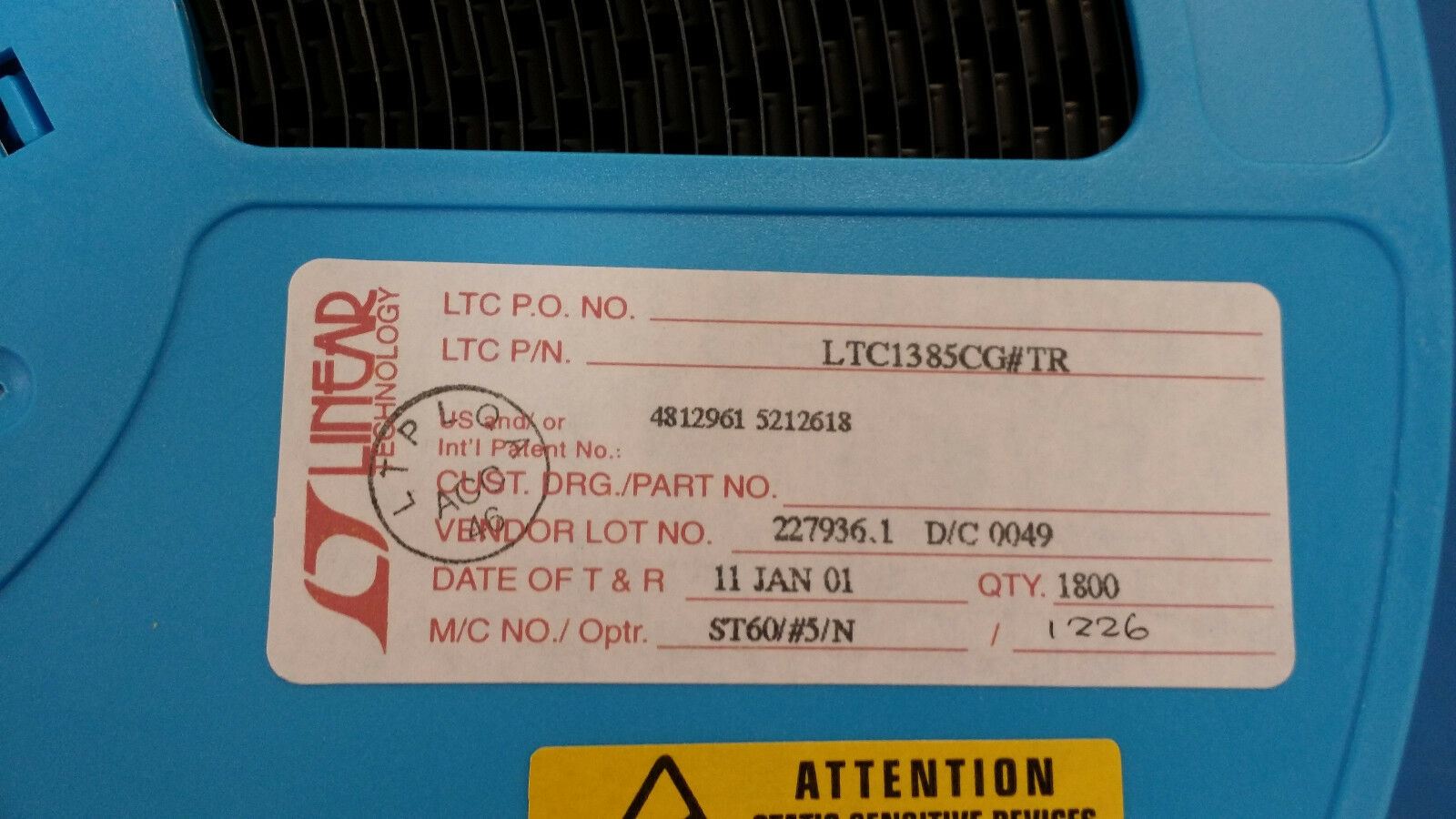

(10 PCS) LTC1385CG LINEAR TECH Dual Transmitter/Receiver RS-562 20-Pin SSOP

$45.95
Unit price per

Tax included.

THIS LISTING IS FOR (10 PCS) OF LTC1385CG LINEAR TECHNOLOGY
Dual Transmitter/Receiver RS-562 20-Pin SSOP

Part #: LTC1385CG

Part Category: Interface ICs
Manufacturer: Linear Technology Corporation
Description: DUAL LINE TRANSCEIVER, PDSO20
Mfr Package Description

	5.30 MM, PLASTIC, SSOP-20
REACH Compliant	Yes
Status	Active
Interface IC Type	LINE TRANSCEIVER
Differential Output	NO
Driver Number of Bits	2.0
High Level Input Current-Max	4.0E-5 Amp
Input Characteristics	SCHMITT TRIGGER
Interface Standard	EIA-562; TIA-562
JESD-30 Code	R-PDSO-G20
JESD-609 Code	e0
Moisture Sensitivity Level	1
Number of Functions	2
Number of Terminals	20
Operating Temperature-Min	0.0 Cel
Operating Temperature-Max	70.0 Cel
Out Swing-Min	7.4 V
Output Characteristics	3-STATE
Output Low Current-Max	0.0016 Amp
Output Polarity	INVERTED
Package Body Material	PLASTIC/EPOXY
Package Code	SSOP
Package Equivalence Code	SSOP20,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, SHRINK PITCH
Peak Reflow Temperature (Cel)	235
Power Supplies (V)	5
Qualification Status	Not Qualified
Receive Delay-Max	800.0 ns
Receiver Number of Bits	2.0
Seated Height-Max	2.0 mm
Sub Category	Line Driver or Receivers
Supply Current-Max	0.5 mA
Supply Voltage-Nom	3.3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	20
Transmit Delay-Max	3500.0 ns
Length	7.2 mm
Width	5.3 mm
Additional Feature	2 RECEIVERS ACTIVE UNDER SHUTDOWN; EXTERNAL CHARGE PUMP
