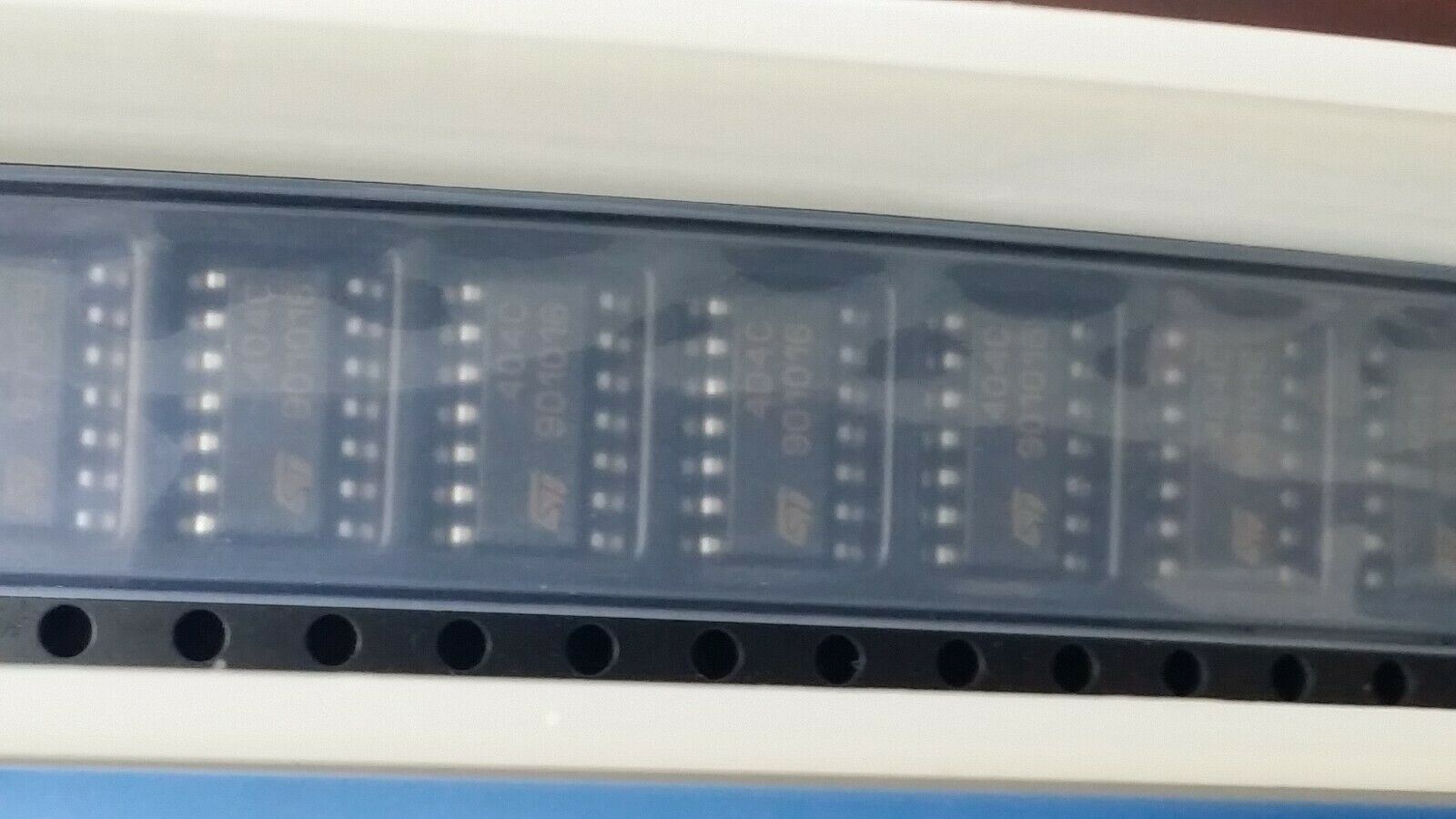

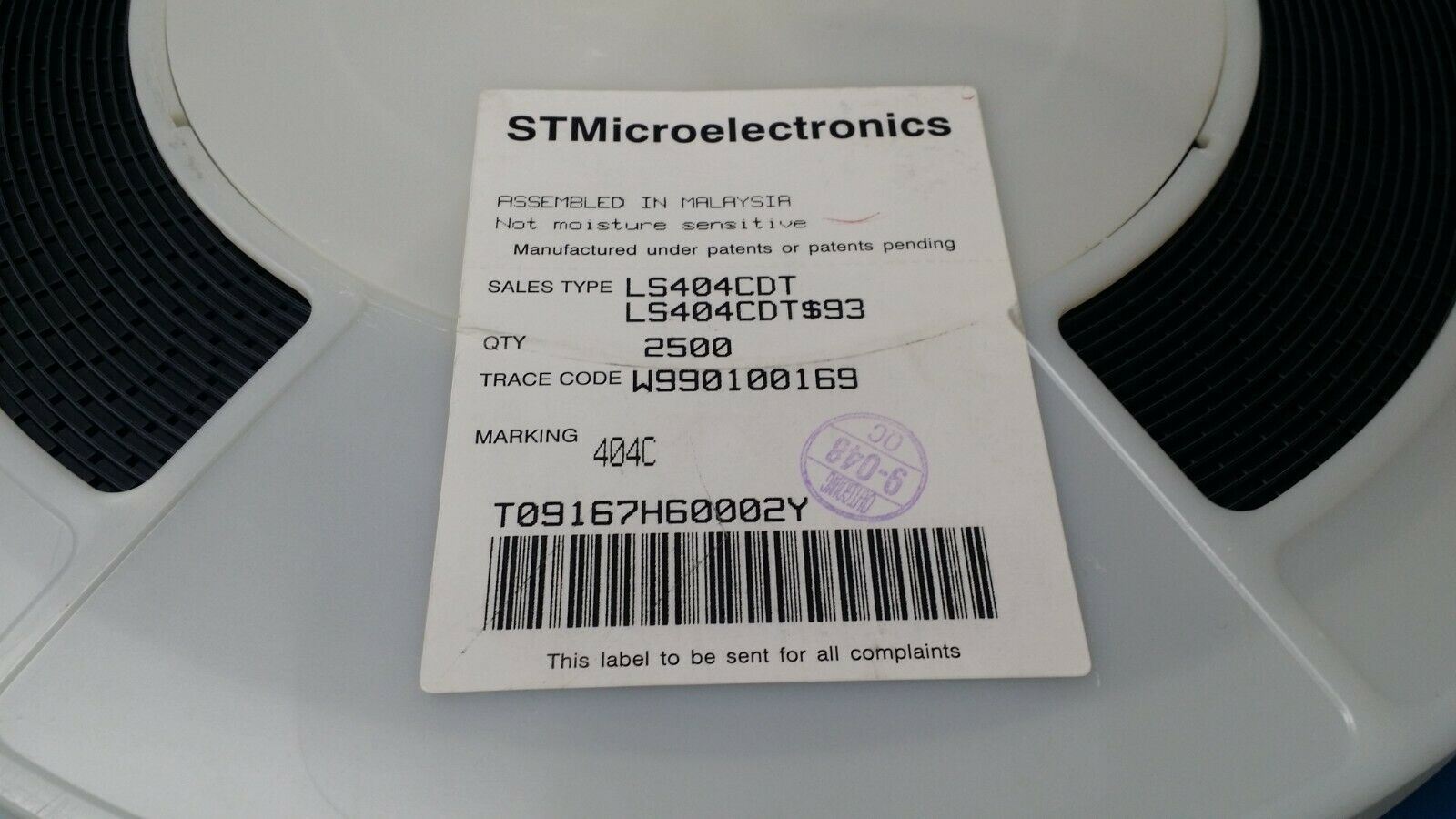

(10 PCS) LS404CDT STMICRO OP Amp Quad GP ±18V/36V SOIC-14
Tax included.
THIS IS FOR (10 PCS) OF LS404CDT BY STMICRO
OP Amp Quad GP ±18V/36V SOIC-14
Manufacturer: STMicroelectronics
Product Category: Operational Amplifiers - Op Amps
RoHS: N
Mounting Style: SMD/SMT
Package / Case: SOIC-14
Number of Channels: 2 Channel
Supply Voltage - Max: 30 V, +/- 18 V
GBP - Gain Bandwidth Product: 2.5 MHz
Output Current per Channel: 23 mA
SR - Slew Rate: 1 V/us
Vos - Input Offset Voltage: 5 mV
Supply Voltage - Min: 6 V, +/- 3 V
Minimum Operating Temperature: 0 C
Maximum Operating Temperature: + 70 C
Ib - Input Bias Current: 300 nA
Operating Supply Current: 3 mA
Shutdown: No Shutdown
CMRR - Common Mode Rejection Ratio: 86 dB
en - Input Voltage Noise Density: 20 nV/sqrt Hz
Series: LS404
Packaging: Reel
Packaging: Cut Tape
Amplifier Type: High Performance Amplifier
Brand: STMicroelectronics
Dual Supply Voltage: +/- 3 V, +/- 5 V, +/- 9 V, +/- 12 V, +/- 15 V
Height: 1.65 mm (Max)
Length: 8.75 mm (Max)
Maximum Dual Supply Voltage: +/- 18 V
Minimum Dual Supply Voltage: +/- 3 V
Operating Supply Voltage: 6 V to 30 V, +/- 3 V to +/- 15 V
Pd - Power Dissipation: 400 mW
Product: Operational Amplifiers
Product Type: Op Amps - Operational Amplifiers
PSRR - Power Supply Rejection Ratio: 86 dB
2500
Subcategory: Amplifier ICs
Supply Type: Single, Dual
Technology: Bipolar
Voltage Gain dB: 100 dB
Width: 4 mm (Max)
Unit Weight: 0.009143 oz
