(10 PCS) LM5020MM-2 NSC Current Mode PWM Controller -0.3V to 7V 1A 10-Pin VSSOP
Tax included.

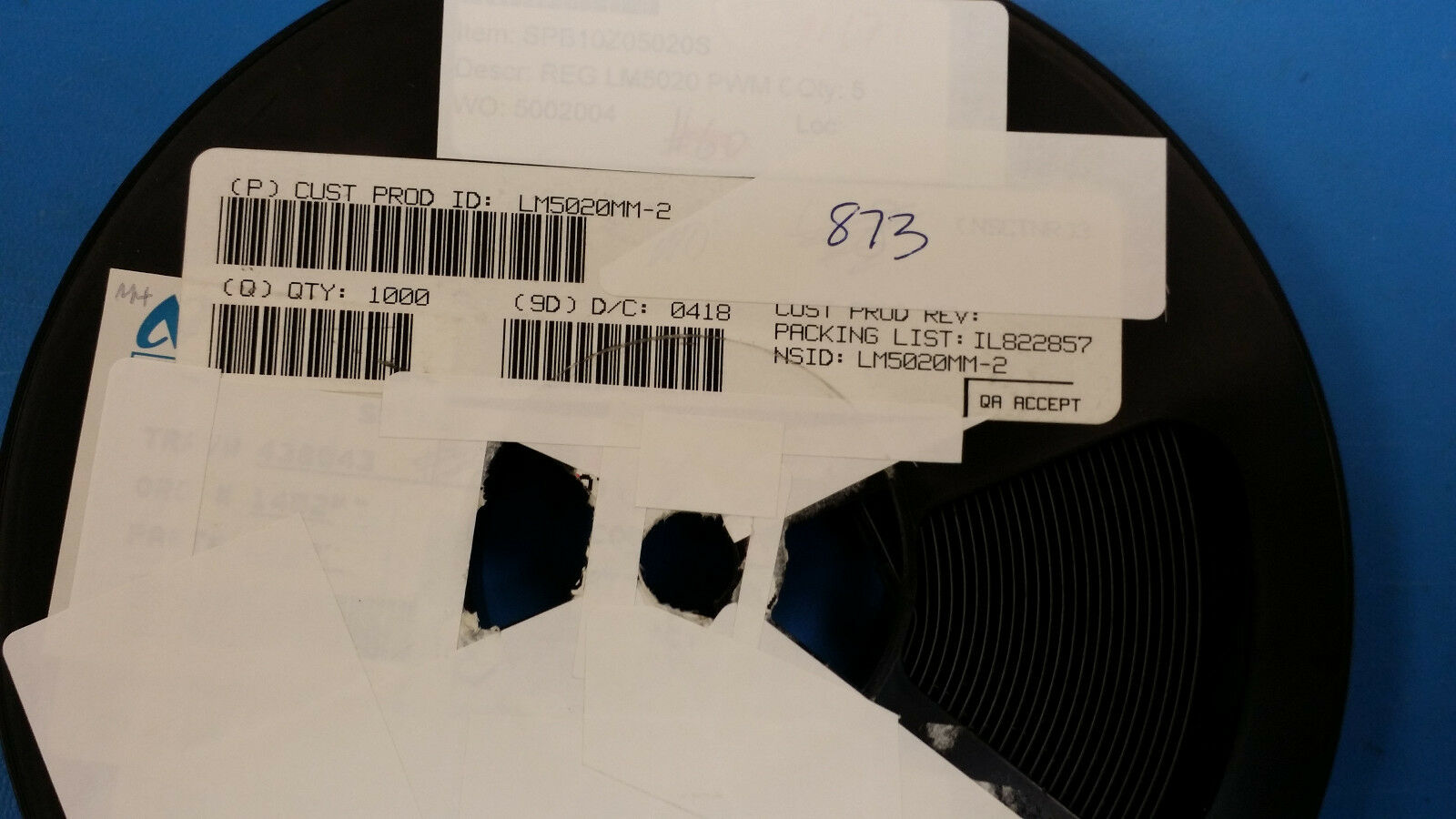

THIS LISTING IS FOR (10 PCS) OF LM5020MM-2 BY NSC
Current Mode PWM Controller -0.3V to 7V 1A 10-Pin VSSOP
Current Mode PWM Controller -0.3V to 7V 1A 10-Pin VSSOP
| Manufacturer: | National Semiconductor | |
| Product Category: | Switching Controllers | |
| Topology: | Divider | |
| Number of Outputs: | 1 Output | |
| Switching Frequency: | 200 kHz,630 kHz | |
| Duty Cycle - Max: | 50 % | |
| Input Voltage: | 100 V | |
| Output Voltage: | - 0.3 V to + 7 V | |
| Output Current: | 1 A | |
| Maximum Operating Temperature: | + 125 C | |
| Mounting Style: | SMD/SMT | |
| Package / Case: | MSOP | |

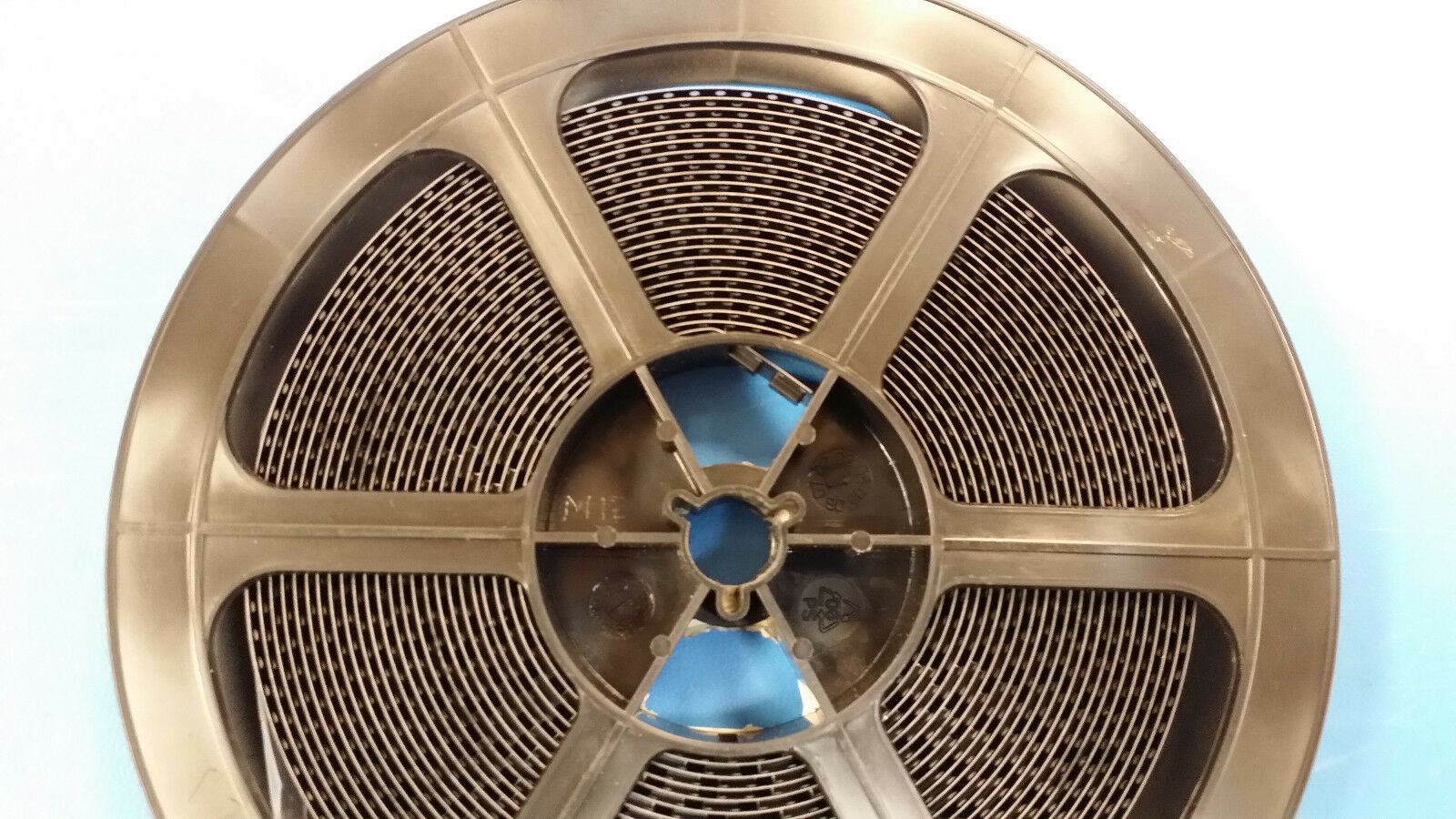

| Packaging: | Reel | |
| Brand: | National Semiconductor | |
| Description/Function: | High voltage pulse-width-modulation controller |
|
| Fall Time: | 15 ns |
|
| Isolation: | Non-Isolated |
|
| Minimum Operating Temperature: | - 40 C |
|
| Operating Supply Current: | 3 mA |
|
| Operating Supply Voltage: | 13 V to 90 V |
|
| Product: | Current Mode PWM Controllers |
|
| Rise Time: | 18 ns |
|
| Series: | LM5020 |
|
| Shutdown: | Yes |
