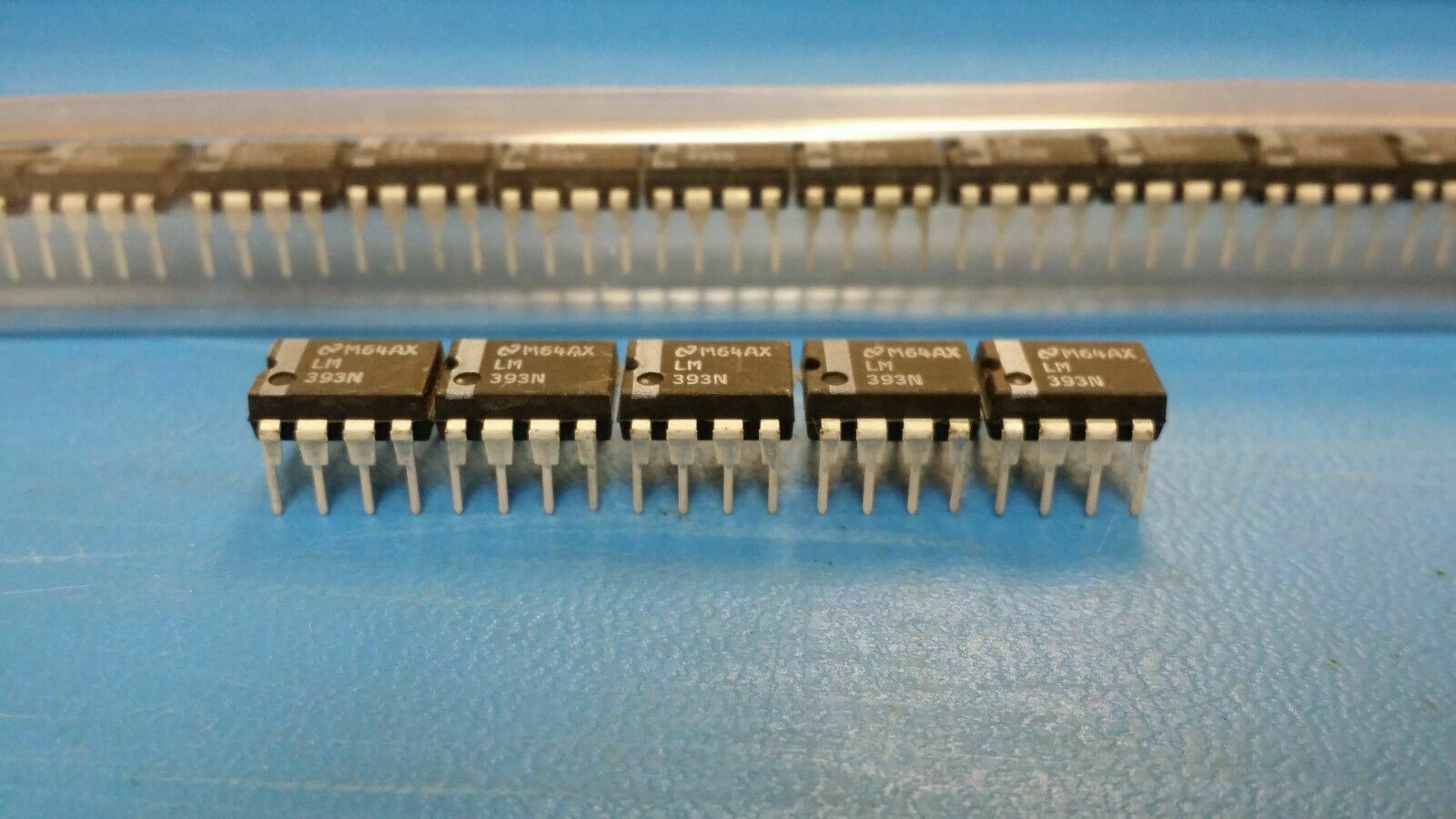

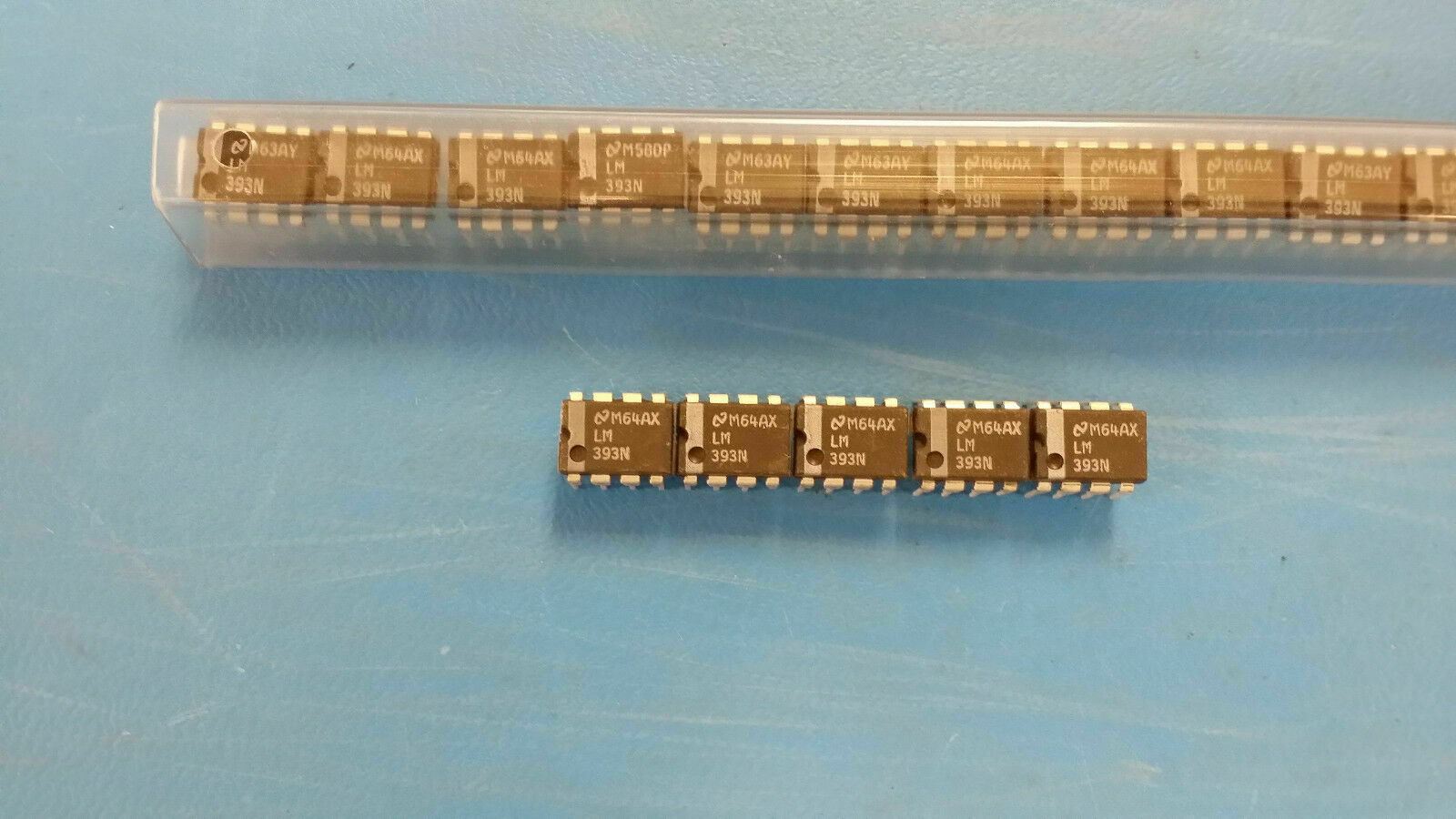

(10 PCS) LM393N NSC Comparator Dual ±18V/36V 8-Pin PDIP

  • $2.95
    Unit price per
Tax included.

Only 47 left!

THIS LISTING IS FOR (10 PCS) OF LM393N BY NSC
Comparator Dual ±18V/36V 8-Pin PDIP
Manufacturer:

National  Semiconductor
Product Category: Analog Comparators
Mounting Style: Through Hole
Package / Case: DIP-8
Number of Channels: 2 Channel
Output Type: Open Collector
Output Current per Channel: 18 mA
Ib - Input Bias Current: 250 nA
Vos - Input Offset Voltage: 5 mV
Supply Voltage - Max: 36 V
Supply Voltage - Min: 18 V
Operating Supply Current: 2 mA
Response Time: 1.3 us
Maximum Operating Temperature: + 70 C
Minimum Operating Temperature: 0 C
Packaging: Bulk
Brand: National Semiconductor
Dual Supply Voltage: +/- 3 V, +/- 5 V, +/- 9 V, +/- 12 V, +/- 15 V
GBP - Gain Bandwidth Product: -
Height: 3.3 mm
Ios - Input Offset Current: +/- 50 nA
Length: 10.15 mm (Max)
Maximum Dual Supply Voltage: +/- 18 V
Minimum Dual Supply Voltage: 1 V
Operating Supply Voltage: 36 V
Pd - Power Dissipation: 570 mW
Product: Analog Comparators
Reference Voltage: Yes
Shutdown: No Shutdown
Factory Pack Quantity: 3000
Supply Type: Single, Dual
Technology: Bipolar
Type: Differential Comparator
Vcm - Common Mode Voltage: Negative Rail to Positive Rail - 1.5 V
Voltage Gain dB: 106.02 dB
Width: 6.35 mm
Unit Weight: 0.030018 oz
