(10 pcs) LM358C498G4
Tax included.

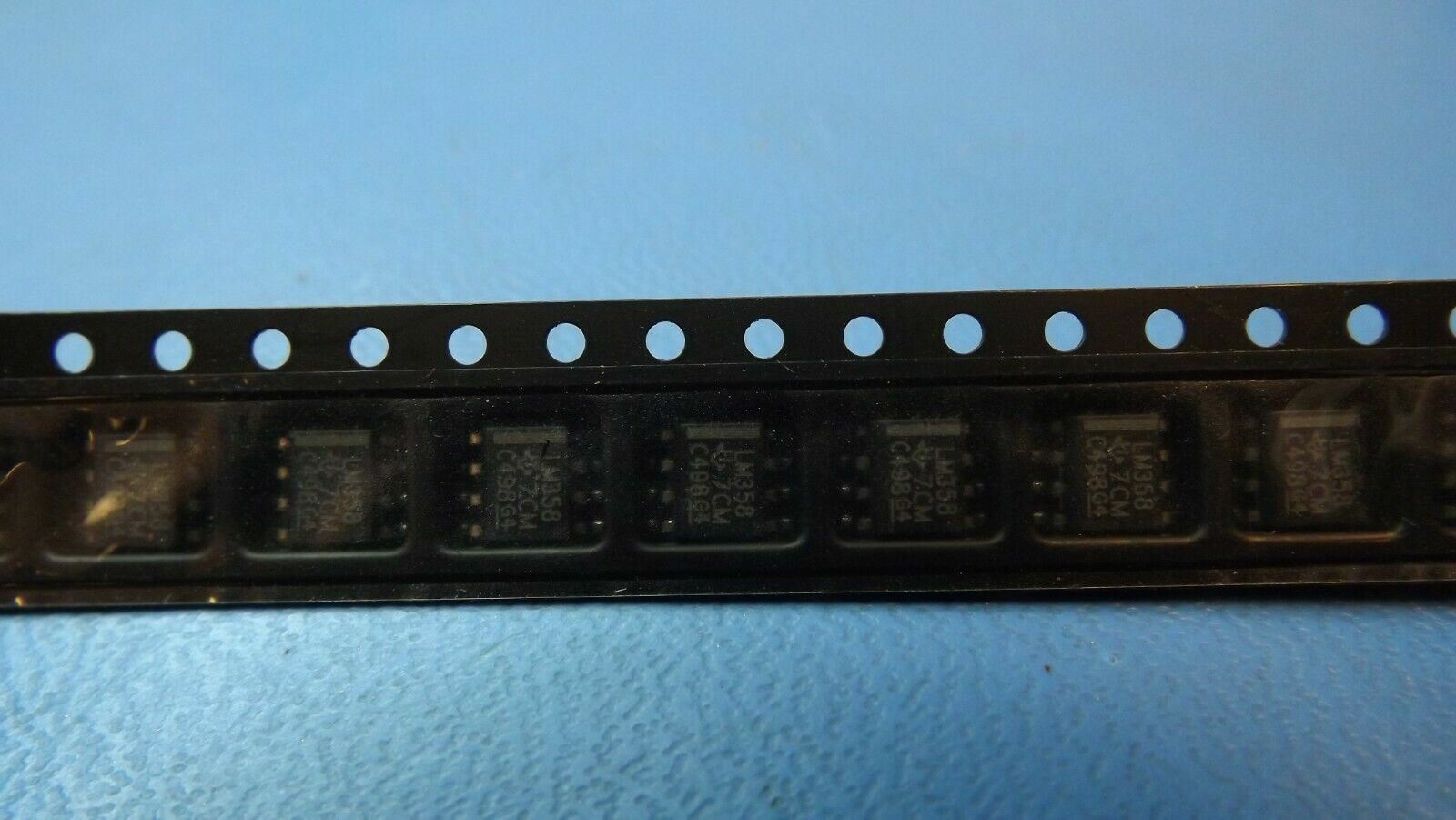

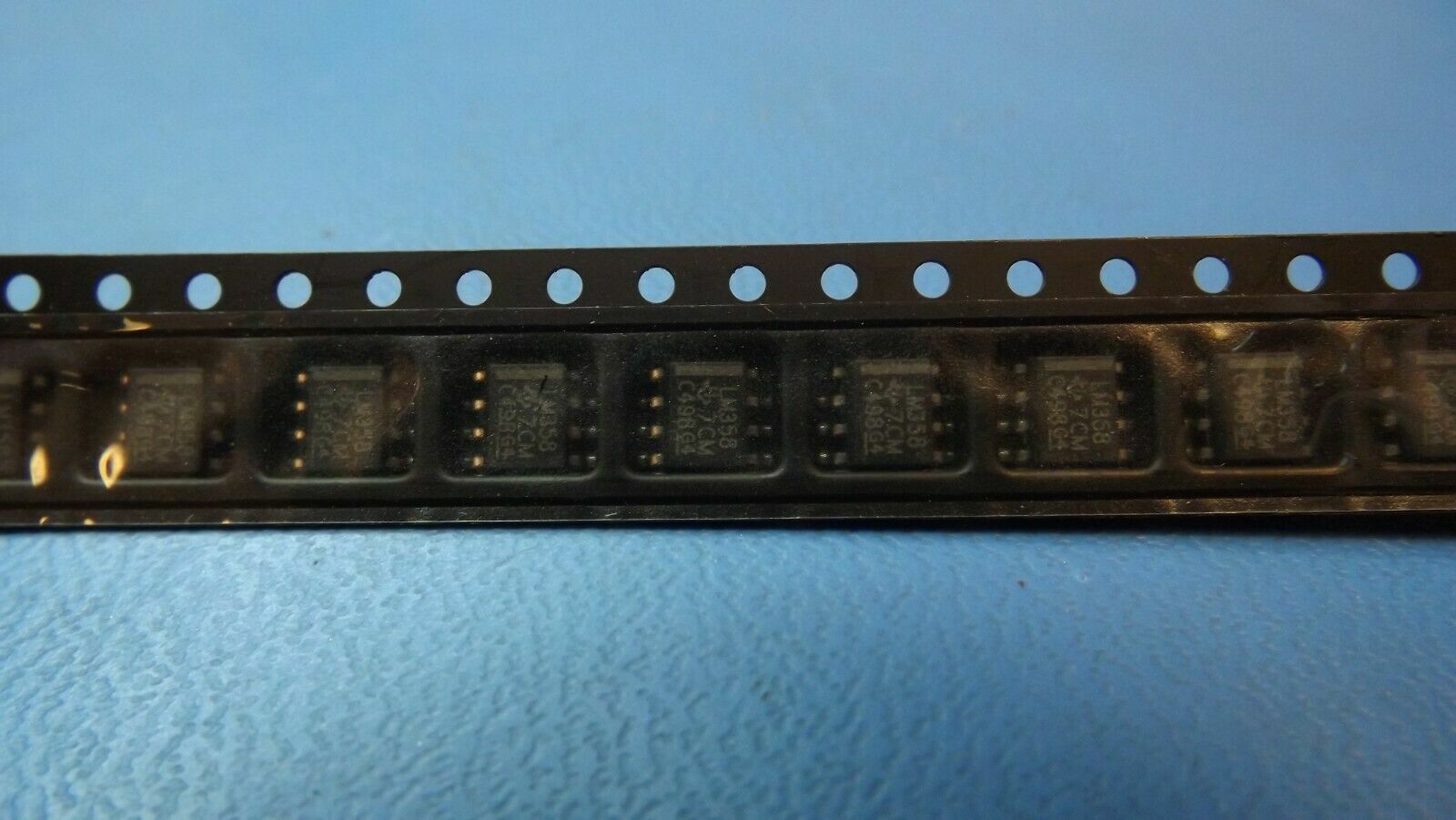

THIS LISTING IS FOR (10PCS) OF LM358D BY TEXAS INSTRUMENTS.
SPECIFICATIONS
| Mfr Package Description | SOIC-8 |
| REACH Compliant | Yes |
| EU RoHS Compliant | Yes |
| China RoHS Compliant | Yes |
| Status | Active |
| Amplifier Type | OPERATIONAL AMPLIFIER |
| Architecture | VOLTAGE-FEEDBACK |
| Average Bias Current-Max (IIB) | -0.5 µA |
| Bias Current-Max (IIB) @25C | 0.25 µA |
| Common-mode Reject Ratio-Nom | 80.0 dB |
| Common-mode Reject Ratio-Min | 65.0 dB |
| Frequency Compensation | YES |
| Input Offset Voltage-Max | 9000.0 µV |
| JESD-30 Code | R-PDSO-G8 |
| JESD-609 Code | e4 |
| Low-Offset | NO |
| Moisture Sensitivity Level | 1 |
| Number of Functions | 2 |
| Number of Terminals | 8 |
| Operating Temperature-Min | 0.0 Cel |
| Operating Temperature-Max | 70.0 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | SOP |
| Package Equivalence Code | SOP8,.25 |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE |
| Packing Method | TUBE |
| Peak Reflow Temperature (Cel) | 260 |
| Power Supplies (V) | +-1.5/+-15/3/30 |
| Qualification Status | Not Qualified |
| Seated Height-Max | 1.75 mm |
| Slew Rate-Nom | 0.3 V/us |
| Sub Category | Operational Amplifier |
| Supply Current-Max | 2.0 mA |
| Supply Voltage Limit-Max | 32.0 V |
| Supply Voltage-Nom (Vsup) | 5.0 V |
| Surface Mount | YES |
| Technology | BIPOLAR |
| Temperature Grade | COMMERCIAL |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) |
| Terminal Form | GULL WING |
| Terminal Pitch | 1.27 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Unity Gain BW-Nom | 700.0 kHz |
| Voltage Gain-Min | 15000.0 |
| Length | 4.9 mm |
| Width | 3.9 mm |
