(10 PCS) LF412CDR TI IC OPAMP JFET 3MHZ 8SOIC
Tax included.

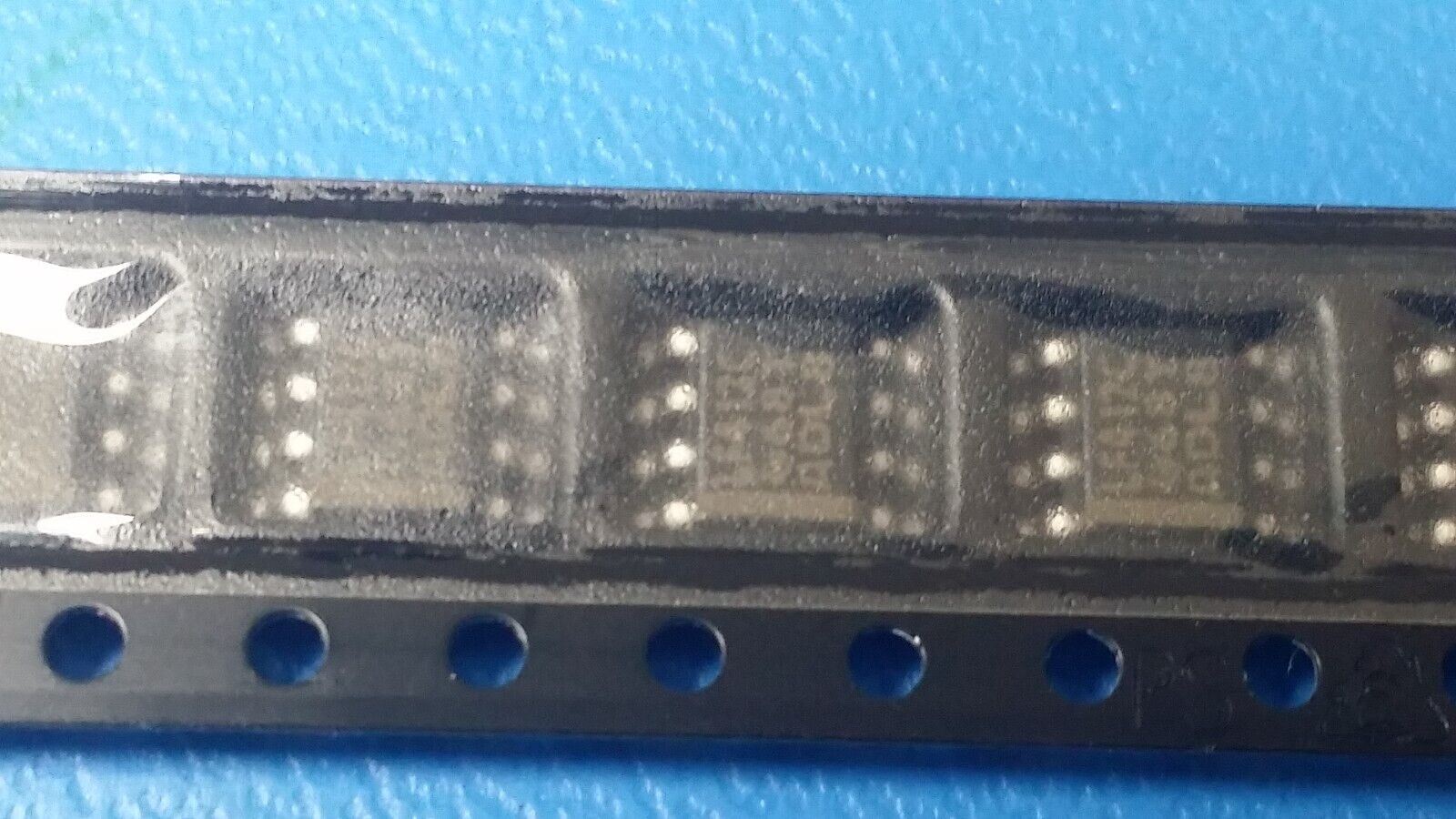

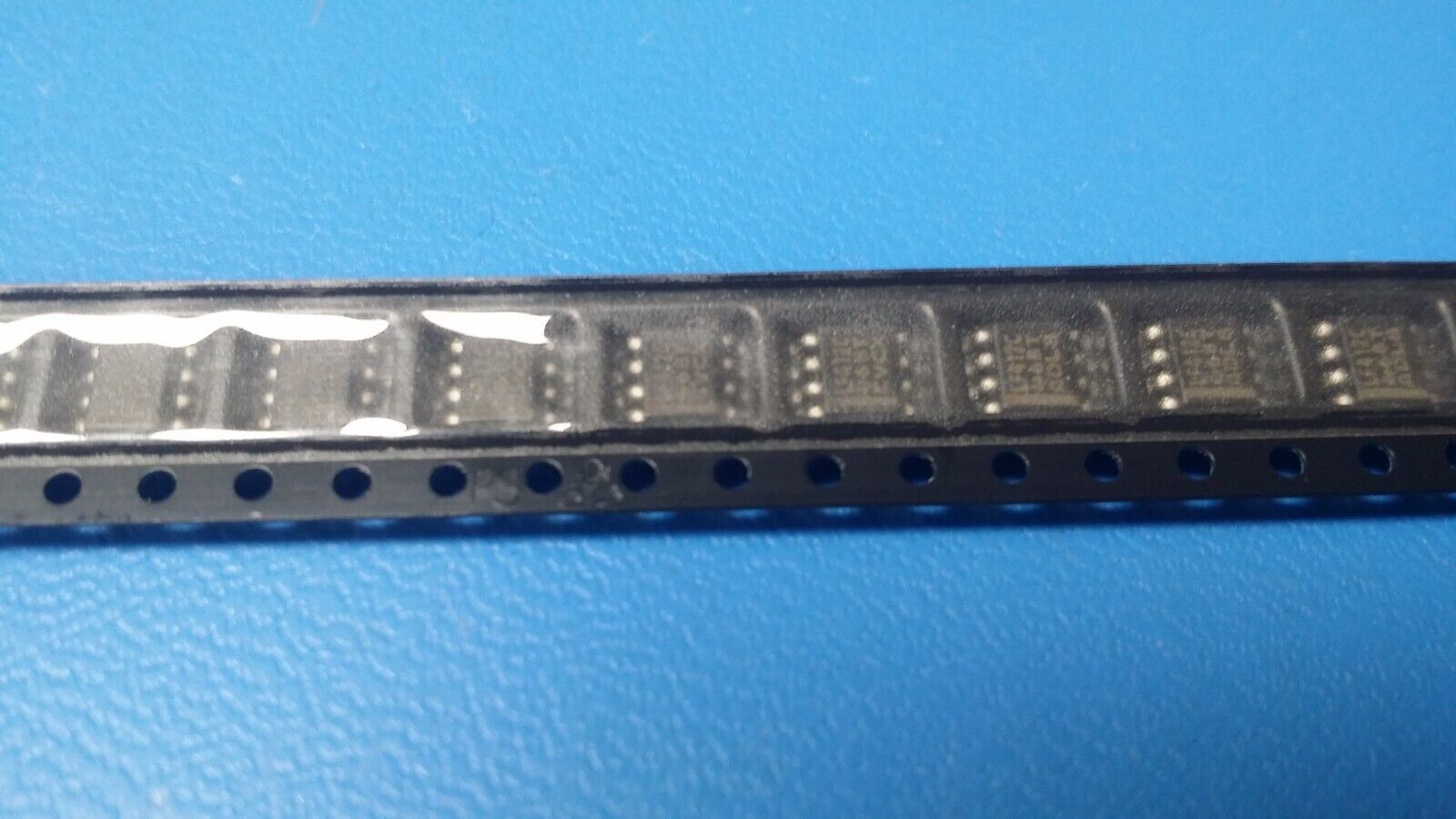

THIS LISTING IS FOR (10 PCS) OF LF412CDR BY TEXAS INSTRUMENTS
Manufacturer:Texas Instruments
Product Category:Operational Amplifiers - Op Amps
RoHS: N
Mounting Style:SMD/SMT
Package / Case:SOIC-8
Supply Voltage - Max:36 V
Number of Channels:2 Channel
GBP - Gain Bandwidth Product:3 MHz
SR - Slew Rate:13 V/us
CMRR - Common Mode Rejection Ratio:70 dB to 100 dB
Ib - Input Bias Current:200 pA
Vos - Input Offset Voltage:3 mV
Supply Voltage - Min:7 V
Operating Supply Current:2.25 mA
Minimum Operating Temperature:0 C
Maximum Operating Temperature:+ 70 C
Shutdown:No Shutdown
Series:LF412
Packaging:Cut Tape
Packaging:Reel
Amplifier Type:High Speed Amplifier
Height:1.58 mm
Length:4.9 mm
Product:Operational Amplifiers
Supply Type:Dual
Technology:BiFET
Width:3.91 mm
Brand:Texas Instruments
Dual Supply Voltage:+/- 5 V, +/- 9 V, +/- 12 V, +/- 15 V
en - Input Voltage Noise Density:18 nV/sqrt Hz
In - Input Noise Current Density:0.01 pA/sqrt Hz
Maximum Dual Supply Voltage:+/- 18 V
Minimum Dual Supply Voltage:+/- 3.5 V
Operating Supply Voltage:7 V to 36 V, +/- 3.5 V to +/- 18 V
Pd - Power Dissipation:500 mW (1/2 W)
Product Type:Op Amps - Operational Amplifiers
Factory Pack Quantity:2500
Subcategory:Amplifier ICs
Vcm - Common Mode Voltage:Negative Rail + 4 V to Positive Rail - 4 V
Voltage Gain dB:106.02 dB
