(10 PCS) LA1266 SANYO Audio Single Chip Receiver, AM/FM, PDIP24
(10 PCS) LA1266 SANYO Audio Single Chip Receiver, AM/FM, PDIP24
(10 PCS) LA1266 SANYO Audio Single Chip Receiver, AM/FM, PDIP24

(10 PCS) LA1266 SANYO Audio Single Chip Receiver, AM/FM, PDIP24

Tax included.
Only 100 left!

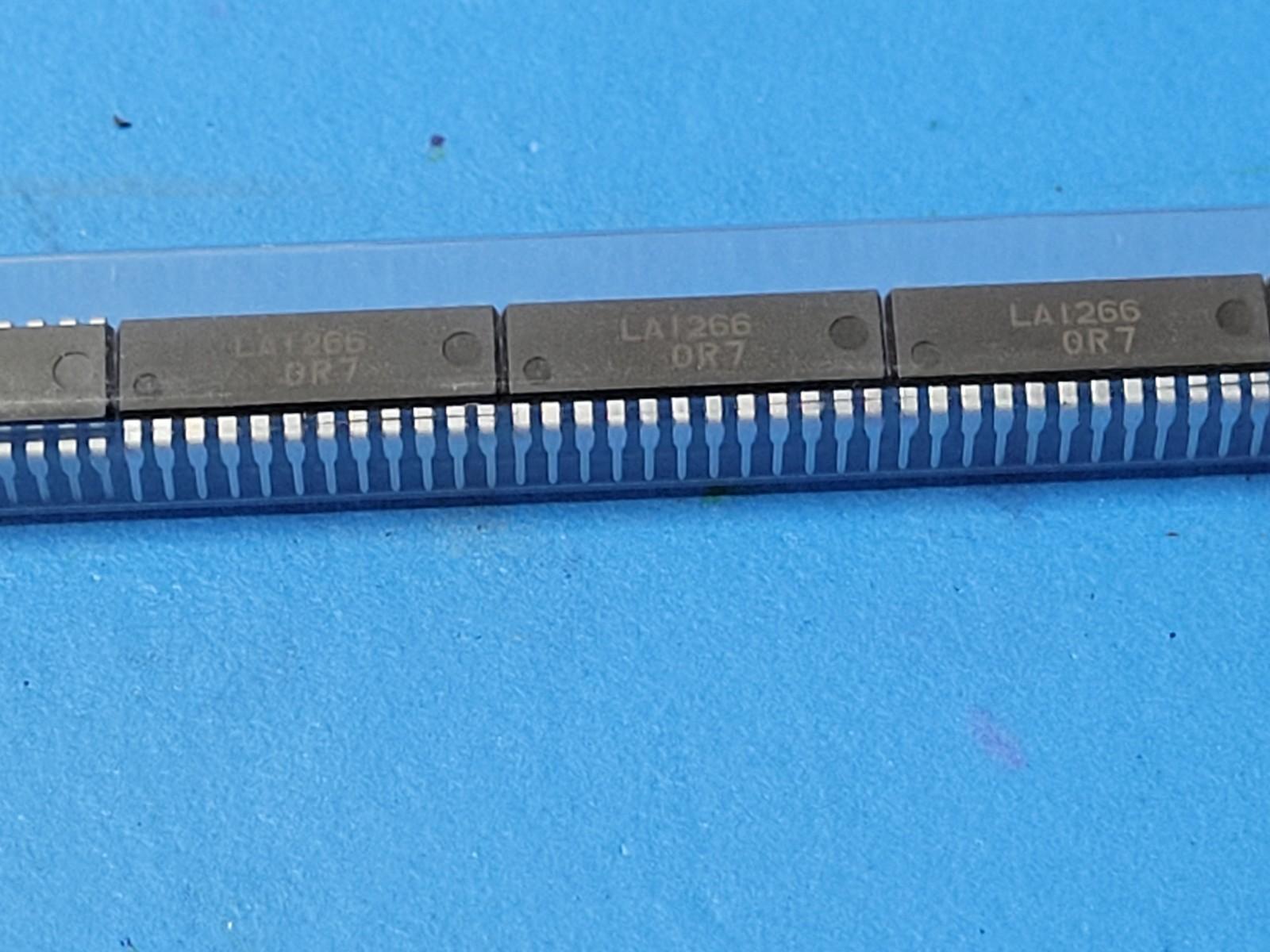

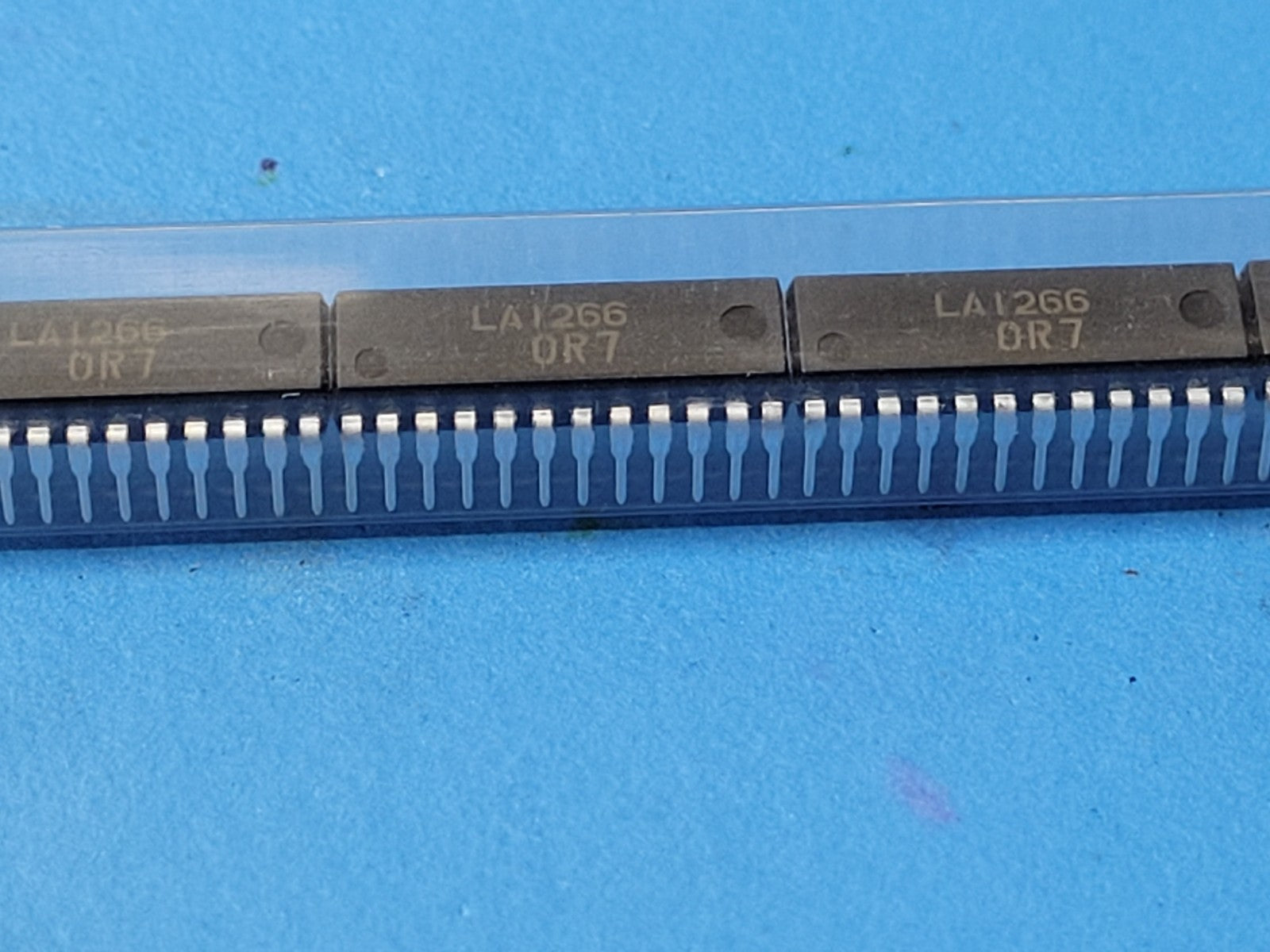

THIS IS FOR (10 PCS) OF LA1266 BY SANYO
(1 PC) LA1266 SANYO Audio Single Chip Receiver, AM/FM, PDIP24

Part #: LA1266
Obsolete
Part Category: Receiver ICs
Manufacturer: SANYO ELECTRIC CO LTD
Description: Audio Single Chip Receiver, AM/FM, PDIP24
Status Discontinued
Consumer IC Type AUDIO SINGLE CHIP RECEIVER
Demodulation Type AM/FM
Harmonic Distortion (%) 0.3000000000000000
JESD-30 Code R-PDIP-T24
Length (mm) 21.2000
Number of Functions 1
Number of Terminals 24
Operating Temperature-Max (Cel) 70
Operating Temperature-Min (Cel) -20
Output Voltage-Nom (AM) (mV) 210.0000000000000000
Output Voltage-Nom (FM) (mV) 390.0000000000000000
Package Body Material PLASTIC/EPOXY
Package Code SDIP
Package Shape RECTANGULAR
Package Style IN-LINE, SHRINK PITCH
DLA Qualification Not Qualified
Seated Height-Max (mm) 3.9000
Signal to Noise Ratio-Nom (FM) (dB) 84.0000000000000000
Supply Current-Max (mA) 40.000000000000000000
Supply Voltage-Max (V) 14.0000000000000000
Supply Voltage-Min (V) 6.0000000000000000
Surface Mount NO
Temperature Grade OTHER
Terminal Form THROUGH-HOLE
Terminal Pitch (mm) 1.778
Terminal Position DUAL
Width (mm) 7.6200
