(10 PCS) L7805CV ST MICRO Linear Voltage Regulators 5.0V 1.0A Positive TO-220
Tax included.

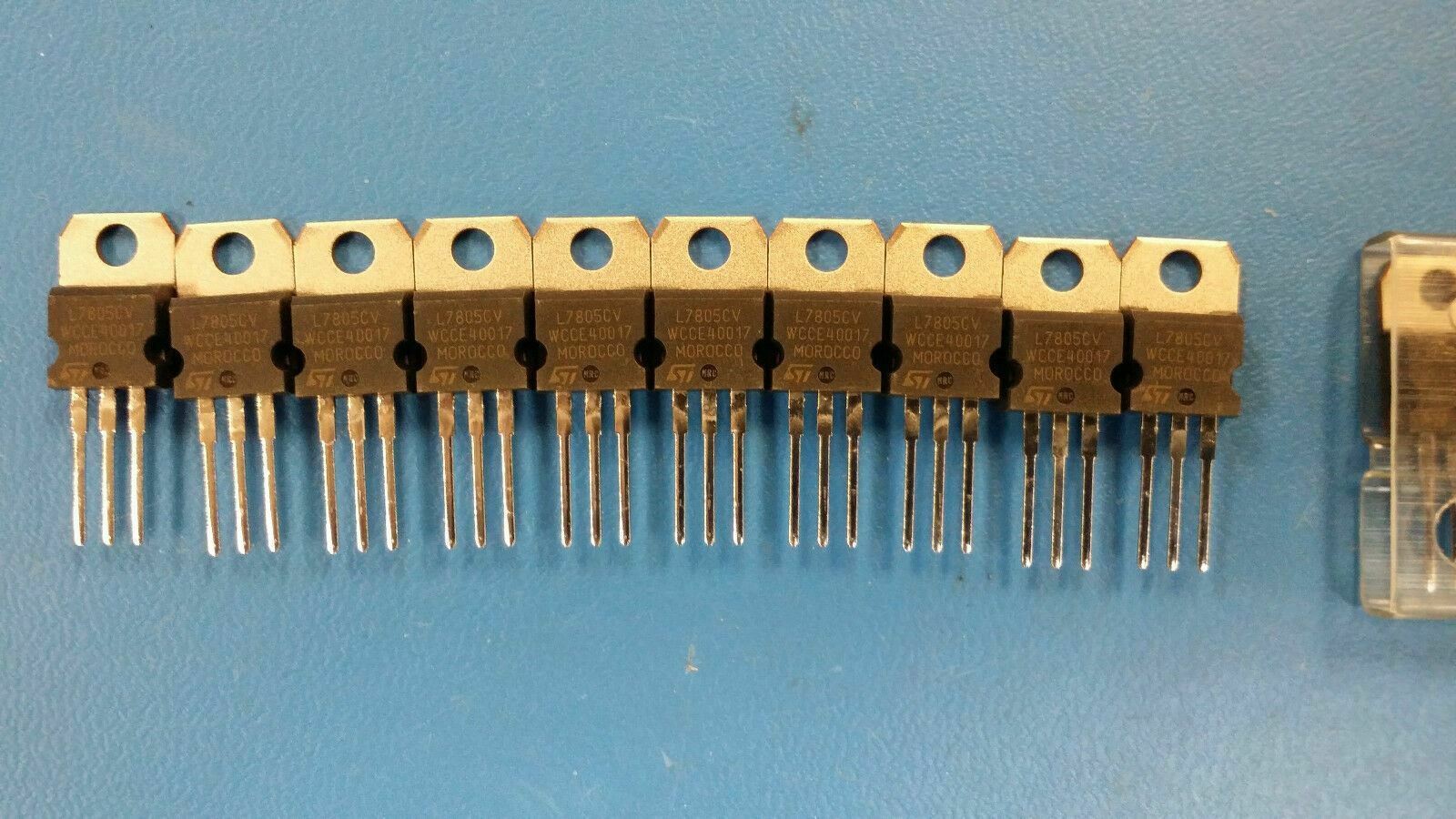

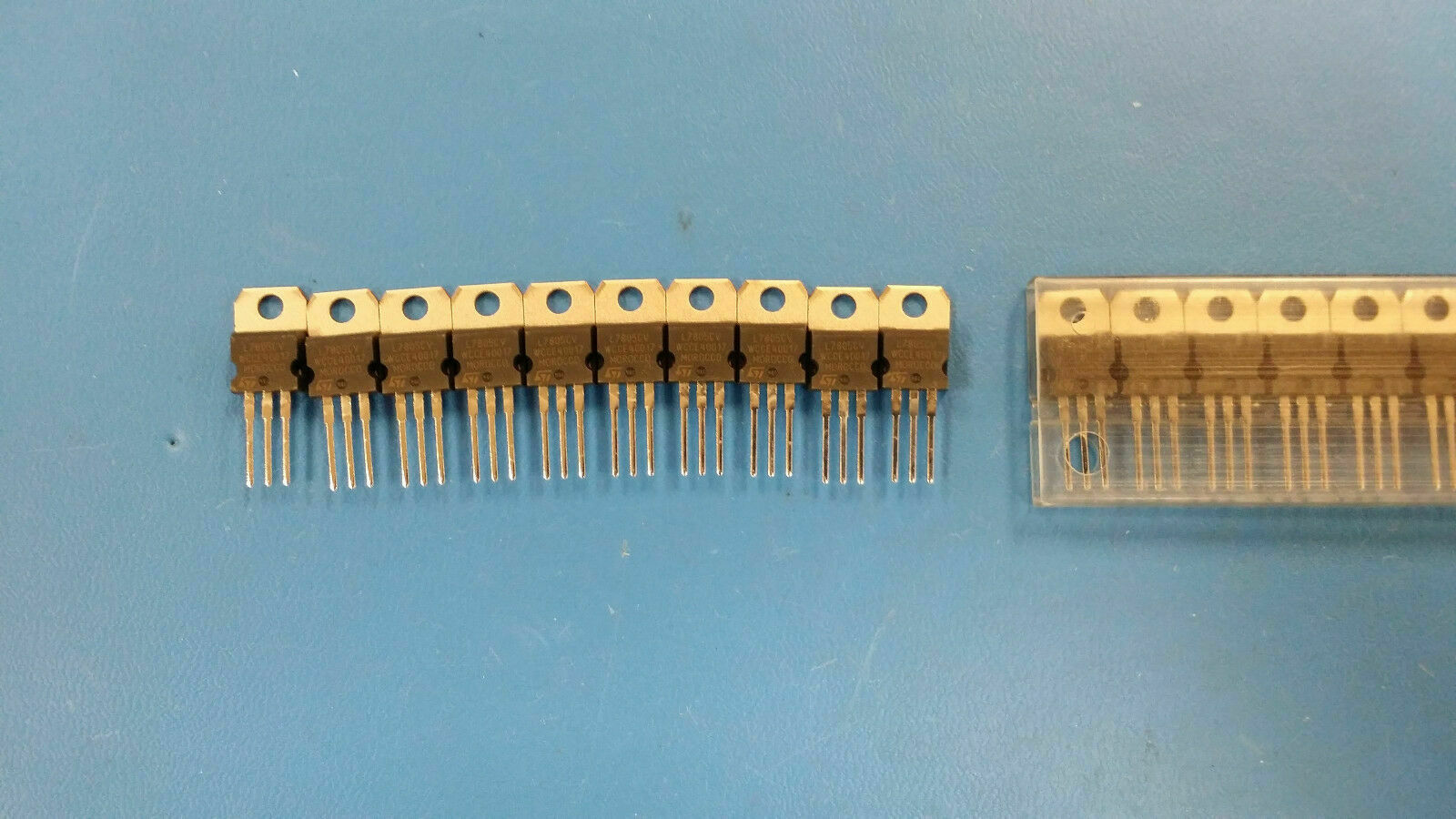

THIS LISTING IS FOR (10 PCS) OF L7805CV BY STMICROELECTRONICS
Linear Voltage Regulators 5.0V 1.0A Positive TO-220
Linear Voltage Regulators 5.0V 1.0A Positive TO-220
Part Information
L7805CV Part Details & Parametric
|
|
|
| Number of Outputs | 1 |
| Packaging | Tube |
| Type | Standard |
| Output Type | Fixed |
| Polarity | Positive |
| Special Features | Current Limit|Safe Area Protection|Short Circuit Protection|Thermal Shutdown Protection |
| Load Regulation | 100mV |
| Maximum Quiescent Current (mA) | 8 |
| Line Regulation | 100mV |
| Maximum Input Voltage (V) | 35 |
| Output Voltage (V) | 5 |
| Maximum Output Current (A) | 1.5 |
| Typical Dropout Voltage @ Current (V) | 2@1A |
| Minimum Operating Temperature (°C) | 0 |
| Maximum Operating Temperature (°C) | 125 |
| Mounting | Through Hole |
| Package Height (mm) | 9.15(Max) |
| Package Length (mm) | 10.4(Max) |
| Package Width (mm) | 4.6(Max) |
| PCB | 3 |
| Tab | Tab |
| Standard Package Name | TO-220 |
| Supplier Package | TO-220 |
| Pin Count | 3 |
| Lead Shape | Through Hole |
