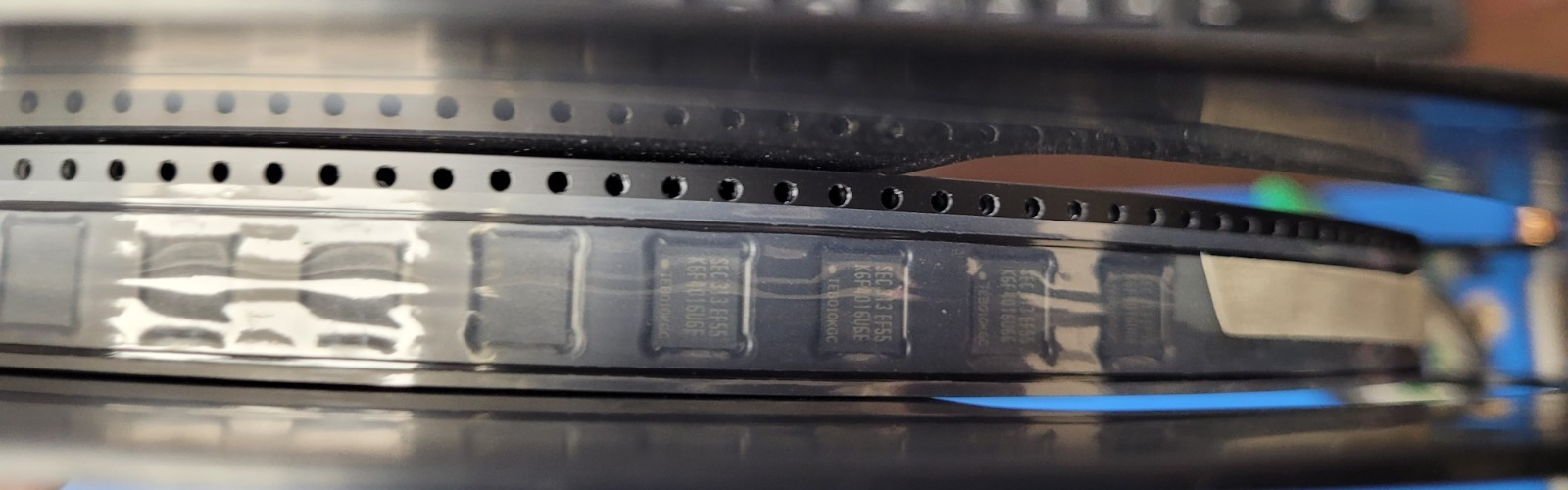

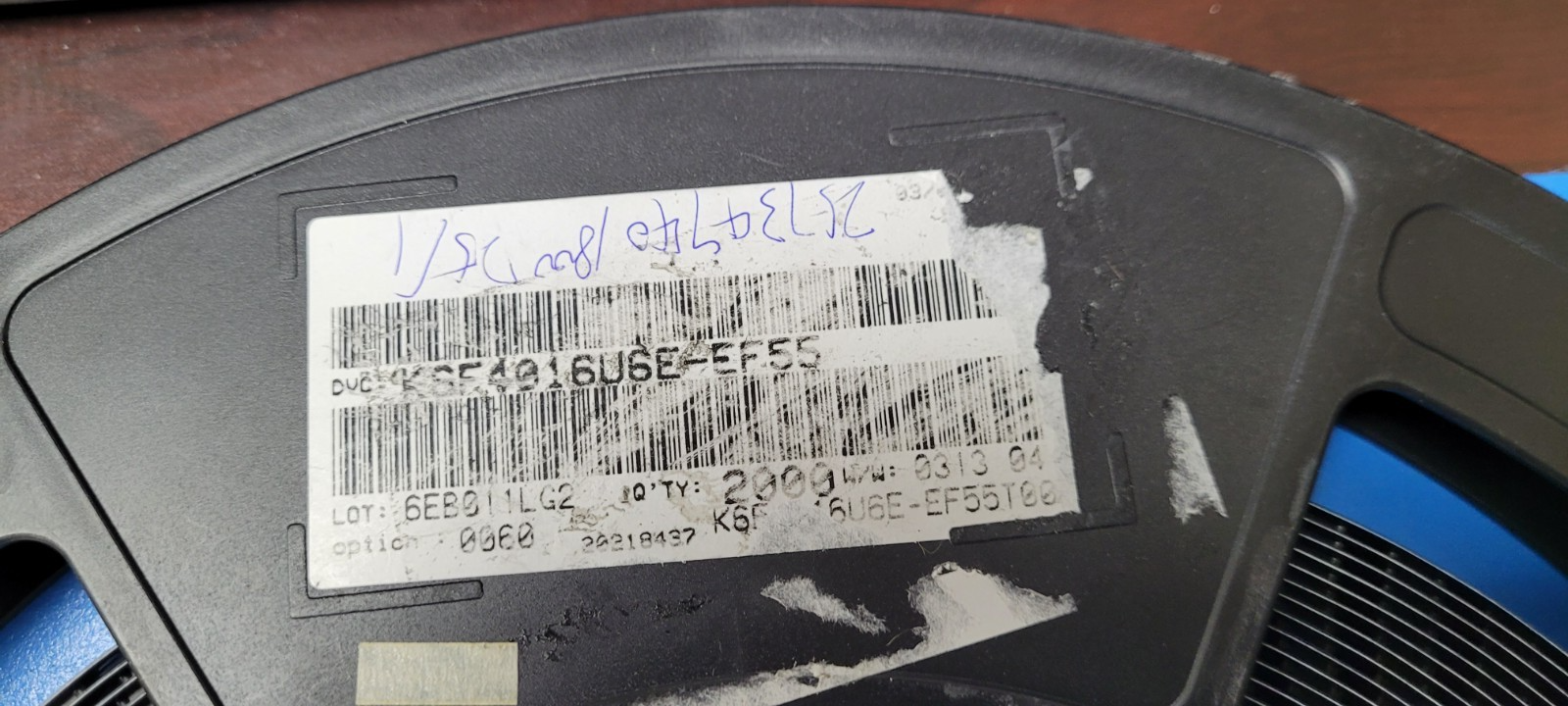

(10 PCS) K6F4016U6E-EF55T SAMSUNG Standard SRAM, 256KX16, 55ns, CMOS, PBGA48

$24.95
Unit price per

Tax included.

THIS IS FOR (10 PCS) OF K6F4016U6E-EF55T BY SAMSUNG

Standard SRAM, 256KX16, 55ns, CMOS, PBGA48

Part #: K6F4016U6E-EF55T

Obsolete

Part Category: SRAMs

Manufacturer: SAMSUNG SEMICONDUCTOR INC

Description: Standard SRAM, 256KX16, 55ns, CMOS, PBGA48

Status Discontinued

Access Time-Max (ns) 55.0000000000000000

I/O Type COMMON

JESD-30 Code R-PBGA-B48

J-STD-609 Code e0

Length (mm) 7.0000

Memory Density (bits) 4194304.0000000000000000

Memory IC Type STANDARD SRAM

Memory Width 16

Number of Functions 1

Number of Terminals 48

Number of Words (words) 262144.0000000000000000

Number of Words Code 256K

Operating Mode ASYNCHRONOUS

Operating Temperature-Max (Cel) 85.0

Operating Temperature-Min (Cel) -40.0

Memory Organization 256KX16

Output Characteristics 3-STATE

Package Body Material PLASTIC/EPOXY

Package Code VFBGA

Package Equivalence Code BGA48,6X8,30

Package Shape RECTANGULAR

Package Style GRID ARRAY, VERY THIN PROFILE, FINE PITCH

Parallel/Serial PARALLEL

DLA Qualification Not Qualified

Seated Height-Max (mm) 1.0000

Standby Current-Max (A) 0.000003000000000

Standby Voltage-Min (V) 1.500000

Supply Current-Max (mA) 27.000000000000000

Supply Voltage-Max (V) 3.30000

Supply Voltage-Min (V) 2.70000

Supply Voltage-Nom (V) 3

Surface Mount YES

Technology CMOS

Temperature Grade INDUSTRIAL

Terminal Finish TIN LEAD

Terminal Form BALL

Terminal Pitch (mm) 0.750

Terminal Position BOTTOM

Width (mm) 6.0000
