(10 PCS) IRFR9220 IR/HARRIS Trans MOSFET P-CH 200V 3.6A 3-Pin(2+Tab) DPAK
Tax included.

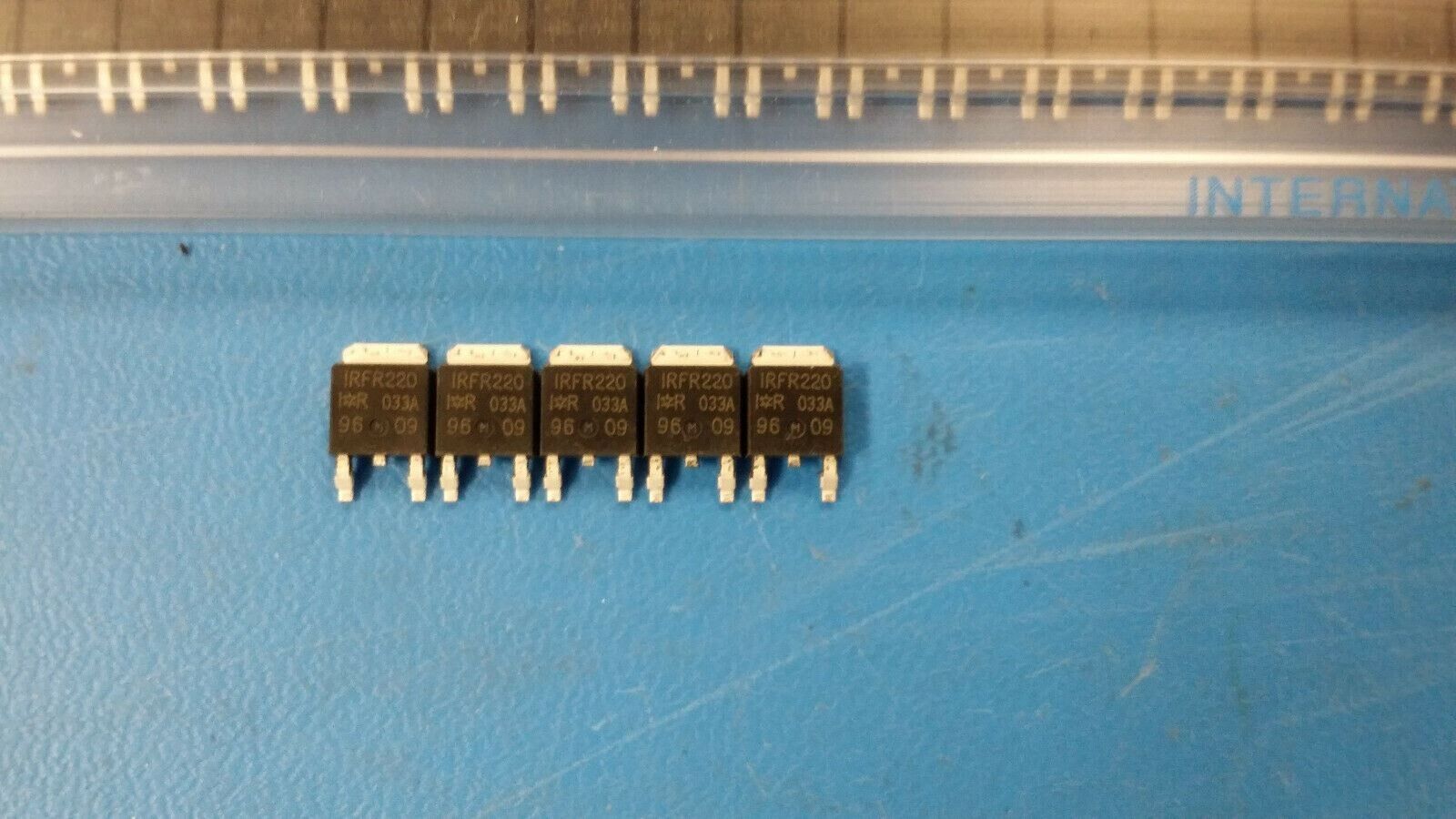

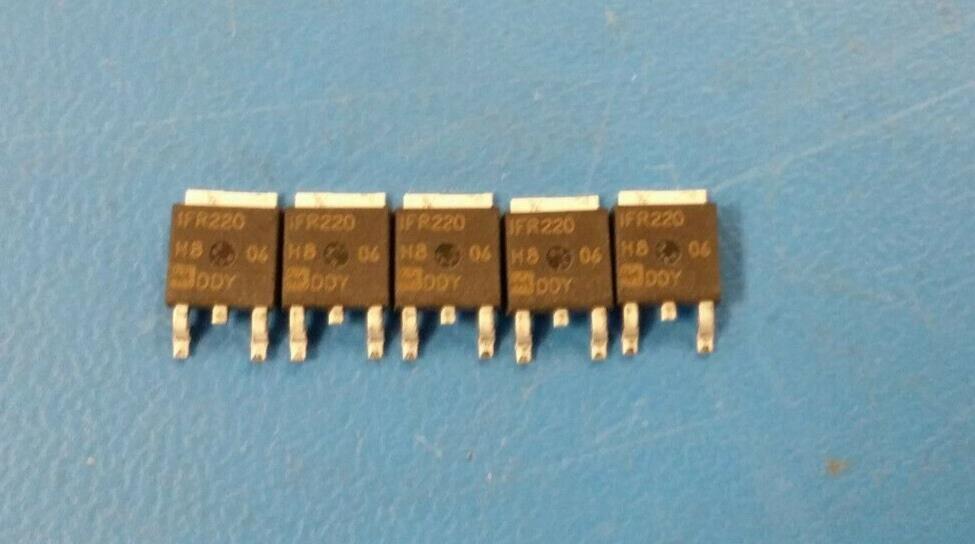

THIS LISTING IS FOR (10 PCS) OF IRFR9220 BY INTERNATIONAL RECTIFIER/HARRIS
Trans MOSFET P-CH 200V 3.6A 3-Pin(2+Tab) DPAK
Status Transferred
Case Connection DRAIN
Configuration SINGLE
Drain Current-Max (Abs) (ID) 3.6 A
Drain Current-Max (ID) 3.6 A
Drain-source On Resistance-Max 1.5 ohm
DS Breakdown Voltage-Min 200.0 V
FET Technology METAL-OXIDE SEMICONDUCTOR
JEDEC-95 Code TO-252AA
JESD-30 Code R-PSSO-G2
JESD-609 Code e0
Moisture Sensitivity Level 1
Number of Elements 1.0
Number of Terminals 2
Operating Mode ENHANCEMENT MODE
Operating Temperature-Max 150.0 Cel
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 240
Polarity/Channel Type P-CHANNEL
Power Dissipation Ambient-Max 42.0 W
Power Dissipation-Max (Abs) 42.0 W
Qualification Status Not Qualified
Sub Category Other Transistors
Surface Mount YES
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form GULL WING
Terminal Position SINGLE
Time@Peak Reflow Temperature-Max (s) 30
Transistor Application SWITCHING
Transistor Element Material SILICON
