(10 PCS) IRFD9024 IR TRANS MOSFET P-CH 60V 1.6A 3HEXPDIP
Tax included.

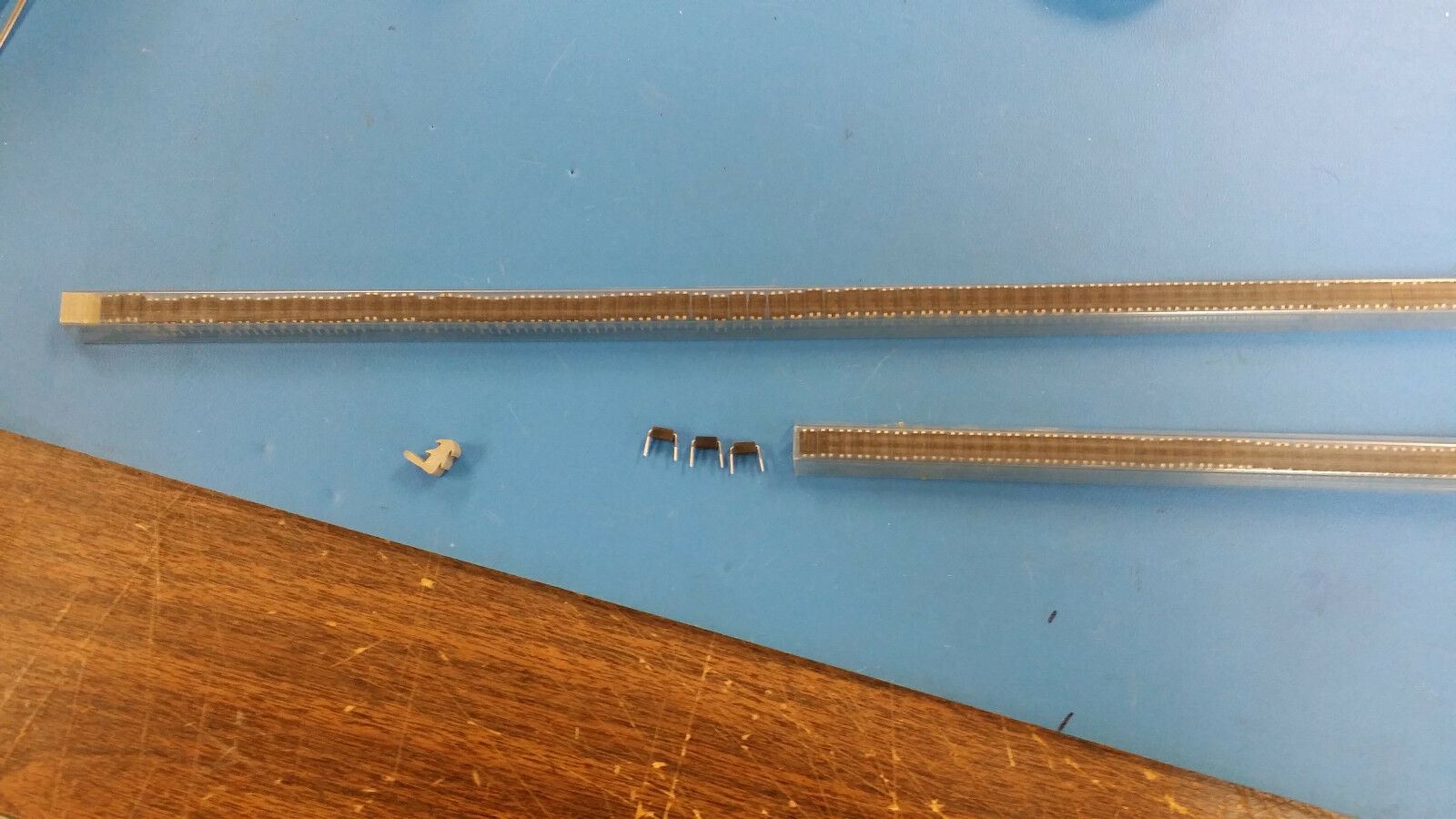

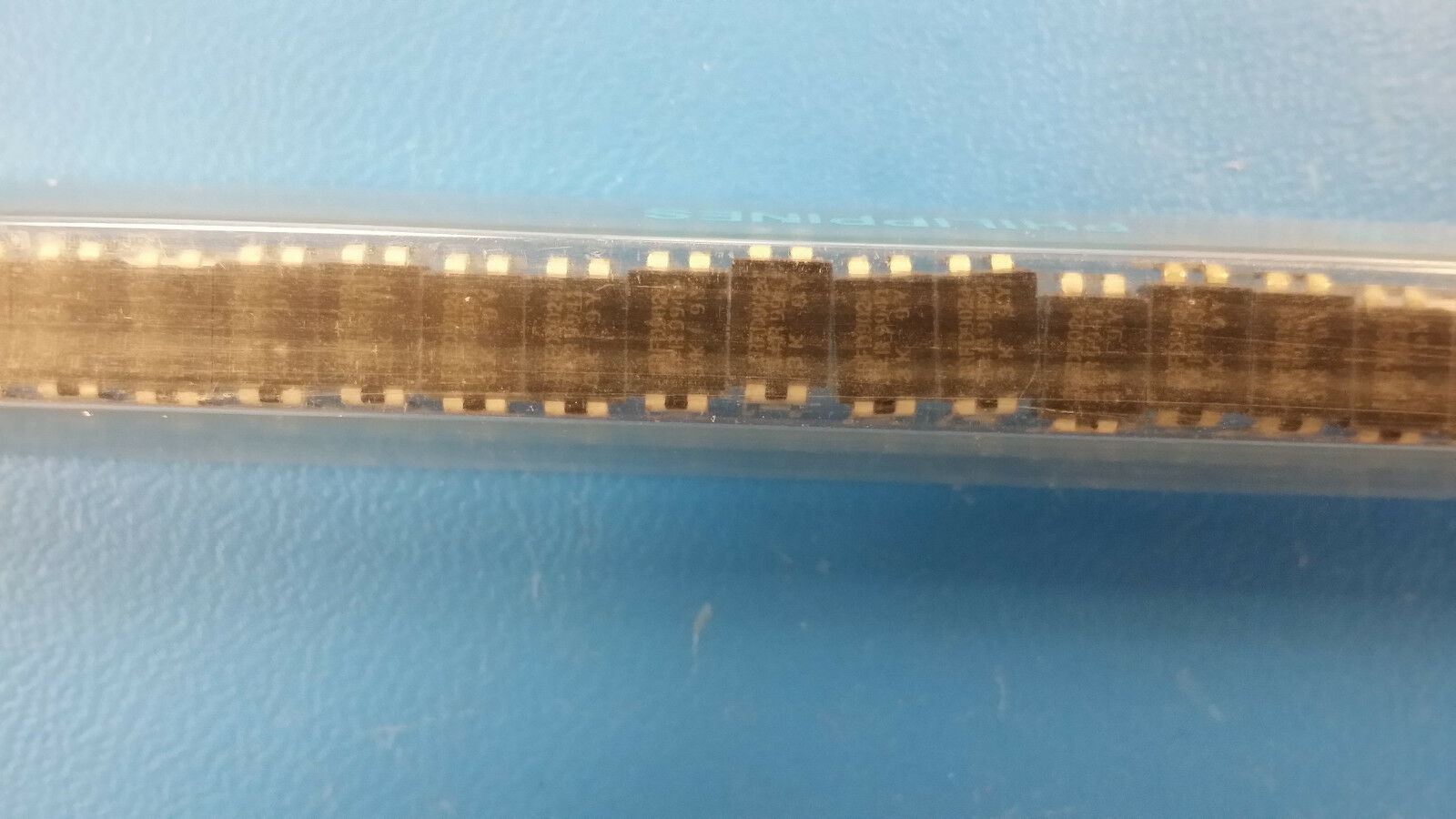

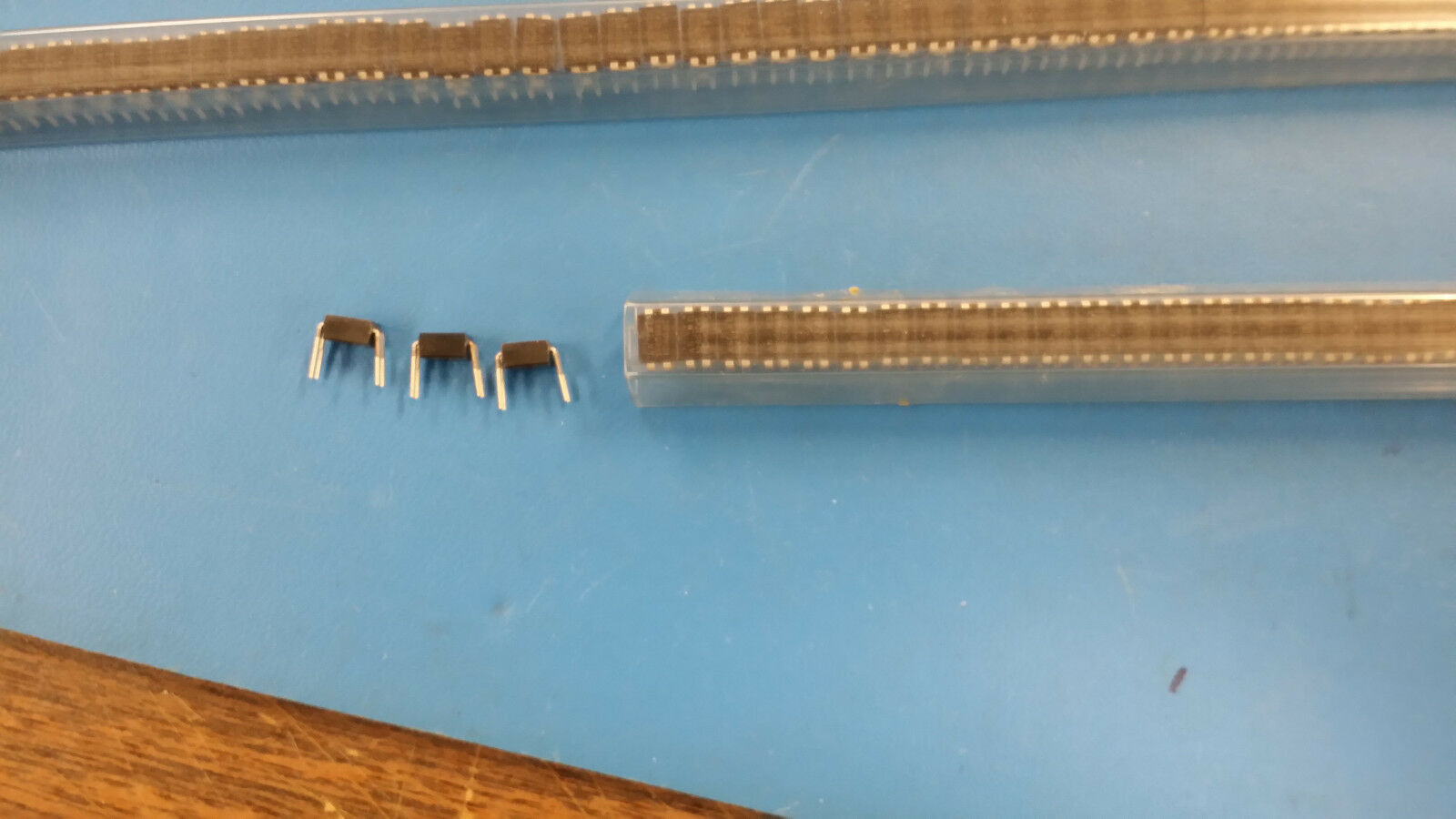

THIS LISTING IS FOR (10 PCS) OF INTERNATIONAL RECTIFIER IRFD9024
TRANS MOSFET P-CH 60V 1.6A 3HEXPDIP
TRANS MOSFET P-CH 60V 1.6A 3HEXPDIP
Part Information
IRFD9024 Part Details & Parametric
| Maximum Operating Temperature (°C) | 175 |
| Channel Mode | Enhancement |
| Channel Type | P |
| Category | Power MOSFET |
| Maximum Power Dissipation (mW) | 1300 |
| Maximum Drain Source Voltage (V) | 60 |
| Maximum Gate Source Voltage (V) | ±20 |
| Typical Gate Charge @ Vgs (nC) | 19(Max)@10V |
| Typical Input Capacitance @ Vds (pF) | 570@25V |
| Maximum Gate Threshold Voltage (V) | 4 |
| Maximum Drain Source Resistance (mOhm) | 280@10V |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature (°C) | -55 |
| Maximum Continuous Drain Current (A) | 1.6 |
| Mounting | Through Hole |
| Package Height (mm) | 3.37(Max) |
| Package Length (mm) | 5(Max) |
| Package Width (mm) | 6.29(Max) |
| PCB | 4 |
| Standard Package Name | DIP |
| Supplier Package | HVMDI |
