(10 PCS) HFW5R-1STE1MTLF FCI CONN FFC BOTTOM 5POS 1.00MM R/A
(10 PCS) HFW5R-1STE1MTLF FCI CONN FFC BOTTOM 5POS 1.00MM R/A
(10 PCS) HFW5R-1STE1MTLF FCI CONN FFC BOTTOM 5POS 1.00MM R/A
(10 PCS) HFW5R-1STE1MTLF FCI CONN FFC BOTTOM 5POS 1.00MM R/A
(10 PCS) HFW5R-1STE1MTLF FCI CONN FFC BOTTOM 5POS 1.00MM R/A

(10 PCS) HFW5R-1STE1MTLF FCI CONN FFC BOTTOM 5POS 1.00MM R/A

Tax included.
Only 50 left!

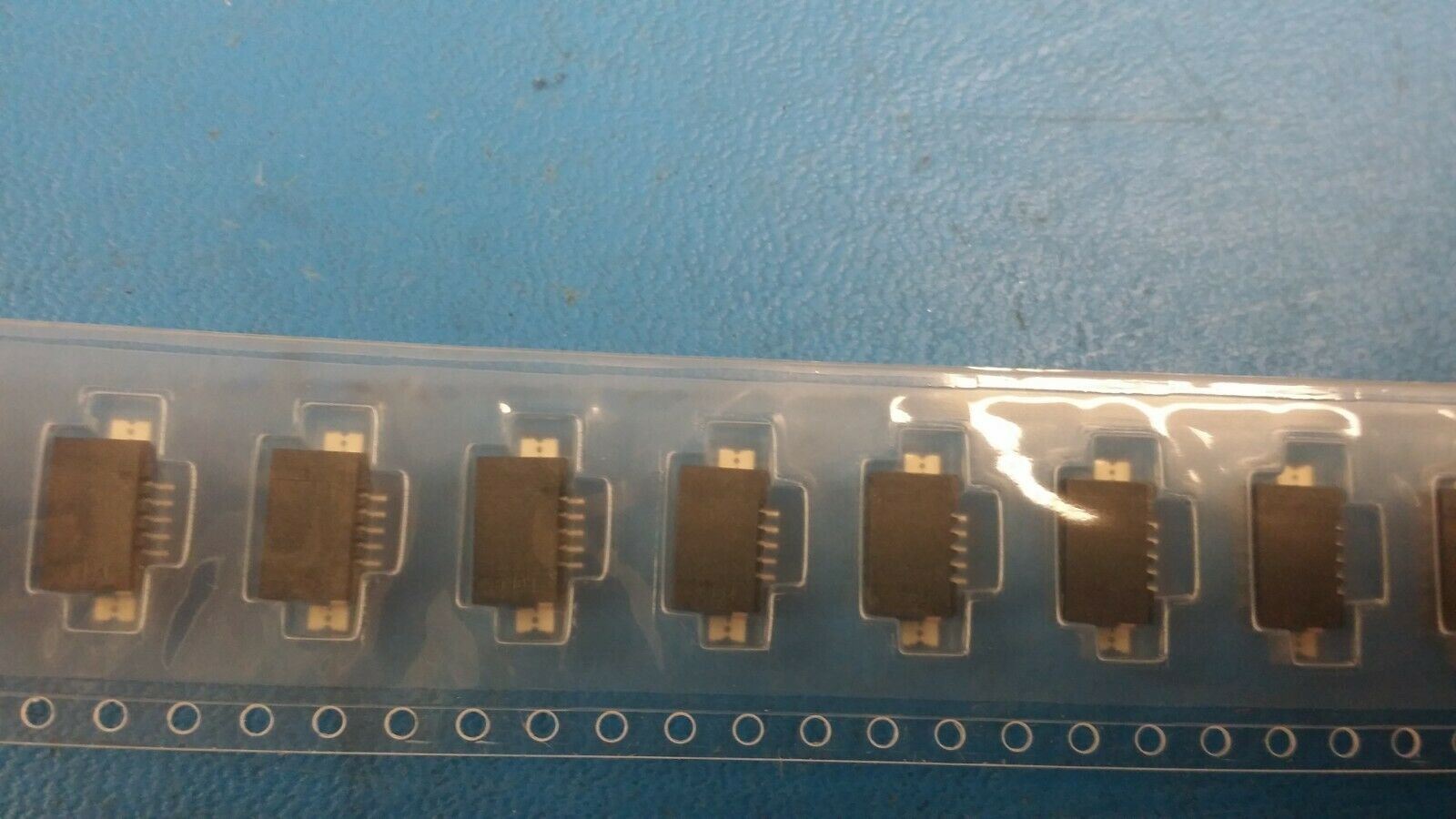

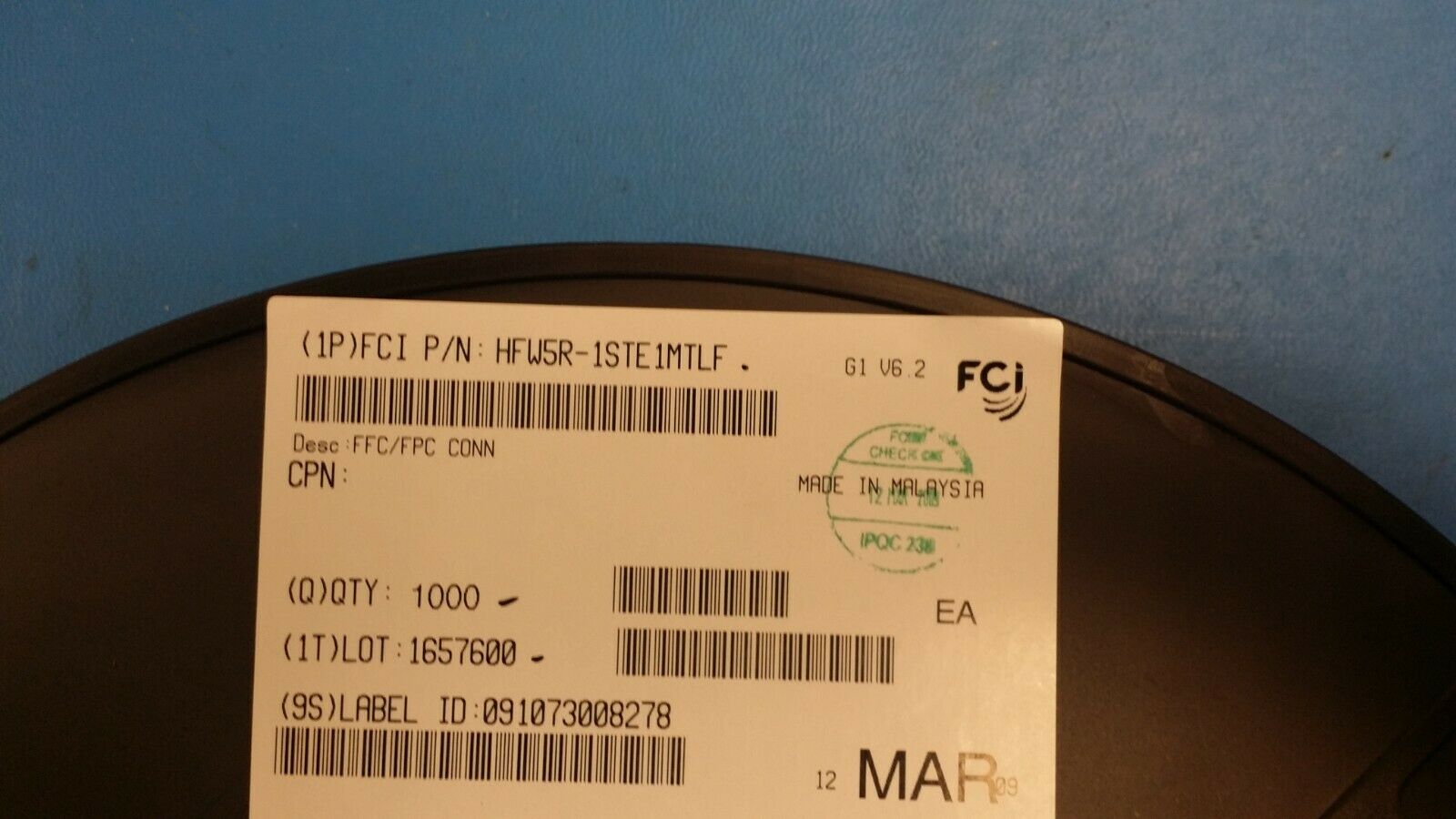

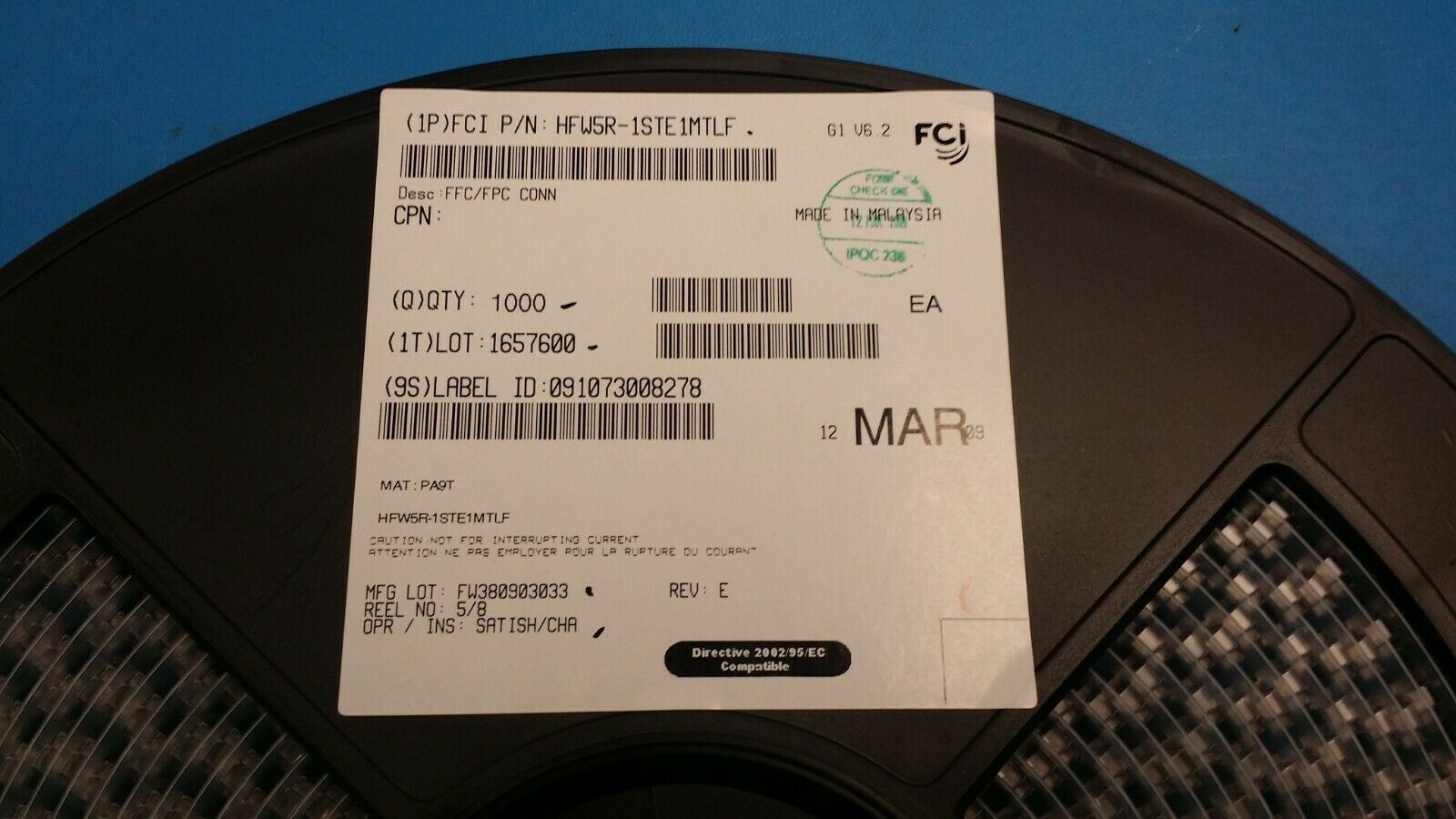

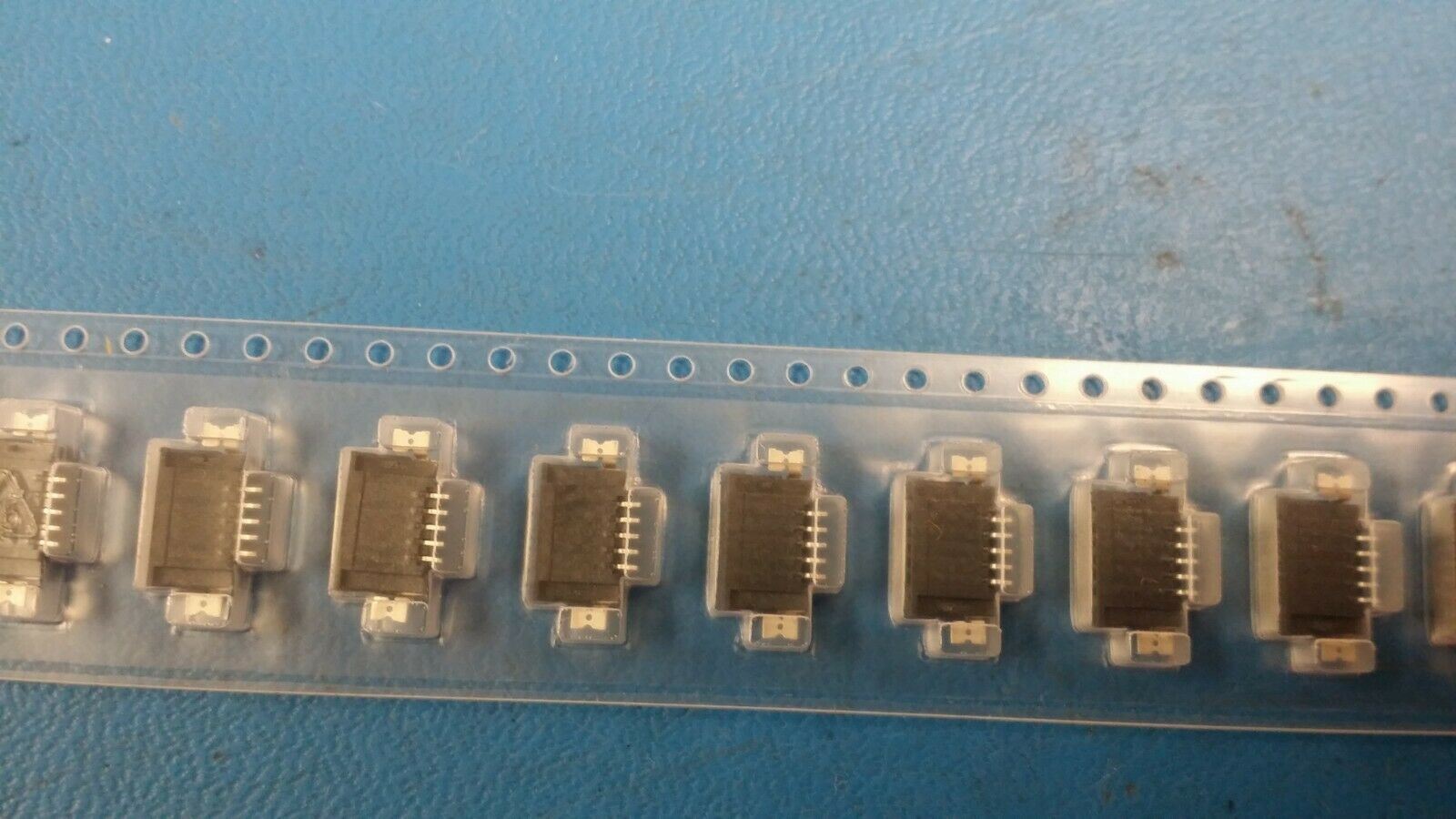

THIS LISTING IS FOR (10 PCS) OF HFW5R-1STE1MTLF BY FCI
CONN FFC BOTTOM 5POS 1.00MM R/A

Manufacturer Amphenol ICC (FCI)
Series HFW-R
Packaging Tape & Reel (TR)
Part Status Obsolete
Flat Flex Type FFC, FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 5
Pitch 0.039" (1.00mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.122" (3.10mm)
Locking Feature -
Cable End Type Straight or Tapered
Contact Material Phosphor Bronze
Contact Finish Tin
Housing Material Thermoplastic, Glass Filled
Actuator Material -
Features Solder Retention
Voltage Rating 50V
Operating Temperature -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Contact Finish Thickness -
Housing Color Black
Actuator Color -
Mating Cycles 30
