(10 PCS) HEF4011BT PHILIPS NAND Gate 4-Element 2-IN CMOS 14-Pin SOIC
Tax included.

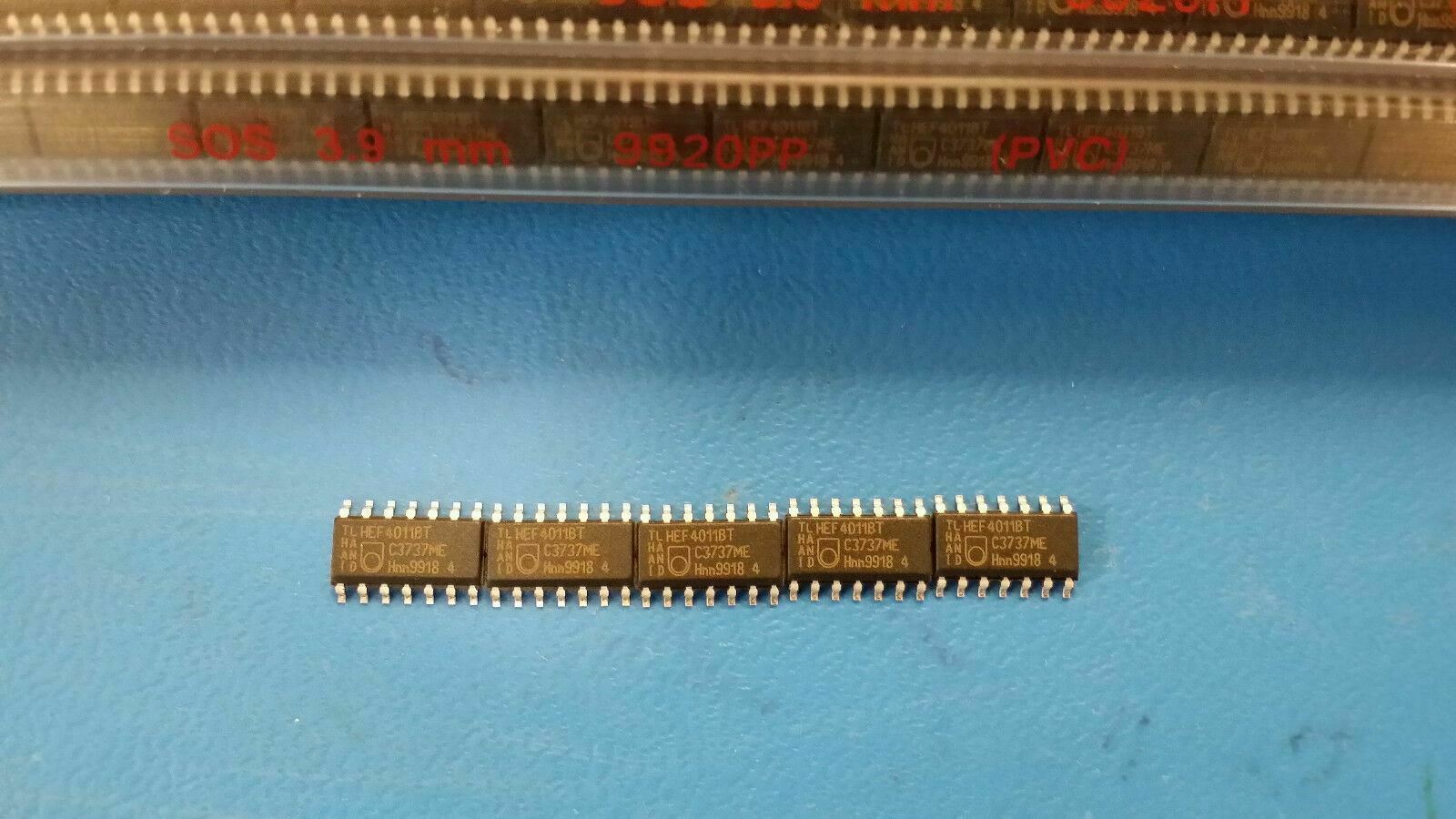

THIS LISTING IS FOR (10 PCS) OF HEF4011BT BY PHILIPS SEMICONDUCTOR
NAND Gate 4-Element 2-IN CMOS 14-Pin SOIC

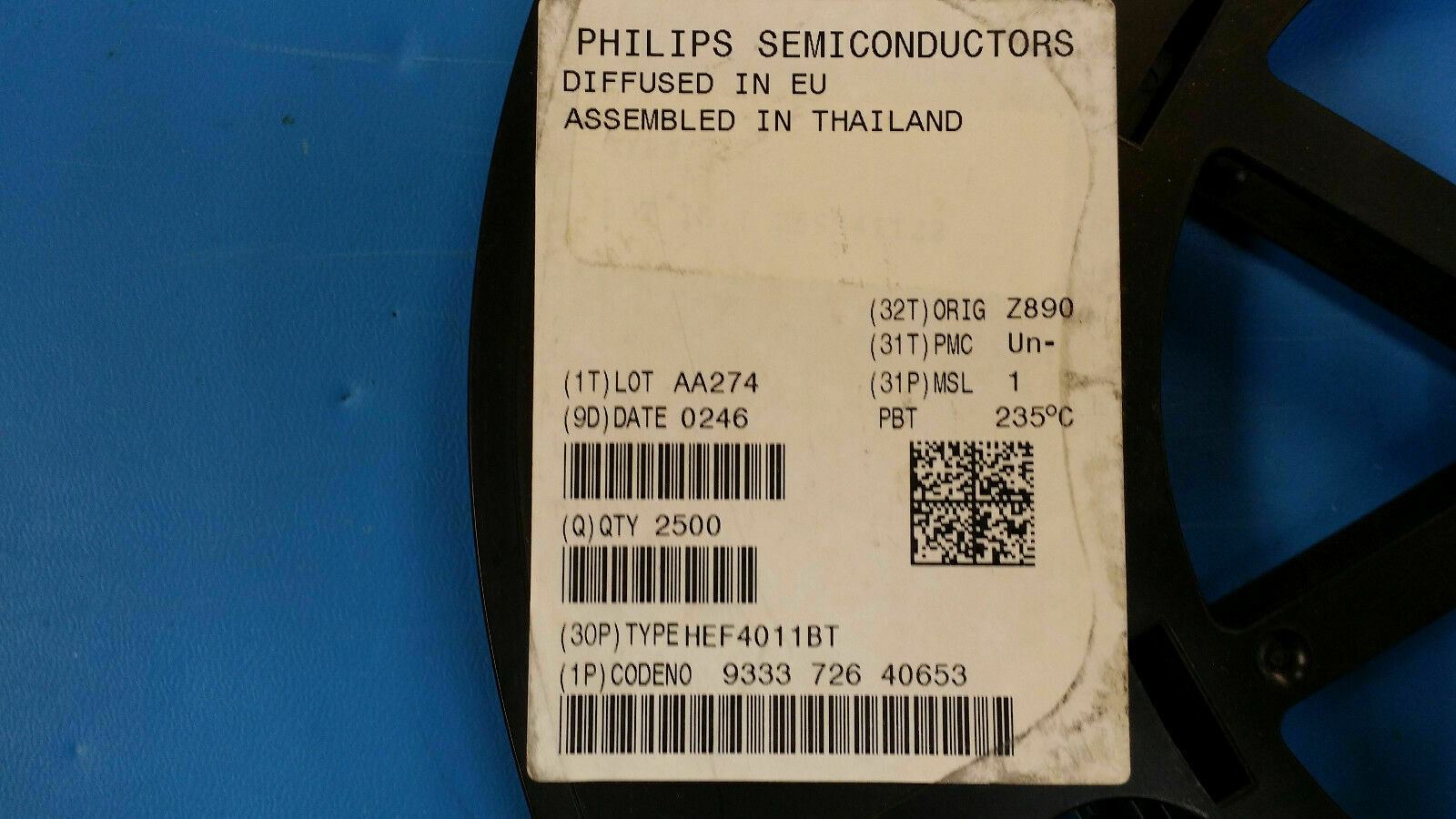

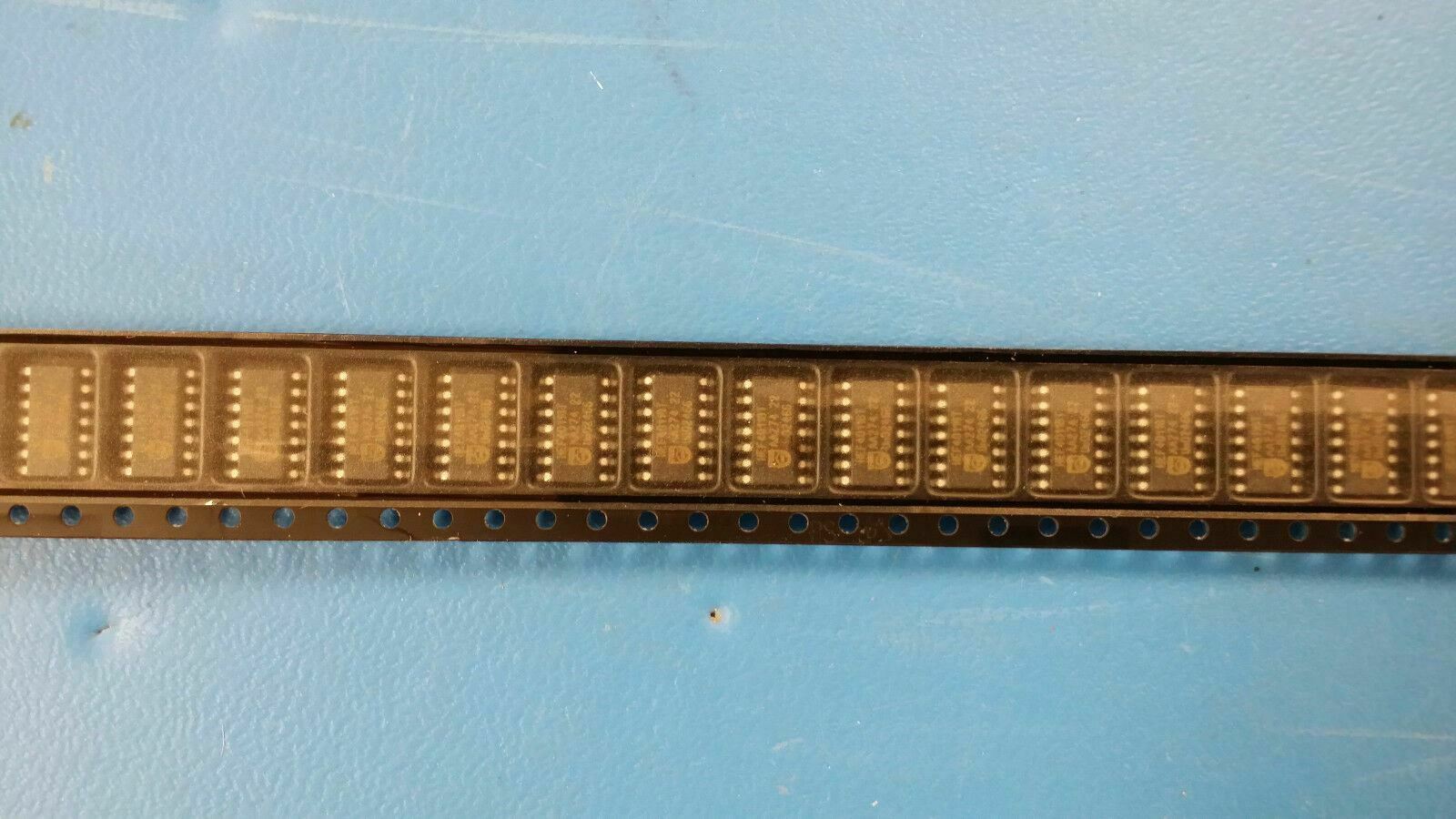

(189 ON REEL, 519 IN TUBES)
NAND Gate 4-Element 2-IN CMOS 14-Pin SOIC
(189 ON REEL, 519 IN TUBES)
| Product Category: | Logic Gates | |
| Brand: | Philips Semiconductors | |
| Product: | Single-Function Gate | |
| Logic Function: | NAND | |
| Logic Family: | HEF4000 | |
| Number of Gates: | 4 Gate | |
| Number of Input Lines: | 2 Input | |
| Number of Output Lines: | 1 Output | |
| High Level Output Current: | - 3.6 mA | |
| Low Level Output Current: | 3.6 mA | |
| Propagation Delay Time: | 20 ns | |
| Supply Voltage - Max: | 15.5 V | |
| Supply Voltage - Min: | 3 V | |
| Maximum Operating Temperature: | + 85 C | |
| Mounting Style: | SMD/SMT | |
| Package / Case: | SOT-108 | |
| Packaging: | Reel | |
| Logic Type: | 2-Input NAND |
|
| Minimum Operating Temperature: | - 40 C |
