(10 PCS) HD74AC00FPEL HIT NAND Gate 4-Func 2-Input CMOS SOIC-14
Tax included.

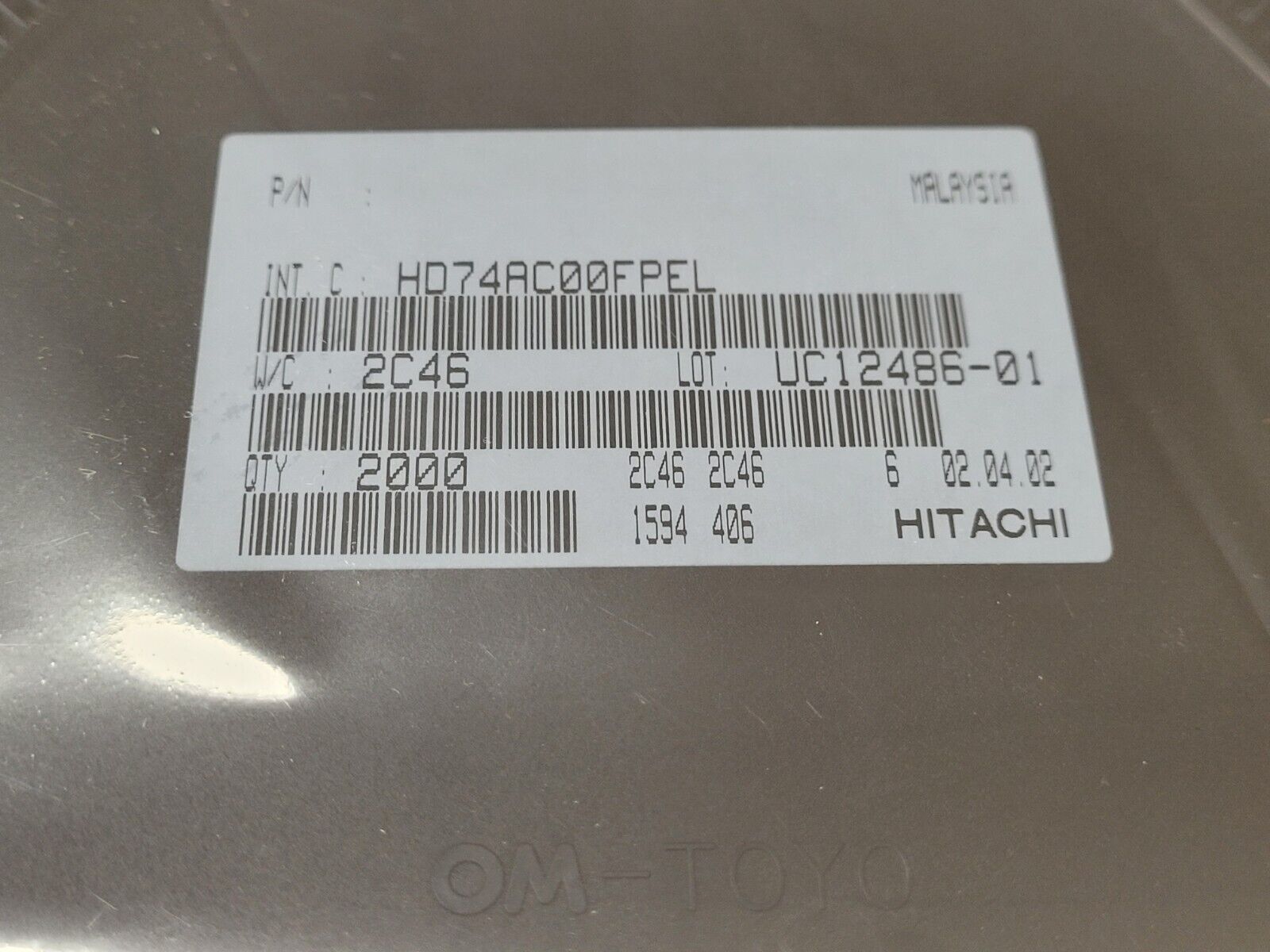

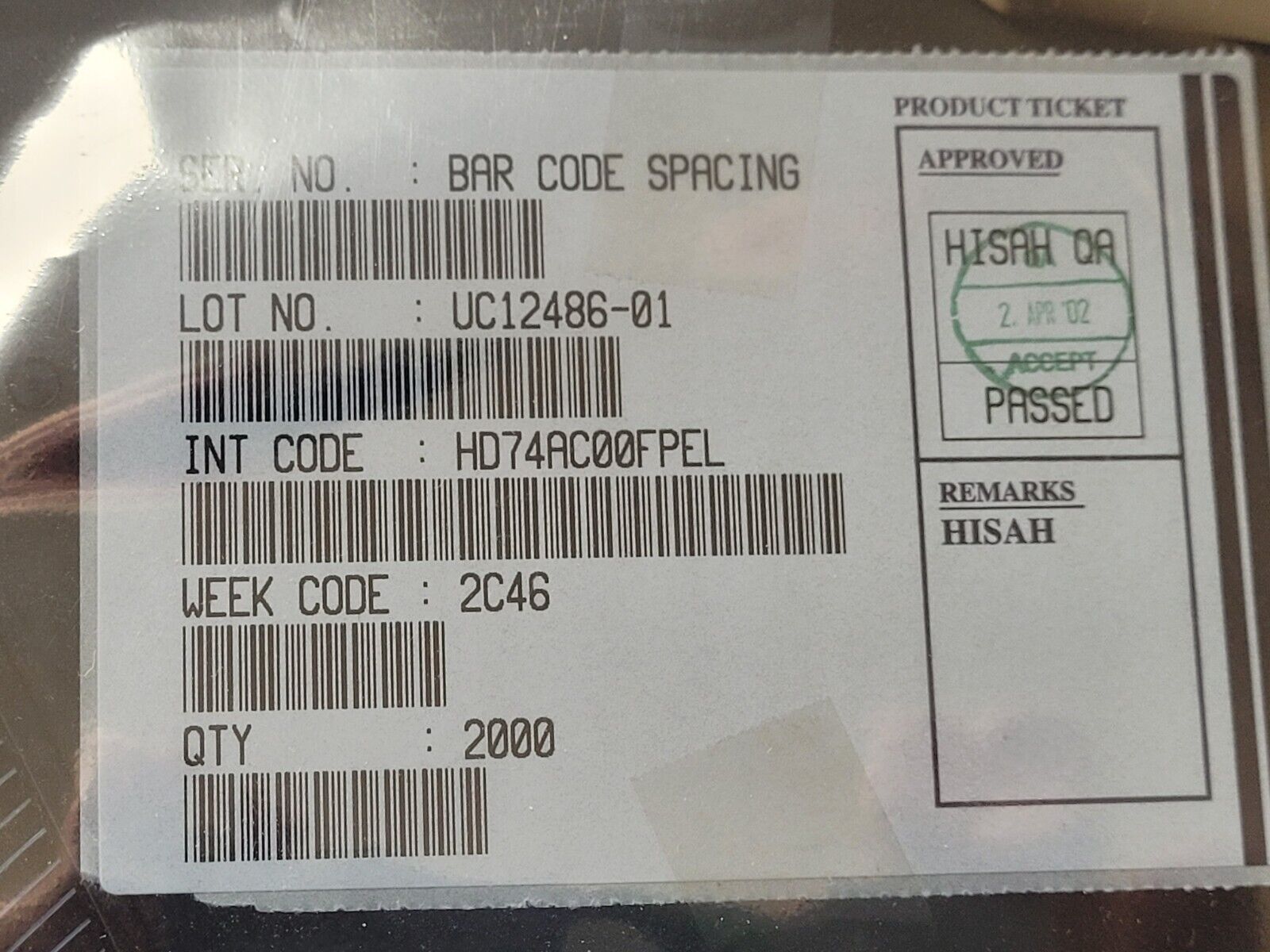

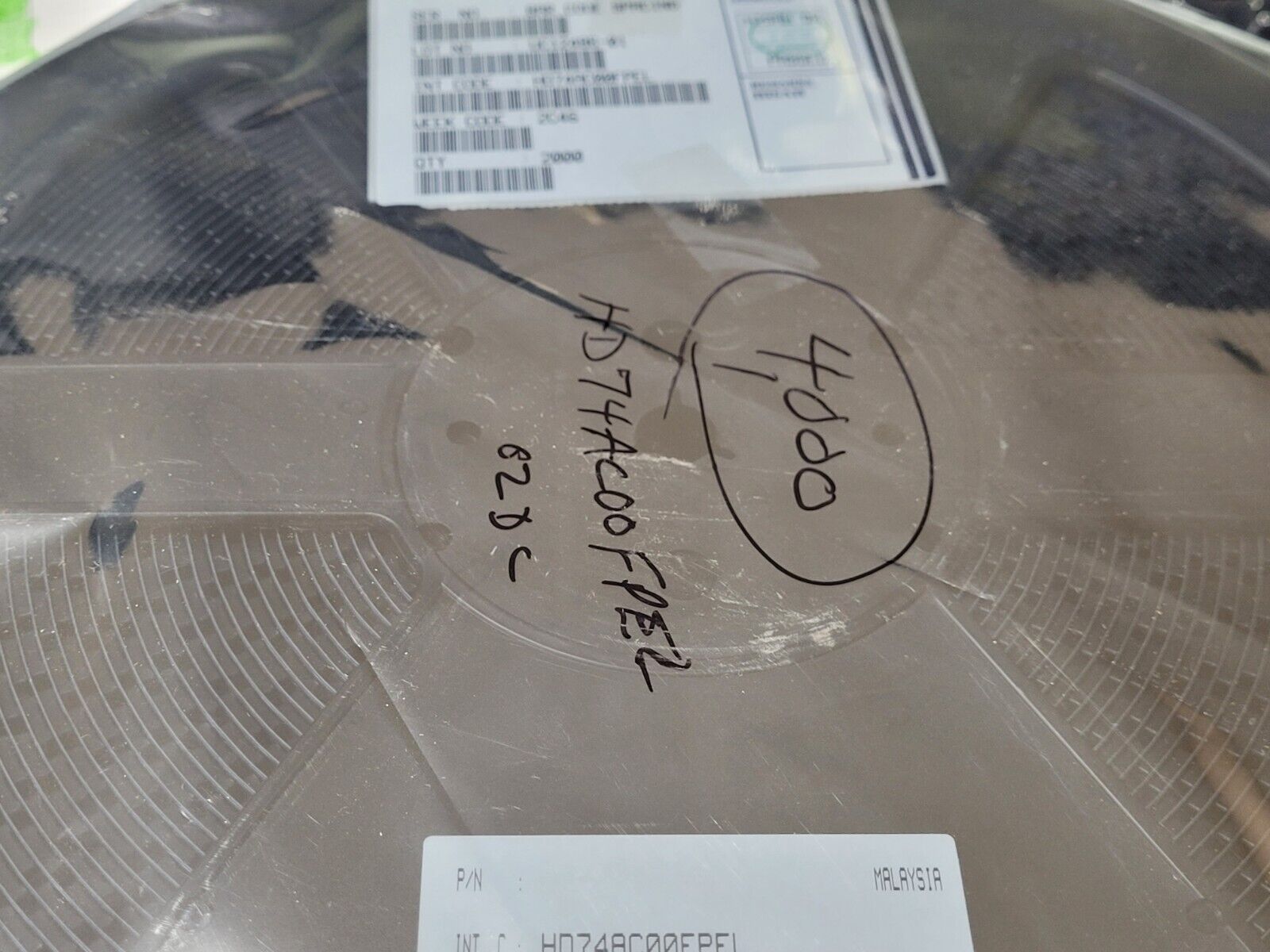

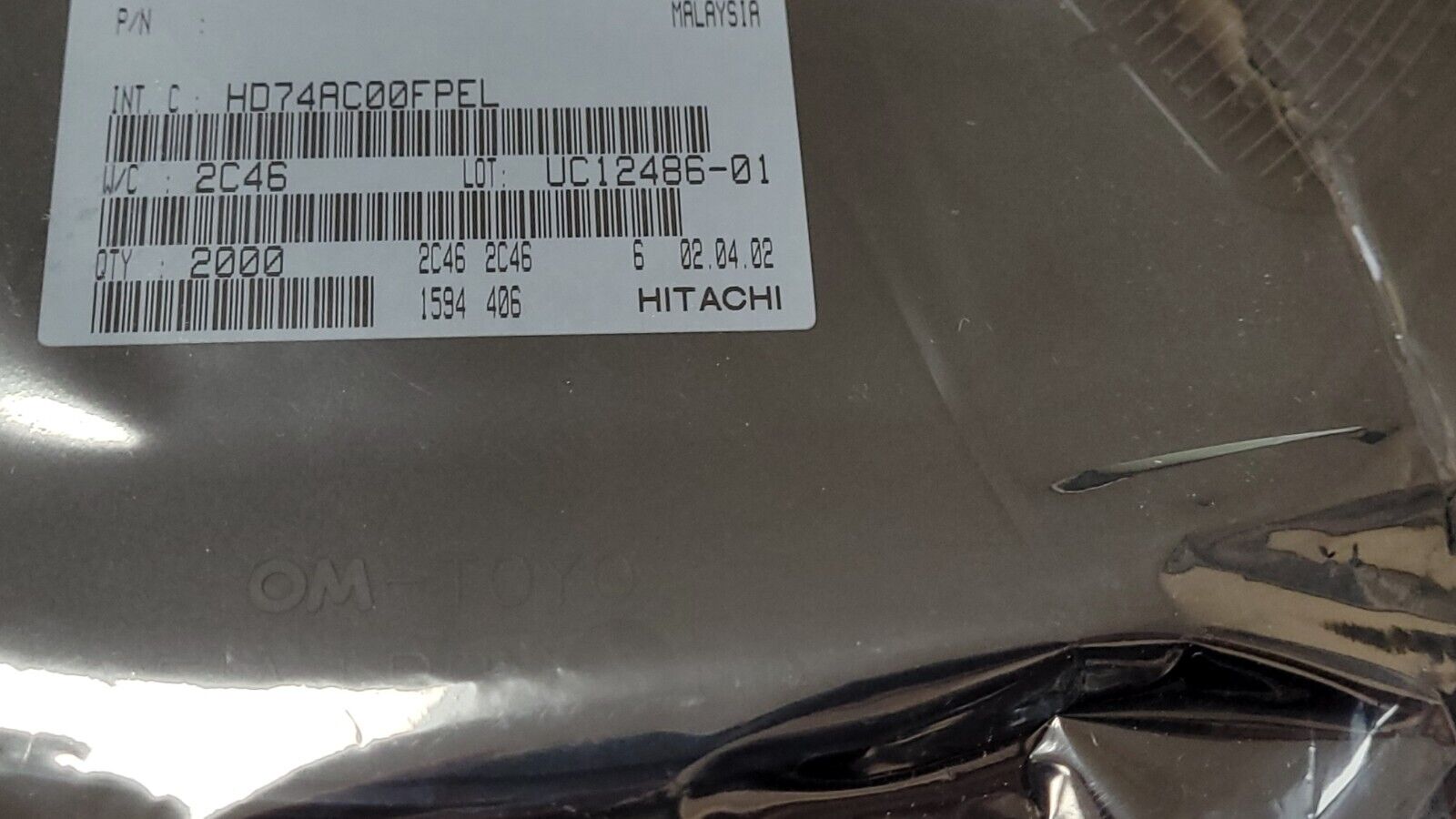

THIS IS FOR (10 PCS) OF HD74AC00FPEL BY HIT
NAND Gate 4-Func 2-Input CMOS SOIC-14
Part #: HD74AC00FP-EL
Part Category: Logic ICs
Manufacturer: Hitachi, Ltd.
Description: NAND Gate, AC Series, 4-Func, 2-Input, CMOS, PDSO14
Mfr Package Description FP-14DA
Status Transferred
Logic IC Type NAND GATE
Family AC
JESD-30 Code R-PDSO-G14
Number of Functions 4
Number of Inputs 2.0
Number of Terminals 14
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max 85.0 Cel
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Propagation Delay (tpd) 10.0 ns
Qualification Status Not Qualified
Seated Height-Max 2.2 mm
Supply Voltage-Nom (Vsup) 3.3
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Length 10.06 mm
Width 5.5 mm
