(10 PCS) FDS6930A FSC TRANSISTOR MOSFET 2N-CH 30V 5.5A 8SOIC
(10 PCS) FDS6930A FSC TRANSISTOR MOSFET 2N-CH 30V 5.5A 8SOIC
(10 PCS) FDS6930A FSC TRANSISTOR MOSFET 2N-CH 30V 5.5A 8SOIC

(10 PCS) FDS6930A FSC TRANSISTOR MOSFET 2N-CH 30V 5.5A 8SOIC

Tax included.
Only 116 left!

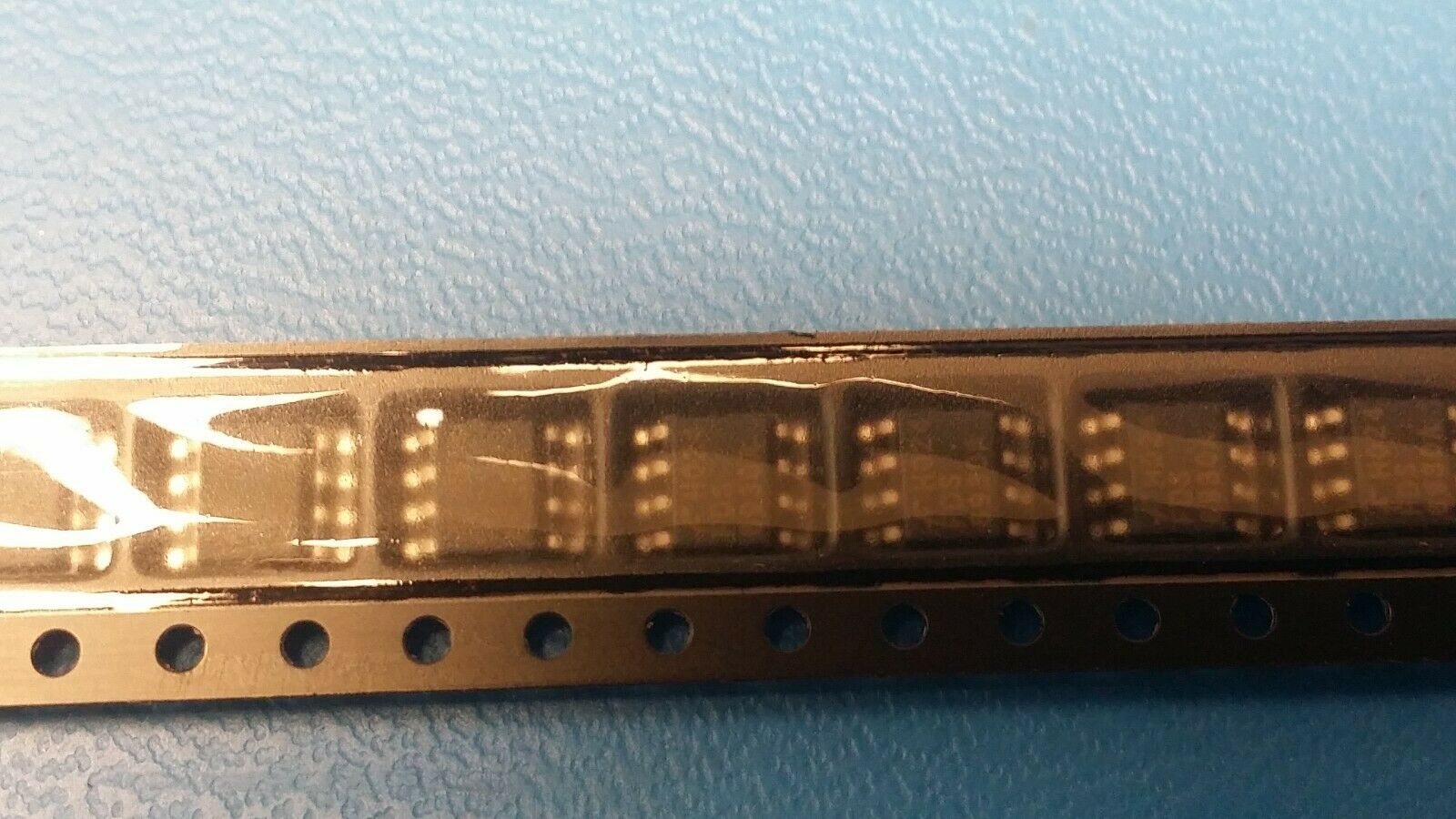

THIS LISTING IS FOR (10 PCS) OF FDS6930A BY FSC
TRANSISTOR MOSFET 2N-CH 30V 5.5A 8SOIC

Manufacturer Fairchild Semiconductor
Series PowerTrench®
Packaging Cut Tape (CT)
Part Status Last Time Buy
FET Type 2 N-Channel (Dual)
FET Feature Logic Level Gate
Drain to Source Voltage (Vdss) 30V
Current - Continuous Drain (Id) @ 25°C 5.5A
Rds On (Max) @ Id, Vgs 40mOhm @ 5.5A, 10V
Vgs(th) (Max) @ Id 3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 7nC @ 5V
Input Capacitance (Ciss) (Max) @ Vds 460pF @ 15V
Power - Max 900mW
Operating Temperature -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package 8-SOIC
