(10 PCS) FDMS8023S FSC Trans MOSFET N-CH 30V 26A 8-Pin Power 56 ROHS
Tax included.

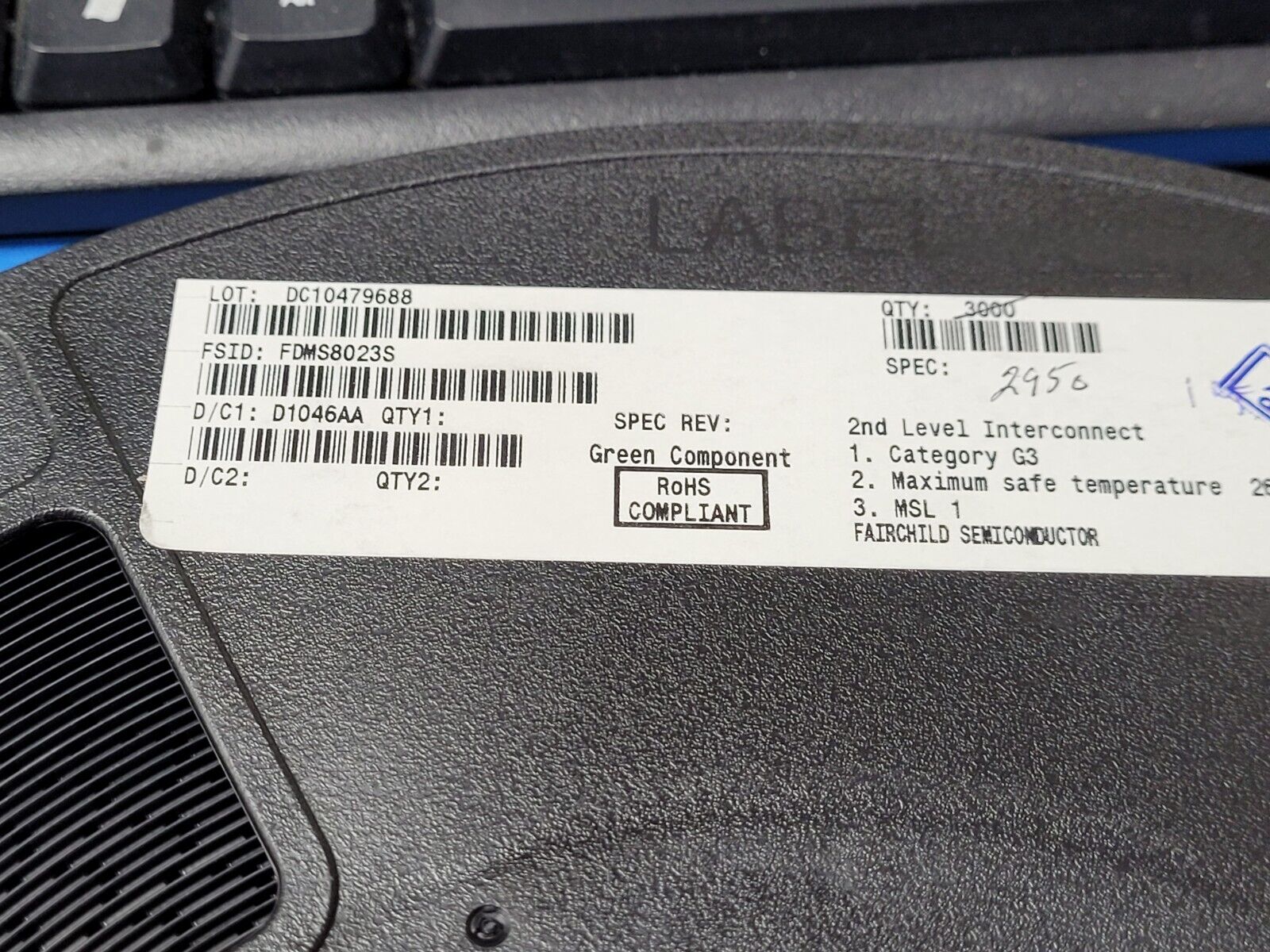

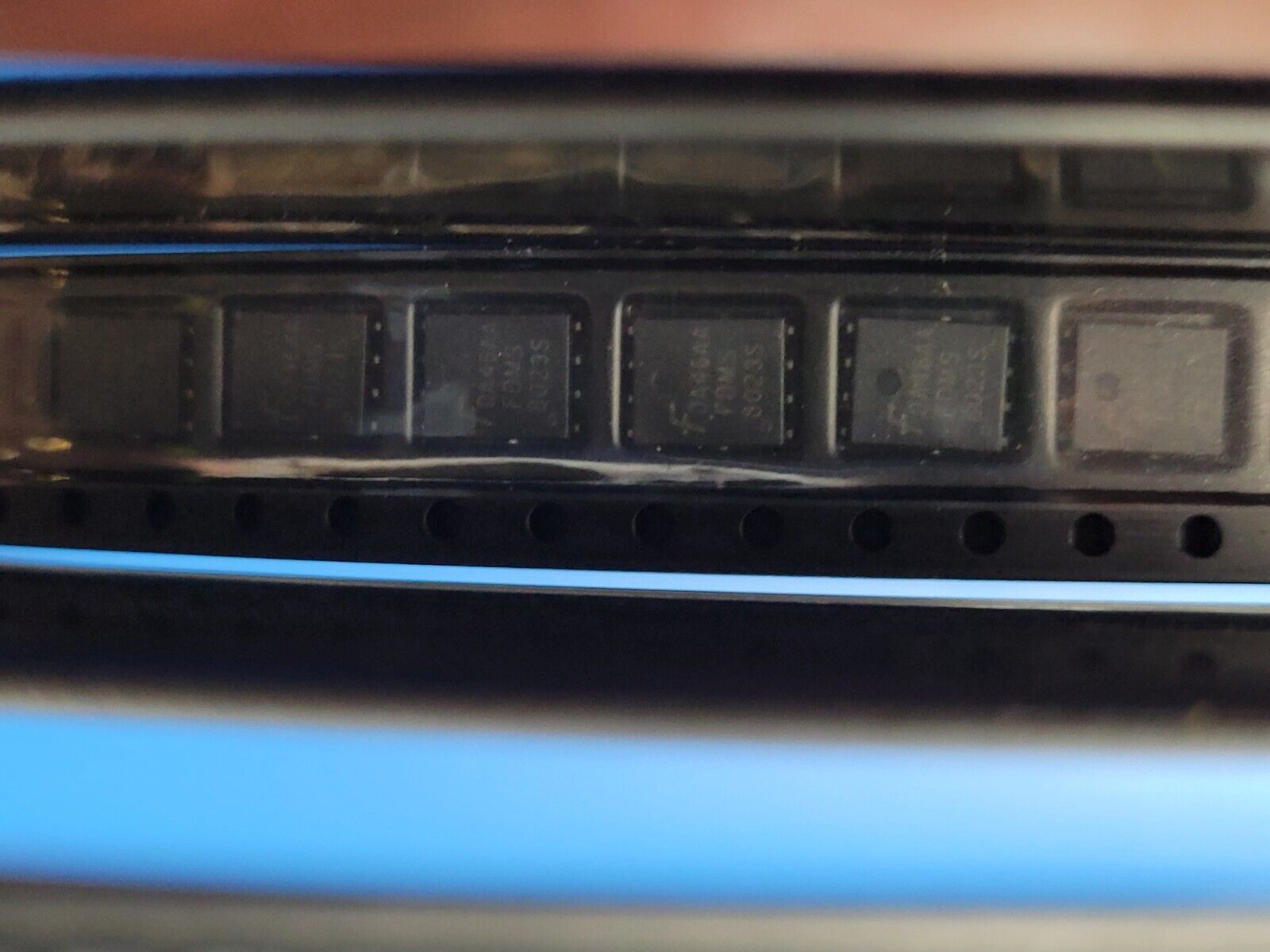

THIS IS FOR (10 PCS) OF FDMS8023S BY FSC
Trans MOSFET N-CH 30V 26A 8-Pin Power 56 ROHS
Product Attribute Attribute Value Select Attribute
Manufacturer: onsemi / Fairchild
Product Category: MOSFET
RoHS: YES
REACH - SVHC:
Technology: Si
Mounting Style: SMD/SMT
Package / Case: Power-56-8
Transistor Polarity: N-Channel
Number of Channels: 1 Channel
Vds - Drain-Source Breakdown Voltage: 30 V
Id - Continuous Drain Current: 49 A
Rds On - Drain-Source Resistance: 2.4 mOhms
Vgs - Gate-Source Voltage: - 20 V, + 20 V
Vgs th - Gate-Source Threshold Voltage: 1.7 V
Qg - Gate Charge: 20 nC
Minimum Operating Temperature: - 55 C
Maximum Operating Temperature: + 150 C
Pd - Power Dissipation: 59 W
Channel Mode: Enhancement
Tradename: PowerTrench SyncFET
Series: FDMS8023S
Packaging: Reel
Packaging: Cut Tape
Brand: onsemi / Fairchild
Configuration: Single
Forward Transconductance - Min: 168 S
Height: 1.1 mm
Length: 6 mm
Product Type: MOSFET
3000
Subcategory: MOSFETs
Transistor Type: 1 N-Channel
Width: 5 mm
Unit Weight: 0.002402 oz
