(10 PCS) EVQ-PHP03T PANASONIC SWITCH TACTILE SPST-NO 0.02A 15V
Tax included.

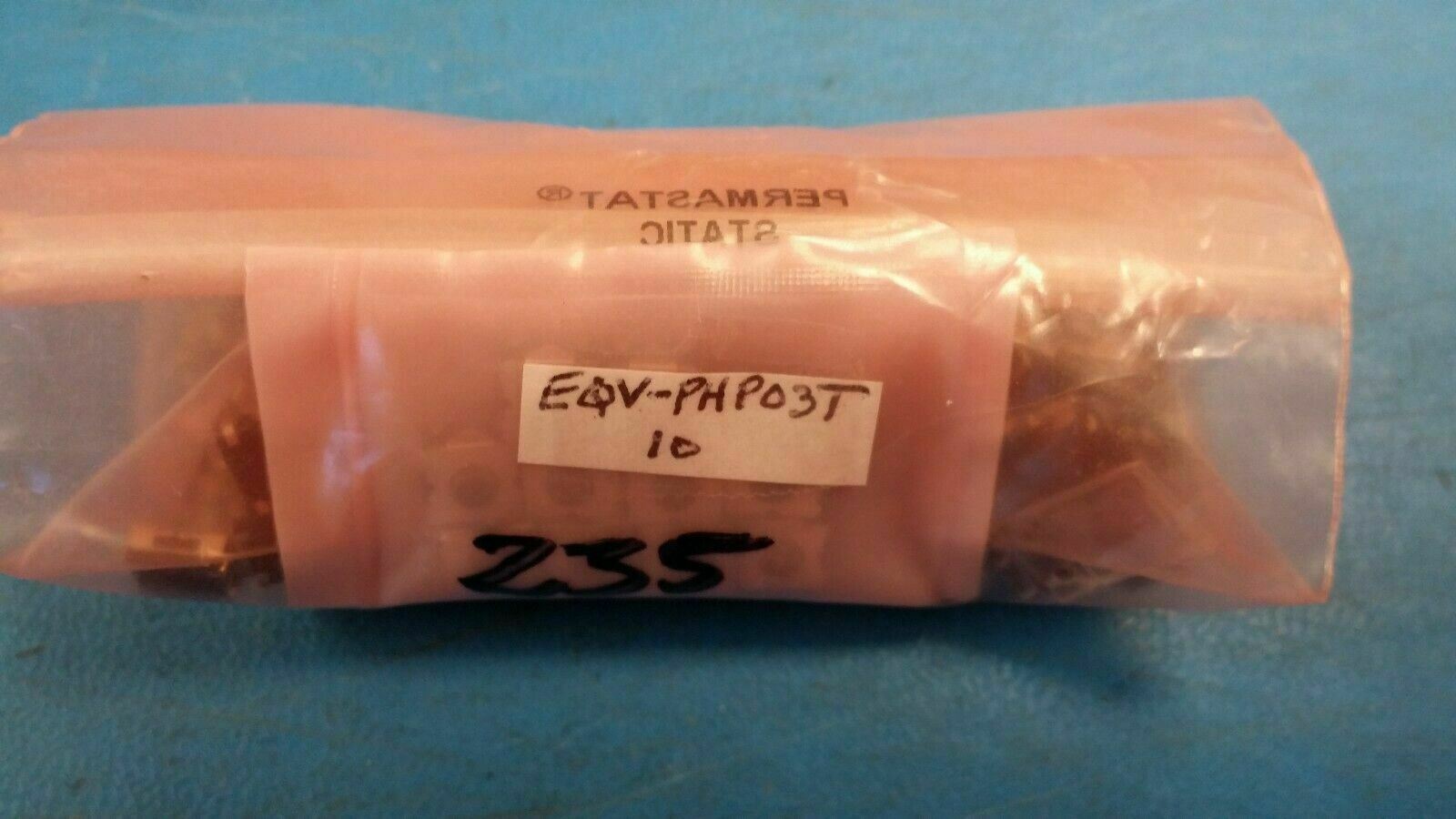

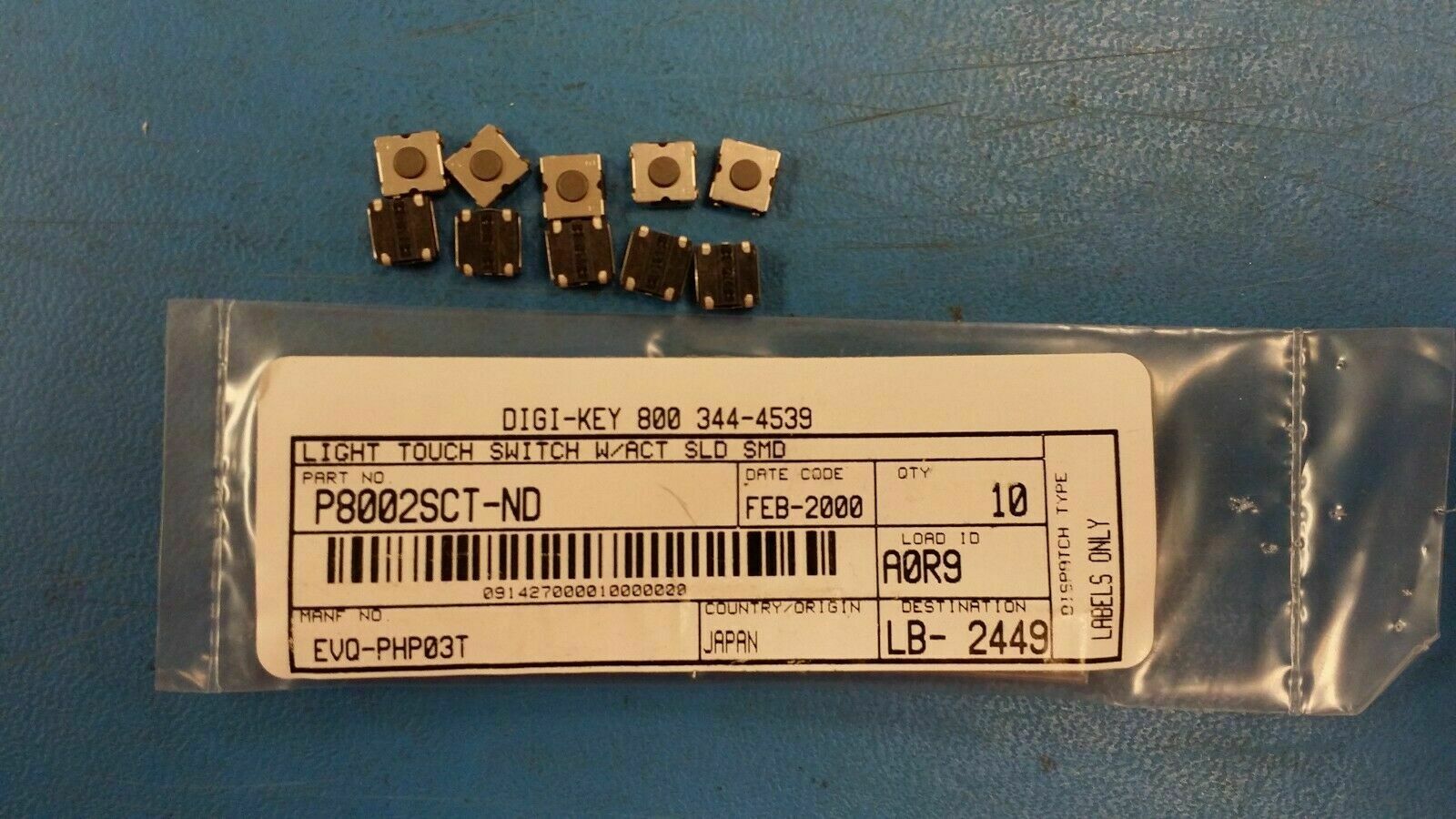

THIS LISTING IS FOR (10 PCS) OF EVQ-PHP03T BY PANASONIC
SWITCH TACTILE SPST-NO 0.02A 15V
| Series | EVQPH | |
|---|---|---|
| Packaging | Cut Tape (CT) | |
| Part Status | Obsolete | |
| Circuit | SPST-NO | |
| Switch Function | Off-Mom | |
| Contact Rating @ Voltage | 0.02A @ 15VDC | |
| Actuator Type | Standard | |
| Mounting Type | Surface Mount | |
| Actuator Height off PCB, Vertical | 3.10mm | |
| Actuator Length, Right Angle | - | |
| Actuator Orientation | Top Actuated | |
| Termination Style | J Lead | |
| Outline | 6.50mm x 6.40mm | |
| Illumination Type, Color | - | |
| Illumination Voltage (Nominal) | - | |
| Operating Force | 130gf | |
| Ingress Protection | - | |
| Features | - | |
| Operating Temperature | -20°C ~ 70°C | |
| Actuator Material | - | |
| Switch Travel | 0.25mm | |
| Mechanical Life | 100,000 Cycles |
