(10 PCS) EPA810-7 PCA, Active Delay Line 1-Func 1-Tap True Output TTL SMD 4 PIN
(10 PCS) EPA810-7 PCA, Active Delay Line 1-Func 1-Tap True Output TTL SMD 4 PIN
(10 PCS) EPA810-7 PCA, Active Delay Line 1-Func 1-Tap True Output TTL SMD 4 PIN

(10 PCS) EPA810-7 PCA, Active Delay Line 1-Func 1-Tap True Output TTL SMD 4 PIN

Tax included.
Only 100 left!

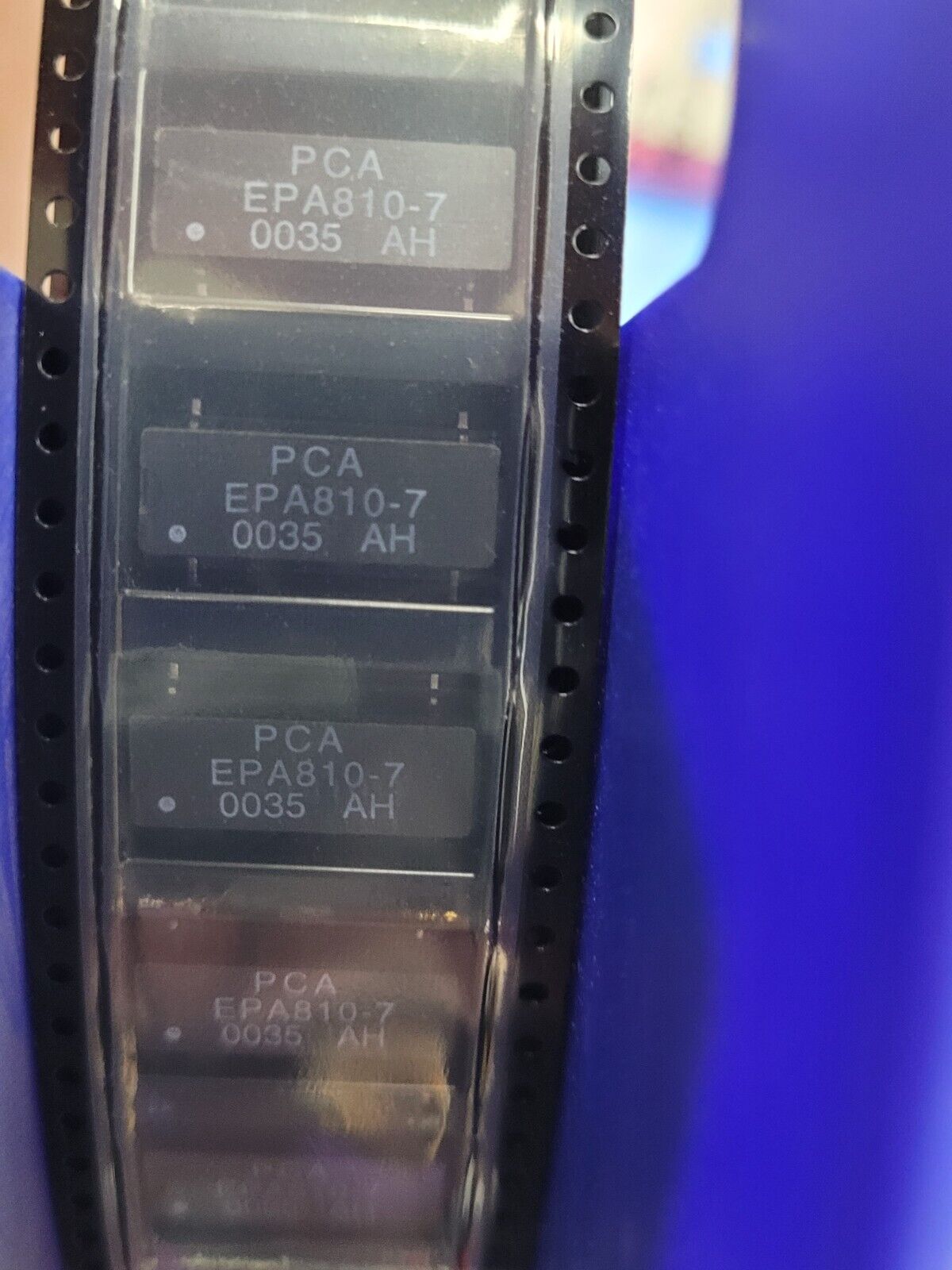

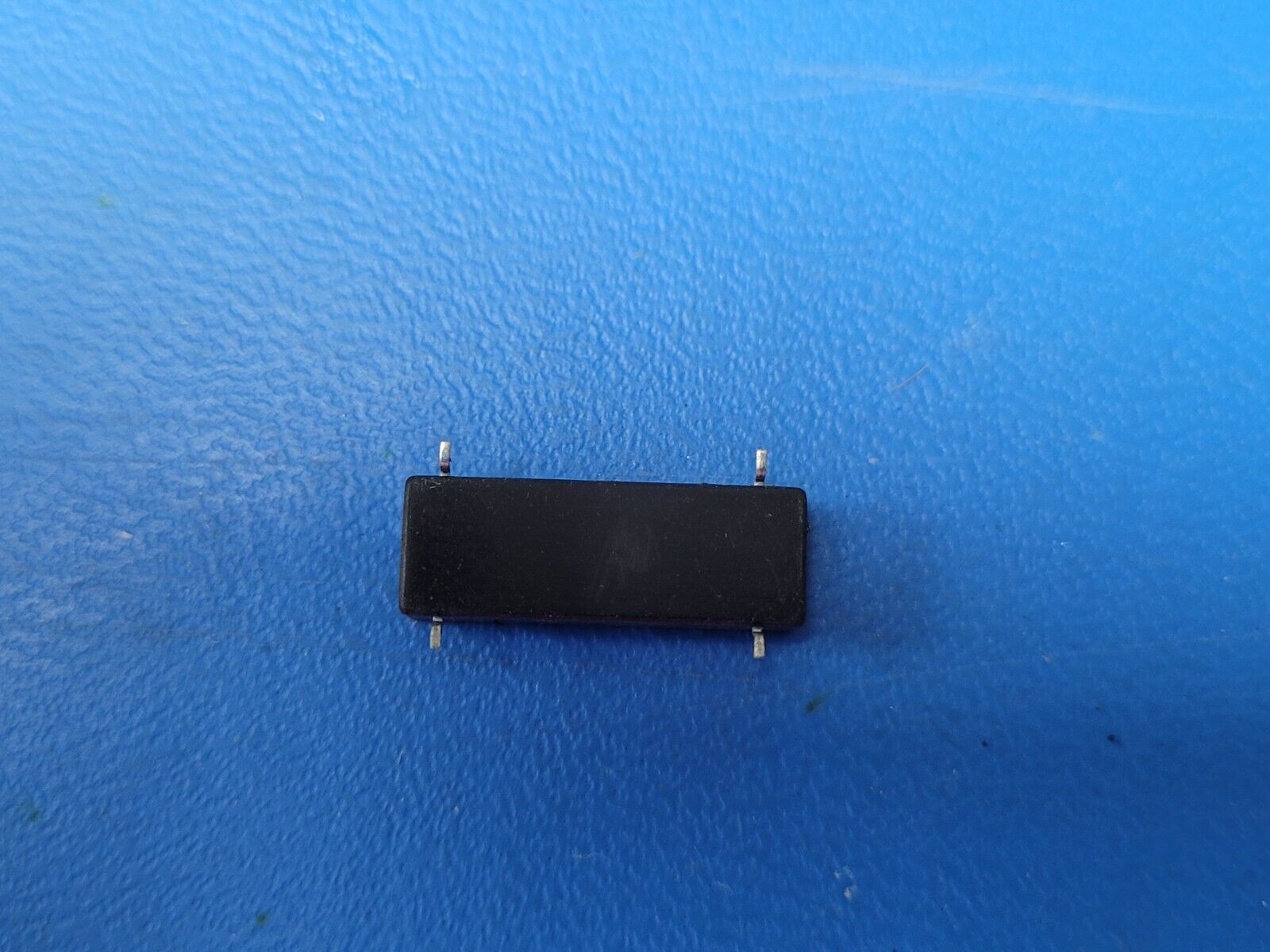

THIS IS FOR (10 PCS) OF EPA810-7 BY PCA ELECTRONICS
Active Delay Line, 1-Func, 1-Tap, True Output, TTL SMD 4 PIN

Part #: EPA810-7
Part Category: Logic ICs
Manufacturer: PCA Electronics
Description: Active Delay Line, 1-Func, 1-Tap, True Output, TTL

Mfr Package Description SMD-14/4
REACH Compliant Yes
Status Active
Logic IC Type ACTIVE DELAY LINE
Sub Category Delay Lines
Family 810
Input Frequency-Max (fmax) 142.857  MHz
JESD-30 Code R-XDSO-G4
JESD-609 Code e0
Moisture Sensitivity Level 3
Number of Functions 1
Number of Taps/Steps 1.0
Number of Terminals 4
Operating Temperature-Min 0.0  Cel
Operating Temperature-Max 70.0  Cel
Output Polarity TRUE
Package Body Material UNSPECIFIED
Package Code SOP
Package Equivalence Code GWDIP14,.4
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 225
Power Supply Current-Max (ICC) 75.0  mA
Programmable Delay Line NO
Prop. Delay@Nom-Sup 7.0  ns
Qualification Status Not Qualified
Seated Height-Max 5.08  mm
Supply Voltage-Nom (Vsup) 5
Supply Voltage-Min (Vsup) 4.75  V
Supply Voltage-Max (Vsup) 5.25  V
Surface Mount YES
Technology TTL
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form GULL WING
Terminal Pitch 2.54  mm
Terminal Position DUAL
Total Delay-Nom (td) 7.0  ns
Length 19.81  mm
Width 7.11  mm
Additional Feature MAX RISE TIME CAPTURED
