(10 PCS) EEE-FK0J152P 1500µF 6.3V 20% Aluminum Electrolytic Capacitor SMD 105°C
Tax included.

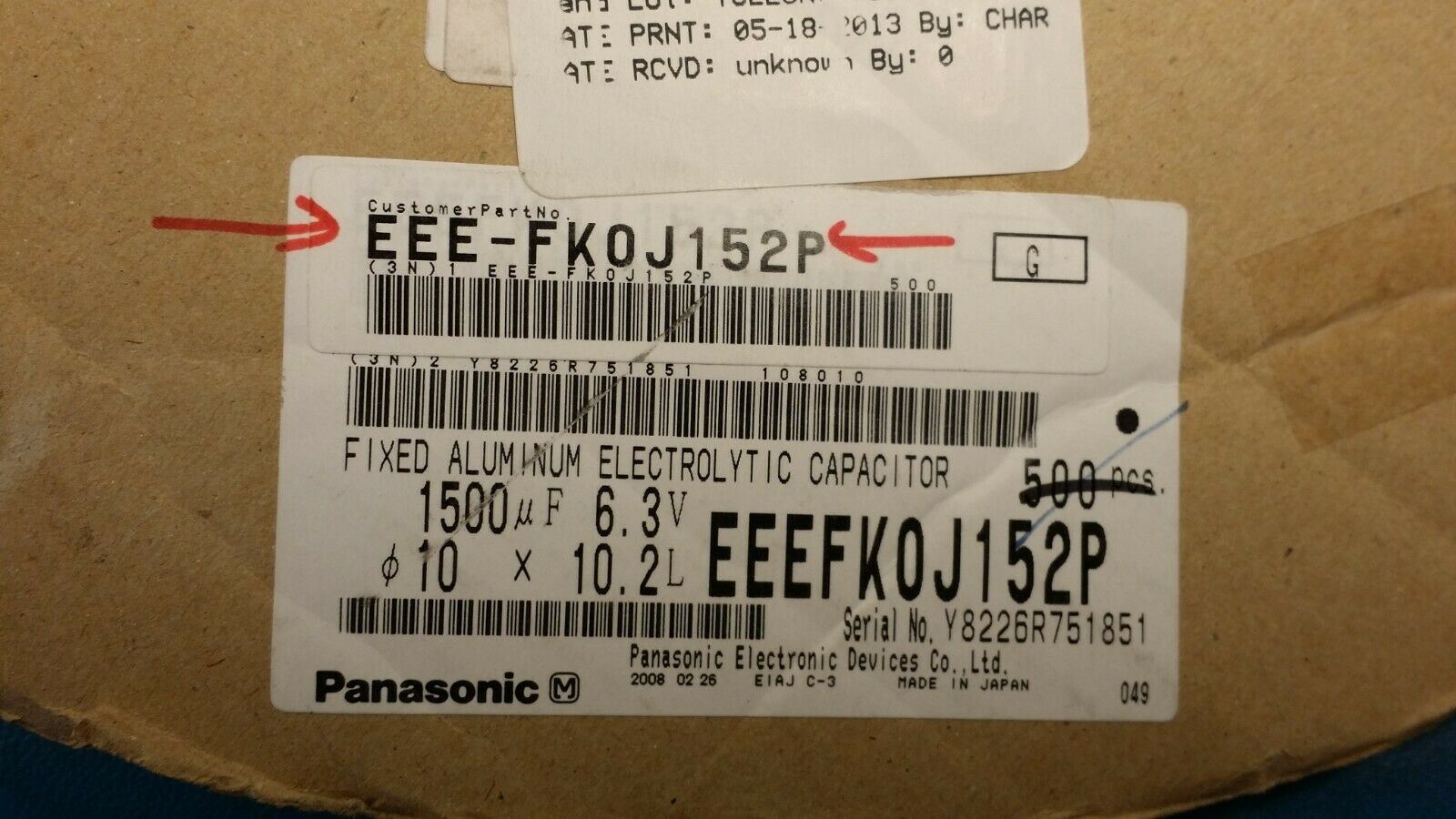

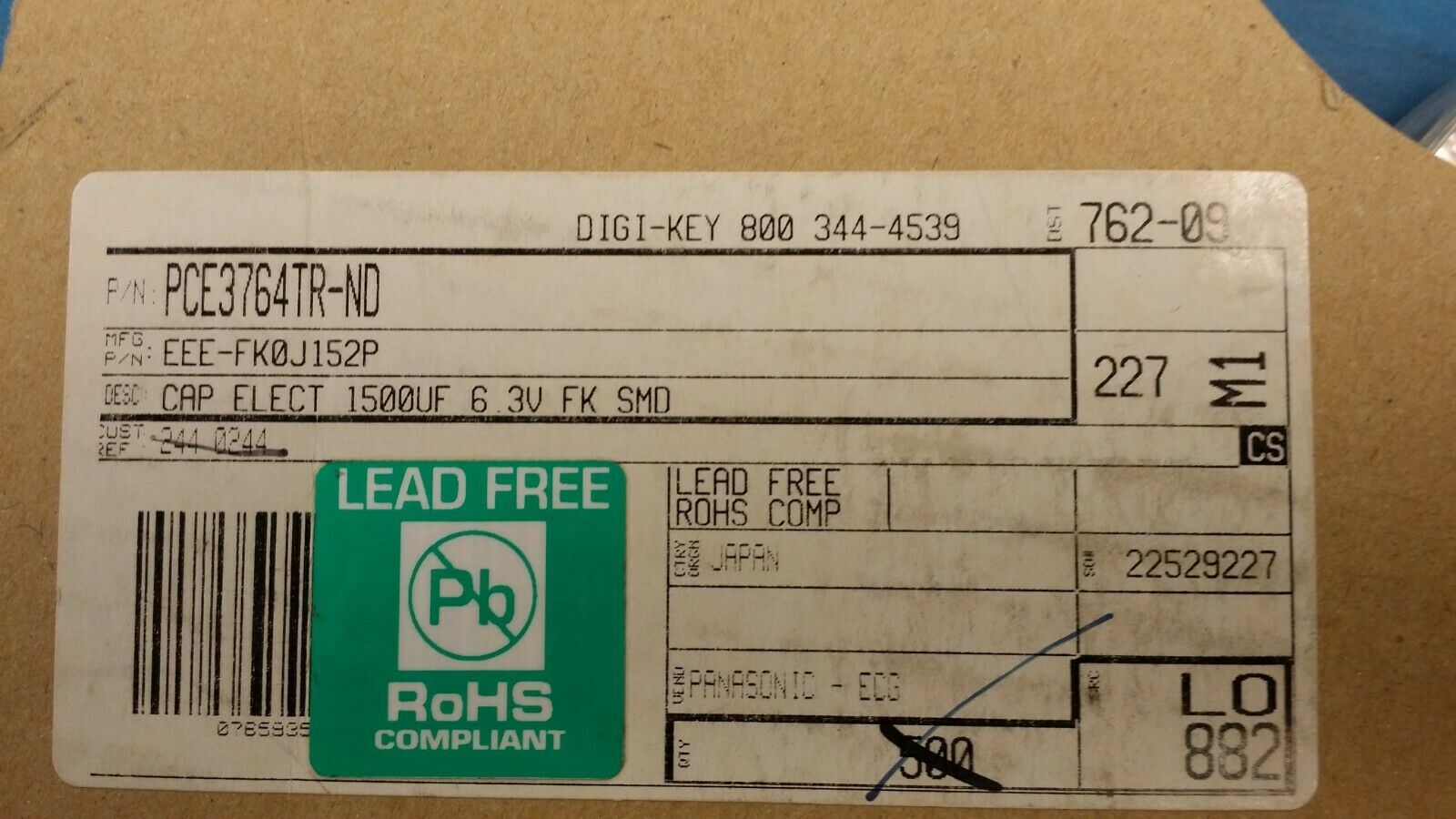

THIS LISTING IS FOR (10 PCS) OF EEE-FK0J152P BY PANASONIC
1500µF 6.3V 20% Aluminum Electrolytic Capacitor SMD 105°C ROHS
Manufacturer Panasonic Electronic Components
Series FK
Packaging Digi-Reel®
Part Status Active
Capacitance 1500µF
Tolerance ±20%
Voltage - Rated 6.3V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 2000 Hrs @ 105°C
Operating Temperature -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 637.5mA @ 120Hz
Ripple Current @ High Frequency 850mA @ 100kHz
Impedance 80 mOhms
Lead Spacing -
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.413" (10.50mm)
Surface Mount Land Size 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
