(10 PCS) EC103D TECCOR SCR 400V 800MA TO92
Tax included.

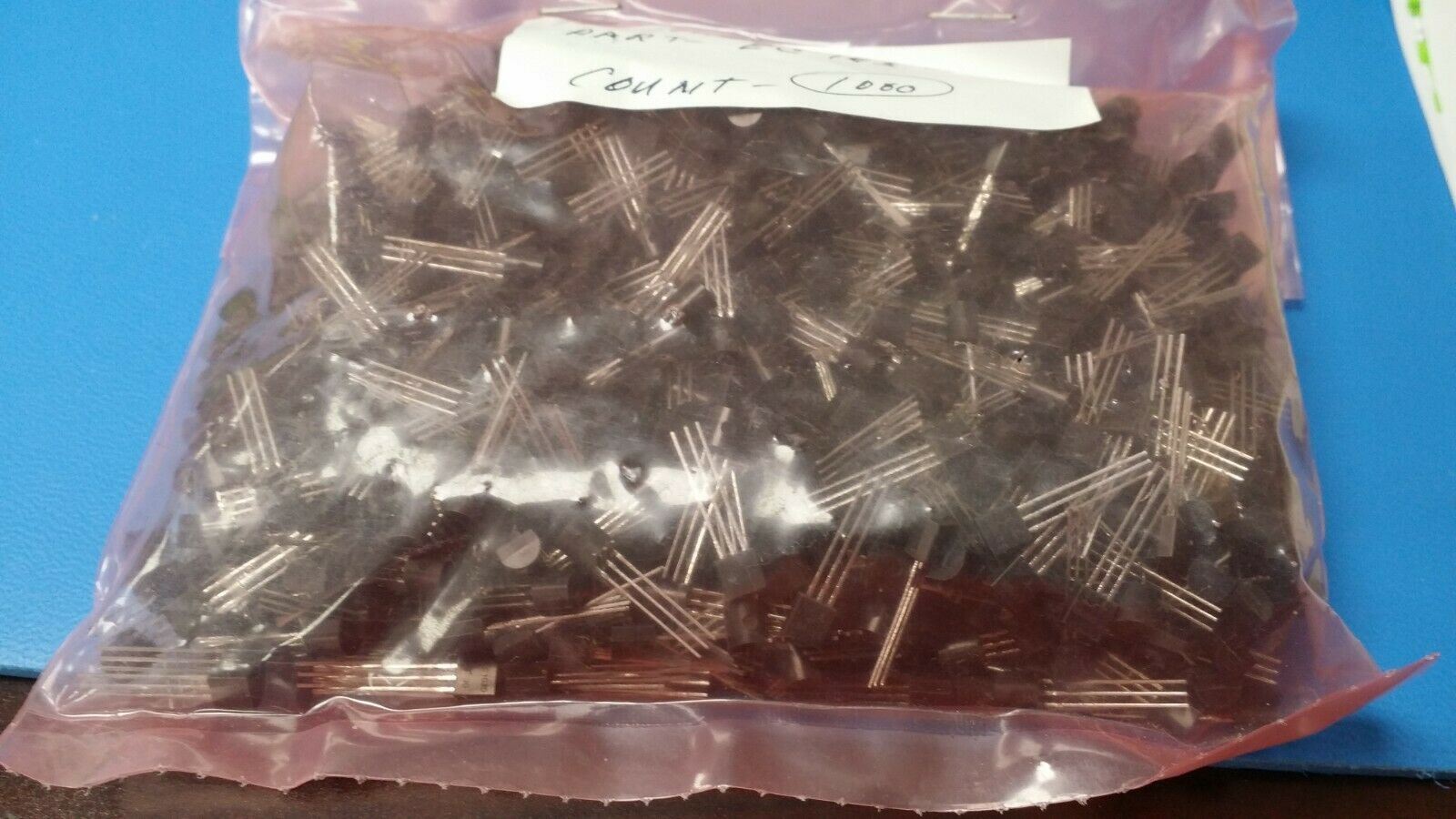

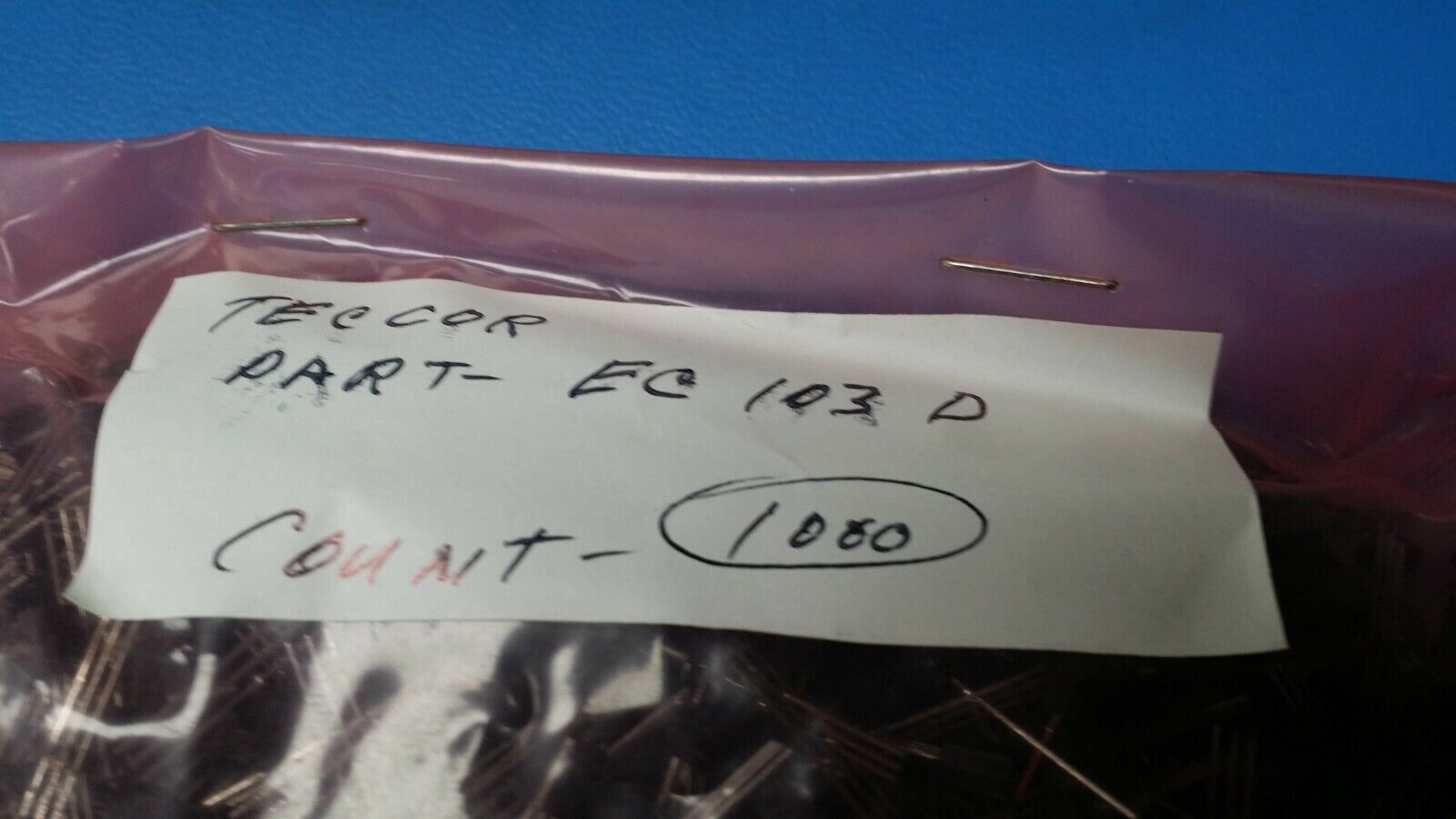

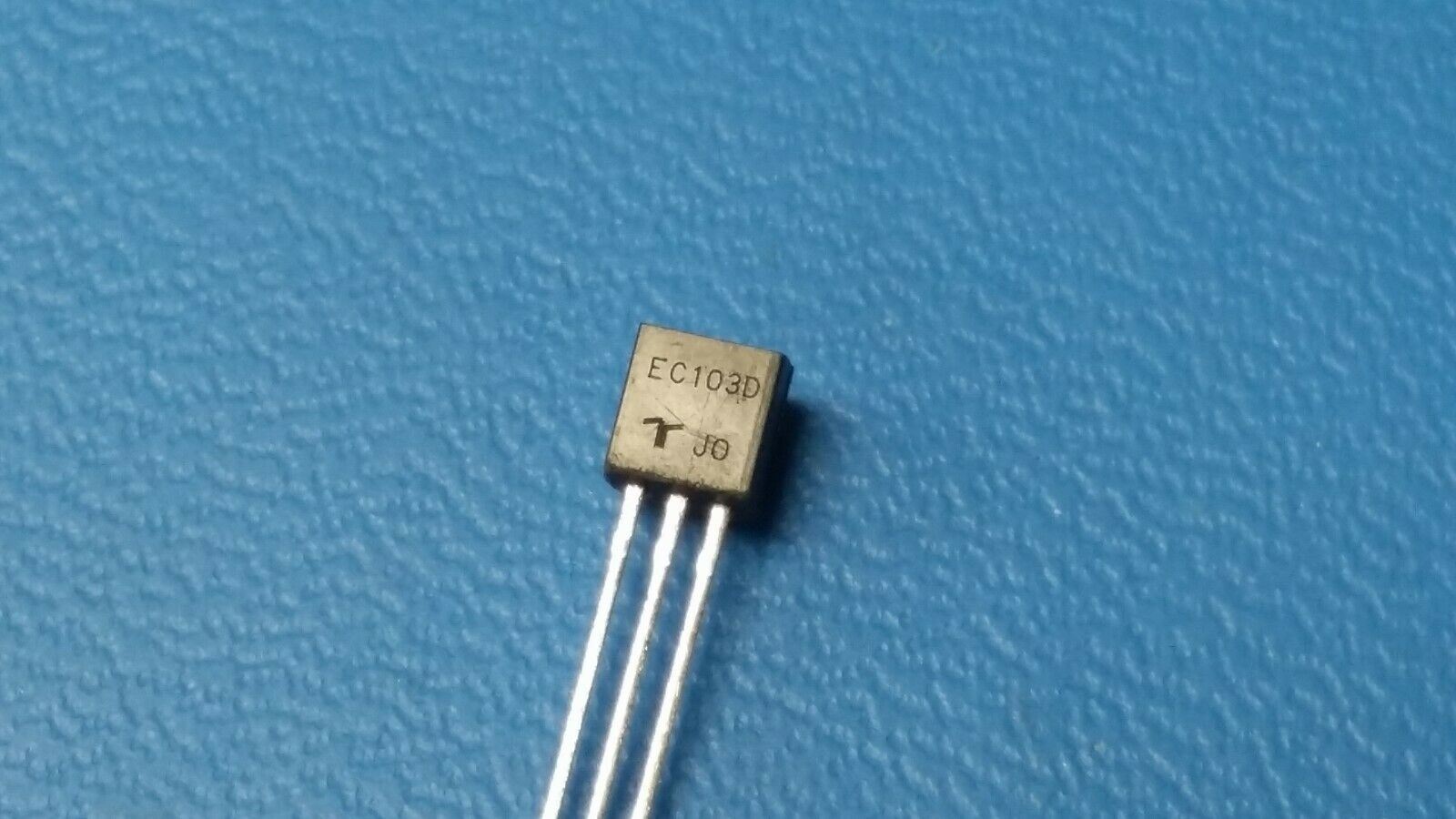

THIS IS FOR (10 PCS) OF EC103D BY TECCOR
SCR 400 V 800 mA Sensitive Gate Through Hole TO-92
Manufacturer: Littelfuse (TECCOR)
Product Category: SCRs
RoHS: NO
Series: EC103xx
Breakover Current IBO Max: 20 A
Rated Repetitive Off-State Voltage VDRM: 400 V
Off-State Leakage Current @ VDRM IDRM: 1 uA
On-State RMS Current - It RMS: 800 mA
Vf - Forward Voltage: 1.7 V
Maximum Gate Peak Inverse Voltage: 1.2 V
Gate Trigger Voltage - Vgt: 800 mV
Gate Trigger Current - Igt: 200 uA
Minimum Operating Temperature: - 65 C
Maximum Operating Temperature: + 110 C
Mounting Style: Through Hole
Package / Case: TO-92
Packaging: Bulk
Brand: Littelfuse
Current Rating: 800 mA
Height: 4.98 mm
Holding Current Ih Max: 5 mA
Length: 4.73 mm
Non Repetitive On-State Current: 20 A
Product Type: SCRs
2000
Subcategory: Thyristors
Type: SCRs
Width: 3.68 mm
Unit Weight: 0.016000 oz
