(10 PCS) DS3886AVF Line Transceiver, 9 Func, 9 Driver, 9 Rcvr, BICMOS, PQFP44

$119.95
Unit price per

Tax included.

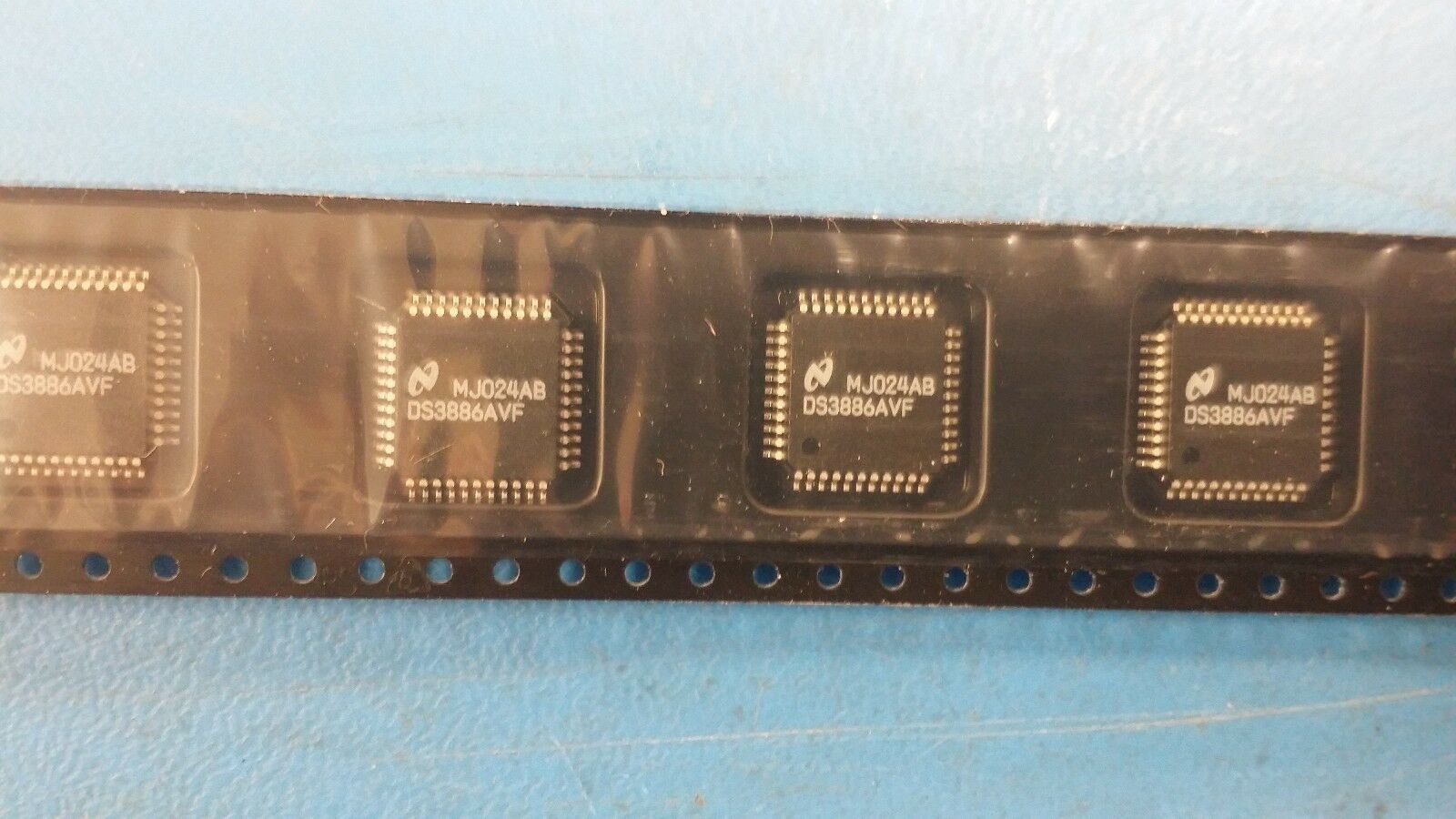

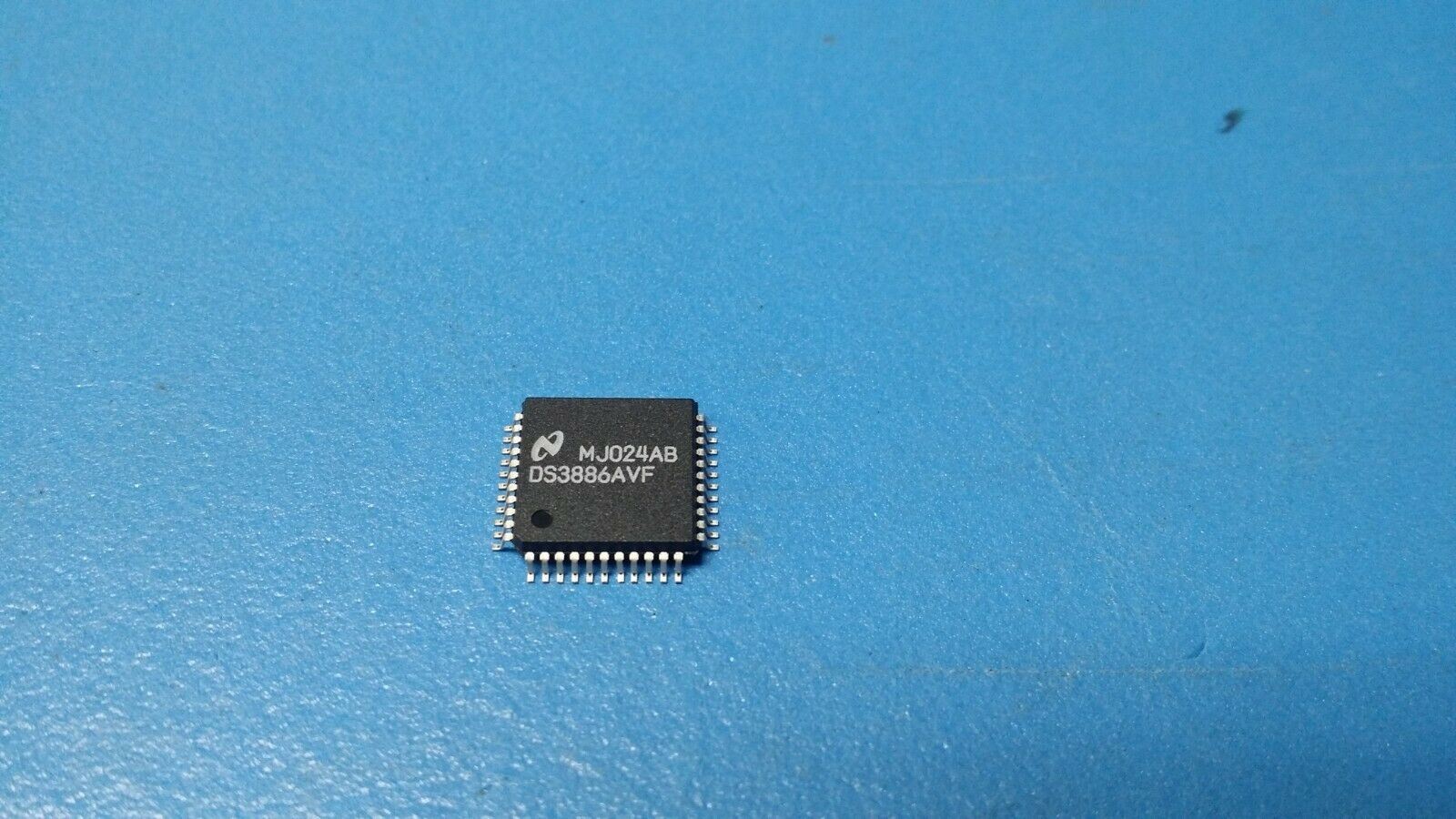

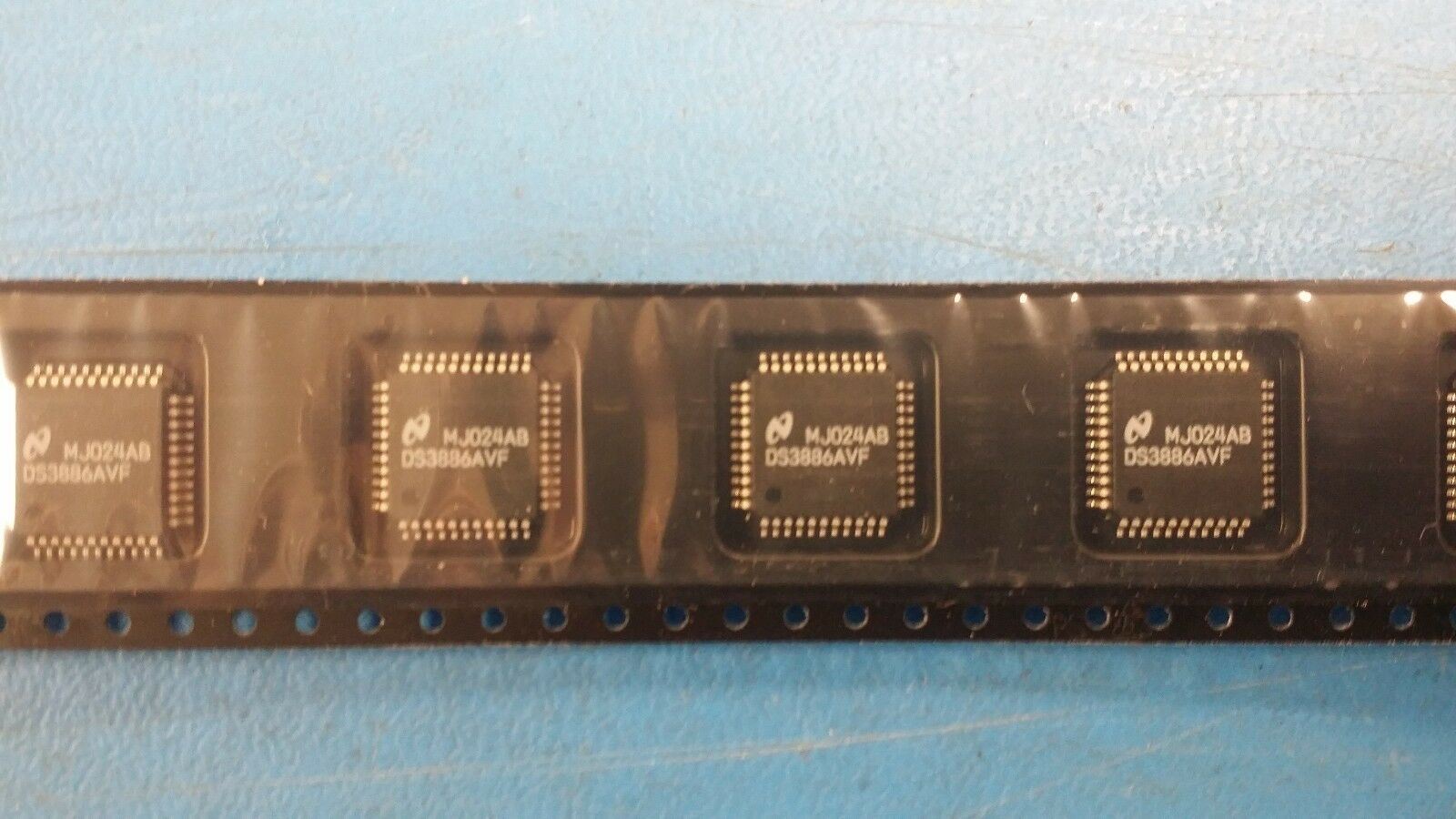

THIS LISTING IS FOR (10 PCS) OF DS3886AVF BY NSC

Line Transceiver, 9 Func, 9 Driver, 9 Rcvr, BICMOS, PQFP44

Mfr Package Description 10 X 10 MM, PLASTIC, TQFP-44

Part #: DS3886AVF

Part Category: Interface ICs

Manufacturer: (NSC) Texas Instruments High-Performance Analog

Description: Line Transceiver, 9 Func, 9 Driver, 9 Rcvr, BICMOS, PQFP44

Status Discontinued

Interface IC Type LINE TRANSCEIVER

Differential Output NO

Driver Number of Bits 9.0

Input Characteristics SCHMITT TRIGGER

Interface Standard IEEE 1194.1

JESD-30 Code S-PQFP-G44

JESD-609 Code e0

Number of Functions 9

Number of Terminals 44

Operating Temperature-Min 0.0 Cel

Operating Temperature-Max 70.0 Cel

Output Characteristics OPEN-COLLECTOR

Output Polarity INVERTED

Package Body Material PLASTIC/EPOXY

Package Code QFP

Package Shape SQUARE

Package Style FLATPACK

Qualification Status Not Qualified

Receive Delay-Max 7.0 ns

Receiver Number of Bits 9.0

Seated Height-Max 2.1 mm

Surface Mount YES

Technology BICMOS

Temperature Grade COMMERCIAL

Terminal Finish Tin/Lead (Sn/Pb)

Terminal Form GULL WING

Terminal Pitch 0.8 mm

Terminal Position QUAD

Transmit Delay-Max 5.0 ns

Length 10.0 mm

Width 10.0 mm
