(10 PCS) DM74S04N NSC Inverter IC 6 Channel 14-PDIP
Tax included.

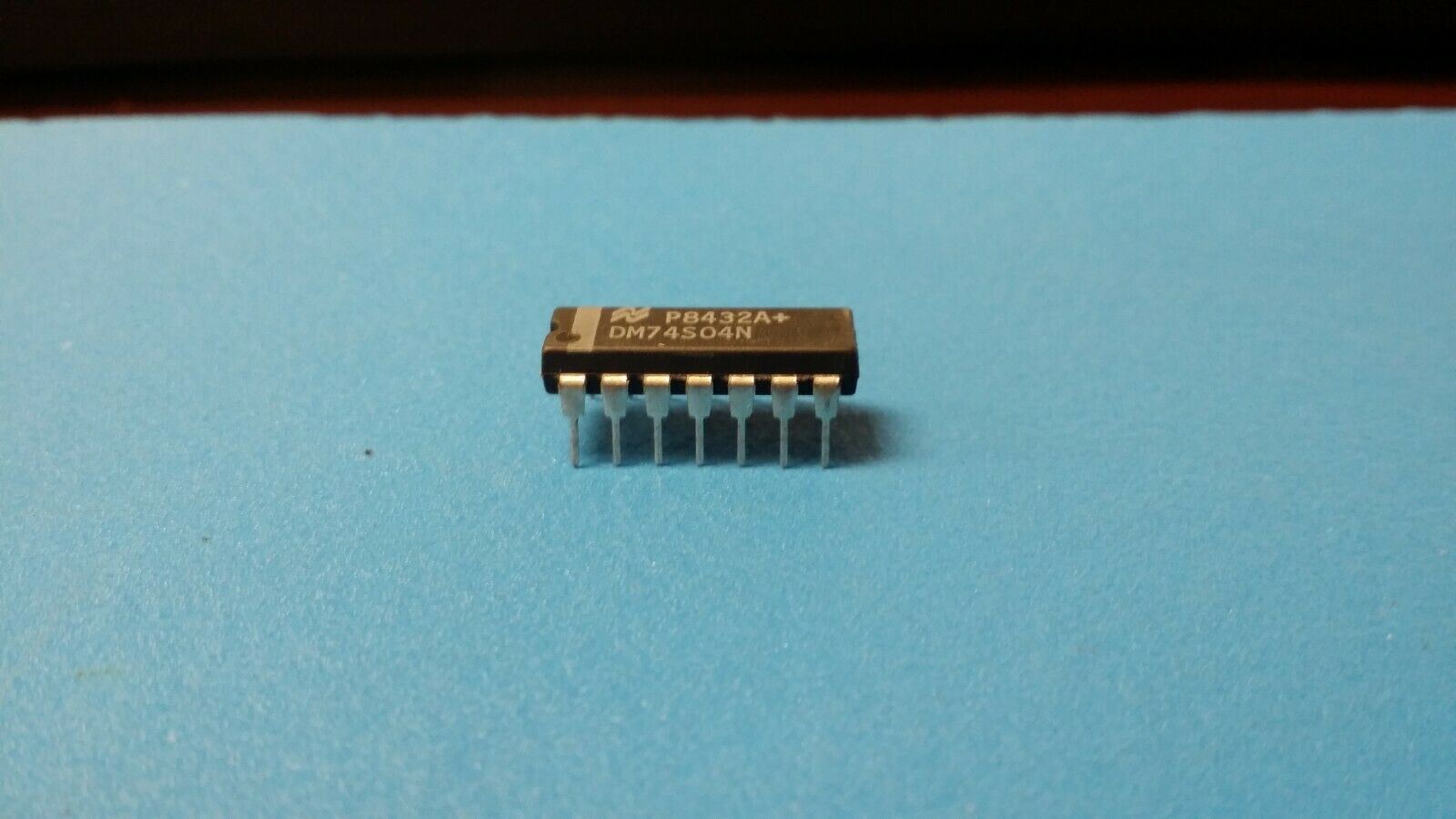

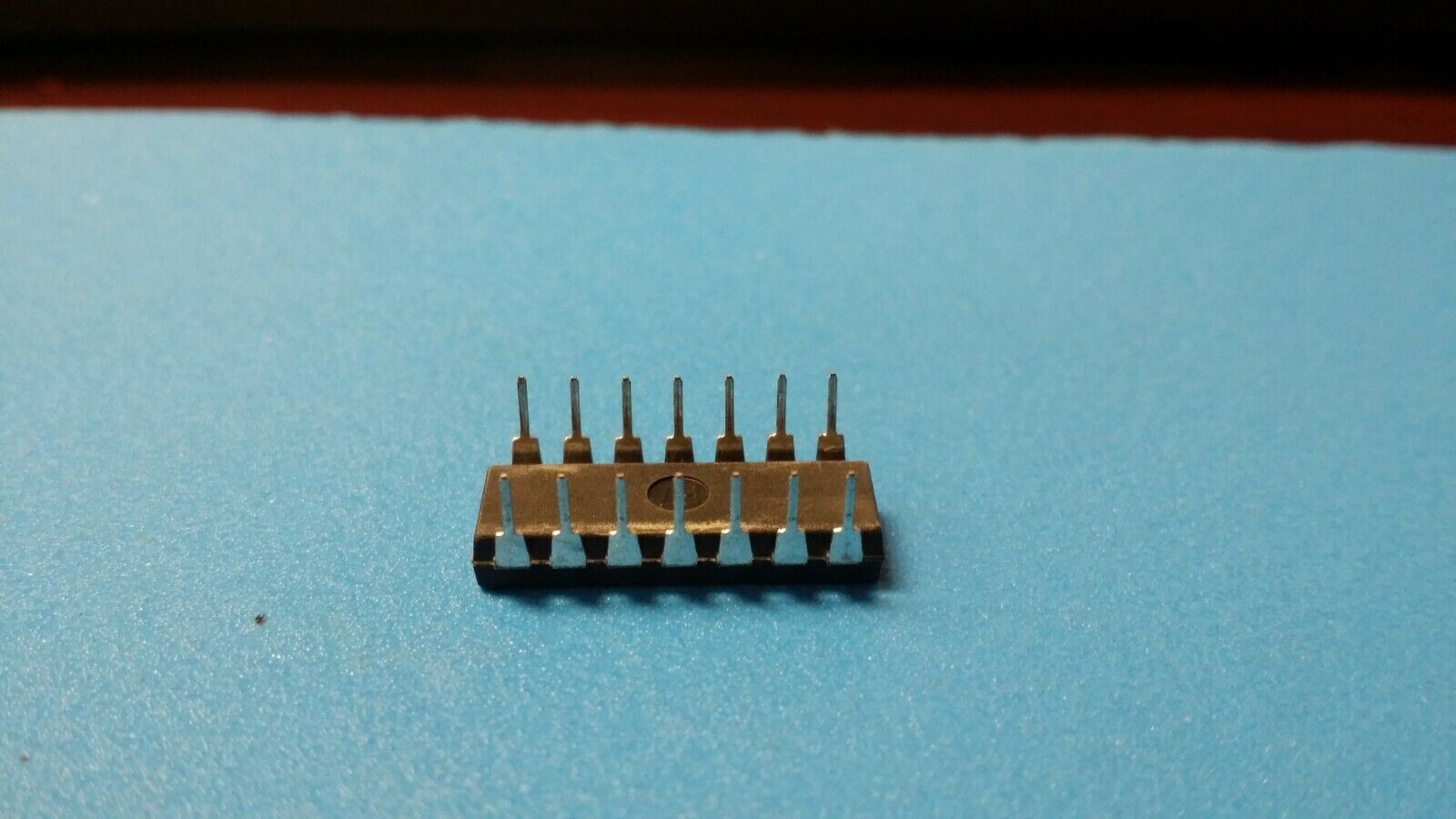

THIS LISTING IS FOR (10 PCS) OF DM74S04N BY NSC
Inverter IC 6 Channel 14-PDIP
Manufacturer National Semiconductor
Series 74S
Packaging Tube
Part Status Obsolete
Logic Type Inverter
Number of Circuits 6
Number of Inputs 6
Features -
Voltage - Supply 4.75V ~ 5.25V
Current - Output High, Low 1mA, 20mA
Logic Level - Low 0.8V
Logic Level - High 2V
Max Propagation Delay @ V, Max CL 8ns @ 5V, 50pF
Operating Temperature 0°C ~ 70°C
Mounting Type Through Hole
Supplier Device Package 14-PDIP
Package / Case 14-DIP (0.300", 7.62mm)
Base Part Number 74S04
